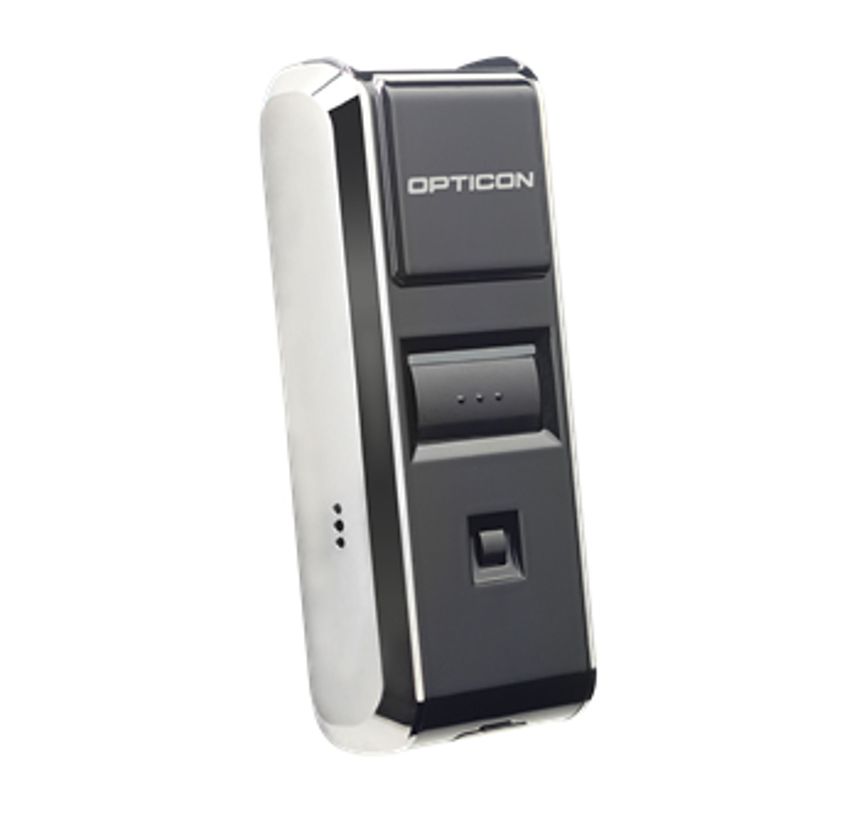

Opticon OPN-3002n Handheld bar code reader 1D/2D CMOS Black, Silver

SKU: 13168
£199.17 ex VAT
£239.00 inc VAT
Product out of stockOut of stock
  • The OPN-3002n is supplied as a ready to go functional kit including a USB cable and lanyard. With its unique ergonomic design and weighing only 60 grams the OPN-3002 is perfectly suited to being worn around the user’s neck with the lanyard supplied. The OPN-3002n has a drop resistance to 1.5 meters (no need for a special protection cover).

    Ease in use

    Using the OPN-3002n is straightforward. No special training is needed as users only need to press a trigger key to operate and a reset key to control mistakes.

  • Scanning
    TypeHandheld bar code reader
    Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
    2D (matrix & stacked) barcodes supportedAztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
    Optical sensor resolution360960 pixels
    Tilt reading angle0 - 360°
    Sensor typeCMOS
    Scanner type1D/2D
    Pitch reading angle-50 - 50°
    Ports & interfaces
    Connectivity technologyWired & Wireless
    Bluetooth version2.1+EDR
    Standard interfacesBluetooth, USB
    Performance
    LED indicatorsYes
    Keys quantity2 keys
    Housing materialABS synthetics
    Built-in displayNo
    RAM capacity0.096 MB
    Built-in processor32-bit CISC
    Processor frequency96 MHz
    Internal memory1 MB
    Product colourBlack, Silver
    CertificationCE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024
    BuzzerYes
    Design
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity2 keys
    Housing materialABS synthetics
    Product colourBlack, Silver
    CertificationCE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024
    Power
    Power source typeBattery
    Battery life10 h
    Weight & dimensions
    Width36 mm
    Depth21.5 mm
    Height83 mm
    Weight57 g
    Technical details
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity2 keys
    Housing materialABS synthetics
    Built-in displayNo
    RAM capacity0.096 MB
    Built-in processor32-bit CISC
    Processor frequency96 MHz
    Internal memory1 MB
    Product colourBlack, Silver
    CertificationCE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II, IEC62471-1, EN60950-1, IEC60950-1, EN55022, EN55024
    BuzzerYes
    Sustainability certificatesRoHS
    Packaging data
    Cables includedUSB
    Operational conditions
    Storage temperature (T-T)-20 - 60 °C
    Operating temperature (T-T)0 - 50 °C
    Operating relative humidity (H-H)20 - 85%
    Packaging content
    Cables includedUSB
