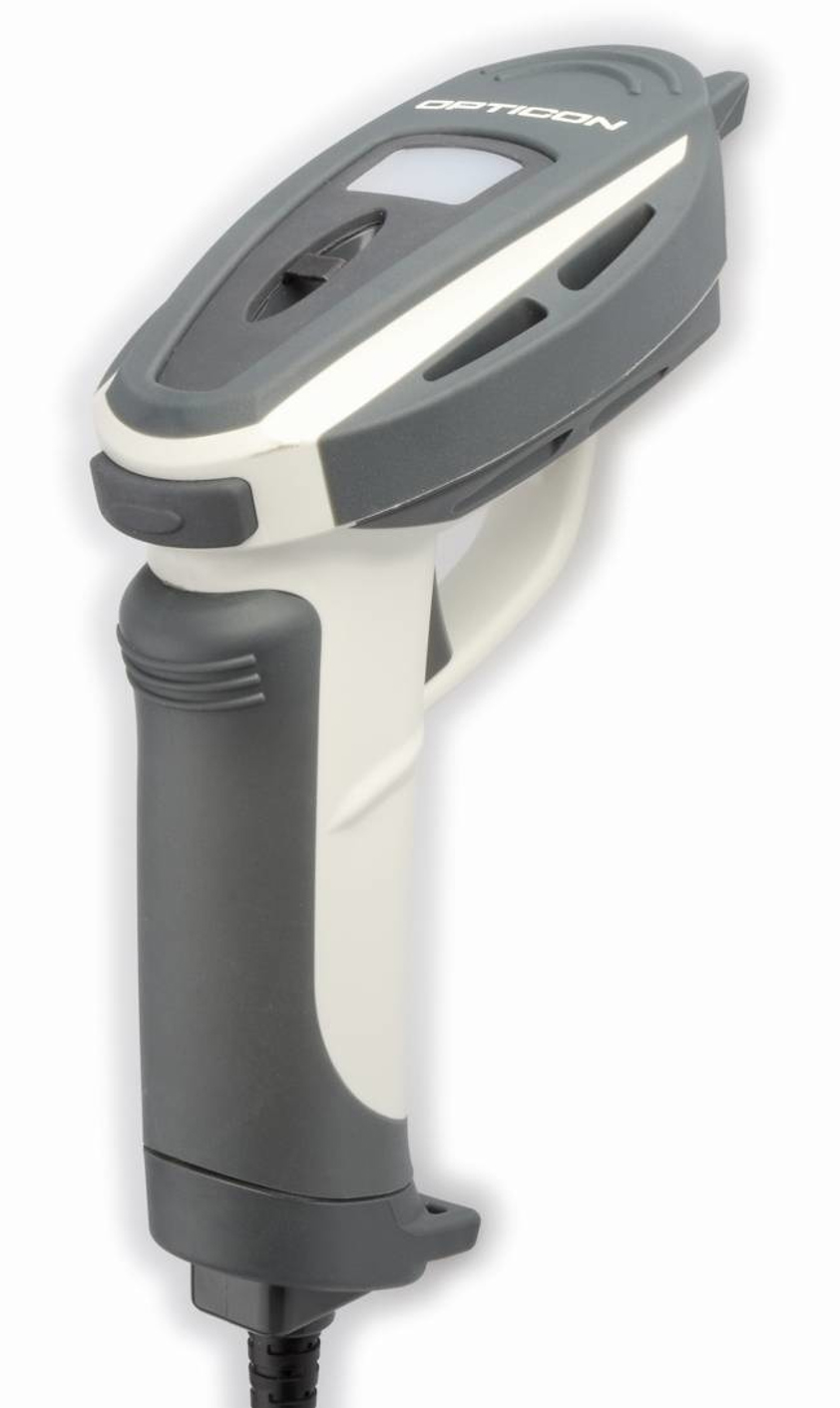

Opticon OPR-3001 1D Laser Grey

SKU: 11611
£147.26 ex VAT
£176.71 inc VAT
Product out of stockOut of stock
  • The OPR3001 is an ergonomic yet lightweight handheld scanner that scans with confidence, delivering reliability and durability in harsh conditions, extreme temperatures and humidity.

    This high-performance scanning device features a rubberized pistol grip and trigger guard, sealed up to IP 54 standards for operation in dirty and harsh conditions. The OPR3001, withstanding multiple drops up to 2 meters onto concrete, has been awarded with the Good Design Award. This is Japan's most prestigious industrial design award, from the Japan Industrial Design Promotion Organization.

    Flexible

    The OPR3001 is designed for aggressive reading of poorly printed and slightly damaged barcodes. A large and bright LED along with an adjustable tone provides a clear indication, especially suitable for operation in low-light and noisy environments. The OPR3001 is available with USB (HID), RS232 and Keyboard Wedge interface options, for easy implementation.

  • Scanning
    Linear (1D) barcodes supportedCode 11, Code 128, Code 39, Code 93
    2D (matrix & stacked) barcodes supportedMicroPDF417, PDF417
    Yaw reading angle-20 - 20°
    Wavelength650 nm
    Tilt reading angle-35 - 35°
    Sensor typeLaser
    Read rate (max)100 reads/s
    Pitch reading angle-50 - 50°
    Ports & interfaces
    Connectivity technologyWired
    USB version1.1
    Cable length1.8 m
    Standard interfacesUSB
    Performance
    Product colourGrey
    BuzzerYes
    Design
    Product colourGrey
    Power
    Power source typeAC
    Battery voltage6 V
    Battery capacity130 mAh
    Weight & dimensions
    Width68 mm
    Depth155 mm
    Height150 mm
    Weight230 g
    Technical details
    Product colourGrey
    BuzzerYes
    Operational conditions
    Operating temperature (T-T)-10 - 60 °C
    Operating relative humidity (H-H)10 - 90%
