  • Opticon OPR-3004 Handheld bar code reader 1D/2D LED Black

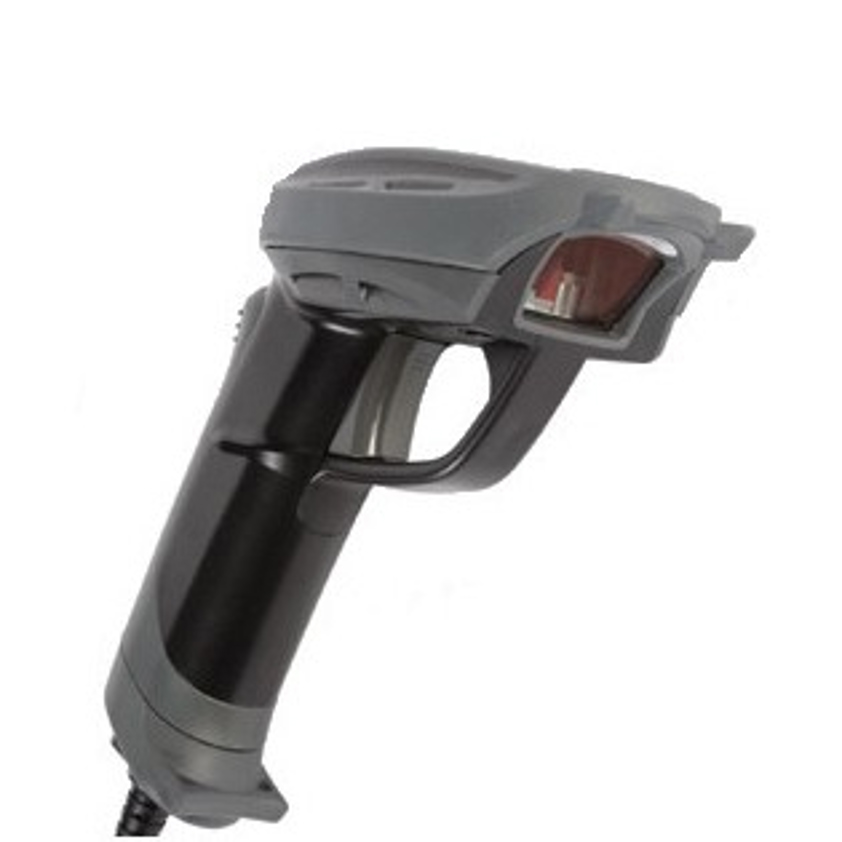

Opticon OPR-3004 Handheld bar code reader 1D/2D LED Black

SKU: 11650
£212.18 ex VAT
£254.61 inc VAT
Product out of stockOut of stock
  • The OPR3004, a long-range laser barcode scanner, quickly and efficiently scans 1D barcodes for retail, point-of-sale (POS), inventory or logistics applications. The OPR3004 scans at a range of between 23.6 inches (60 cm) and 110 inches (2.8m).

  • Scanning
    TypeHandheld bar code reader
    Linear (1D) barcodes supportedCode 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,JAN,MSI,Plessey,Telepen,Trioptic
    2D (matrix & stacked) barcodes supportedComposite Codes, MicroPDF417, PDF417
    Sensor typeLED
    Scanner type1D/2D
    Read rate (max)40 reads/s
    Light levels (direct sunlight)4000 - 80000 lx
    Ports & interfaces
    Connectivity technologyWired
    Standard interfacesUSB,RS-232
    Performance
    Keys quantity1 keys
    International Protection (IP) codeIP54
    Product colourBlack
    CertificationCE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
    Light levels (direct sunlight)4000 - 80000 lx
    Design
    TypeHandheld bar code reader
    Keys quantity1 keys
    International Protection (IP) codeIP54
    Product colourBlack
    CertificationCE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
    Power
    Power source typeUSB
    Input frequency10 - 100 Hz
    Input voltage5 V
    Weight & dimensions
    Width68 mm
    Depth150 mm
    Height155 mm
    Weight210 g
    Technical details
    TypeHandheld bar code reader
    Keys quantity1 keys
    International Protection (IP) codeIP54
    Product colourBlack
    CertificationCE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
    Operational conditions
    Storage temperature (T-T)-30 - 70 °C
    Operating temperature (T-T)-10 - 60 °C
    Operating relative humidity (H-H)5 - 95%
    Light levels (direct sunlight)4000 - 80000 lx
