  • Opticon OPR3001 Handheld bar code reader Black

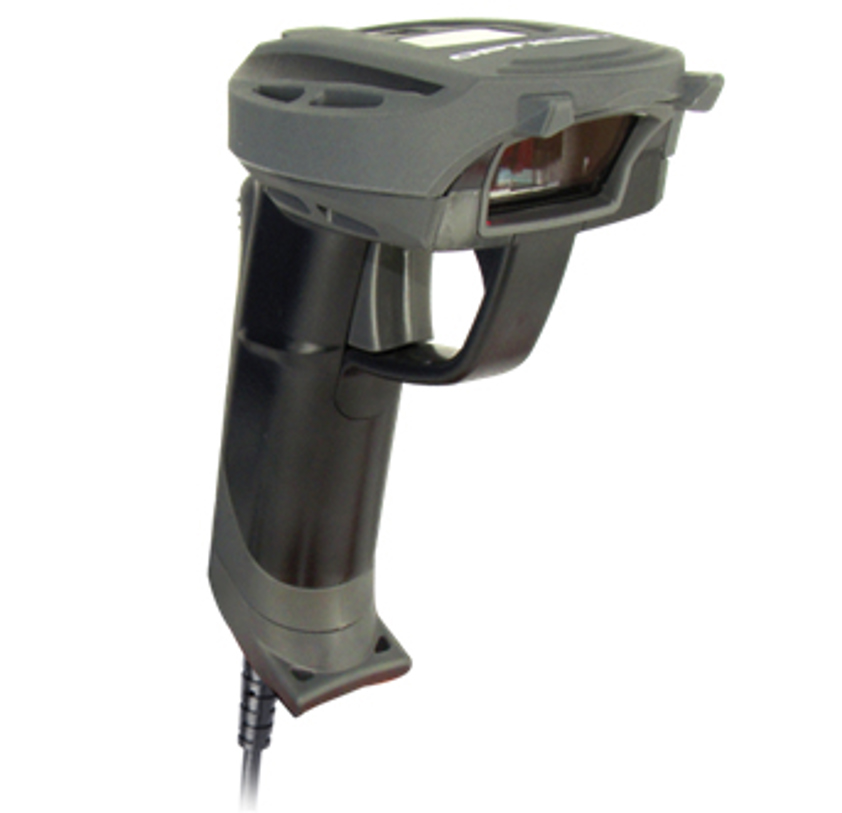

Opticon OPR3001 Handheld bar code reader Black

SKU: 11760
£147.26 ex VAT
£176.71 inc VAT
Product out of stockOut of stock
  • This high-performance scanning device features a rubberized pistol grip and trigger guard, sealed up to IP 54 standards for operation in dirty and harsh conditions. The OPR3001, withstanding multiple drops up to 2 meters onto concrete, has been awarded with the Good Design Award. This is Japan's most prestigious industrial design award, from the Japan Industrial Design Promotion Organization.

    Flexible

    The OPR3001 is designed for aggressive reading of poorly printed and slightly damaged barcodes. A large and bright LED along with an adjustable tone provides a clear indication, especially suitable for operation in low-light and noisy environments. The OPR3001 is available with USB (HID), RS232 and Keyboard Wedge interface options, for easy implementation.

  • Scanning
    TypeHandheld bar code reader
    Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, MSI, Plessey, Telepen, Trioptic, U.P.C.
    2D (matrix & stacked) barcodes supportedComposite Codes, MicroPDF417, PDF417
    Wavelength650 nm
    Tilt reading angle-20 - 20°
    Read rate (max)100 reads/s
    Pitch reading angle-35 - 35°
    Ports & interfaces
    Connectivity technologyWired
    USB version1.1
    Standard interfacesUSB
    Performance
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP54
    Product colourBlack
    CertificationCE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
    BuzzerYes
    Design
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP54
    Product colourBlack
    CertificationCE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
    Power
    Power source typeUSB
    Input voltage5 V
    Weight & dimensions
    Width68 mm
    Depth150 mm
    Height155 mm
    Weight230 g
    Technical details
    TypeHandheld bar code reader
    LED indicatorsYes
    Keys quantity1 keys
    Housing materialABS synthetics
    International Protection (IP) codeIP54
    Product colourBlack
    CertificationCE, FCC, VCCI, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
    BuzzerYes
    Sustainability certificatesRoHS
    Operational conditions
    Storage temperature (T-T)-30 - 70 °C
    Operating temperature (T-T)-10 - 60 °C
    Operating relative humidity (H-H)5 - 90%
