Opticon OPV1001 Black, Grey

SKU: 11662
£139.50 ex VAT
£167.39 inc VAT
Product out of stockOut of stock

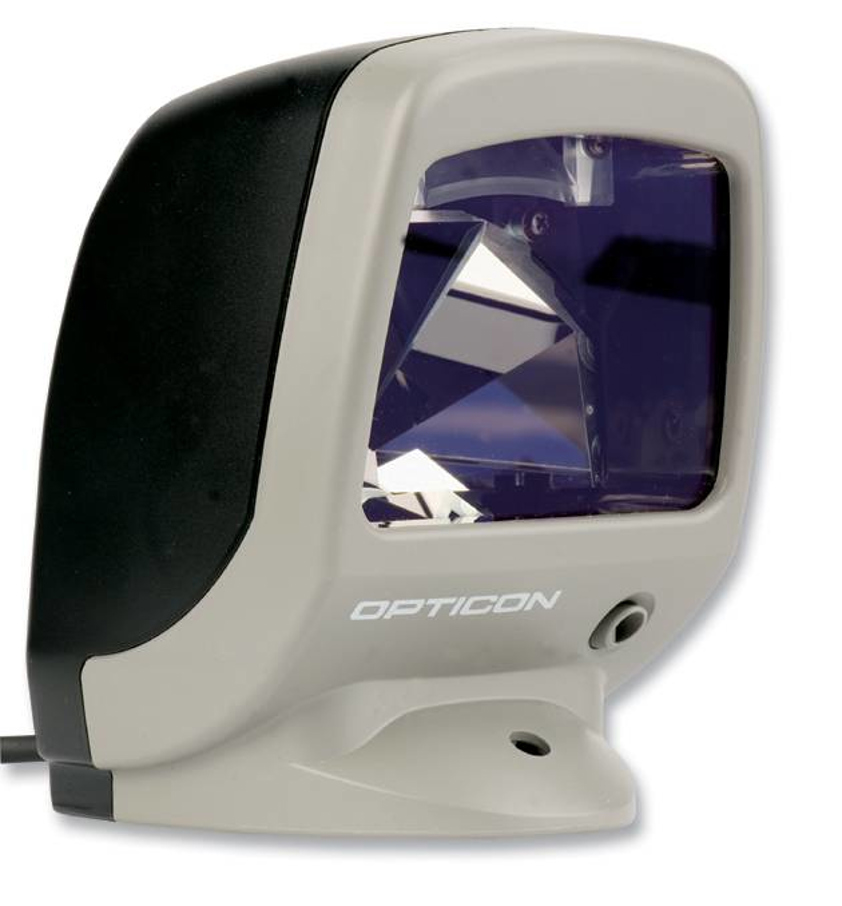

  • The OPV1001 is an omni-directional barcode scanner providing flexibility to the user. This compact device, operating at 1000 scans per second, provides flexibility to switch between handheld and presentation modes.

    In addition to a small footprint and mounting holes on the base, the OPV1001 has the flexibility to be used as freestanding unit or with an optional low profile stand. The OPV1001 has fully configurable power saving options that allow it to enter a low-power mode while not in use, instantly coming alive when detecting a barcode.

    The concentrated 20-line scan pattern provides fast operation. Configurable parameters allow the user to easily configure the scanner to match a particular application.

    The OPV1001 is standard equipped with Keyboard Wedge, RS232 and USB (HID/VCP) connector configurations.

  • Scanning
    Yaw reading angle8 - 50°
    Wavelength650 nm
    Tilt reading angle0 - 360°
    Read rate (max)1000 reads/s
    Pitch reading angle-35 - 0°
    Light levels (direct sunlight)3000 - 20000 lx
    Decoding standardsJAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Chinese Post
    Ports & interfaces
    BluetoothYes
    Standard interfacesUSB, RS-232
    Performance
    Product colourBlack, Grey
    CertificationCE, FCC, VCCI, RoHS, JIS-C-6802 1, IEC 60825-1 1, FDA CDRH I
    BuzzerYes
    Light levels (direct sunlight)3000 - 20000 lx
    Design
    Product colourBlack, Grey
    CertificationCE, FCC, VCCI, RoHS, JIS-C-6802 1, IEC 60825-1 1, FDA CDRH I
    Power
    Power consumption500 mA
    Input voltage5 V
    Weight & dimensions
    Weight200 g
    Technical details
    Light sourceLED
    Dimensions (WxDxH)71 x 79.4 x 100 mm
    Product colourBlack, Grey
    CertificationCE, FCC, VCCI, RoHS, JIS-C-6802 1, IEC 60825-1 1, FDA CDRH I
    BuzzerYes
    Operational conditions
    Storage temperature (T-T)-30 - 60 °C
    Operating temperature (T-T)0 - 40 °C
    Operating relative humidity (H-H)20 - 90%
    Light levels (direct sunlight)3000 - 20000 lx
    Other features
    Light sourceLED
    Dimensions (WxDxH)71 x 79.4 x 100 mm
