  • Socket Mobile D760 Handheld bar code reader 1D/2D LED Black, Grey, White

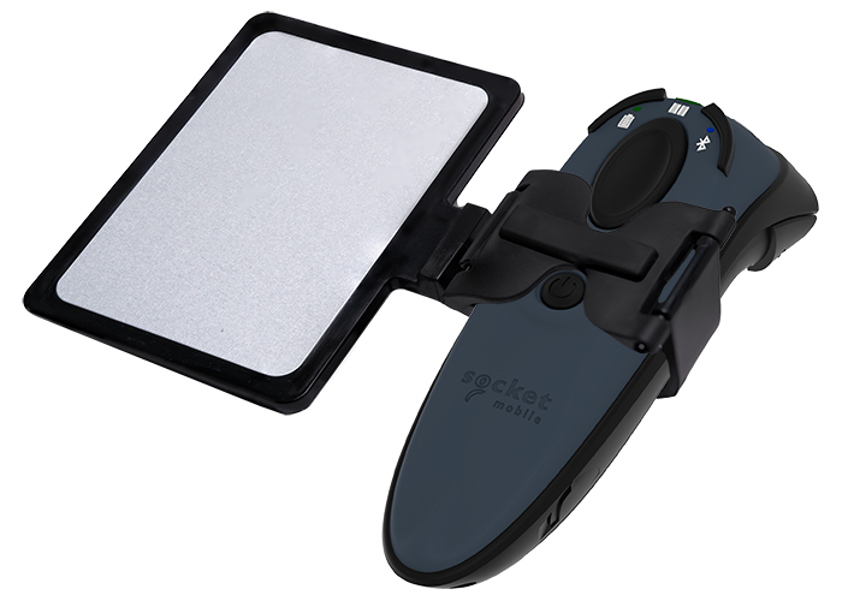

Socket Mobile D760 Handheld bar code reader 1D/2D LED Black, Grey, White

SKU: CX4353-3486
£550.40 ex VAT
£660.48 inc VAT
Product out of stockOut of stock
  • DuraScan D760

    Travel merchants only need one device to scan purchased items and passports. Based on customer feedback, we've added a field-replaceable battery. The scanner is MFi certified and fully compatible with Android and Windows, with different CaptureSDK versions available. The D760 reads OCR fonts, passports, travel IDs, DotCode, and 2D/1D barcodes on paper and screen. It features great ergonomics, fits perfectly in your hand, and is small enough to fit in your pocket. The D760 is fully backward compatible with prior versions of Socket Mobile's SDK and can be used immediately with any application using native scanning support. To enjoy optimal reliability and performance from the D760, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of CaptureSDK.

  • Scanning
    TypeHandheld bar code reader
    Linear (1D) barcodes supportedAusPost, Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Interleaved 2 of 5, JAN, MSI, Matrix 2 of 5, UPC-A, UPC-E
    2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
    Sensor typeLED
    Scanner type1D/2D
    Light levels (direct sunlight)0 - 100000 lx
    Optical sensor resolution (W x H)1280 x 960 pixels
    Ports & interfaces
    Wireless range10 m
    Connectivity technologyWireless
    Bluetooth version2.1+EDR
    Standard interfacesBluetooth
    Performance
    Protection featuresDrop proof
    LED indicatorsYes
    International Protection (IP) codeIP54
    Product colourBlack, Grey, White
    BuzzerYes
    Print contrast25%
    Light levels (direct sunlight)0 - 100000 lx
    Design
    TypeHandheld bar code reader
    Protection featuresDrop proof
    LED indicatorsYes
    International Protection (IP) codeIP54
    Product colourBlack, Grey, White
    Power
    Power source typeBattery
    Battery life25 h
    Charging time6 h
    Battery voltage3.7 V
    Number of reads per charge85000
    Battery technologyLithium Polymer (LiPo)
    Battery capacity1400 mAh
    Weight & dimensions
    Width38.1 mm
    Depth132 mm
    Height43.1 mm
    Technical details
    TypeHandheld bar code reader
    Protection featuresDrop proof
    LED indicatorsYes
    International Protection (IP) codeIP54
    Product colourBlack, Grey, White
    BuzzerYes
    Compliance certificatesRoHS
    Operational conditions
    Storage temperature (T-T)-40 - 70 °C
    Operating temperature (T-T)0 - 45 °C
    Operating relative humidity (H-H)0 - 95%
    Light levels (direct sunlight)0 - 100000 lx
