The MX240P Series industrial thermal printer is ruggedly built for high volume, high quality, label printing. Featuring our fastest print speeds ever, the MX240P Series boosts productivity with faster processing power, communications and printing speeds. It is ideal for applications that include manufacturing, logistics, shipping, and product identification.
The new high performance MX240P Series was designed to deliver 24x7 high volume performance. It features a die-cast aluminum print mechanism housed in a very strong yet lightweight cabinet. This new design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Superb resolution, great warranty
There are three models available with the MX240P Series. The MX240P prints at 203 dpi at speeds up to an amazing 18 inches per second, MX340P offers higher 300 dpi resolution at speeds up to 14 inches per second, and the MX640P features 600 dpi high resolution which makes it ideal for printing very small 2D barcodes, graphics, fine print and other ultra-high-resolution images. All TSC printers feature a standard two-year limited warranty.
Loaded with standard features
The MX240P Series printers are loaded with standard features including a color touch display with new GUI design and six menu buttons to provide a great user experience, support for 600 meter ribbons, 8" OD media rolls, built-in Ethernet, two USB hosts for keyboard and scanner connections, and USB 2.0 and serial interfaces. Parallel and GPIO ports are available as an option.
Memory to spare
The MX240P Series offers plenty of memory with 512 MB SDRAM and 512 MB FLASH, which provides easy storage of fonts, international character sets and graphics. It also includes a secure digital (SD) FLASH memory card reader for inexpensively adding up to 32 GB of memory.
Powerful TSPL-EZ Printer Programming Language
TSC ships TSPL-EZ firmware in all its printers. TSPL-EZ supports three different printer languages including TSC printer language, TPLE (Translation Printer Language Eltron), and TPLZ (Translation Printer Language Zebra). TSPL-EZ features internal scalable True Type fonts, and a BASIC interpreter with file manager for creating powerful printer interface applications with multiple type of hosts.
- High Volume Printing
- Work In Process
- Compliance Labeling
- Inventory Management
- Shipping/Receiving
- Asset Management
- Electronics & Jewelry Labeling

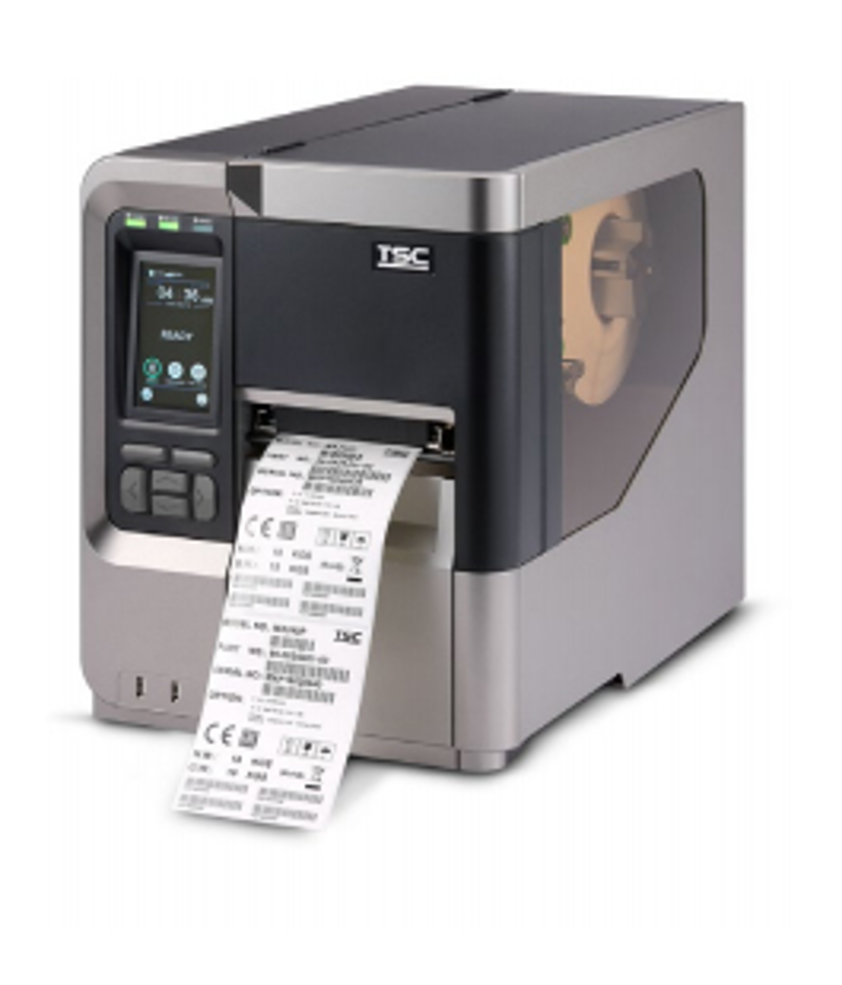

TSC MX240P label printer Direct thermal / Thermal transfer 203 x 203 DPI 457 mm/sec Wired Ethernet LAN
SKU: 99-151A001-7ALF£1,356.97 ex VAT
£1,628.36 inc VAT
Low stockPrint quality Maximum resolution 203 x 203 DPI Maximum printing width 10.4 cm Printing Minimum print length 2.54 cm Colour No Print speed 457 mm/sec Maximum resolution 203 x 203 DPI Maximum printing width 10.4 cm Print technology Direct thermal / Thermal transfer Display Display diagonal 10.9 cm (4.3") Colour display Yes Display resolution 480 x 272 pixels Backlight display Yes Display LCD Network Ethernet LAN Yes Memory Internal memory 512 MB Flash memory 512 MB Paper handling Supported paper width 20 - 114 mm Ribbon width 11.5 cm Ribbon length 600 m Media thickness 0.076 ~ 0.305 mm Maximum roll diameter 20.3 cm Maximum media length 25.4 m Core diameter 7.62 cm Ports & interfaces USB 2.0 ports quantity 1 RS-232 ports 1 Optional connectivity Parallel Connectivity technology Wired Ethernet LAN Yes USB port Yes Performance Built-in barcodes Code 93, PLESSEY, Code-128 Codabar Library, POSTNET, AZTECCODE, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), China post, EAN128, GS1 DataMatrix, MSI, Code 11, EAN13, GS1 Databar (RSS-14), MaxiCode, UPC-A, EAN8, UPC-E, Code 39, PDF417, GS1 DataBar Number of fonts 8 Ribbon width 11.5 cm Ribbon length 600 m Internal memory 512 MB Flash memory 512 MB Compatible memory cards MicroSD (TransFlash) Built-in processor Yes Certification FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR Page description languages TSPL-EZ, EPL, ZPL, ZPL II Tape end detection Yes Open cover detection Yes Design Display diagonal 10.9 cm (4.3") Colour display Yes Display resolution 480 x 272 pixels Backlight display Yes Display LCD Product colour Black, Grey Control type Buttons Built-in display Yes Certification FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR Power AC adapter output voltage 24 V AC adapter output current 5 A AC input voltage 100 - 240 V AC input frequency 50/60 Hz Power source type DC Technical details Product colour Black, Grey Built-in barcodes Code 93, PLESSEY, Code-128 Codabar Library, POSTNET, AZTECCODE, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), China post, EAN128, GS1 DataMatrix, MSI, Code 11, EAN13, GS1 Databar (RSS-14), MaxiCode, UPC-A, EAN8, UPC-E, Code 39, PDF417, GS1 DataBar Number of fonts 8 Ribbon width 11.5 cm Ribbon length 600 m Compatible memory cards MicroSD (TransFlash) Sustainability certificates ENERGY STAR Compliance certificates BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), TÜV mark, UL, cUL Processor Built-in processor Yes Certificates Certification FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR Operational conditions Storage temperature (T-T) -40 - 60 °C Storage relative humidity (H-H) 10 - 90% Operating temperature (T-T) 5 - 40 °C Operating relative humidity (H-H) 25 - 85% Weight & dimensions Width 300 mm Depth 510 mm Height 393 mm Weight 18 kg Packaging content Cables included DC Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
