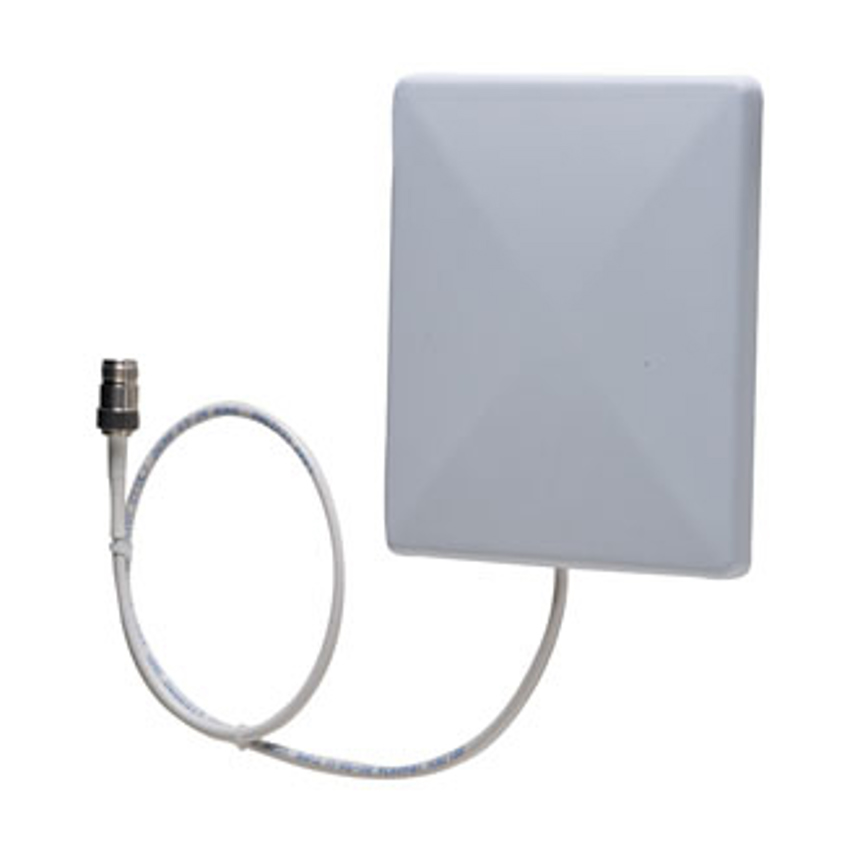

Zebra AN710 network antenna Directional antenna N-type 3 dBi

SKU: AN710-L61NF00WUS
£90.70 ex VAT
£108.84 inc VAT
Product out of stockOut of stock
  • Motorola RFID antenna family
    The AN710 RFID antennas offer all the features required for carpeted and customer-facing environments. A perfect complement to Motorola’s FX7400 RFID Reader, the AN710 antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas — for example, under the point of sale (POS) counter. The integrated mounting bracket enables easy installation in minutes.

  • Performance
    Antenna gain level (max)3 dBi
    Frequency band0.902 - 0.928 GHz
    Impedance50 Ω
    Features
    Connector genderMale
    Antenna gain level (max)3 dBi
    Frequency band0.902 - 0.928 GHz
    Antenna typeDirectional antenna
    Voltage Standing Wave Ratio (VSWR)2:1
    PurposeIndoor
    Power handling10 W
    PolarizationCircular polarization
    Impedance50 Ω
    Product colourWhite
    CertificationTAA, IEC, EN
    Antenna connector typeN-type
    Technical details
    Antenna gain level (max)3 dBi
    Frequency band0.902 - 0.928 GHz
    Antenna typeDirectional antenna
    Voltage Standing Wave Ratio (VSWR)2:1
    PurposeIndoor
    Power handling10 W
    PolarizationCircular polarization
    Operating temperature (T-T)-22 - 176 °F
    Impedance50 Ω
    Antenna connector typeN-type
    Colour
    Product colourWhite
    Certificates
    CertificationTAA, IEC, EN
    Operational conditions
    Operating temperature (T-T)-30 - 80 °C
    Storage temperature (T-T)-40 - 70 °C
    Weight & dimensions
    Weight500 g
    Width146.1 mm
    Depth17.5 mm
    Height146.1 mm
    Other features
    Dimensions (WxDxH)146.05 x 17.53 x 146.05 mm
    Operating temperature (T-T)-22 - 176 °F
