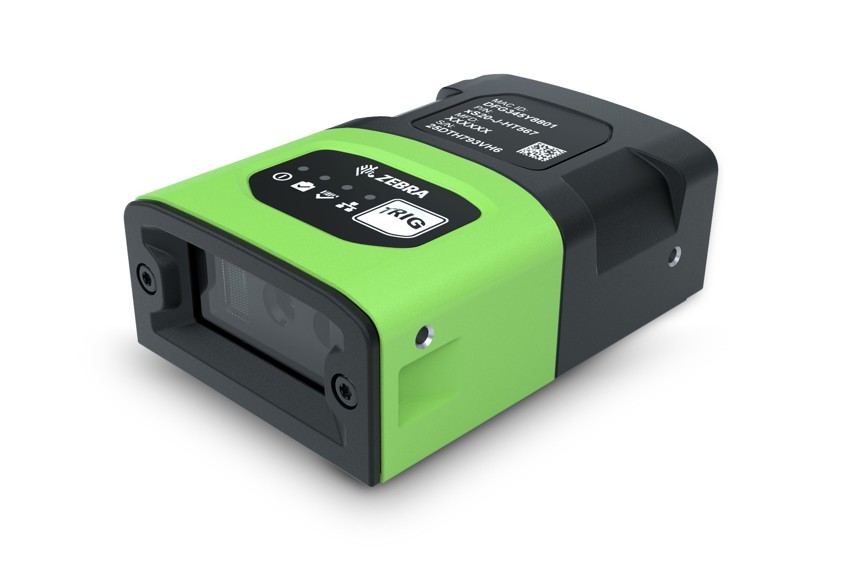

Zebra FS20-SR10F3-2C00W barcode reader Fixed bar code reader 1D/2D CMOS Black, Green

SKU: FS20-SR10F3-2C00W
£1,834.58 ex VAT
£2,201.50 inc VAT
Product in stockIn stock
  • Easily integrate high quality scanning into your network
    The increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.

    Address it all with the compact Zebra FS20 Fixed Industrial Scanner.1 With the FS20, it’s easy to track and trace every item as it moves through production, storage and fulfillment. Scan barcodes on components moving through your assembly line to ensure the right part is used at the right time — and enable rapid targeted recalls of products that contain defective parts. Scan barcodes on items as they are placed on warehouse shelves to provide visibility into real time inventory. And scan barcodes when fulfilling orders to ensure the right items are sent to the right customer. Whatever you want to track and trace, the FS20 makes it easy.

  • Scanning
    TypeFixed bar code reader
    Linear (1D) barcodes supportedCode 93, Codabar, Code 128, MSI-Plessey, U.P.C., Code 39
    2D (matrix & stacked) barcodes supportedAztec Code, PDF417, Data Matrix, QR Code, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417
    Sensor typeCMOS
    Scanner type1D/2D
    Optical sensor resolution (W x H)1280 x 800 pixels
    Horizontal field of view35°
    Vertical field of view26°
    Ports & interfaces
    Connectivity technologyWired
    Ethernet LAN data rates10,100,1000 Mbit/s
    Standard interfacesRJ-45, RS-232
    Performance
    Protection featuresVibration proof, Shock resistant
    LED indicatorsYes
    Housing materialAluminium
    International Protection (IP) codeIP65, IP67
    Product colourBlack, Green
    Design
    TypeFixed bar code reader
    Protection featuresVibration proof, Shock resistant
    LED indicatorsYes
    Housing materialAluminium
    International Protection (IP) codeIP65, IP67
    Product colourBlack, Green
    Power
    Power consumption313 mA
    Power source typeDC, PoE
    Power consumption (typical)7.5 W
    Input voltage10 - 30 V
    Weight & dimensions
    Width54.6 mm
    Depth94.2 mm
    Height28.3 mm
    Weight195 g
    Technical details
    TypeFixed bar code reader
    Protection featuresVibration proof, Shock resistant
    LED indicatorsYes
    Housing materialAluminium
    International Protection (IP) codeIP65, IP67
    Product colourBlack, Green
    Network
    Ethernet LAN data rates10,100,1000 Mbit/s
    Operational conditions
    Storage temperature (T-T)-40 - 70 °C
    Operating temperature (T-T)0 - 45 °C
    Operating relative humidity (H-H)5 - 90%
