Zebra TTP 2130 label printer Direct thermal 203 x 203 DPI 150 mm/sec Wired

SKU: 01993-000
£672.84 ex VAT
£807.41 inc VAT
Product out of stockOut of stock

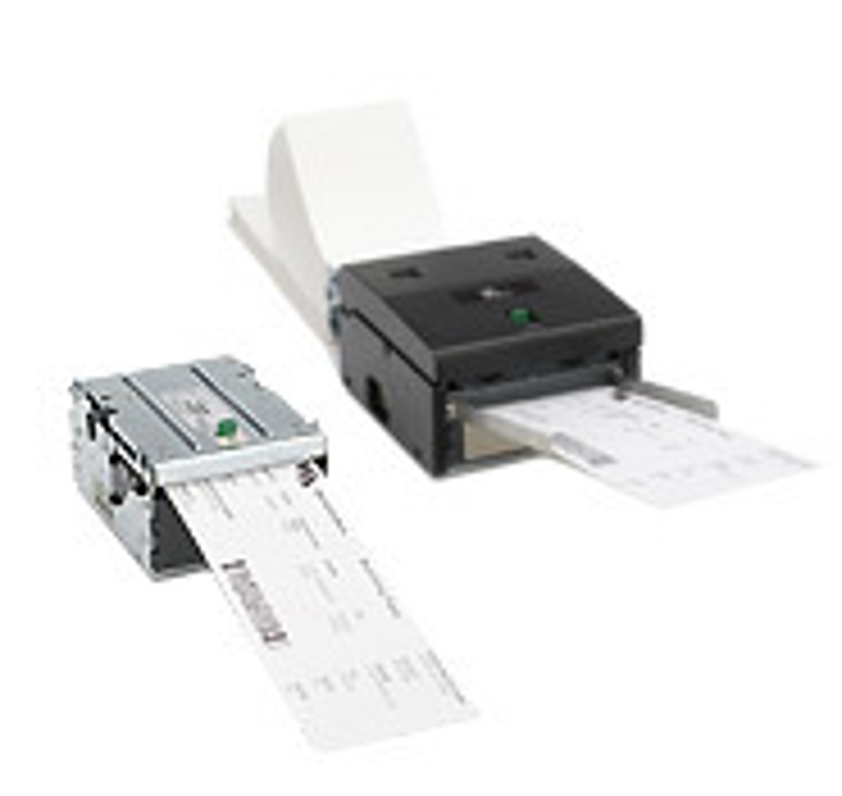

  • The TTP 2130 direct thermal printer is small enough to fit in the palm of your hand, yet robust enough for use in most ticketing applications, such as ATB1 boarding passes, bag tags, and tickets. By replacing traditional magnetic stripe technology with a simple linear or 2-D bar code, the TTP 2130 eliminates the costliest component in a ticketing system and offers a more economical alternative to traditional solutions. The automatic media detector makes it possible to load boarding passes or bag tags without adjustment. The ticket format is variable up to 82.5 mm/3.25" wide and 600 mm/23.6"long – so the TTP 2130 is ideal for printing ATB1 boarding passes, and IATA CUSS bag tags (with lengths up to 533 mm/21"). The TTP 2130 series’ compact size makes the desktop version an attractive choice for both attended and unattended ticketing applications, while the embedded version fits neatly in kiosk designs.

    -USB interface.
    -Compact size.
    -2-D bar coding.
    -Prints ATB1 boarding passes, bag tags, and tickets.
    -Media sensors - out-of-paper, paper in Presenter, top of the form selectalbe for fork or refelctive settings, input for external paper-low sensor.

  • Print quality
    Maximum resolution203 x 203 DPI
    Printing
    ColourNo
    Print speed150 mm/sec
    Maximum resolution203 x 203 DPI
    Print technologyDirect thermal
    Paper handling
    Media thickness (imperial)0.004 - 0.01"
    Media thickness0.11 - 0.26 mm
    Core diameter7.6 cm
    Ports & interfaces
    USB 1.1 ports quantity1
    Connectivity technologyWired
    Performance
    Built-in barcodesCode 39, Interleaved 2/5
    Weight & dimensions
    Dimensions (WxDxH)105 x 145 x 65 mm
    Weight1.1 kg
    Power
    Power requirements24 VDC
    AC adapter output current2 A
    Technical details
    Built-in barcodesCode 39, Interleaved 2/5
    Weight (imperial)1.09 kg (2.4 lbs)
    System requirements
    Compatible operating systemsWindows 2000, XP, Server 2003, OPOS
    Operational conditions
    Storage temperature (T-T)14 - 122 °F
    Storage temperature (T-T)-10 - 50 °C
    Storage relative humidity (H-H)10 - 90%
    Operating temperature (T-T)0 - 50 °C
    Operating relative humidity (H-H)35 - 75%
    Other features
    Dimensions (WxDxH)105 x 145 x 65 mm
    Weight (imperial)1.09 kg (2.4 lbs)
