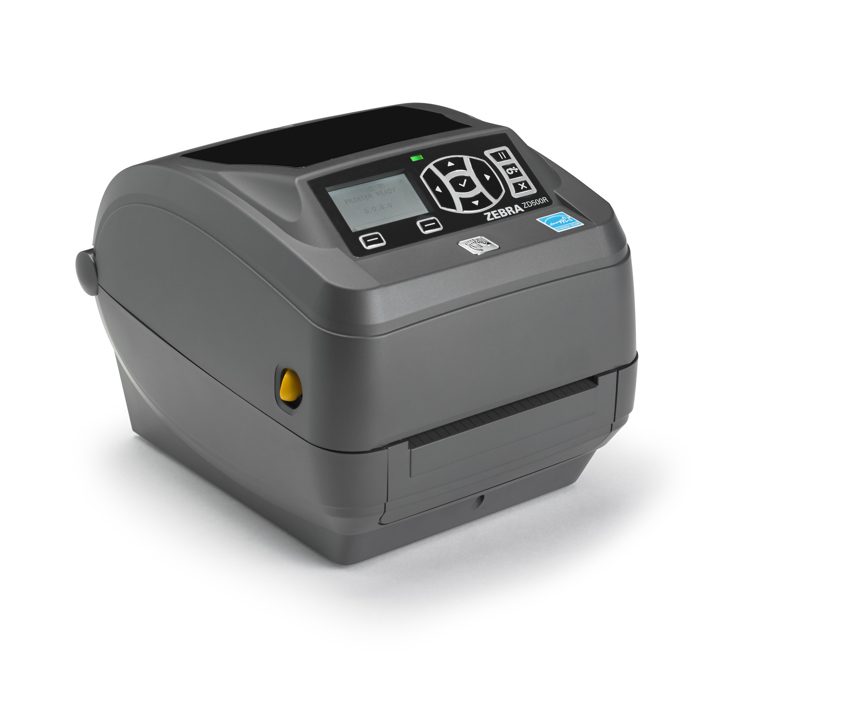

Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you’ll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, it is ideal for numerous applications such as retail tagging, and manufacturing, government and healthcare tracking. The ZD500R extends Zebra’s broad range of RFID printers by adding UHF RFID printing and encoding to Zebra’s line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in-store exception tagging. The printer supports both direct thermal and thermal transfer printing and is compatible with inlays from all leading suppliers. The ZD500R can be used with a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. By encoding RFID inlays that are spaced closer together, the ZD500R enables lower media costs, less media waste and fewer roll changes. The printer can handle the most demanding applications with standard features that include Parallel, Serial, USB and Ethernet connectivity; large memory; and Zebra programming language. Options include cutter and peeler, Bluetooth and Wi-Fi-certified communications, and high-resolution printing. The ZD500R leverages Zebra’s new Link-OS™ environment—Zebra’s innovative software platform with powerful applications that enhance the capabilities of the printer, making it significantly easier to integrate into global operations and manage from any location. Featuring the Link-OS Cloud Connect application, the ZD500R can connect to the Cloud directly and securely, forwarding data from any port. The Link-OS Print Touch™ app allows users to pair the ZD500R to NFC-enabled devices with a simple tap, giving them immediate access to the data they need, including Zebra how-to videos and product support.
SKU: ZD50042-T0E3R2FZZebra ZD500R label printer Direct thermal / Thermal transfer 203 x 203 DPI Wired & Wireless
£1,522.38 ex VAT
£1,826.86 inc VAT
Out of stockPrint quality Maximum resolution 203 x 203 DPI Maximum printing width 10.4 cm Maximum print height 99 cm Printing Colour No Print speed 152 mm/sec Maximum resolution 203 x 203 DPI Maximum printing width 10.4 cm Maximum print height 99 cm Print technology Direct thermal / Thermal transfer Display Display LCD Network Wi-Fi Yes Ethernet LAN Yes Memory Internal memory 128 MB Flash memory 256 MB Paper handling Supported paper width 33.8 - 109.2 mm Ribbon width 10.9 cm Ribbon length 74 m Media thickness 0.08 - 0.305 mm Maximum roll diameter 12.7 cm Maximum media length 99 cm Maximum label width 10.8 cm Maximum label length 0.99 m Core diameter 1.27 cm Ports & interfaces USB 2.0 ports quantity 1 RS-232 ports 1 Parallel ports quantity 1 Connectivity technology Wired & Wireless Bluetooth version 3.0+HS Bluetooth Yes Wi-Fi Yes Ethernet LAN Yes USB port Yes Performance Built-in barcodes 2D, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E Ribbon width 10.9 cm Ribbon length 74 m Internal memory 128 MB Flash memory 256 MB Built-in RFID module Yes Design Display LCD Product colour Black Technical details Cabling technology 10/100Base-T(X) Product colour Black Built-in barcodes 2D, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E Ribbon width 10.9 cm Ribbon length 74 m Maximum label width 10.8 cm Maximum label length 0.99 m Built-in RFID module Yes Sustainability certificates ENERGY STAR Harmonized System (HS) code 84433210 Operational conditions Storage temperature (T-T) -40 - 60 °C Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 4.4 - 41 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Width 193 mm Depth 254 mm Height 191 mm Weight 2.2 kg Other features Cabling technology 10/100Base-T(X) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
