  • Zebra ZE500R label printer Direct thermal / Thermal transfer 300 x 300 DPI 305 mm/sec Wired Ethernet LAN

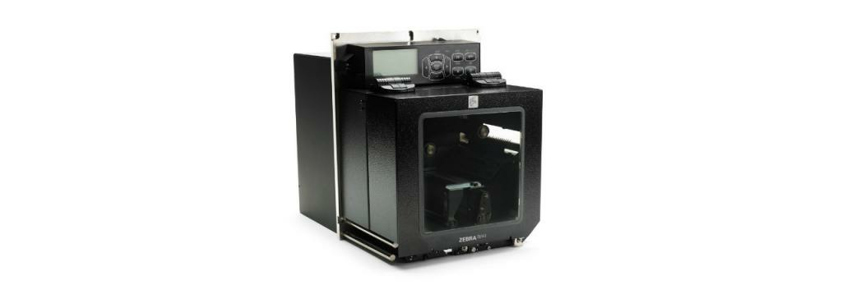

Zebra ZE500R label printer Direct thermal / Thermal transfer 300 x 300 DPI 305 mm/sec Wired Ethernet LAN

SKU: ZE50043-L0E0R10Z
£5,235.17 ex VAT
£6,282.20 inc VAT
Product out of stockOut of stock
  • ZE500 Print Engines
    The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.

    Used For:
    - Cross Docking;
    - Receiving/Shipping;
    - Compliance Labeling;
    - Order Labeling.

    The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.

    Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.

    The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.

  • Print quality
    Maximum resolution300 x 300 DPI
    Maximum printing width10.4 cm
    Printing
    ColourNo
    Print speed305 mm/sec
    Maximum resolution300 x 300 DPI
    Maximum printing width10.4 cm
    Print technologyDirect thermal / Thermal transfer
    Display
    DisplayLCD
    Network
    Wi-FiNo
    Ethernet LANYes
    Memory
    Internal memory16 MB
    Flash memory64 MB
    Paper handling
    Ribbon width10.7 cm
    Ribbon length600 m
    Media thickness0.254 mm
    Maximum roll diameter10.2 cm
    Maximum media length3.81 m
    Maximum label width11.4 cm
    Core diameter2.54 cm
    Ports & interfaces
    USB 2.0 ports quantity1
    RS-232 ports1
    Parallel ports quantity1
    Connectivity technologyWired
    Wi-FiNo
    Ethernet LANYes
    USB portYes
    Performance
    Built-in barcodes1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
    Ribbon width10.7 cm
    Ribbon length600 m
    Processor frequency133 MHz
    Internal memory16 MB
    Flash memory64 MB
    Built-in RFID moduleYes
    Built-in processorYes
    CertificationIEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
    Page description languagesXML, ZPL, ZPL II
    Design
    DisplayLCD
    Product colourBlack
    CertificationIEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
    Technical details
    Product colourBlack
    Built-in barcodes1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
    Ribbon width10.7 cm
    Ribbon length600 m
    Maximum label width11.4 cm
    Built-in RFID moduleYes
    Sustainability certificatesENERGY STAR
    Harmonized System (HS) code84433210
    Processor
    Processor frequency133 MHz
    Built-in processorYes
    Certificates
    CertificationIEC, EN, NRTL, CE, FCC, CCC, ICES, VCCI, NOM, KCC, BSMI, S-Mark, C-Tick, Gost-R
    Software
    Bundled softwareZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer
    Operational conditions
    Storage temperature (T-T)-40 - 71 °C
    Storage relative humidity (H-H)5 - 95%
    Operating temperature (T-T)0 - 40 °C
    Operating relative humidity (H-H)20 - 85%
    Weight & dimensions
    Width245 mm
    Depth379 mm
    Height300 mm
    Weight15.4 kg
    Packaging content
    Bundled softwareZebraDesigner Pro ZebraNet Bridge Enterprise ZBI 2.0 ZBI-Developer
    Logistics data
    Harmonized System (HS) code84433210
