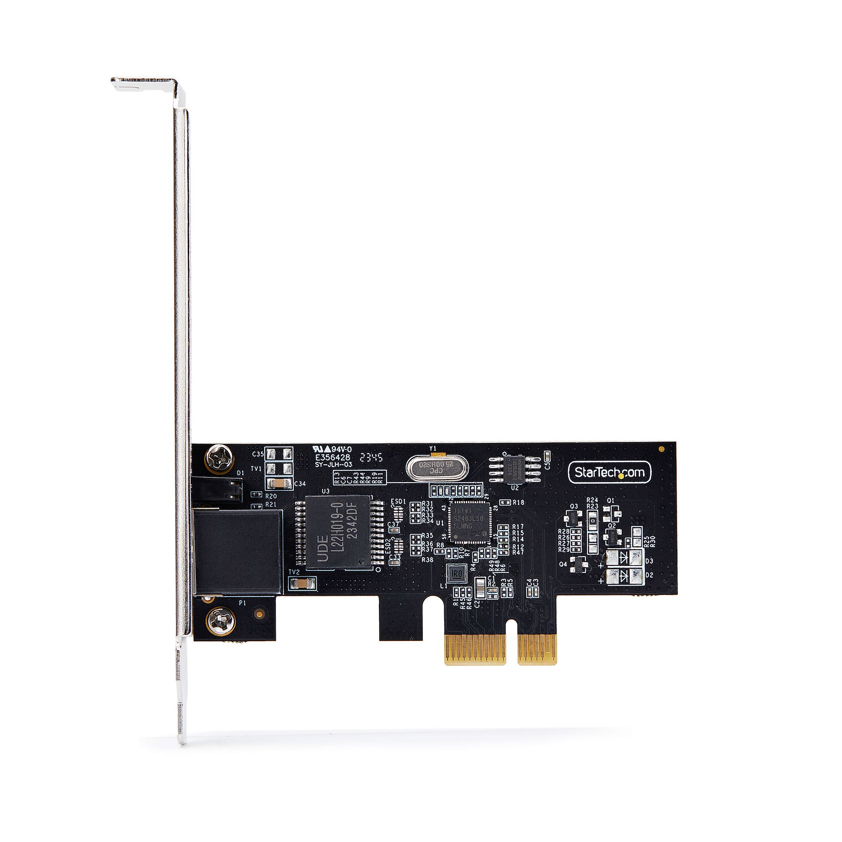

PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTP, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds over Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

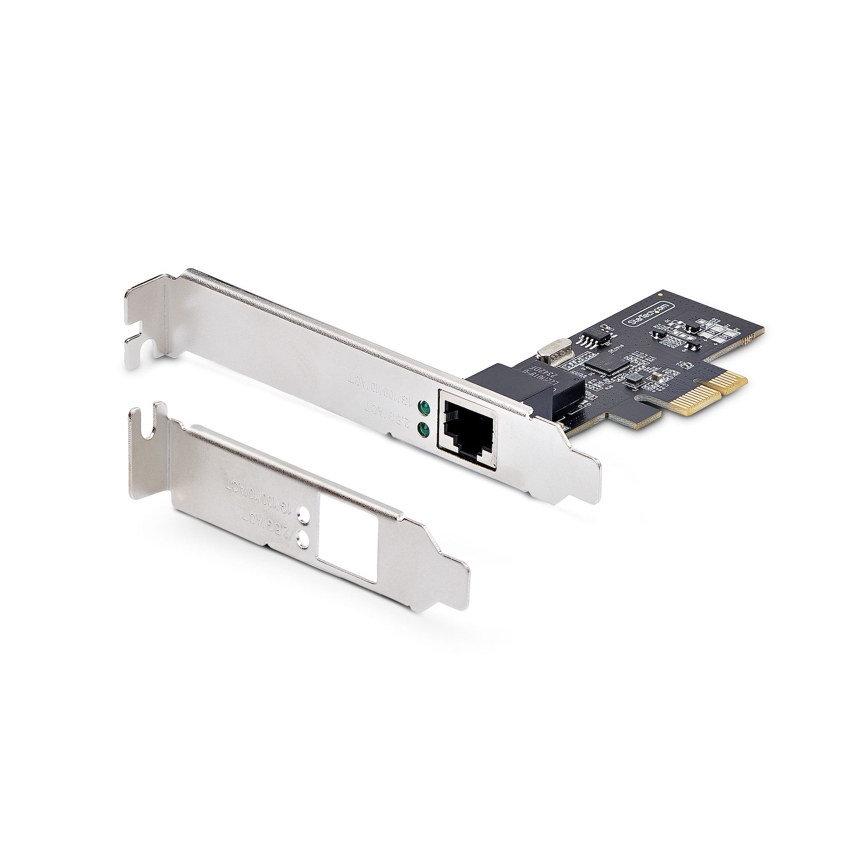

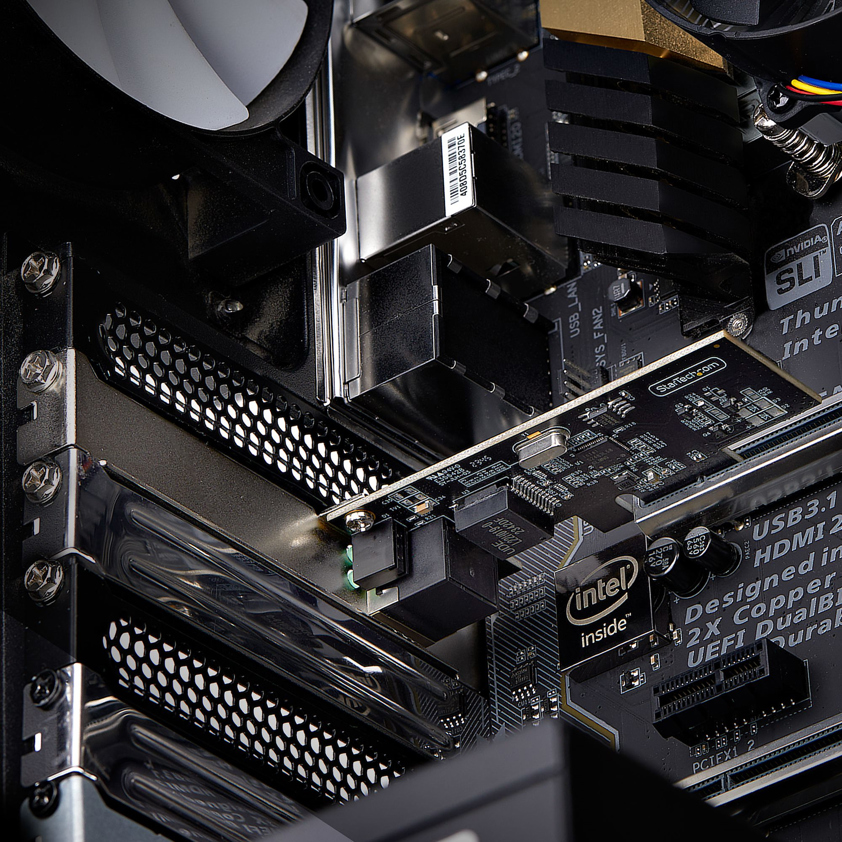

The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This Ethernet NIC card is compatible with Windows, Windows Server, and Linux.
This card supports the following advanced features: PXE boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.
The StarTech.com Advantage
StarTech.com 1-Port 2.5Gbps NBASE-T PCIe Network Card, Intel® I225-V, Single-Port Computer Network Card, Ethernet MultiGigabit NIC, PCI Express Server LAN Card
SKU: PR12GI-NETWORK-CARD£32.59 ex VAT
£39.11 inc VAT
In stockPorts & interfaces Internal Yes PCI version 2.0 Ethernet LAN (RJ-45) ports 1 Interface Ethernet Host interface PCI Express Connectivity technology Wired Bandwidth Full duplex Yes Maximum data transfer rate 2500 Mbit/s Network Chipset Intel I225-V Jumbo frames 9000 Networking standards IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u Wake-on-LAN ready Yes Auto MDIX IEEE Yes Jumbo frames support Yes Full duplex Yes Ethernet LAN data rates 10,100,1000,2500 Mbit/s Maximum data transfer rate 2500 Mbit/s Auto-negotiation Yes Technical details Product colour Black Wake-on-LAN ready Yes Auto MDIX IEEE Yes Design Product colour Black Chipset Intel I225-V Internal Yes LED indicators Yes Component for PC/Server Software Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 Linux operating systems supported Yes Indication LED indicators Yes System requirements Server operating systems supported Windows Server 2019, Windows Server 2022 Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 Linux operating systems supported Yes Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensions Width 89 mm Depth 121 mm Height 15 mm Weight 100 g Package width 170 mm Package depth 142 mm Package height 30 mm Packaging data Package width 170 mm Package depth 142 mm Package height 30 mm Mounting brackets included Yes Quick installation guide Yes Packaging content Mounting brackets included Yes Quick installation guide Yes Performance Server operating systems supported Windows Server 2019, Windows Server 2022 Wake-on-LAN ready Yes Auto MDIX IEEE Yes Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 Linux operating systems supported Yes Auto-negotiation Yes Other features Chipset Intel I225-V Jumbo frames 9000 Logistics data Master (outer) case width 605 mm Master (outer) case length 385 mm Master (outer) case height 325 mm Products per master (outer) case 80 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
