60W Ultra PoE Kit | 60W Over 100 m | 802.3af/at/bt Compatible | 10/100/1000Mbps
This 60W PoE Injector + PoE Splitter Kit comes with a 60W Power over Ethernet injector, adding PoE via PoE.
60 Watt Ultra Power Over Ethernet
Compliant with IEEE 802.3bt and supporting up to 60 watts of PoE, you can do more than just power your IP phone or wireless router. 60W PoE can support your higher-powered devices such as thin clients, POS systems, laptops or digital signage, from up to 100 meters away.
Easy to Deploy

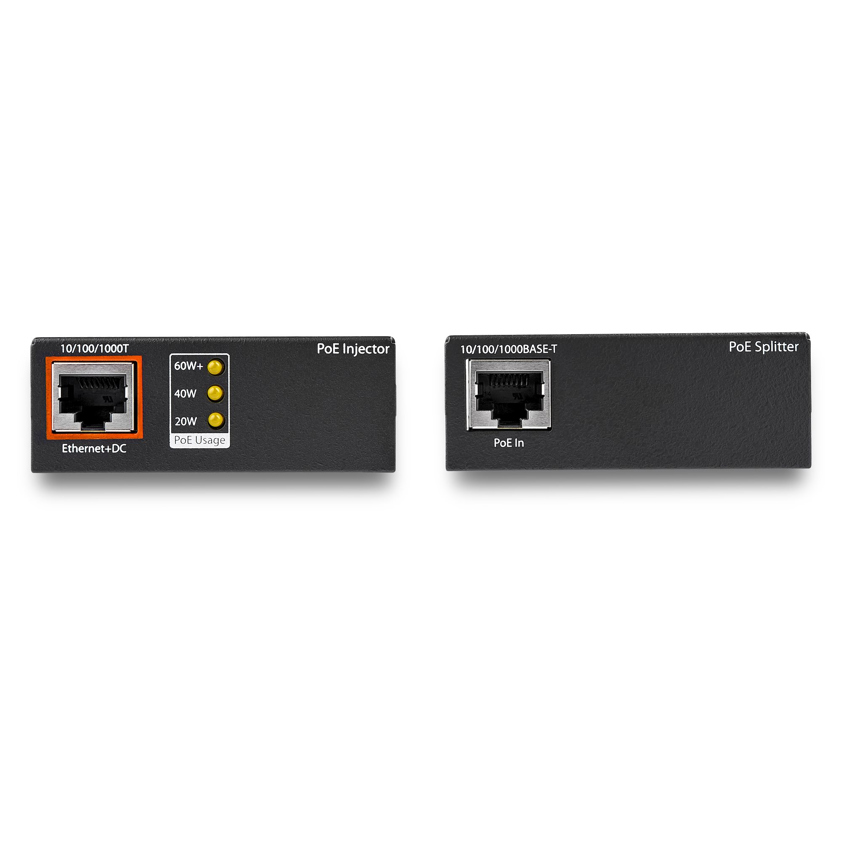

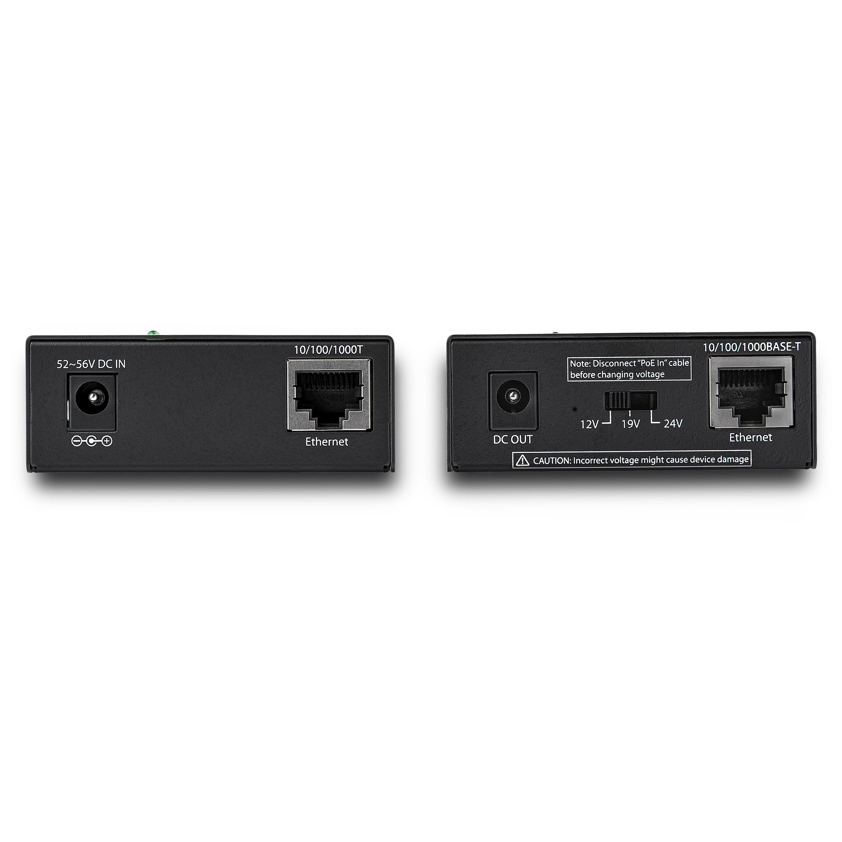

The PoE injector and PoE splitter are both simple to set up. Supporting plug-and-play installation, they also feature a compact, all-in-one design, and a durable, wall-mountable metal housing. The PoE splitter’s 12V/19V/24V DIP switch on the front panel offers either 24V DC power to industrial equipment or 12V/19V DC output to common network devices, increasing the number of product applications.
StarTech.com Networking IO
StarTech.com offers networking products that extend your networks to remote locations at extreme distances, for maximum network scalability. This Port 60W PoE Injector + PoE Splitter Kit is backed by a 2-year warranty and free lifetime North American based multilingual technical support.
The StarTech.com Advantage
StarTech.com 1 Port Gigabit PoE Injector & Splitter Kit - 60W High Power over Ethernet Injector 100m/12-24V DC Splitter 802.3bt Midspan Single Port Ultra PoE LAN/RJ45 Security/Monitoring
SKU: UPOESPLT1G£136.65 ex VAT
£163.99 inc VAT
Out of stockPerformance Jumbo frames support No Flow control support No Plug and Play Yes Type Network transmitter & receiver Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 1000 Mbit/s Mean time between failures (MTBF) 50000 h Auto MDIX IEEE No Technical details Jumbo frames support No Flow control support No Plug and Play Yes LED indicators PoE, System Type Network transmitter & receiver Maximum transfer distance 100 m Power over Ethernet (PoE) Yes Data transfer rate 1000 Mbit/s Auto MDIX IEEE No Harmonized System (HS) code 85176990 Compliance certificates CE, RoHS Network Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u Ports & interfaces DC-in jack Yes Ethernet LAN (RJ-45) ports 5 Design Housing material Metal LED indicators PoE, System Product colour Black, Brown Power Power over Ethernet (PoE) voltage range 12 - 24 V Power over Ethernet (PoE) Yes AC input voltage 100 - 240 V Input current 2 A Power consumption (typical) 71.82 W Output current 1.33 A Total Power over Ethernet (PoE) budget 60 W Included power plug types AU, EU, JP, NA, UK Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensions Width 233 mm Depth 390 mm Height 85 mm Weight 300 g Colour Product colour Black, Brown Endurance Mean time between failures (MTBF) 50000 h Packaging content Manual Yes Cables included LAN (RJ-45) Packaging data Package width 334 mm Package depth 284 mm Package height 70 mm Package weight 1.9 kg Logistics data Master (outer) case width 430 mm Master (outer) case length 545 mm Master (outer) case height 275 mm Products per master (outer) case 6 pc(s) Harmonized System (HS) code 85176990 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
