Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

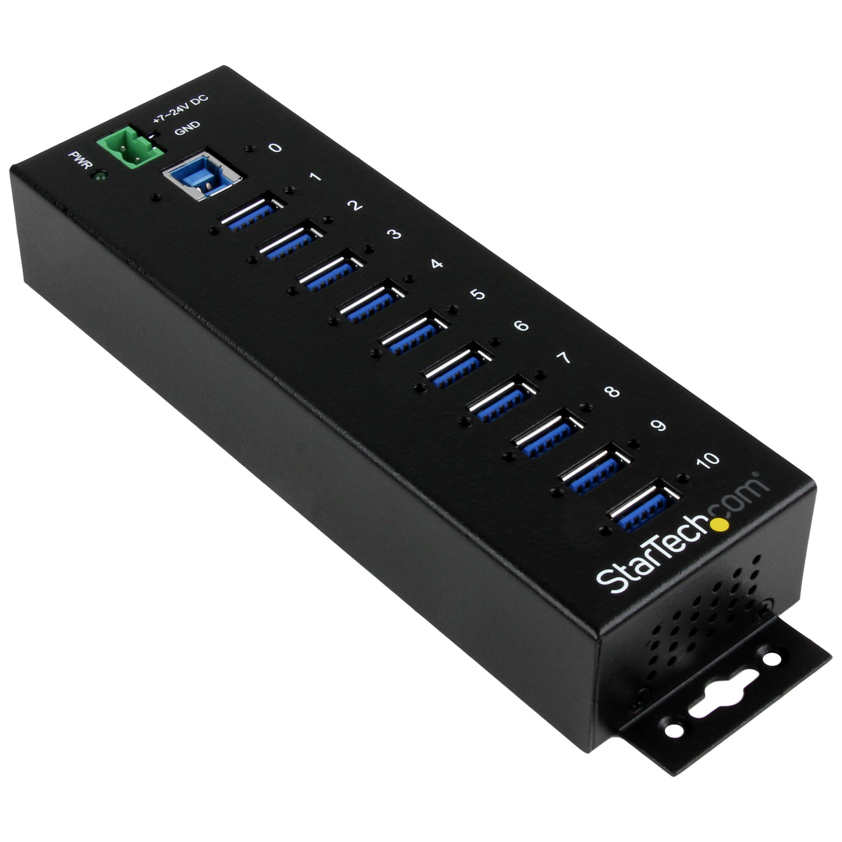

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices

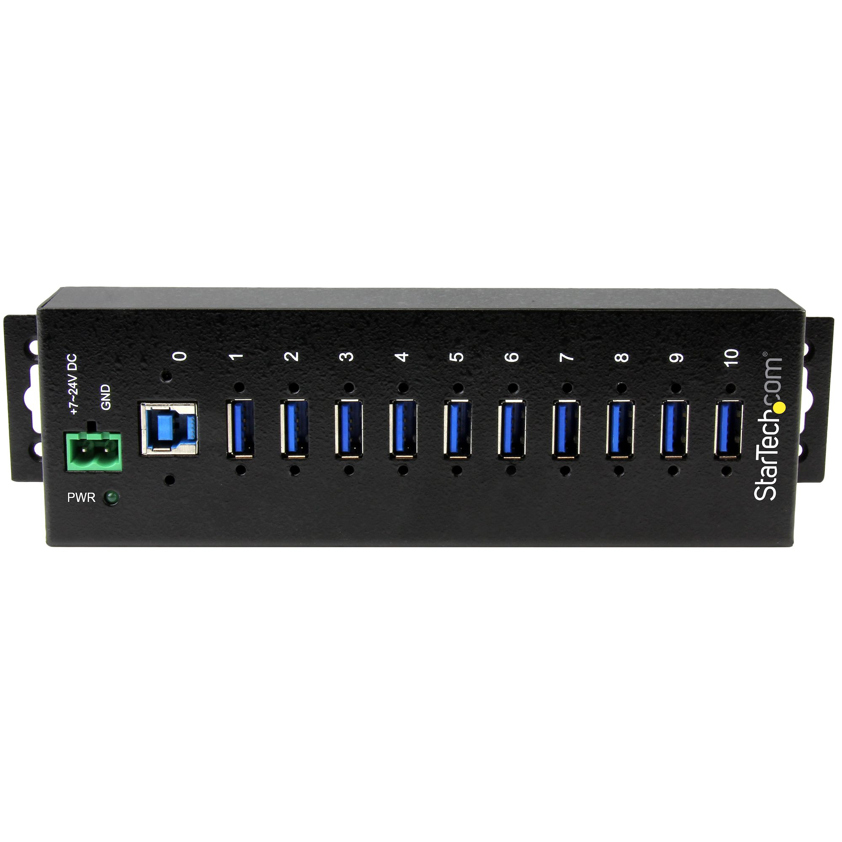

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need it Most

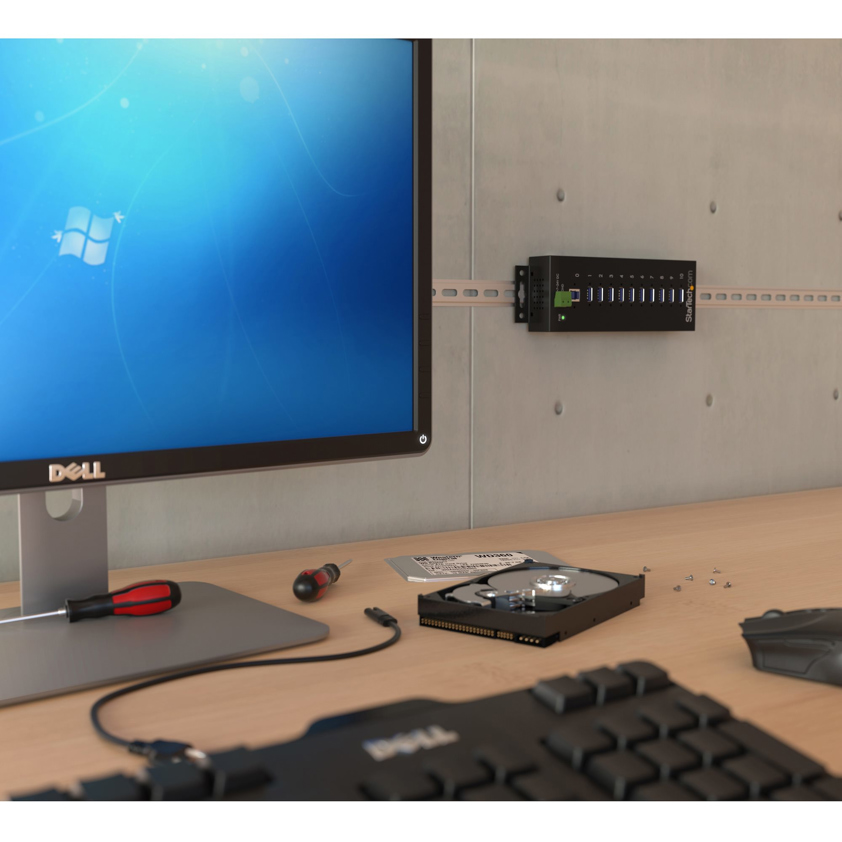

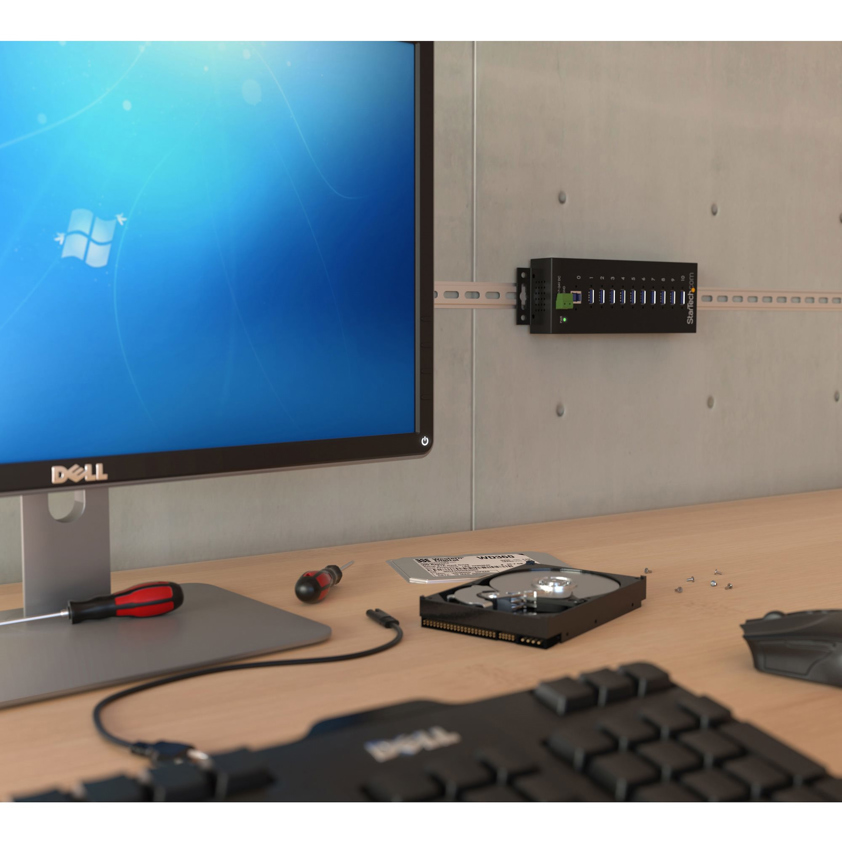

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works With Your Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.
The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage

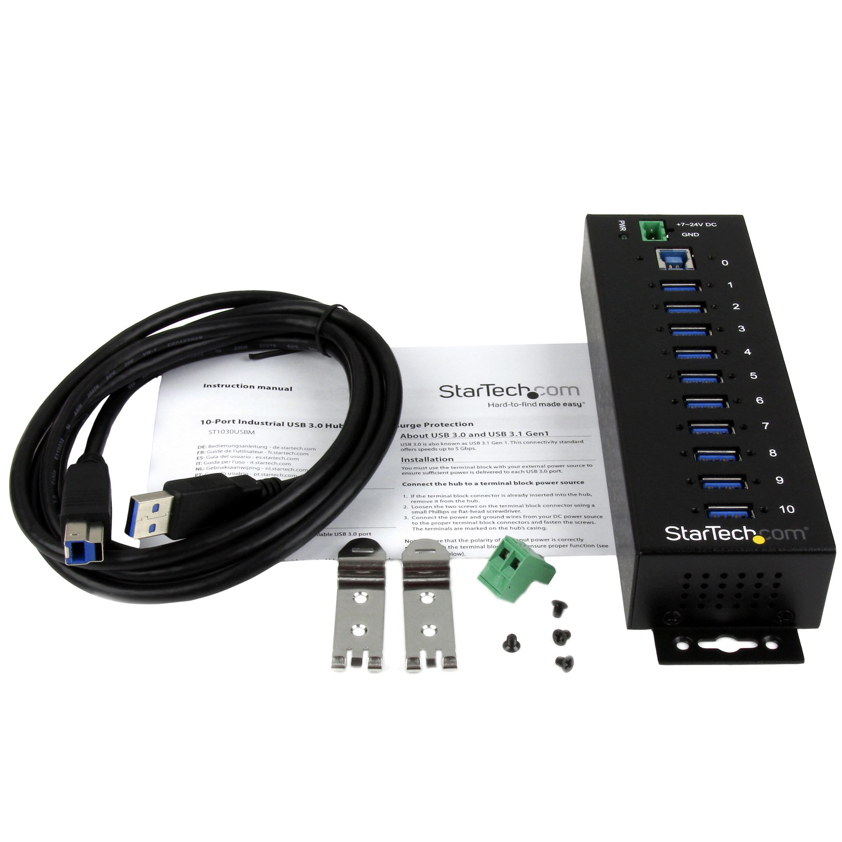

StarTech.com 10-Port Industrial USB 3.0 Hub - ESD and Surge Protection~10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD & Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
SKU: ST1030USBM£129.21 ex VAT
£155.06 inc VAT
In stockPorts & interfaces Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Terminal block port Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 10 Hub interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports quantity 10 Cable length 2.032 m Features Surge protection Yes LED indicators Power Product colour Black Certification RoHS, CE, FCC, TAA, REACH Cable length 2.032 m Data transfer rate 5000 Mbit/s Housing material Steel Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B Data transmission Data transfer rate 5000 Mbit/s Power Input voltage 7 - 24 V Technical details Product colour Black Performance Certification RoHS, CE, FCC, TAA, REACH Surge protection Yes Data transfer rate 5000 Mbit/s Mean time between failures (MTBF) 119388 h Harmonized System (HS) code 84719000 Weight & dimensions Weight 357 g Width 56 mm Depth 198 mm Height 31 mm Package width 169 mm Package depth 246 mm Package height 57 mm Package weight 600 g Packaging data Package width 169 mm Package depth 246 mm Package height 57 mm Package weight 600 g Packaging content Manual Yes Terminal block included Yes Cables included USB DIN rail kit included Yes Design LED indicators Power Product colour Black Certification RoHS, CE, FCC, TAA, REACH Cable length 2.032 m Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% Certificates Certification RoHS, CE, FCC, TAA, REACH Indication LED indicators Power Logistics data Master (outer) case width 444 mm Master (outer) case length 526 mm Master (outer) case height 338 mm Products per master (outer) case 25 pc(s) Harmonized System (HS) code 84719000 Other features Chipset Genesys Logic - GL3520 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
