Control up to 16 USB computers from a single keyboard, mouse and monitor
The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Supports cascading with other KVM switches for one spot control of up to 136 computers

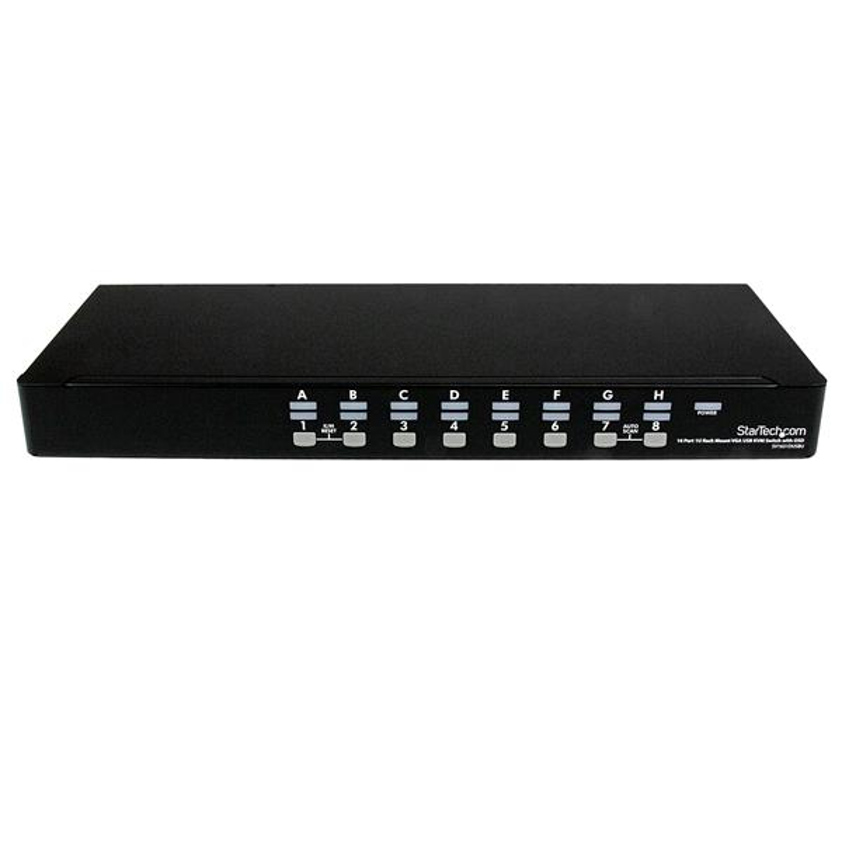

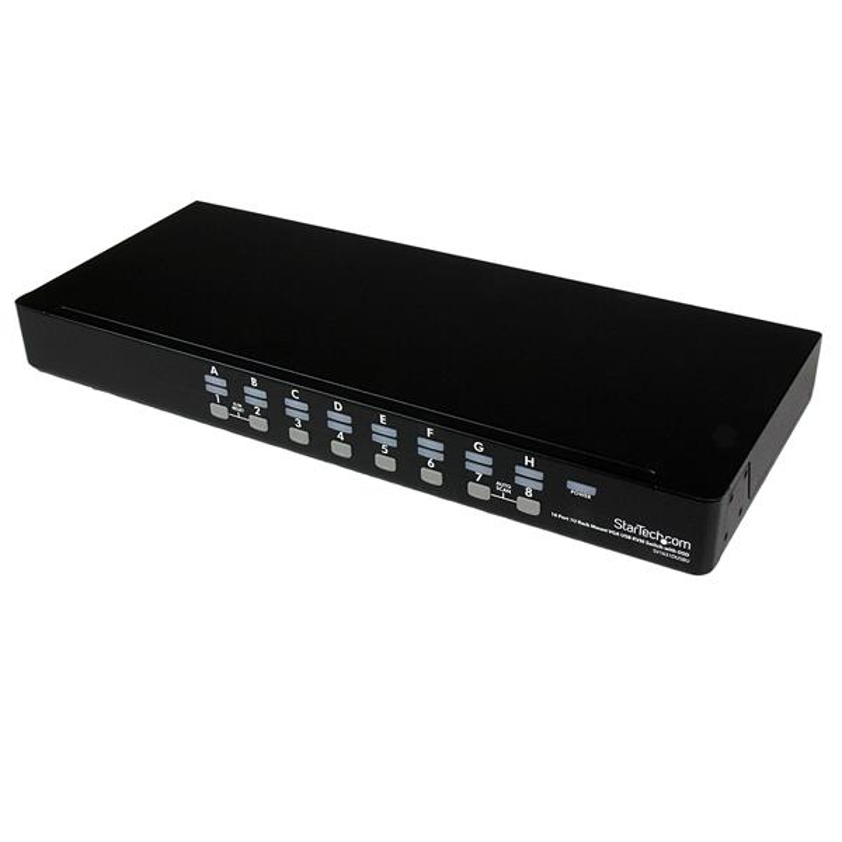

StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD
SKU: SV1631DUSBU£451.54 ex VAT
£541.84 inc VAT
In stockPorts & interfaces Console USB ports quantity 2 Console ports USB A, VGA (D-Sub) Number of computers controlled 16 Keyboard port type USB Mouse port type USB Video port type VGA Audio connections No DC-in jack Yes Performance Daisy chain Yes Plug and Play Yes Maximum resolution 1920 x 1440 pixels Technical details Product colour Black Rack mounting Yes Plug and Play Yes LED indicators Yes IP control No Audio support No Design Product colour Black Rack mounting Yes LED indicators Yes Rack capacity 1U Housing material Steel Display Built-in display No Power Input current 0.8 A Output current 1.5 A Power plug type Type M Output voltage 12 V Input voltage 110-240 V Video Maximum resolution 1920 x 1440 pixels Operational conditions Operating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 5 - 80% Weight & dimensions Width 540 mm Depth 180 mm Height 45 mm Weight 3.1 kg Package width 89 mm Package depth 468 mm Package height 264 mm Package weight 3.53 kg Packaging data Package width 89 mm Package depth 468 mm Package height 264 mm Package weight 3.53 kg Packaging content Manual Yes AC adapter included Yes Other features IP control No Audio support No Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
