KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

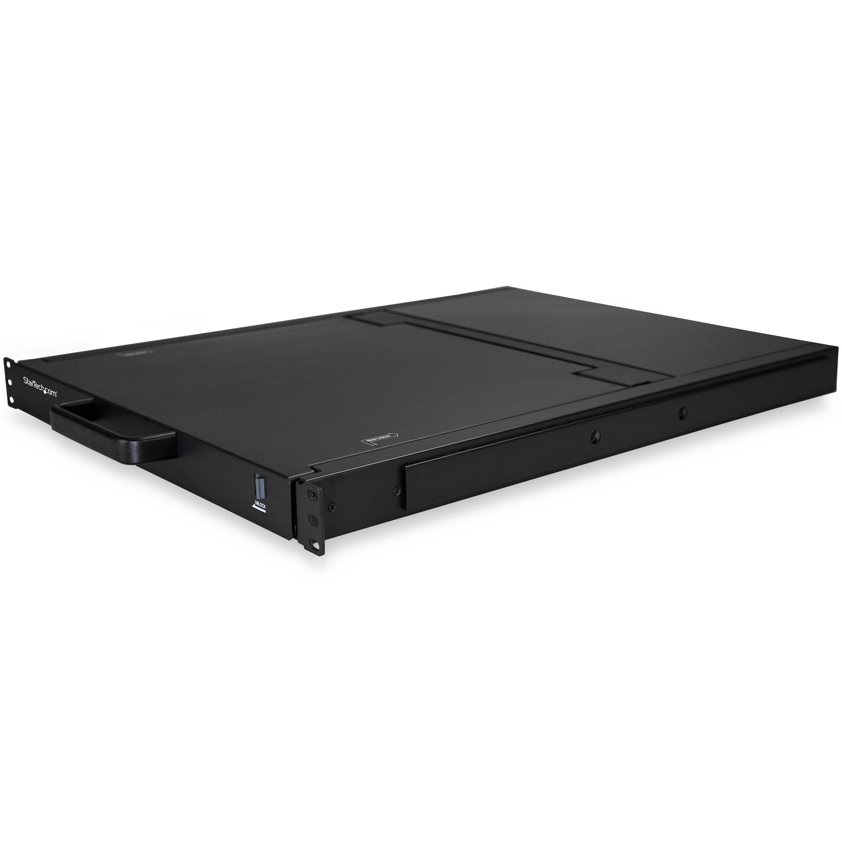

Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

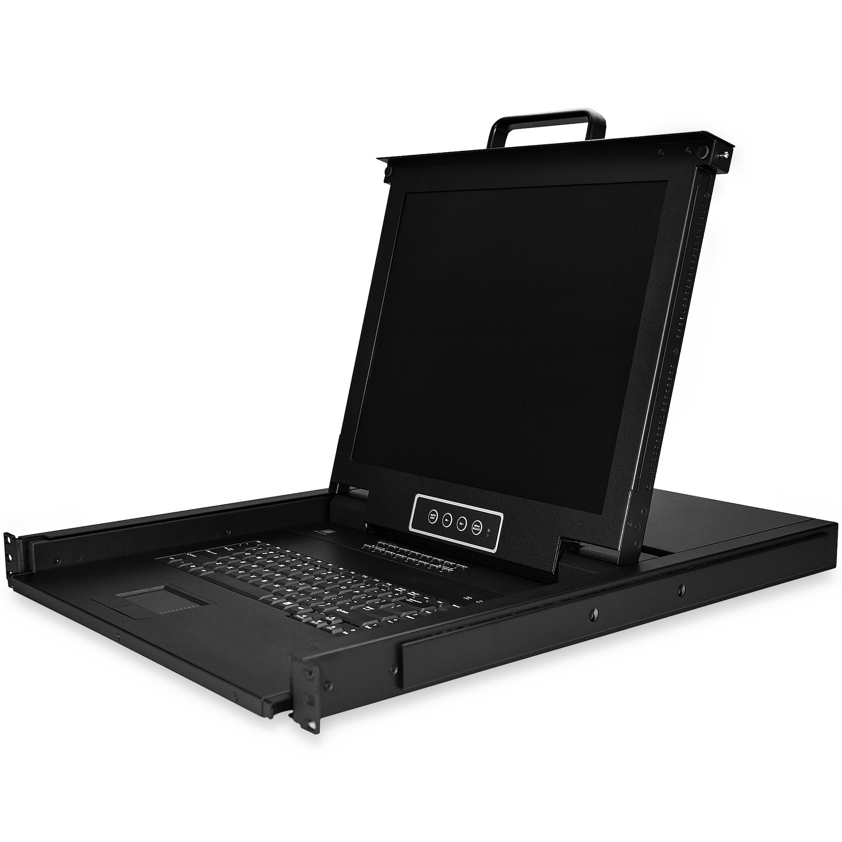

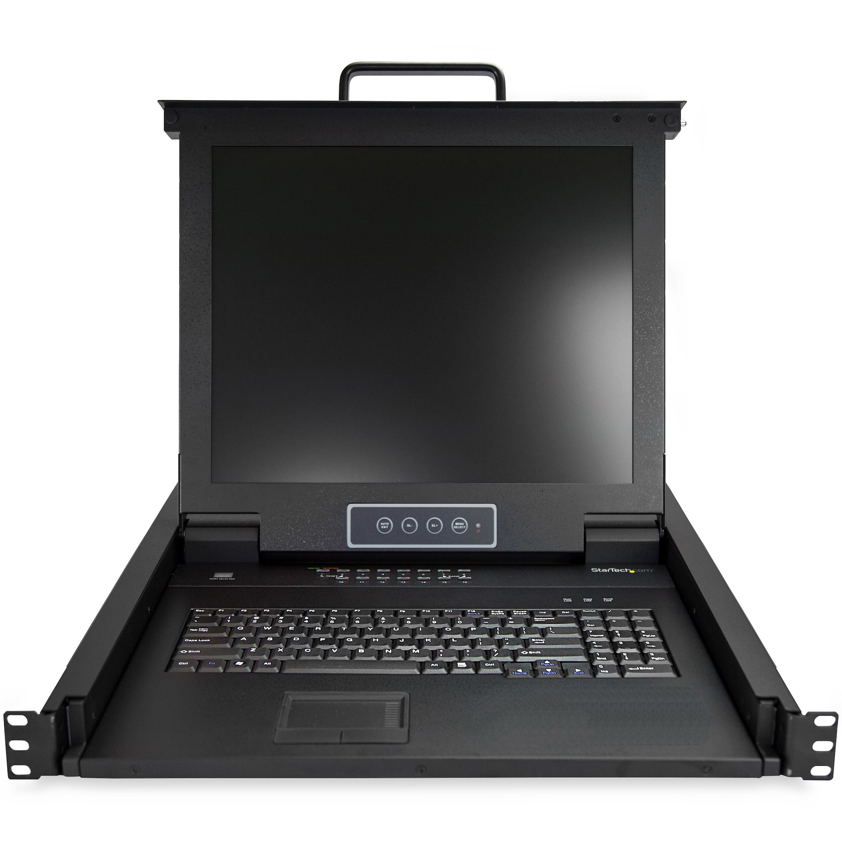

The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles

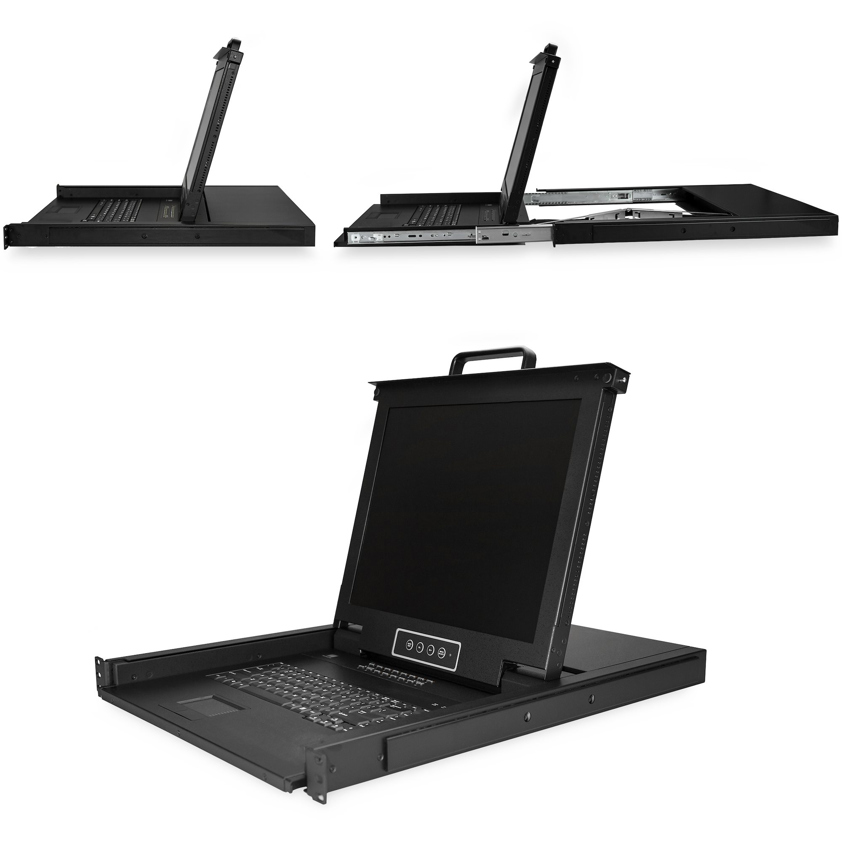

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
SKU: RKCONS1716K£1,080.84 ex VAT
£1,297.01 inc VAT

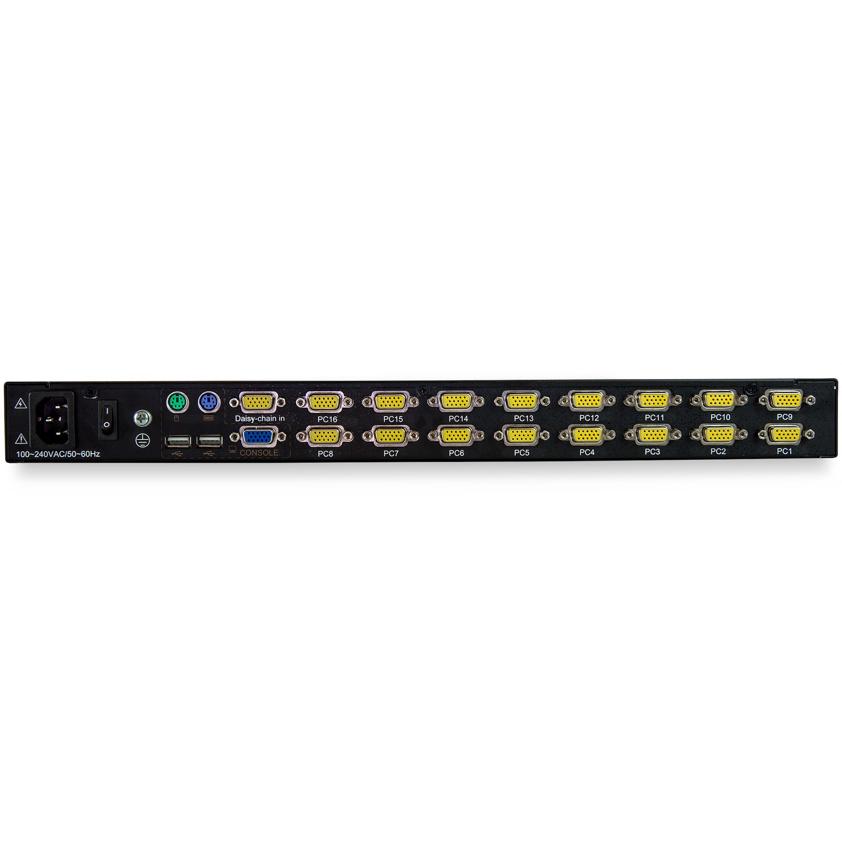

Low stockDisplay Response time 5 ms Display number of colours 16.78 million colours Display type LCD Display TFT LCD Display diagonal 43.2 cm (17") Viewing angle, vertical 160° Viewing angle, horizontal 170° Pixel pitch 0.264 x 0.264 mm On Screen Display (OSD) Yes Display resolution 1280 x 1024 pixels Display brightness 250 cd/m² Contrast ratio (typical) 1000:1 Aspect ratio 5:4 Technical details Key lock No Daisy chain No LED indicators Yes Rack mounting Yes Rack capacity 1U Operating relative humidity (H-H) 10 - 80% Mean time between failures (MTBF) 50000 h Material Steel Product colour Black Cables included KVM IP control No Compliance certificates RoHS Ports & interfaces Video port type VGA Mouse port type PS/2 Keyboard port type PS/2 USB 2.0 Type-A ports quantity 2 VGA (D-Sub) ports quantity 16 Keyboard Hot keys Yes Power AC adapter input voltage 100 - 240 V Input current 1.5 A Power consumption (typical) 23 W Operational conditions Storage temperature (T-T) -20 - 60 °C Operating temperature (T-T) 0 - 40 °C Certificates Certification FCC, PSE, UL, CE, REACH Weight & dimensions Mounting depth (min) 56 cm Mounting depth (max) 90 cm Weight 13 kg Width 448 mm Height 581 mm Depth 43 mm Packaging data Package width 615 mm Package depth 765 mm Package height 185 mm Package weight 21.1 kg Packaging content Screws included Yes Mounting brackets included Yes Manual Yes Cables included KVM Number of screws 8 Number of cage nuts 8 Included power plug types ANZ, EU, JP, NA, UK Cage nuts included Yes Logistics data Master (outer) case width 615 mm Master (outer) case length 765 mm Master (outer) case height 185 mm Products per master (outer) case 1 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
