Enhance the performance capabilities of SWDM applications over an OM5 fiber network
OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. It supports SWDM (Shortwave Wavelength Division Multiplexing) across an extended wavelength range of 850-953nm VCSEL, enhancing signal quality and performance capacity over OM4.
Engineered for Optimal Performance

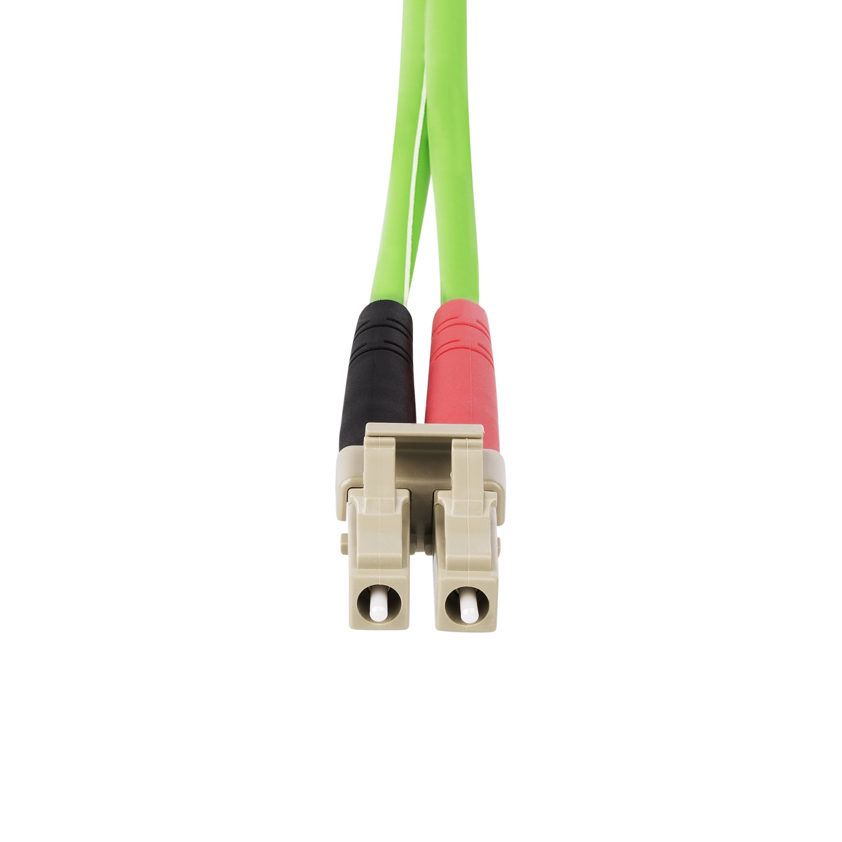

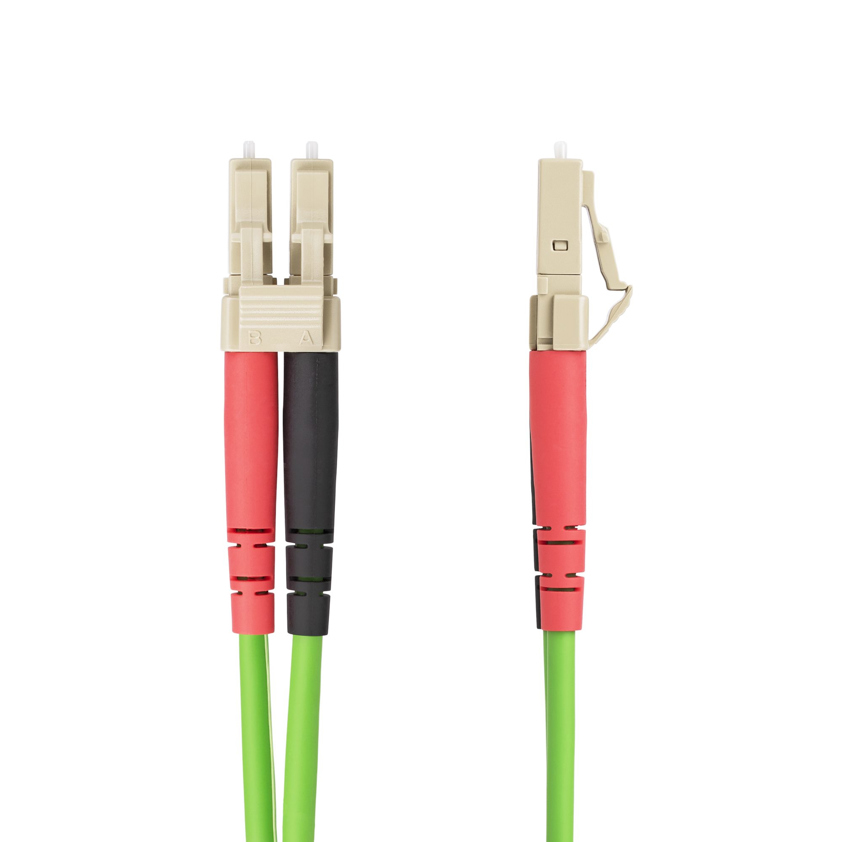

Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM5 fiber patch cable is ideal for 850-953 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and 1300 nm LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM4 and OM3 10G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, the OM5 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM5 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage

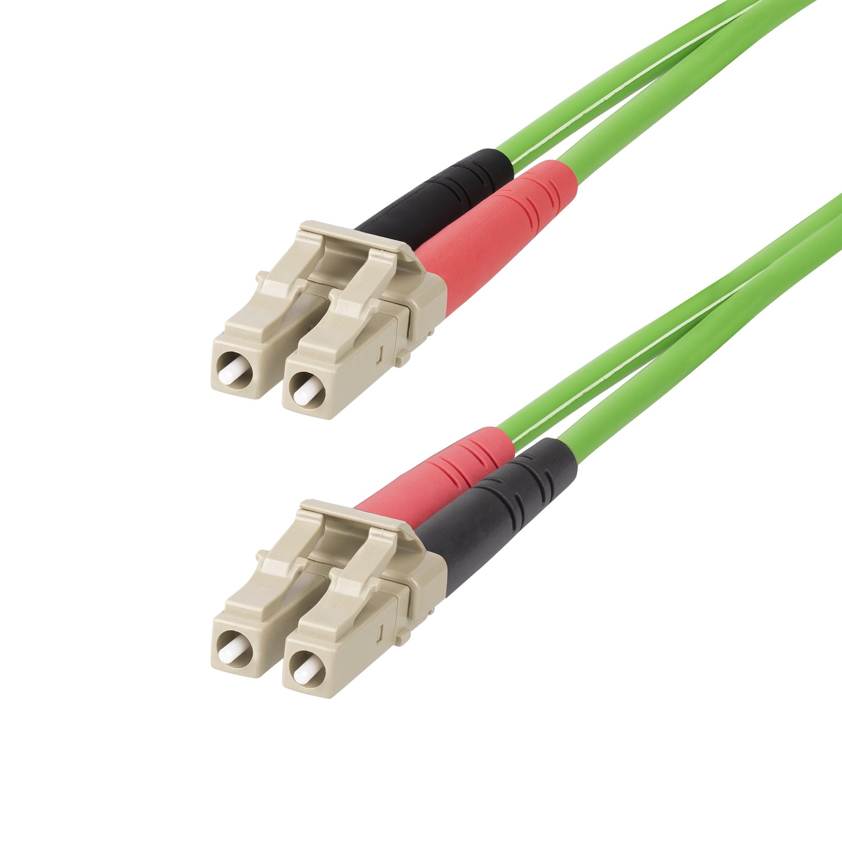

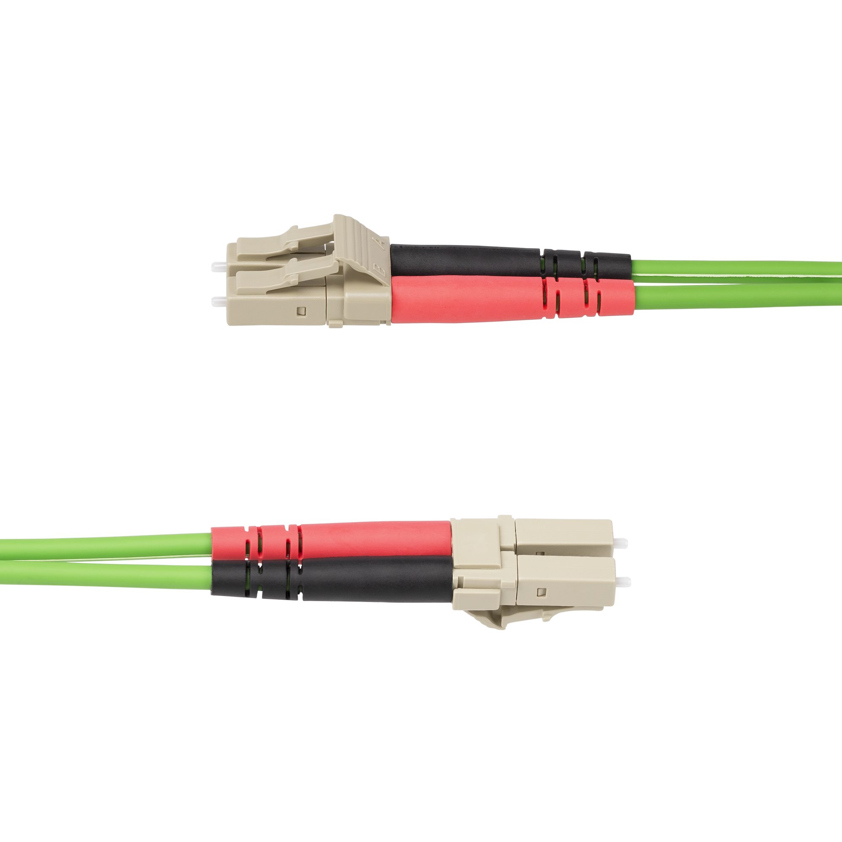

StarTech.com 1m (3.3ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex LOMMF Zipcord, VCSEL, 40G/100G, LSZH Fiber Jumper Cord
SKU: LCLCL-1M-OM5-FIBER£11.19 ex VAT
£13.43 inc VAT
In stockTechnical details Jacket material Low smoke zero halogen (LSZH) Fiber mode structure Multi-mode Connector 1 LC Connector 2 LC Cable type LOMM Cable length 1 m Full duplex Yes Core diameter 50 µm Cladding diameter 125 µm Sustainability compliance Yes Compliance certificates CE, RoHS Features Bending radius 6 cm Fibre optic type OM5 Return loss 30 dB Jacket material Low smoke zero halogen (LSZH) Fiber mode structure Multi-mode Connector 1 LC Connector 2 LC Cable type LOMM Cable length 1 m Full duplex Yes Core diameter 50 µm Cladding diameter 125 µm Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Data transfer rate 100 Gbit/s Wavelengths supported 850,953,1300 nm Product colour Green Connector 2 gender Male Connector 1 gender Male Data transmission Data transfer rate 100 Gbit/s Operational conditions Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensions Bending radius 6 cm Cable length 1 m Package width 220 mm Package depth 200 mm Package height 5 mm Cable diameter 2.9 mm Package weight 18 g Packaging data Package width 220 mm Package depth 200 mm Package height 5 mm Package weight 18 g Quantity per pack 1 pc(s) Logistics data Master (outer) case width 410 mm Master (outer) case length 410 mm Master (outer) case height 450 mm Products per master (outer) case 320 pc(s) Quantity per pack 1 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
