Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+
This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.

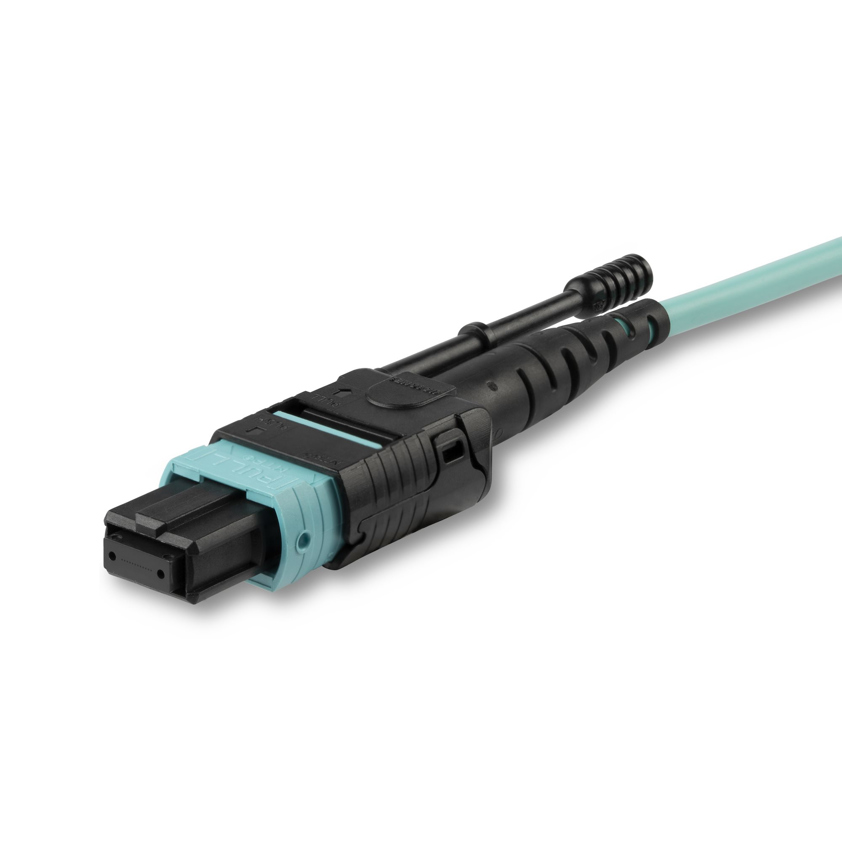

The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility, by letting you install or remove the connectors with one hand without using additional tools.
The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

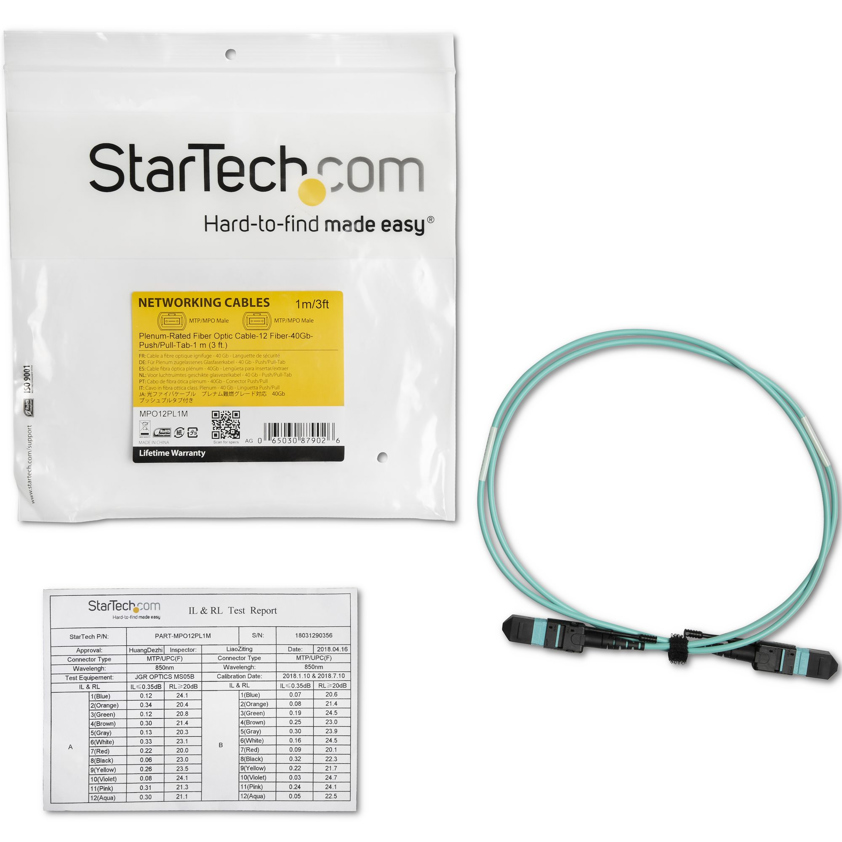

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO12PL1M from StarTech.com is backed by a lifetime warranty.
The StarTech.com Advantage

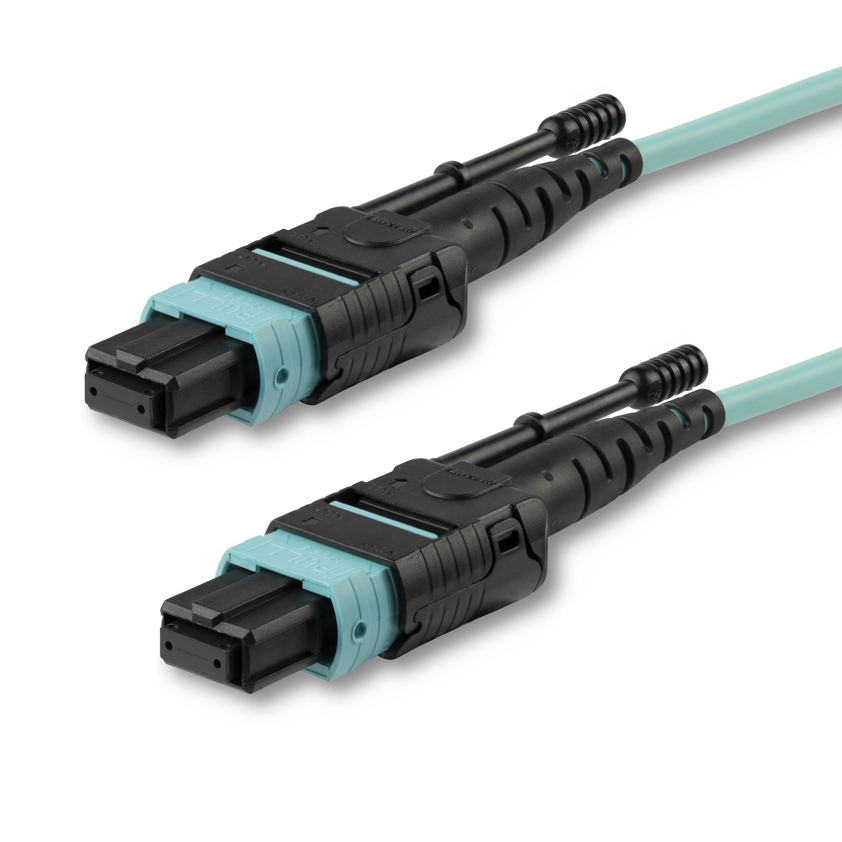

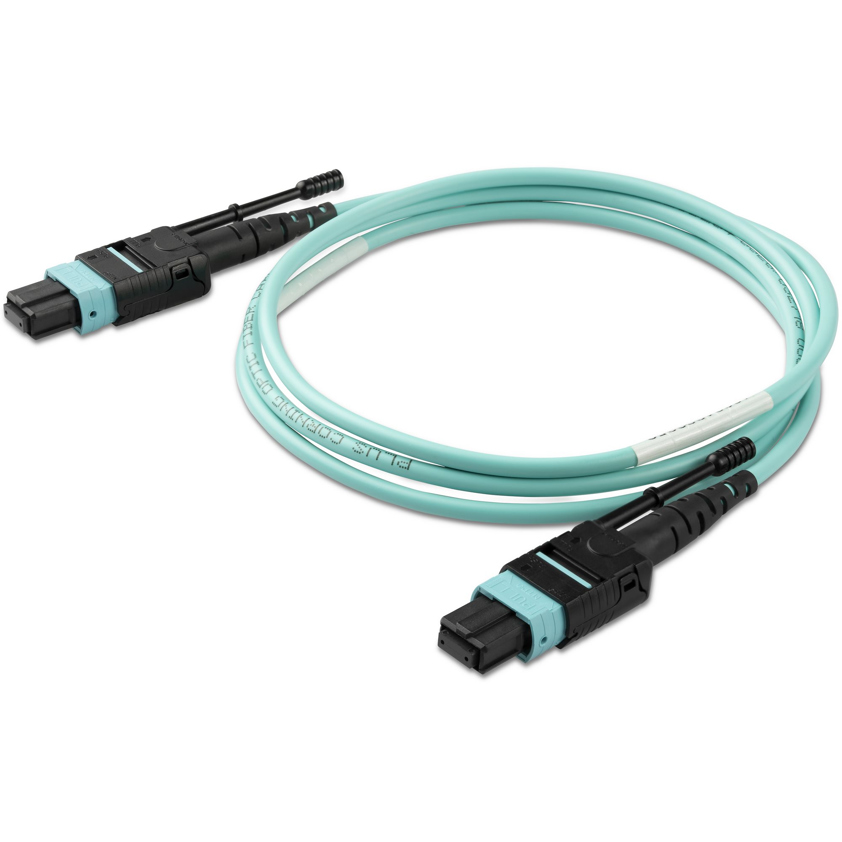

StarTech.com 1m (3ft) MTP(F)/PC OM3 Multimode Fiber Optic Cable, 12F Type-A, OFNP Plenum, 50/125µm LOMMF, 40G Networks, Low Insertion Loss, MPO Fiber Jumper Cord
SKU: MPO12PL1M£36.89 ex VAT
£44.27 inc VAT
Out of stockTechnical details Fiber mode structure Multi-mode Connector 1 MPO/MTP Connector 2 MPO/MTP Cable length 1 m Core diameter 50 µm Cladding diameter 125 µm Sustainability compliance Yes Compliance certificates CE, RoHS Features Fibre optic type OM3 Fiber mode structure Multi-mode Connector 1 MPO/MTP Connector 2 MPO/MTP Cable length 1 m Core diameter 50 µm Cladding diameter 125 µm Data transfer rate 40 Gbit/s Harmonized System (HS) code 85447000 Product colour Aqua colour Connector 2 gender Male Connector 1 gender Male Data transmission Data transfer rate 40 Gbit/s Weight & dimensions Cable length 1 m Package width 200 mm Package depth 220 mm Package height 10 mm Weight 16 g Package weight 28 g Packaging data Package width 200 mm Package depth 220 mm Package height 10 mm Package weight 28 g Quantity per pack 1 pc(s) Logistics data Harmonized System (HS) code 85447000 Quantity per pack 1 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
