  • StarTech.com 2-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI Express LAN Card, Realtek RTL8126, Windows and Linux, TAA Compliant

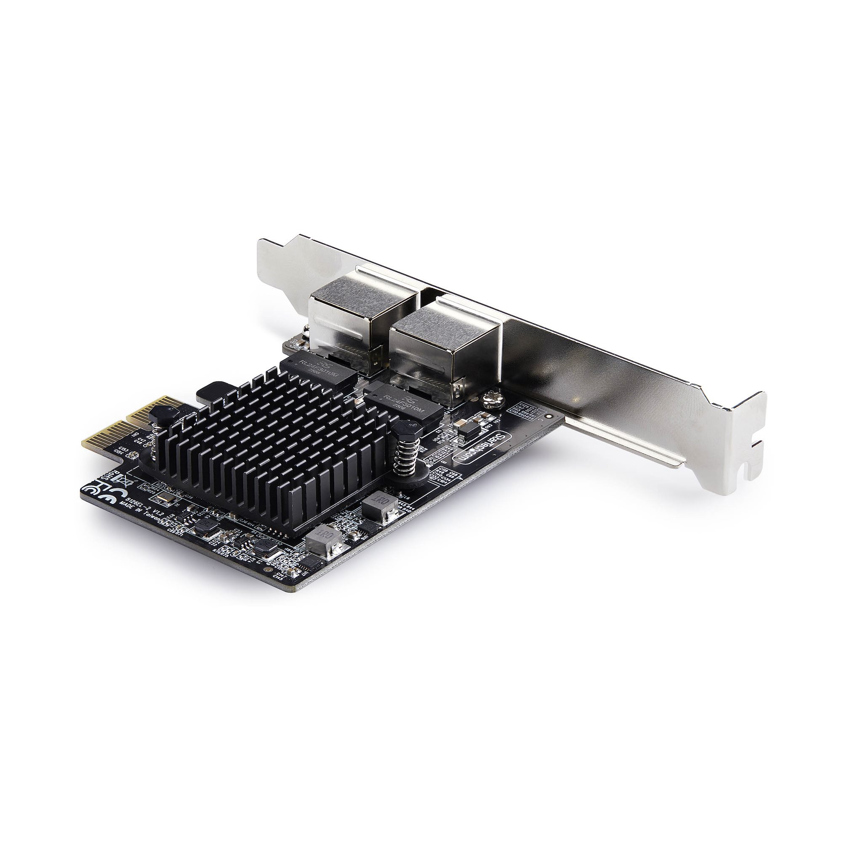

StarTech.com 2-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI Express LAN Card, Realtek RTL8126, Windows and Linux, TAA Compliant

SKU: PR25GR-NETWORK-CARD
£107.96 ex VAT
£129.55 inc VAT
Product out of stockOut of stock
  • Add two 5 Gbps Ethernet Ports to a PCI Express-enabled computer

    This TAA-compliant 2-port 5G Gigabit Ethernet card with Realtek RTL8126 chip adds a gigabit Ethernet interface to a desktop or server. 2.5G and 5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades.

    Plug And Play Compatible

    This 2-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

    Performance and Management

    This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

    This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100M/2.5G/5G, and VLANs for streamlined network management. This network card supports virtually any environment, accommodating both the latest and slower legacy network connections. Futureproof your devices by ensuring your system is ready as more devices become 5G compatible.

    Universal Fit

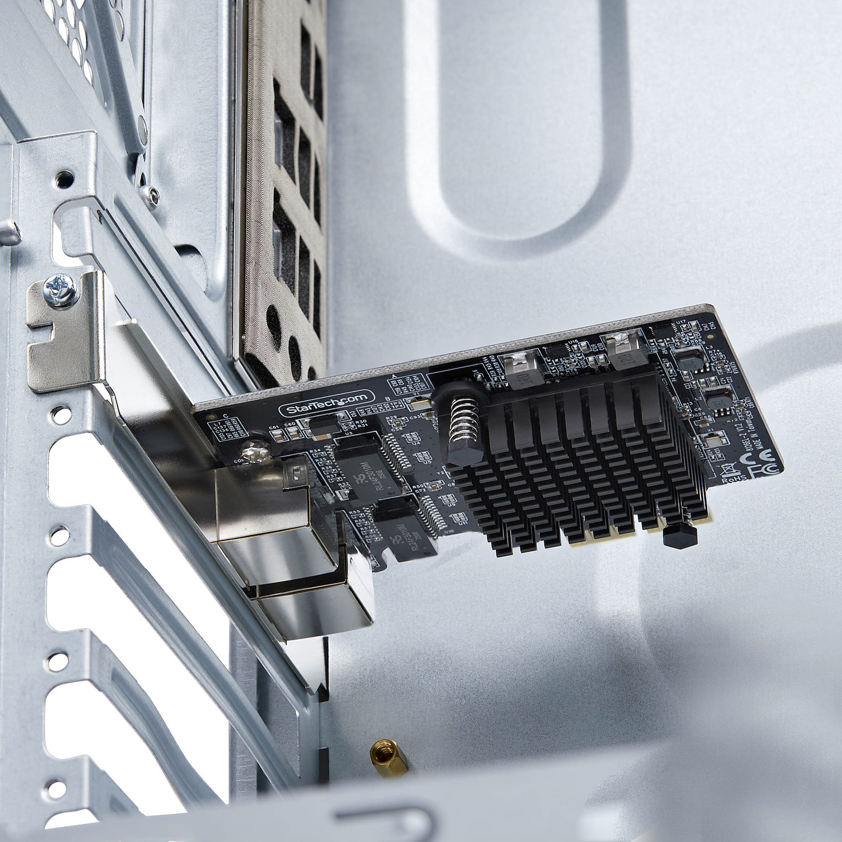

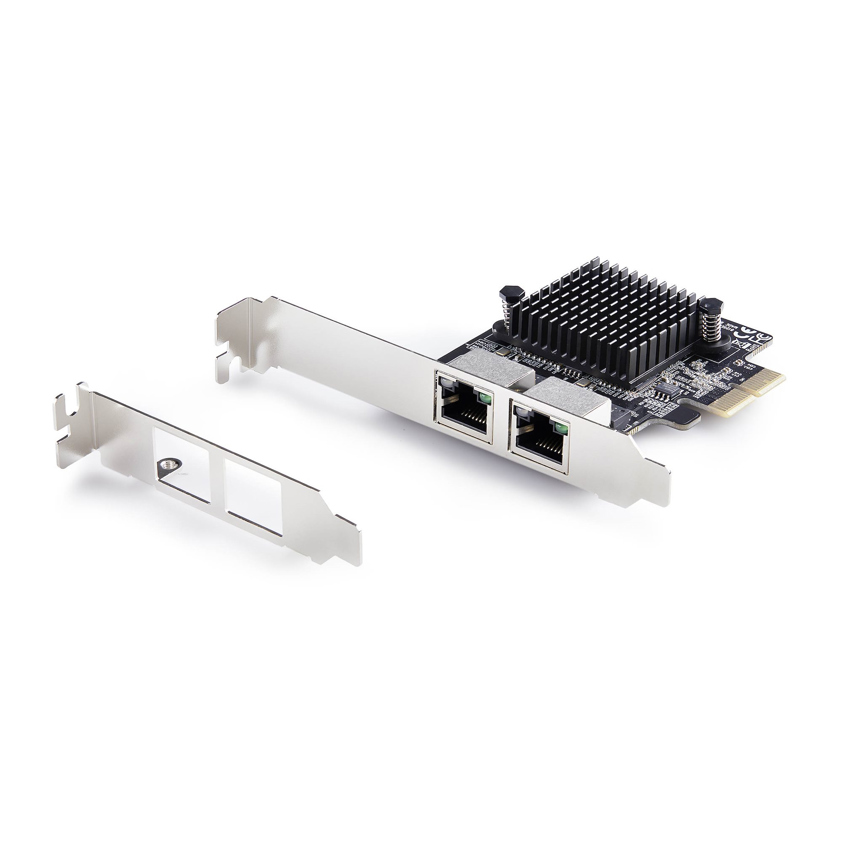

    The PCI Express NIC includes full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers.
  • Ports & interfaces
    InternalYes
    Ethernet LAN (RJ-45) ports2
    InterfaceEthernet
    Host interfacePCI Express
    Connectivity technologyWired
    Bandwidth
    Maximum data transfer rate5000 Mbit/s
    Network
    ChipsetRealtek RTL8126
    VLAN taggingYes
    Ethernet interface type2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
    Jumbo frames9000
    Ethernet LANYes
    Networking standardsIEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
    Wake-on-LAN readyYes
    Jumbo frames supportYes
    Maximum data transfer rate5000 Mbit/s
    Technical details
    Product colourBlack
    Wake-on-LAN readyYes
    Compliance certificatesCE, Federal Communications Commission (FCC)
    Design
    Product colourBlack
    ChipsetRealtek RTL8126
    InternalYes
    LED indicatorsYes
    Component forPC/Laptop
    Software
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
    Linux operating systems supportedYes
    Indication
    LED indicatorsYes
    System requirements
    Server operating systems supportedWindows Server 2019, Windows Server 2022
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
    Linux operating systems supportedYes
    Operational conditions
    Operating temperature (T-T)5 - 65 °C
    Storage temperature (T-T)-30 - 90 °C
    Operating relative humidity (H-H)10 - 80%
    Weight & dimensions
    Width86 mm
    Depth121 mm
    Height18 mm
    Weight58.8 g
    Package width142 mm
    Package depth6.7 mm
    Package height30 mm
    Package weight119.9 g
    Packaging data
    Package width142 mm
    Package depth6.7 mm
    Package height30 mm
    Package weight119.9 g
    Mounting brackets includedYes
    ManualYes
    Packaging content
    Mounting brackets includedYes
    ManualYes
    Performance
    Server operating systems supportedWindows Server 2019, Windows Server 2022
    Wake-on-LAN readyYes
    Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
    Linux operating systems supportedYes
    Other features
    ChipsetRealtek RTL8126
    ManualYes
    Jumbo frames9000
    Logistics data
    Master (outer) case width685 mm
    Master (outer) case length345 mm
    Master (outer) case height306 mm
    Products per master (outer) case75 pc(s)
