Create a high-performance dual-display workstation by connecting a DisplayPort™ device to two independent DisplayPort™ monitors
This DisplayPort to DisplayPort MST Hub enables a connection to two DP monitors, using a single DisplayPort enabled host device.
4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection
Maximum Resolution Output 1
Maximum Resolution Output 2
Example Host Processor/Graphics
DisplayPort 1.4 with DSC
5K 60Hz
5K 60Hz
*Intel 11th Gen with DSC
Intel 12th Gen Processors & Later
Dedicated AMD & Nvidia GPU's that support DSC
DisplayPort 1.4
4K 60Hz
4K 60Hz
Intel 10 th Gen (Ice Lake Only)
Intel 11th Gen Processors & Later
Dedicated AMD and Nvidia GPU's that support DP 1.4
DisplayPort 1.2
4K 30Hz
4K 30Hz
Intel 8 th - 10th Gen Processors & Later
*Please verify the GPU capabilities and driver support for DSC through MST with the OEM of the host device
Multitasking Made Easy

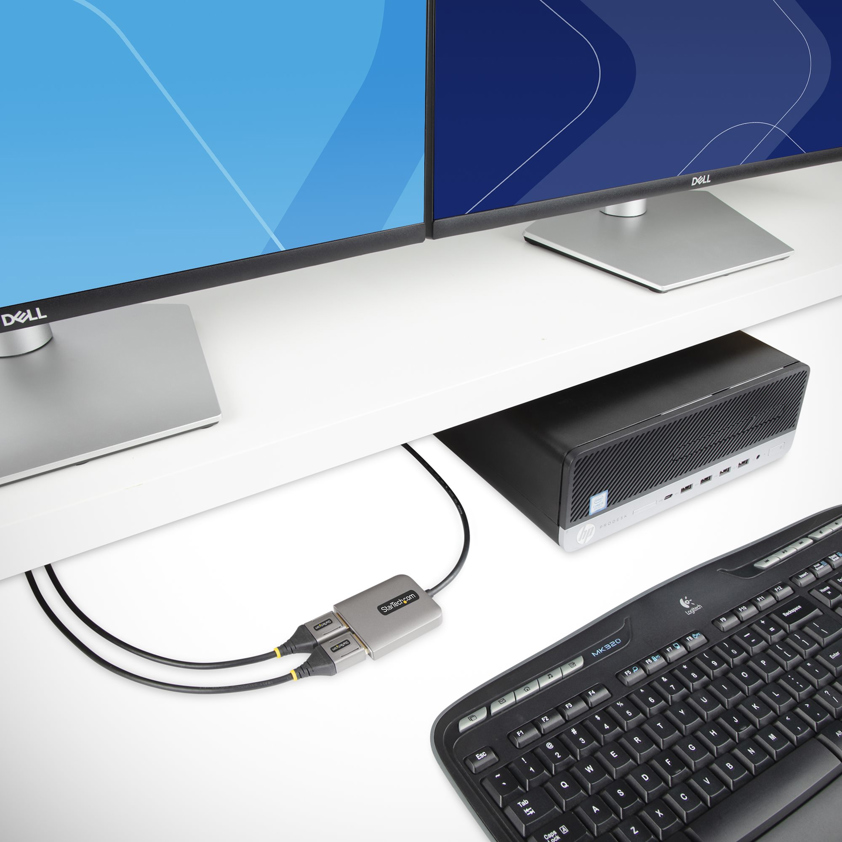

Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup

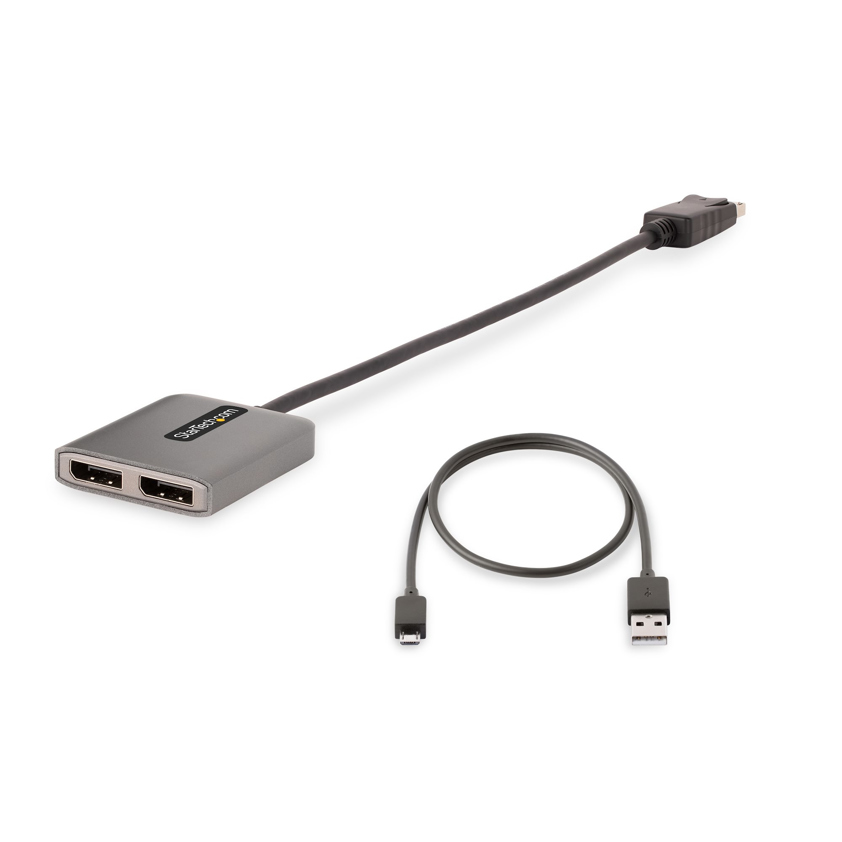

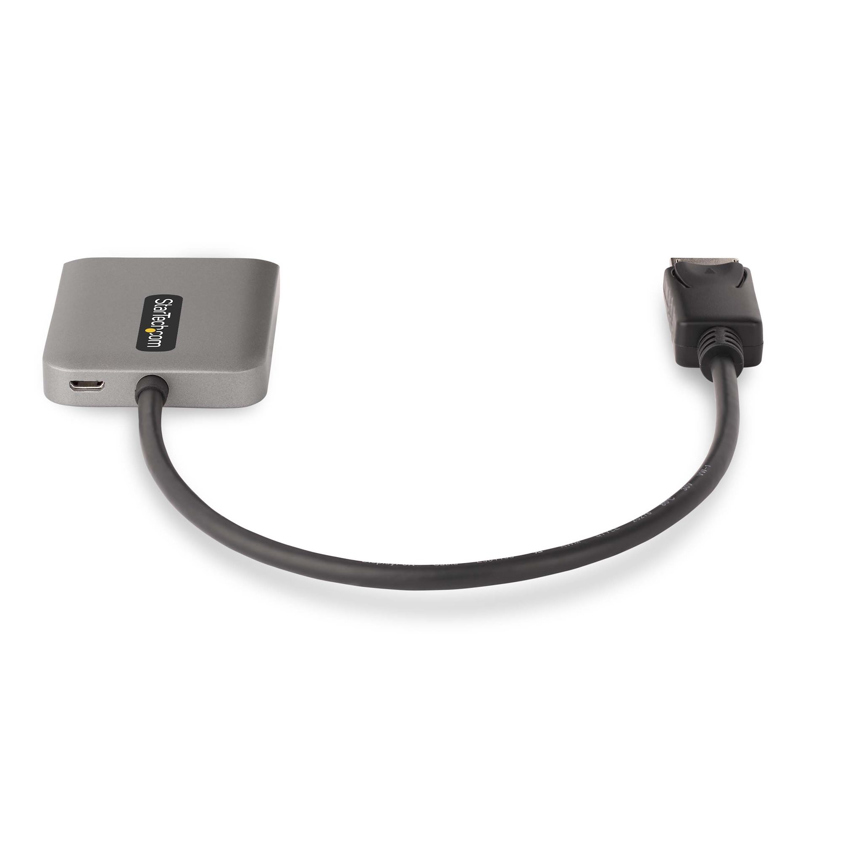

This MST Hub works with DisplayPort enabled Windows devices featuring 11th generation (and later) processors, or dedicated graphics cards that have a DisplayPort 1.4 output. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is USB Powered and comes with the USB Micro-B power cable.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
The StarTech.com Advantage
StarTech.com 2-Port DisplayPort MST Hub, Dual 4K 60Hz, DP to 2x DisplayPort Monitor Adapter, DP 1.4 Multi-Monitor Video Adapter, 1ft (30cm) Built-in Cable, USB Powered, Windows Only
SKU: MST14DP122DP£39.11 ex VAT
£46.93 inc VAT
In stockFeatures Chipset Synaptic VMM5220 DisplayPort version 1.4 Product colour Grey Cable length 0.3 m Connector 1 DisplayPort Connector 2 2 x DVI Connector 1 gender Male Connector 2 gender Female Maximum resolution 4096 x 2160 pixels HDCP Yes Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64 Connector 1 form factor Straight Connector 2 form factor Straight HDCP version 2.2 Power source USB Refresh rate at maximum resolution 60 Hz Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 5 - 90% Sustainability Sustainability compliance Yes Technical details Sustainability compliance Yes Compliance certificates CE, RoHS Other features Packaging content Micro-USB Power Cable Width 105 mm Height 14 mm Depth 43 mm Weight & dimensions Width 105 mm Height 14 mm Depth 43 mm Weight 53 g Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 110 g Packaging data Packaging content Micro-USB Power Cable Package width 142 mm Package depth 170 mm Package height 30 mm Package weight 110 g Logistics data Master (outer) case width 473 mm Master (outer) case length 331 mm Master (outer) case height 440 mm Products per master (outer) case 70 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
