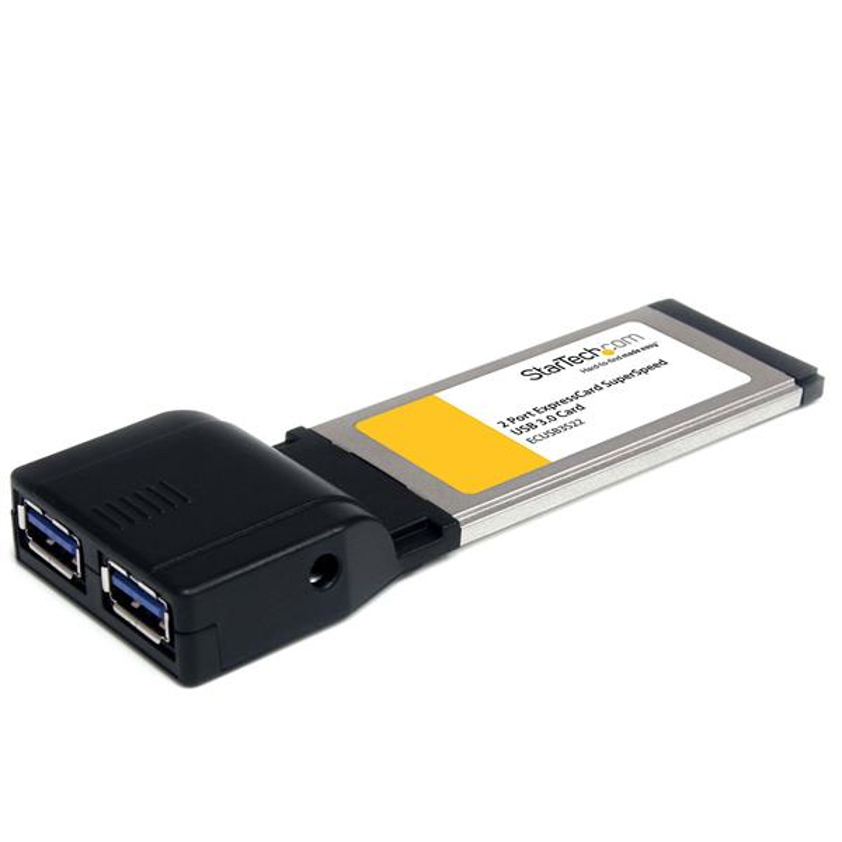

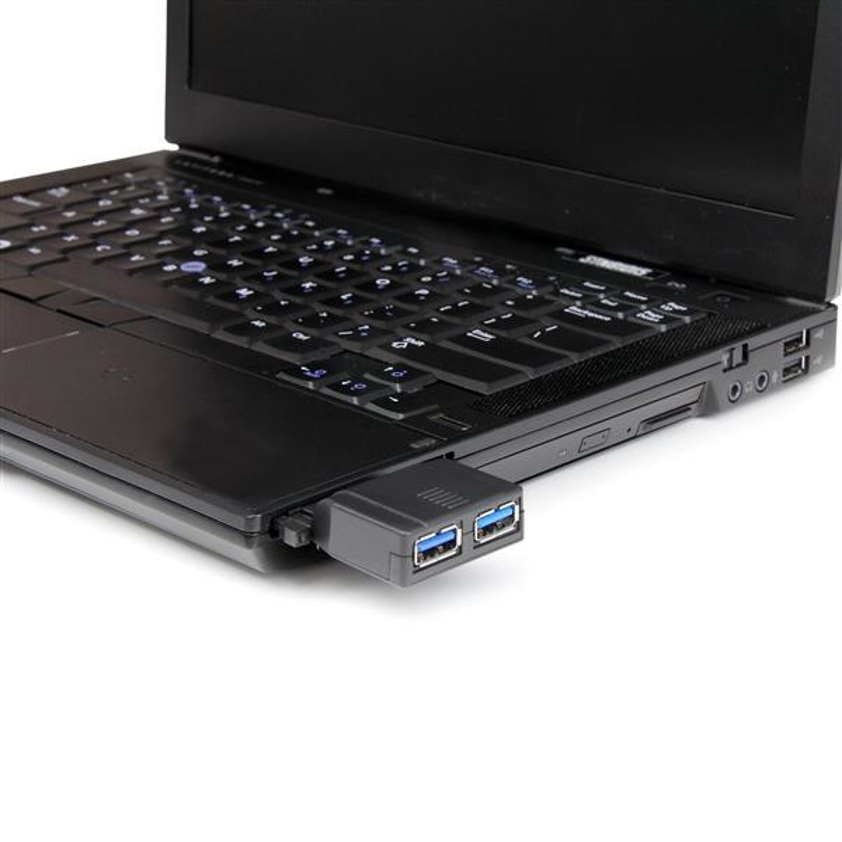

Add 2 USB 3.0 (USB 3.2 Gen 1) Ports to a Laptop through an ExpressCard Slot
The ECUSB3S22 2-Port ExpressCard USB 3.2 Gen 1 Card adds 2 SuperSpeed USB 3.2 Gen 1 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side for easy access.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
USB 3.2 Gen 1 supports data transfer rates up to 5 Gbps (10x faster than USB 2.0) and is able to provide more power per port, to help support faster and more powerful devices. Also, this ExpressCard adapter is backward compatible with USB 2.0/1.x, so all of your existing devices will still work.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
StarTech.com 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support
SKU: ECUSB3S22£20.69 ex VAT
£24.83 inc VAT
Low stockPorts & interfaces Internal Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Output interface USB 3.2 Gen 1 (3.1 Gen 1) Host interface ExpressCard Technical details Chipset NEC uPD720200 Network Data transfer rate 5 Gbit/s Performance Chipset NEC uPD720200 Product colour Black Harmonized System (HS) code 84733020 Colour Product colour Black Design Internal Yes Product colour Black Features Chipset NEC uPD720200 Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 150 °C Operating relative humidity (H-H) 0 - 60% Weight & dimensions Width 40 mm Depth 115 mm Height 12 mm Weight 33 g Package width 173 mm Package depth 144 mm Package height 32 mm Package weight 119 g Packaging data Package width 173 mm Package depth 144 mm Package height 32 mm Package weight 119 g Logistics data Harmonized System (HS) code 84733020 Other features Data transfer rate 5 Gbit/s Compatible operating systems Windows XP(32/64-bit) / Server 2003(32/64-bit) / Vista(32/64-bit) / Server 2008 R2 / 7(32/64-bit) Chipset NEC uPD720200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
