Supply power and data to two PoE devices over standard Ethernet cabling
This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management

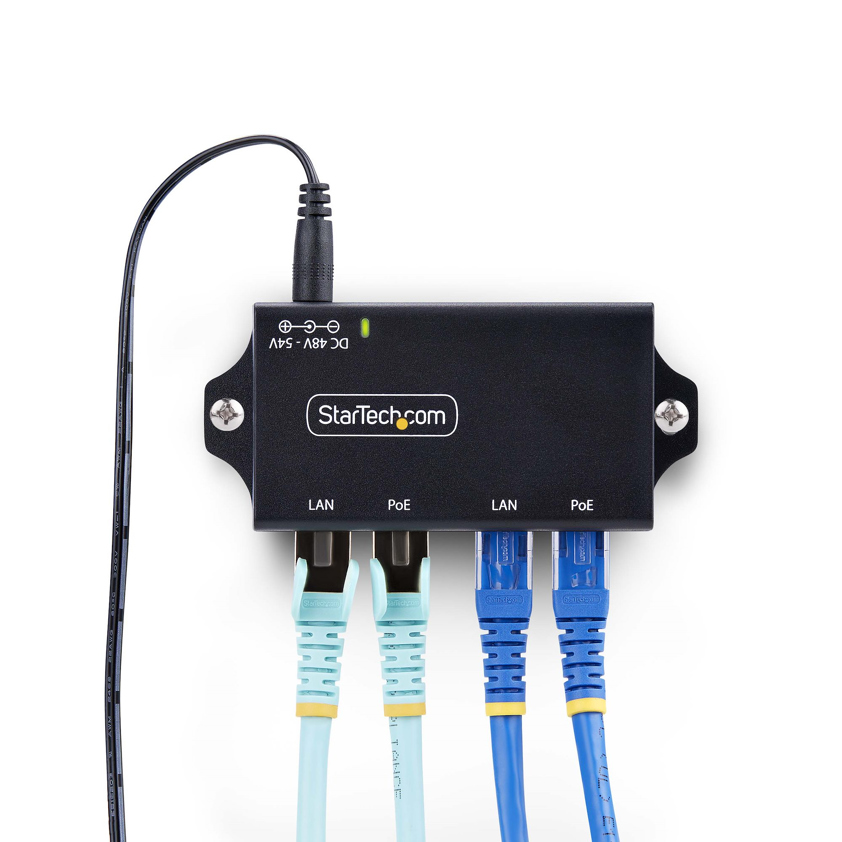

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet
SKU: AF221CE-POE-INJECTOR£53.66 ex VAT
£64.39 inc VAT
Out of stockNetwork Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at Auto MDI/MDI-X Yes Power over Ethernet (PoE) Yes Ethernet LAN data rates 10,1000,100 Mbit/s Ethernet interface type Gigabit Ethernet, Fast Ethernet Cabling technology 10/100/1000 Web-based management No Chipset IC Plus - IP802AR Features Wall mountable Yes Surge protection Yes Maximum operating distance 100 m Product colour Black LED indicators Yes Housing material Plastic Jumbo frames support Yes Jumbo frames 9000 Auto-negotiation Yes Networking standards IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at Ports & interfaces DC-in jack Yes Ethernet LAN (RJ-45) ports 4 RJ-45 input ports 2 RJ-45 output ports 2 Power Output power 30 W Output current 1.25 A Power consumption (max) 65 W Total Power over Ethernet (PoE) budget 30 W AC adapter output voltage 52 V Input current 1.5 A AC adapter input voltage 100 - 240 V Power plug type Type M Suitable for use in country/location Europe, United Kingdom Surge protection voltage 2 kV Certificates Compliance certificates RoHS Operational conditions Storage temperature (T-T) -10 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensions Weight 60 g Width 46 mm Depth 102 mm Height 25 mm Package weight 105 g Package depth 144 mm Package width 207 mm Package height 38 mm Packaging content Quick installation guide Yes Packaging data Package weight 105 g Package depth 144 mm Package width 207 mm Package height 38 mm Technical details Package width 207 mm Package height 38 mm Power over Ethernet (PoE) Yes Input current 1.5 A Ethernet LAN data rates 10,1000,100 Mbit/s Ethernet interface type Gigabit Ethernet, Fast Ethernet Compliance certificates RoHS Indication LED indicators Yes Logistics data Master (outer) case width 440 mm Master (outer) case length 420 mm Master (outer) case height 320 mm Products per master (outer) case 40 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
