Share a mouse, keyboard, and a 4K 60Hz HDMI display between a USB-A computer and a USB-C DP Alt Mode computer using this KVM Switch with built-in cables
This Hybrid KVM Switch enables users to switch between a USB Type-A and HDMI-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor.
Hassle-Free Setup

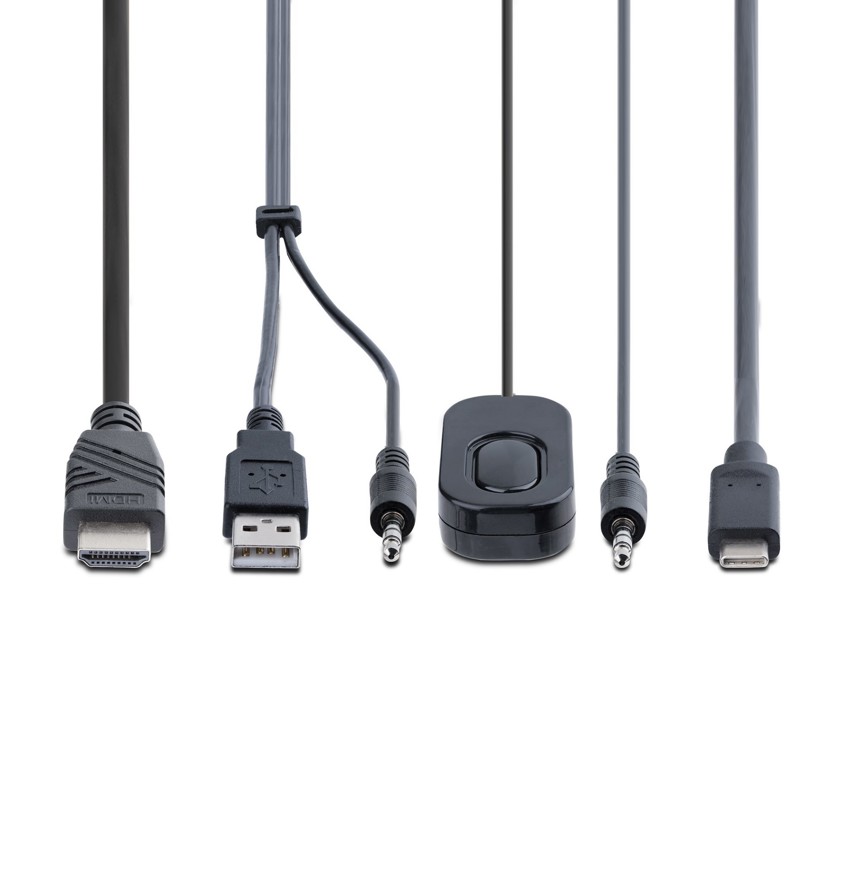

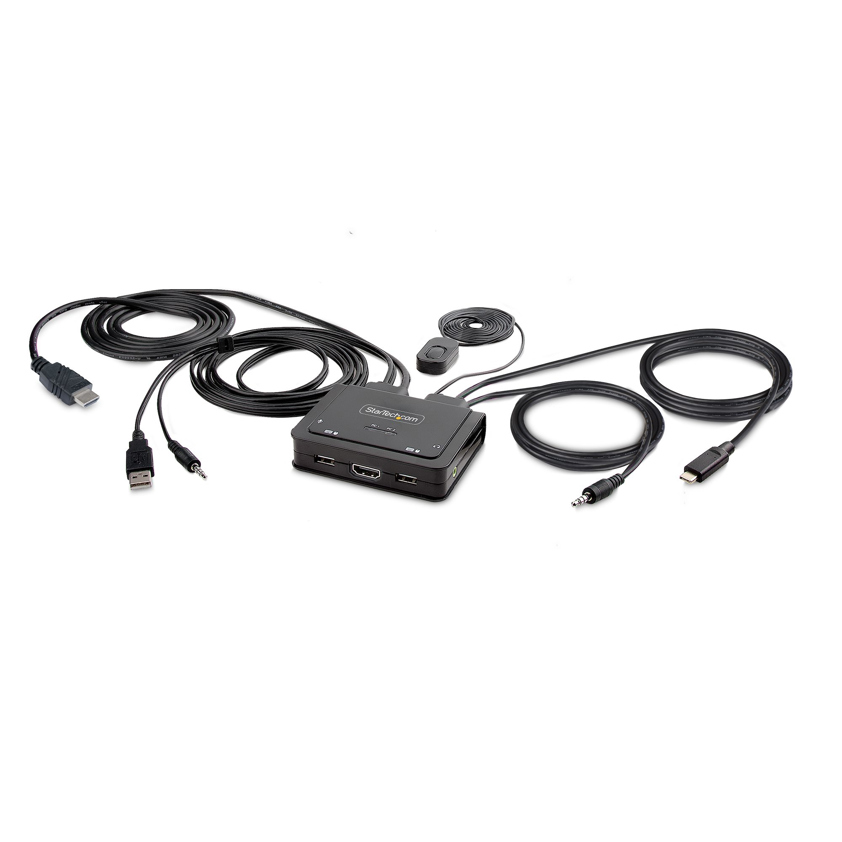

The KVM switch is bus powered and features built-in HDMI, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.
Intuitive Control
The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, ensuring uninterrupted audio when switching between host devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
StarTech.com 2-Port Hybrid USB-C HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/HDMI/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered - Remote Push Button/Hotkey Switching
SKU: C2-H46-UAC-CBL-KVM£43.77 ex VAT
£52.52 inc VAT
In stockPorts & interfaces Console USB ports quantity 2 Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A USB connector type USB Type-A, USB Type-C Number of microphone inputs 1 HDMI version 2.0b Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type HDMI Audio connections Yes Headphone outputs 1 HDMI ports quantity 1 Console HDMI ports quantity 1 Cable length 1.8 m Performance Data transfer rate (max) 0.48 Gbit/s HD type 4K Ultra HD Video bandwidth 60 Hz Maximum resolution 4096 x 2160 pixels Scan interval 10,20,30,40,50,60 s Audio channels 2.0 Number of displays supported 1 Technical details Product colour Black Rack mounting No Scan interval 10,20,30,40,50,60 s Push button Yes On Screen Display (OSD) No LED indicators Yes Hot keys Yes IP control No Sustainability compliance Yes Compliance certificates RoHS Design Mean time between failures (MTBF) 345059 h Product colour Black Cable length 1.8 m Rack mounting No Push button Yes LED indicators Yes Hot keys Yes Housing material Acrylonitrile butadiene styrene (ABS) Display Built-in display No On Screen Display (OSD) No Power Power source USB System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey Other operating systems supported ChromeOS Video HD type 4K Ultra HD Video bandwidth 60 Hz Maximum resolution 4096 x 2160 pixels Sustainability Sustainability compliance Yes Compliance certificates RoHS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Width 92 mm Depth 97 mm Height 24 mm Weight 265 g Package width 210 mm Package depth 160 mm Package height 60 mm Package weight 500 g Packaging data Package width 210 mm Package depth 160 mm Package height 60 mm Package weight 500 g Packaging content Quick installation guide Yes Other features IP control No Push button Yes Hot keys Yes Logistics data Master (outer) case width 440 mm Master (outer) case length 345 mm Master (outer) case height 345 mm Products per master (outer) case 20 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
