PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

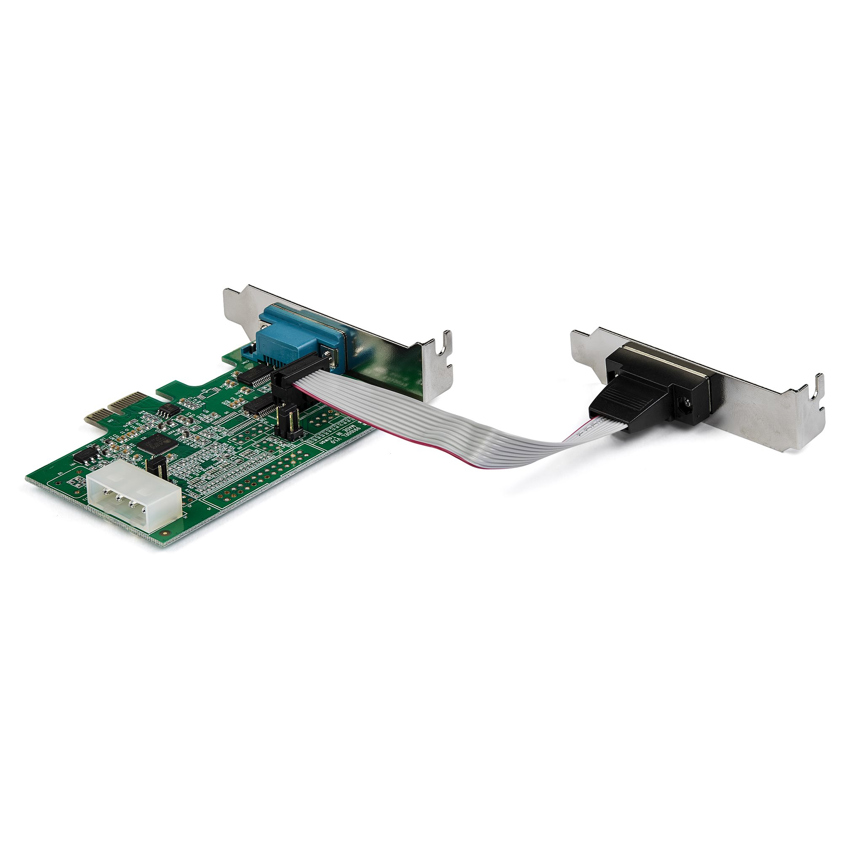

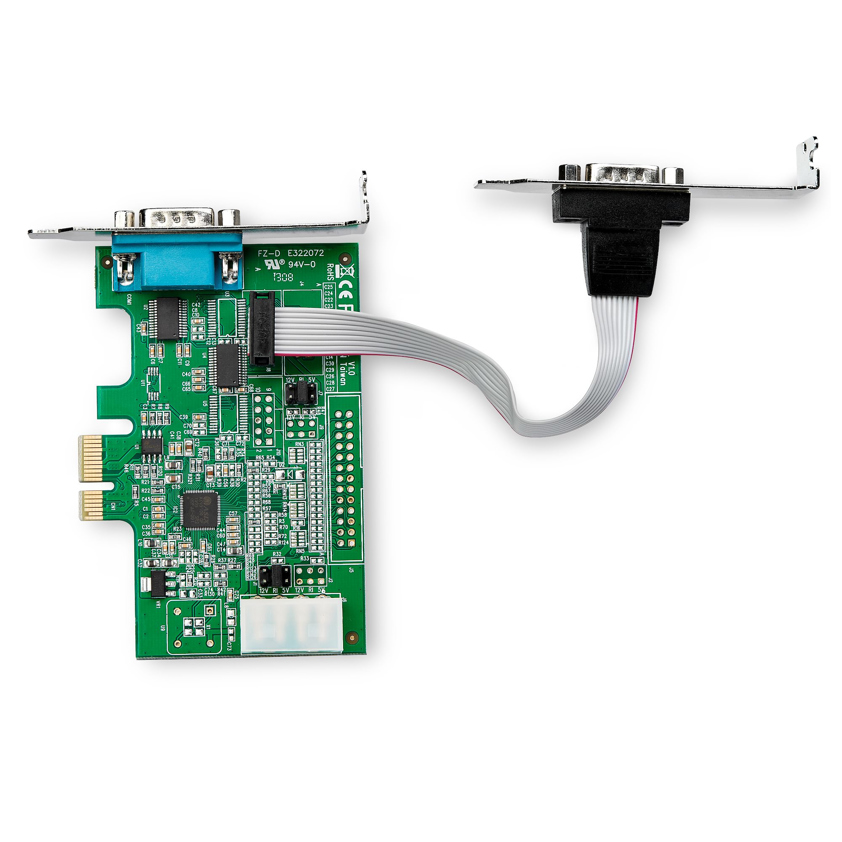

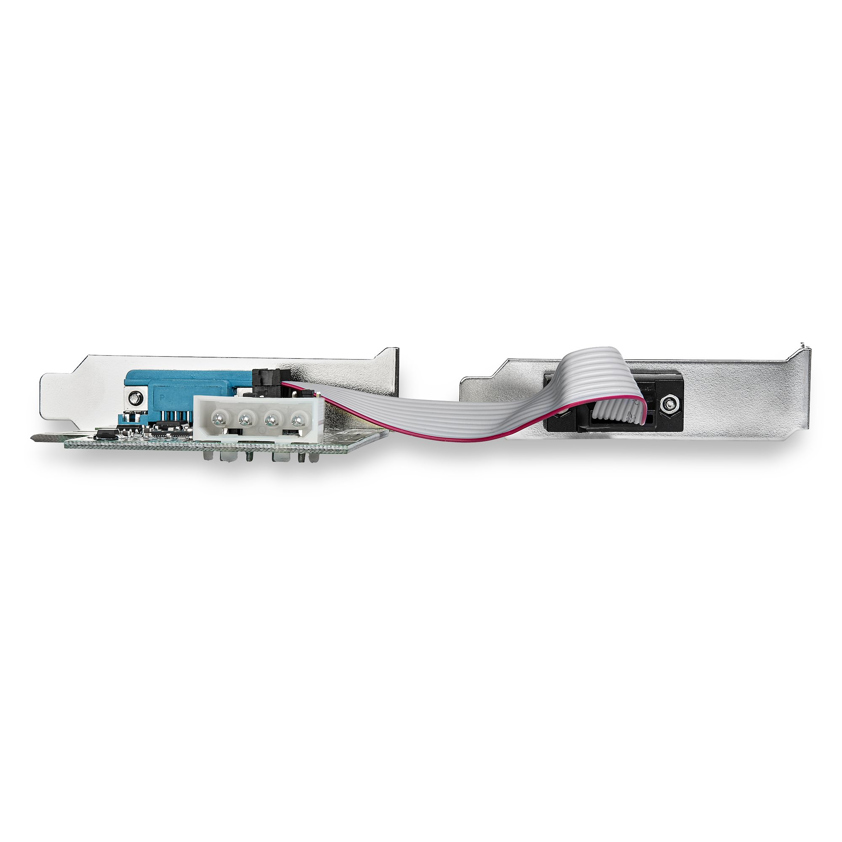

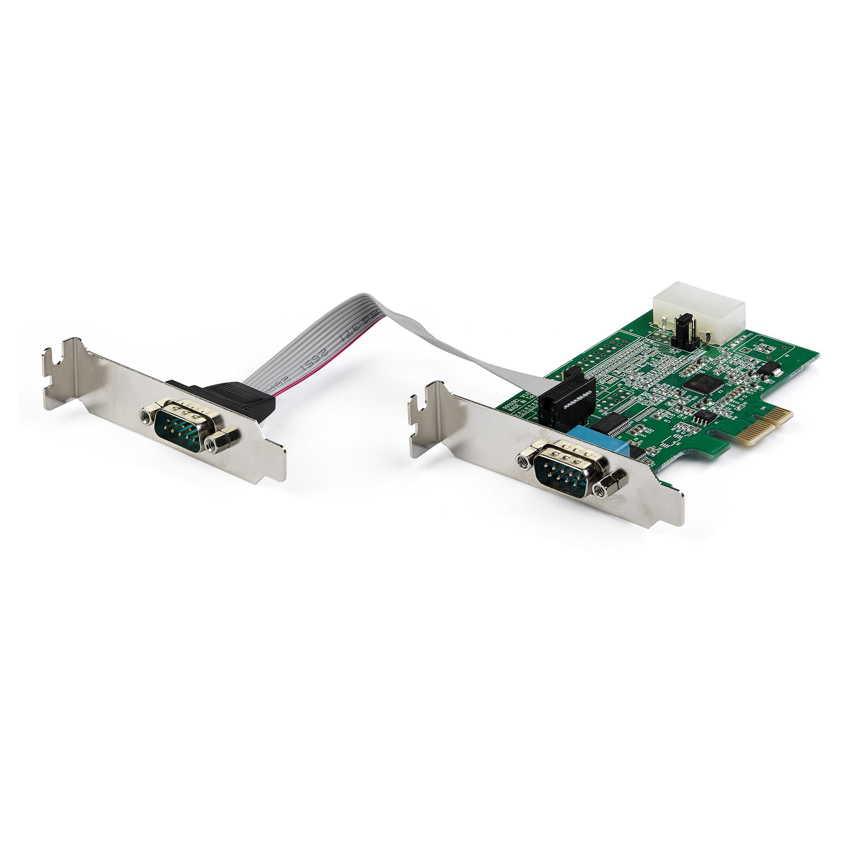

This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.
Maximum Compatibility

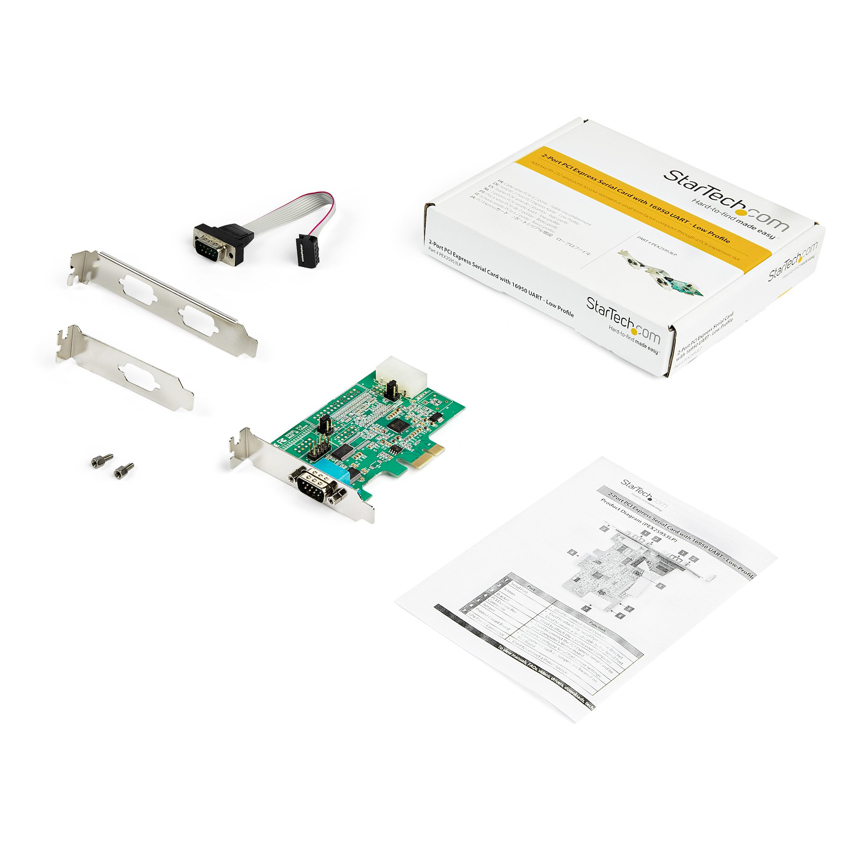

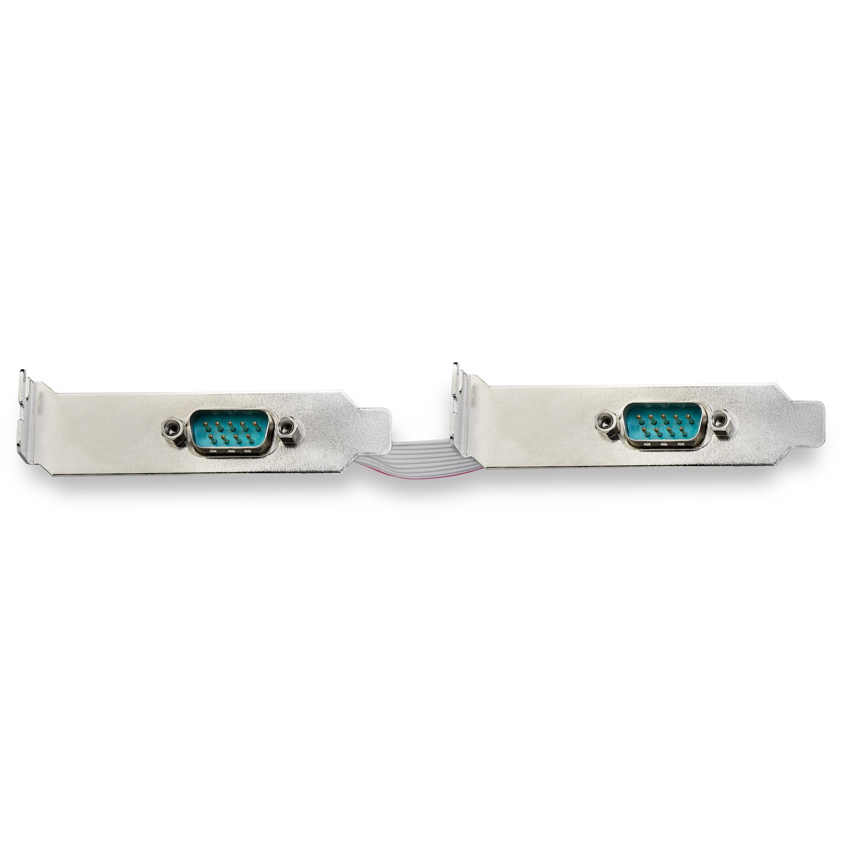

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux
SKU: PEX2S953LP£35.08 ex VAT
£42.09 inc VAT
In stockPorts & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 2 Peripheral (Molex) power connectors (4-pin) 1 Host interface Mini PCI Express Expansion card standard PCIe 1.1 Technical details Chipset Asix AX99100 FIFO (First In, First Out) 256 B Compliance certificates RoHS Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B Harmonized System (HS) code 84733020 Certificates Certification CE, FCC Design Mean time between failures (MTBF) 222366 h Internal Yes Certification CE, FCC Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8, 9 Baud rate 921.6 Kbit/s Chipset Asix AX99100 FIFO (First In, First Out) 256 B Parity bit Even, Mark, No, Odd, Space Flow Control type No, RTS/CTS, XON/XOFF Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85% System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Linux operating systems supported Yes Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Weight & dimensions Width 67 mm Depth 98 mm Height 18 mm Weight 55.6 g Package width 142 mm Package depth 172 mm Package height 32 mm Package weight 146.4 g Packaging data Mounting brackets included Yes Manual Yes Package width 142 mm Package depth 172 mm Package height 32 mm Package weight 146.4 g Quantity 1 Logistics data Products per master (outer) case 75 pc(s) Master (outer) case width 355 mm Master (outer) case length 690 mm Master (outer) case height 317 mm Harmonized System (HS) code 84733020 Packaging content Mounting brackets included Yes Manual Yes Quantity 1 Other features Chipset Asix AX99100 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
