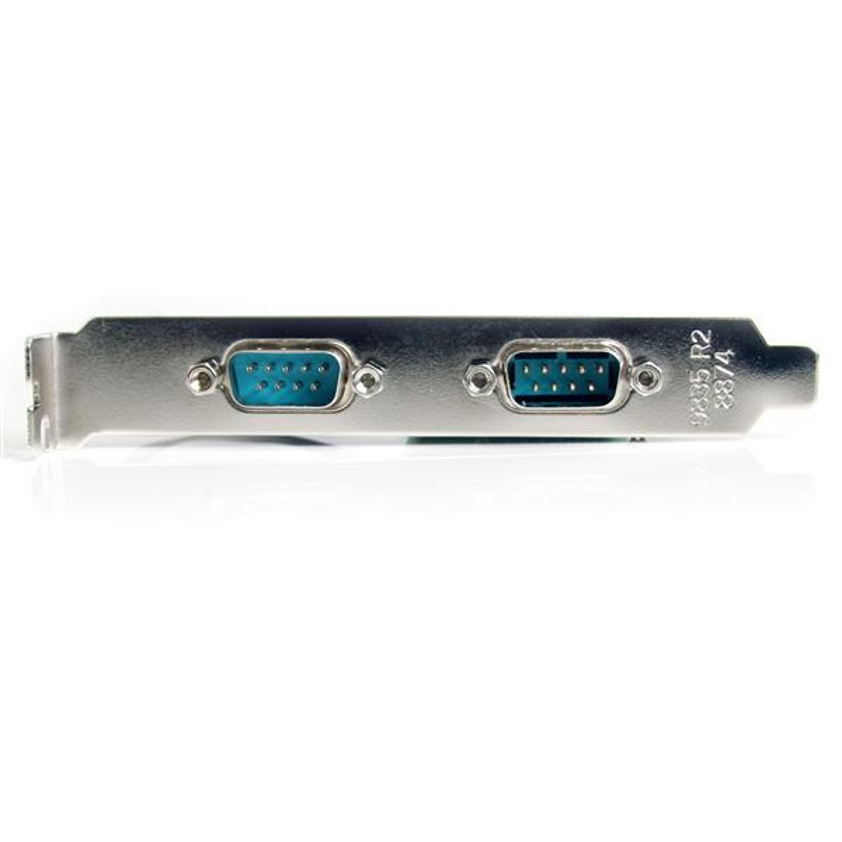

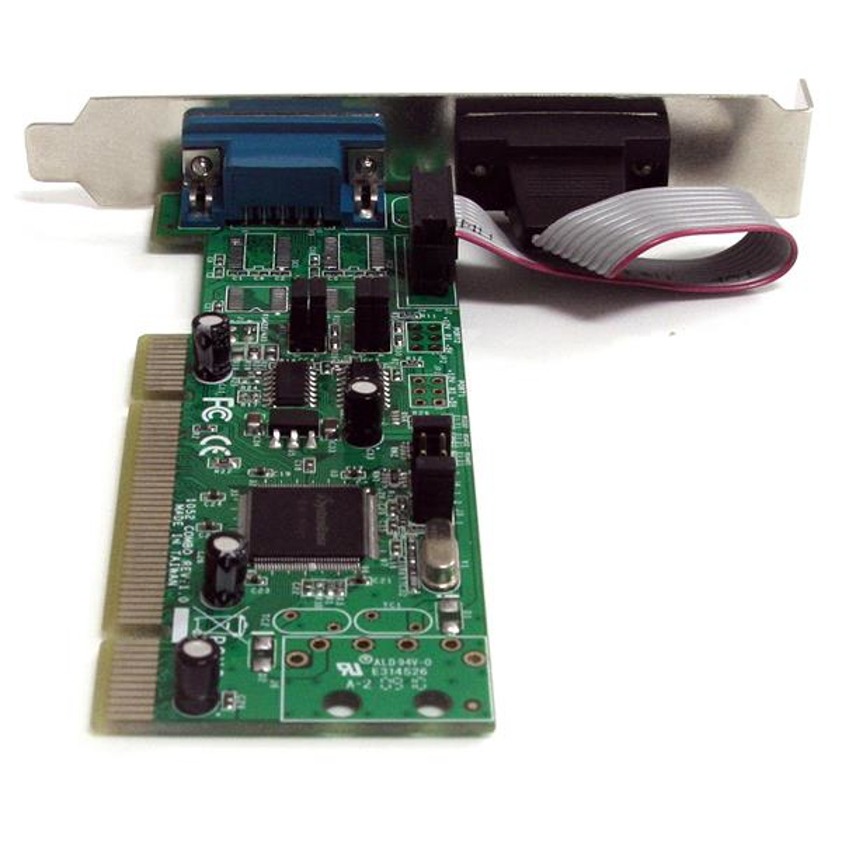

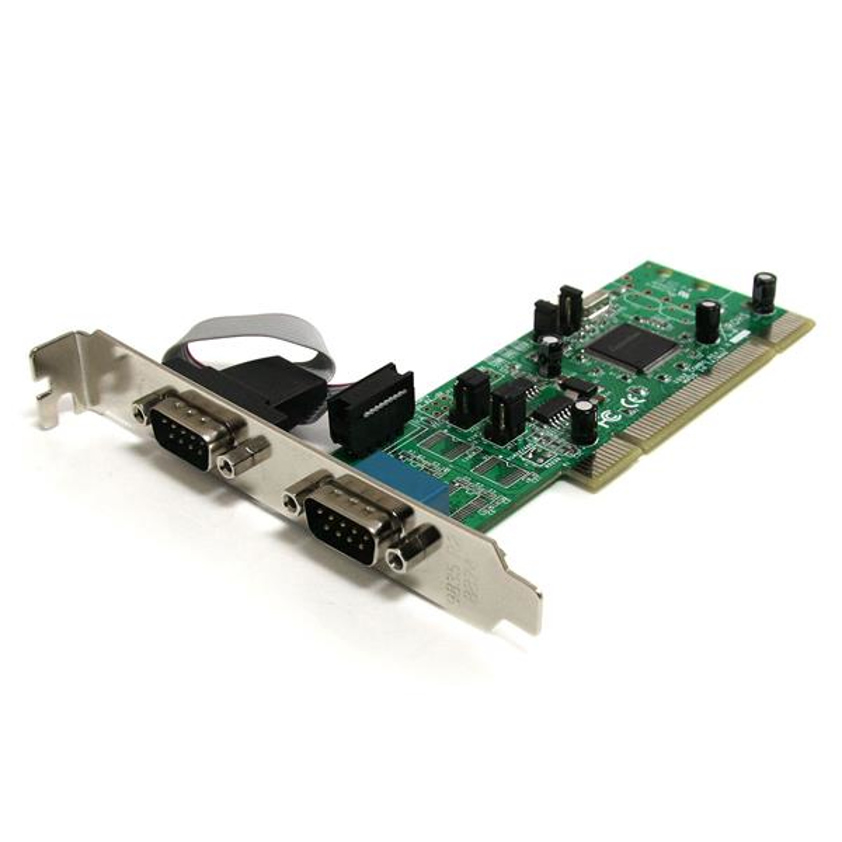

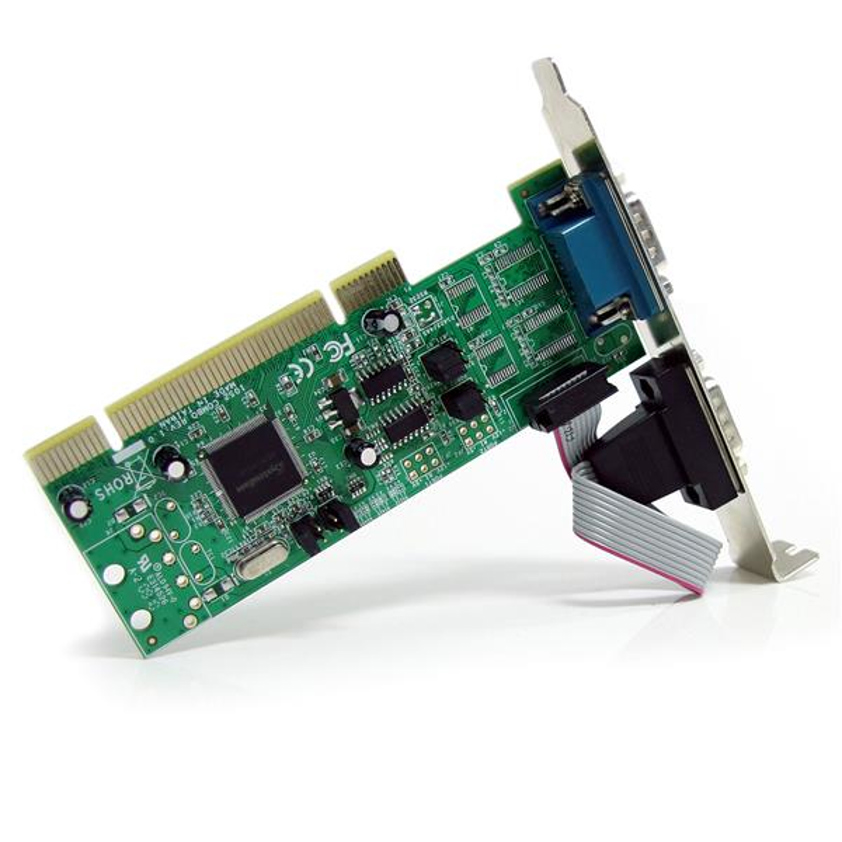

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

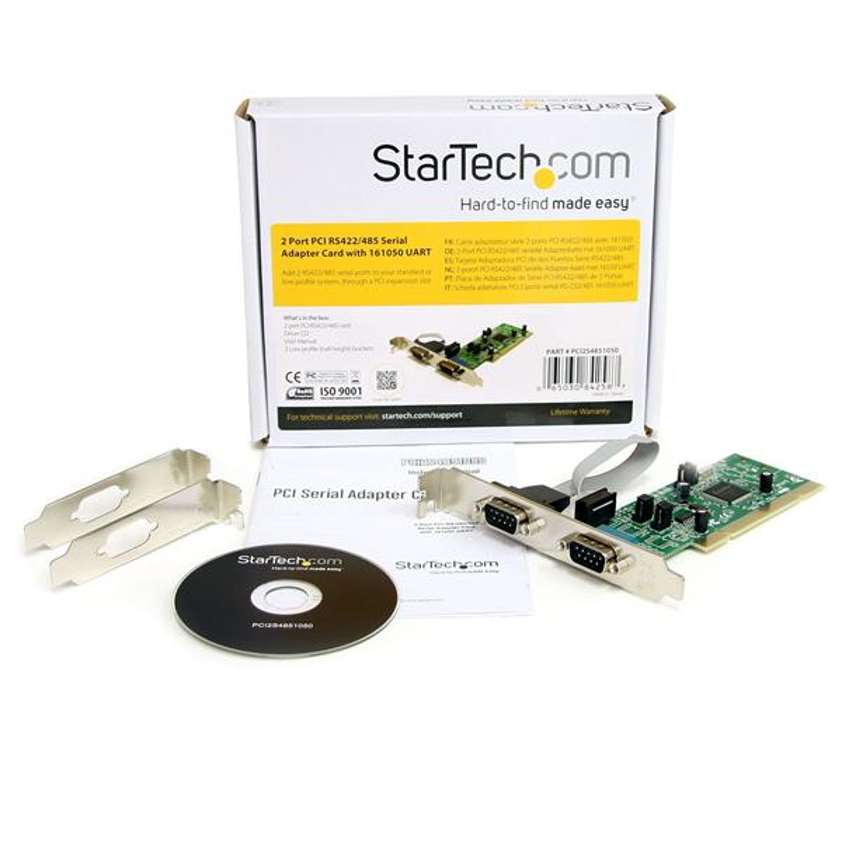

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
- A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
- Standard and low profile/half-height bracket included, ensuring easy installation into almost any system
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART
SKU: PCI2S4851050£15.16 ex VAT
£18.19 inc VAT
Out of stockPorts & interfaces Internal Yes Output interface Serial Serial interface type RS-422, RS-485 Serial ports quantity 2 Host interface PCI/PCI-X Technical details Chipset SystemBase -SB16C1052PCI FIFO (First In, First Out) 256 B Compliance certificates RoHS Network Data transfer rate 0.128 Mbit/s Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8 Baud rate 128 Kbit/s Chipset SystemBase -SB16C1052PCI FIFO (First In, First Out) 256 B Flow control support Yes Harmonized System (HS) code 84733020 Certificates Certification CE, FCC Design Internal Yes Certification CE, FCC Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8 Baud rate 128 Kbit/s Chipset SystemBase -SB16C1052PCI FIFO (First In, First Out) 256 B Flow control support Yes Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) -10 - 80 °C Storage temperature (T-T) -20 - 100 °C Operating relative humidity (H-H) 5 - 85% System requirements Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Server operating systems supported Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2, Windows Server 2012 Weight & dimensions Width 15 mm Depth 120 mm Height 45 mm Weight 58 g Package width 145 mm Package depth 175 mm Package height 32 mm Package weight 152 g Packaging data Manual Yes Drivers included Yes Package width 145 mm Package depth 175 mm Package height 32 mm Package weight 152 g Logistics data Harmonized System (HS) code 84733020 Other features Data transfer rate 0.128 Mbit/s Compatible operating systems Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x Chipset SystemBase -SB16C1052PCI Flow control support Yes Packaging content Manual Yes Drivers included Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
