Switch between two Computers sharing four DVI displays, speakers & mic, USB Keyboard & Mouse, and USB 2.0 peripheral
The SV231QDVIUA 2-Port Quad Monitor Dual-Link DVI USB KVM Switch allows 2 PCs, each with 4 DVI video outputs, to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Quad DVI KVM switch allows you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 2560x1600. The quad DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals to be shared between attached systems - eliminating duplicate peripheral costs, and offering the convenience of sharing stored data between PCs.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.
The StarTech.com Advantage
- Dual-link DVI supports extraordinary beyond high definition resolutions of 2560x1600 on each of the 4 connected monitors for maximum screen real estate
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals
- The only 4 monitor high definition DVI KVM with USB support

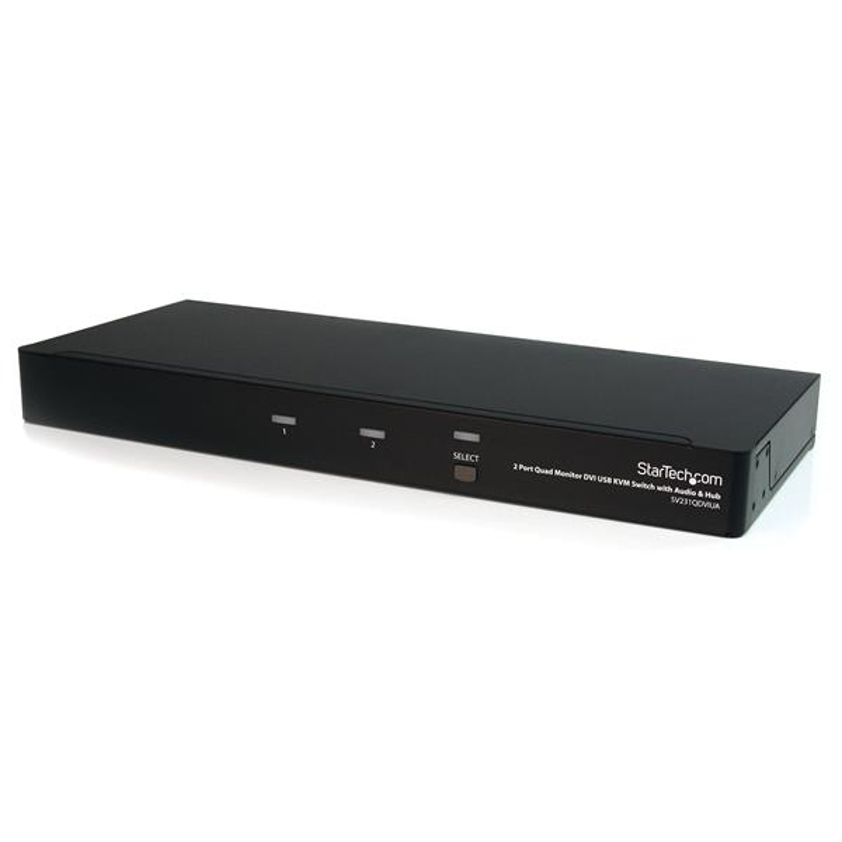

StarTech.com 2 Port Quad Monitor Dual-Link DVI USB KVM Switch with Audio & Hub
SKU: SV231QDVIUA£265.25 ex VAT
£318.30 inc VAT
Out of stockPorts & interfaces Number of microphone inputs 3 Number of computers controlled 2 Video port type DVI-D Headphone outputs 3 Performance Maximum resolution 2560 x 1600 pixels Technical details Product colour Black Design Product colour Black Video Maximum resolution 2560 x 1600 pixels Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Weight & dimensions Weight 3 kg Package width 263 mm Package depth 596 mm Package height 89 mm Package weight 3.5 kg Packaging data Package width 263 mm Package depth 596 mm Package height 89 mm Package weight 3.5 kg Other features Connectivity technology Wired Power requirements 110 - 240 AC Dimensions (WxDxH) 438 x 177.6 x 42.8 mm I/O ports 3 x USB A, 2 x USB B Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
