StarTech.com 2-Port USB 3.1 (10Gbps) Card - USB-A, 1x External, 1x Internal - PCIe

SKU: PEXUSB311EI
£12.81 ex VAT
£15.37 inc VAT
Product in stockIn stock

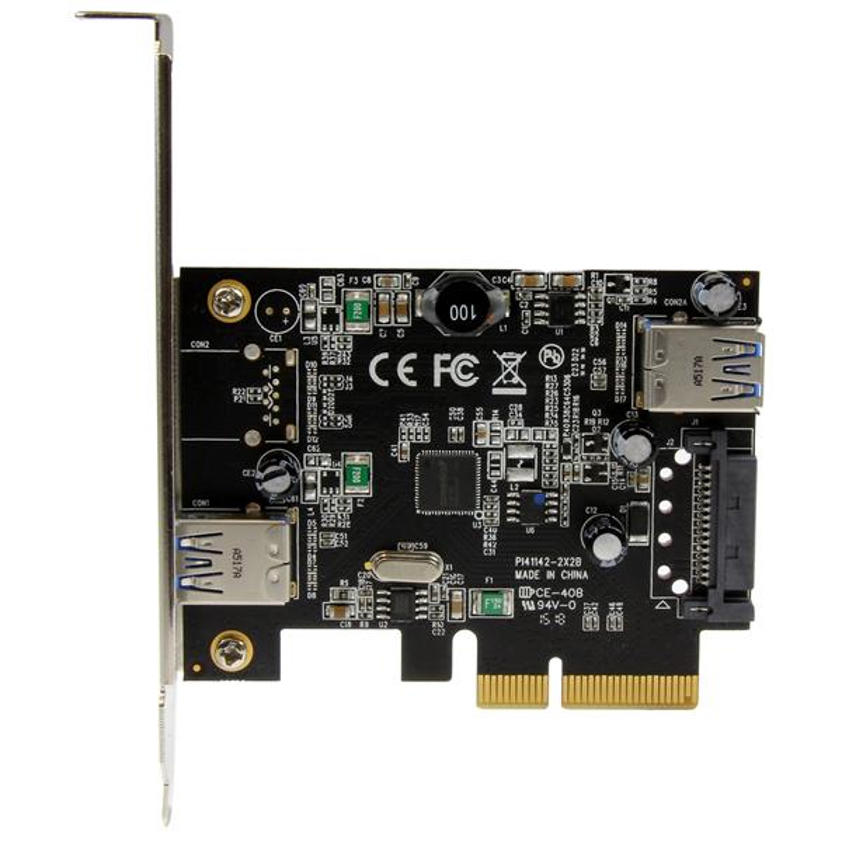

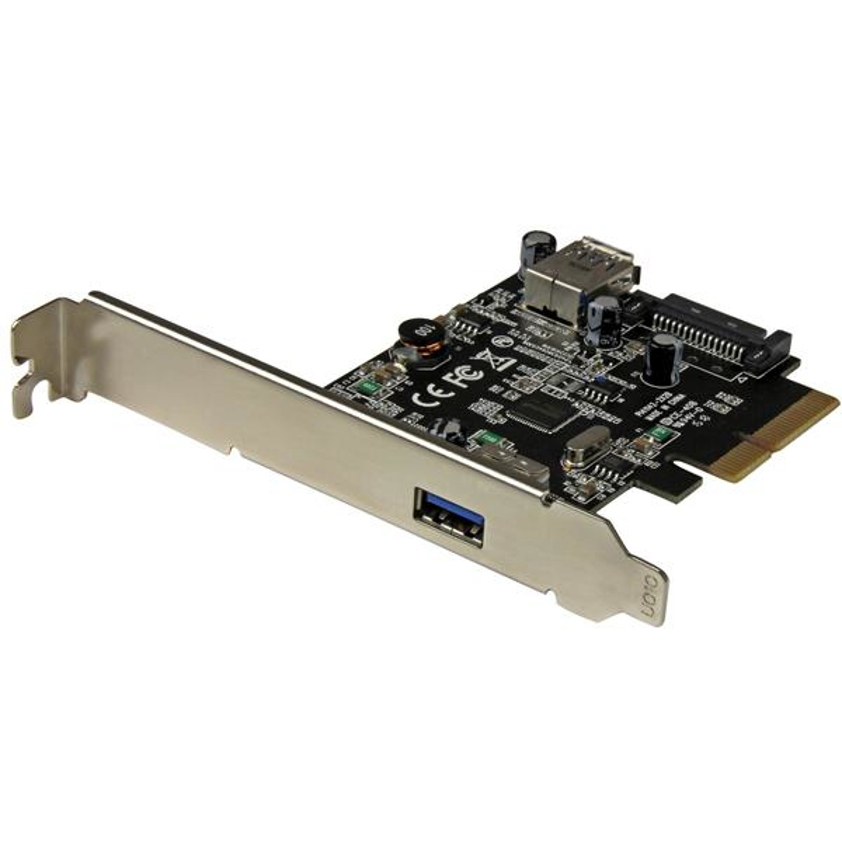

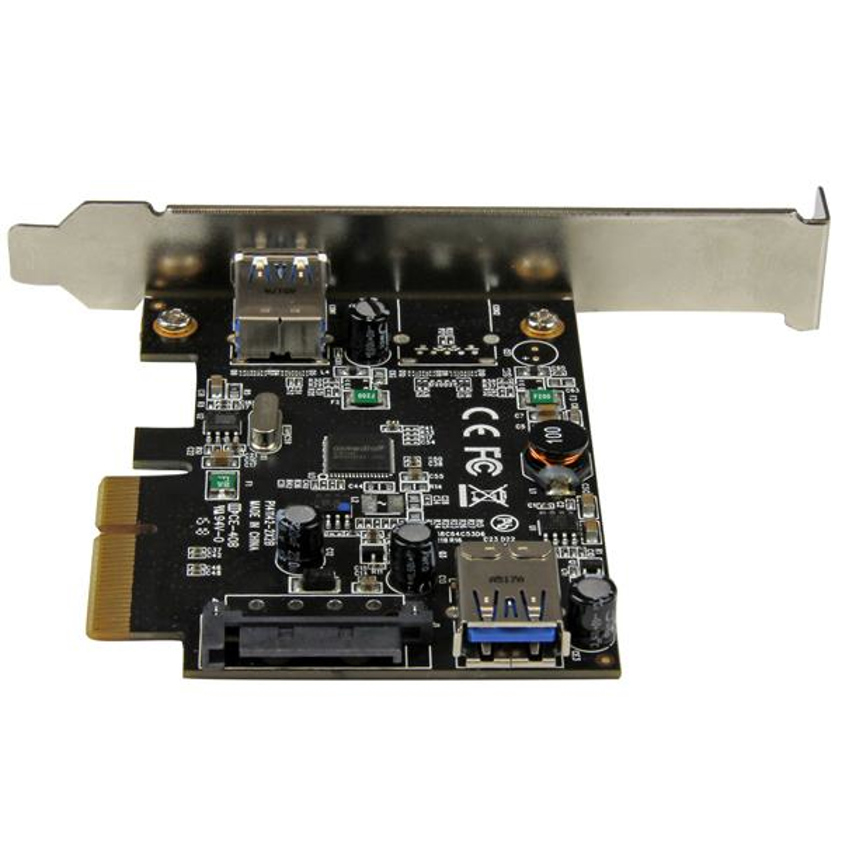

  • This USB 3.1 Gen 2 card prepares you for the next generation of USB performance, on the inside and outside of your computer. The 2-port card adds one internal Type-A connector as well as one external Type-A connector to your desktop computer, with a combined bandwidth of up to 10Gbps. For power-hungry devices, the card also has an internal SATA power connector, enabling you to use your computer’s power supply to add more power to the ports.

    With greater bandwidth, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.

    Connectivity on the inside and out
    With an internal port, you can connect internal devices that use a USB Type-A connector, such as a front-bay SD card reader. Plus, you can use the internal port to keep peripherals safely inside your computer case — perfect for high-capacity USB flash drives or interface devices used for external wireless peripherals such as keyboards and mice or Bluetooth® adapters.

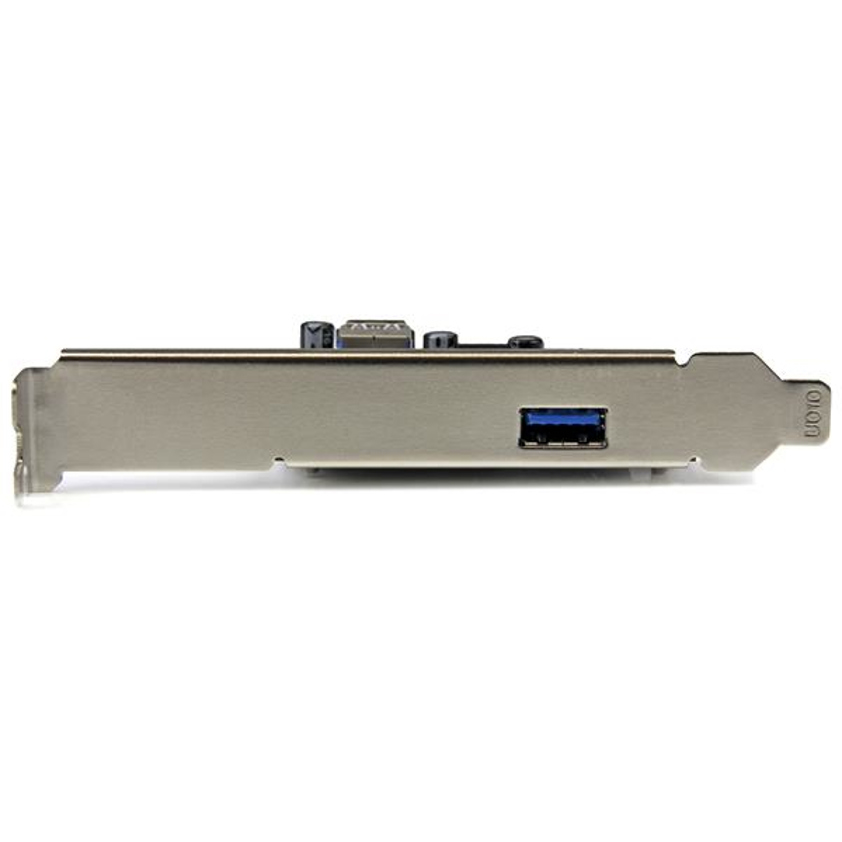

    The card also features an external port that can be used for any USB Type-A device, like your external hard drive or any wired peripheral.

    Faster USB performance
    By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured that you’re ready for both current and future high-bandwidth USB-A devices.

    With higher data throughput, this PCI Express USB 3.1 card is a necessity for external hard drives, hard drive enclosures, and many other USB 3.1 peripherals. Plus, the USB card integrates a SATA power connector to support high-powered devices, making it ideal for use with large external storage solutions.

    For more flexibility, you can couple the card with a USB-C to USB-A cable (USB31AC1M) and connect your USB Type-C™ devices.

    Compatible with your older USB devices
    Connecting your older peripherals isn’t a problem. This versatile USB 3.1 Gen 2 (10Gbps) card is backward compatible with legacy USB 3.0 and 2.0 devices that use the common USB Type-A port, so you can eliminate the added expense and aggravation of purchasing new devices.

    Easy to install, in virtually any Windows based PC
    For a hassle-free installation with no additional software or drivers required, the card is natively supported by most operating systems, and interfaces with the PCI Express 3.0 x4 slot on your computer. Plus, the high-quality card includes both standard-profile and low-profile (half-height) brackets, making it easy to install in full or small form-factor PCs or servers.

    The PEXUSB311EI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
  • Ports & interfaces
    InternalYes
    Output interfaceUSB 3.2 Gen 1 (3.1 Gen 1)
    Host interfacePCIe
    Expansion card form factorFull-height / Low-profile
    Expansion card standardPCIe 3.0
    Technical details
    ChipsetASMedia - ASM1142
    Data transfer rate (max)10 Gbit/s
    Compliance certificatesRoHS
    Performance
    UASP supportYes
    ChipsetASMedia - ASM1142
    Data transfer rate (max)10 Gbit/s
    Harmonized System (HS) code84733020
    Certificates
    CertificationCE, FCC
    Design
    InternalYes
    CertificationCE, FCC
    Features
    UASP supportYes
    ChipsetASMedia - ASM1142
    Data transfer rate (max)10 Gbit/s
    Harmonized System (HS) code84733020
    Operational conditions
    Operating temperature (T-T)5 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)20 - 80%
    System requirements
    Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
    Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
    Linux operating systems supportedYes
    Server operating systems supportedWindows Server 2008 R2, Windows Server 2012
    Weight & dimensions
    Width18 mm
    Depth90 mm
    Height120 mm
    Weight55 g
    Package width170 mm
    Package depth143 mm
    Package height30 mm
    Package weight121 g
    Packaging data
    ManualYes
    Package width170 mm
    Package depth143 mm
    Package height30 mm
    Package weight121 g
    Logistics data
    Harmonized System (HS) code84733020
    Packaging content
    ManualYes
    Other features
    ChipsetASMedia - ASM1142
