Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selection

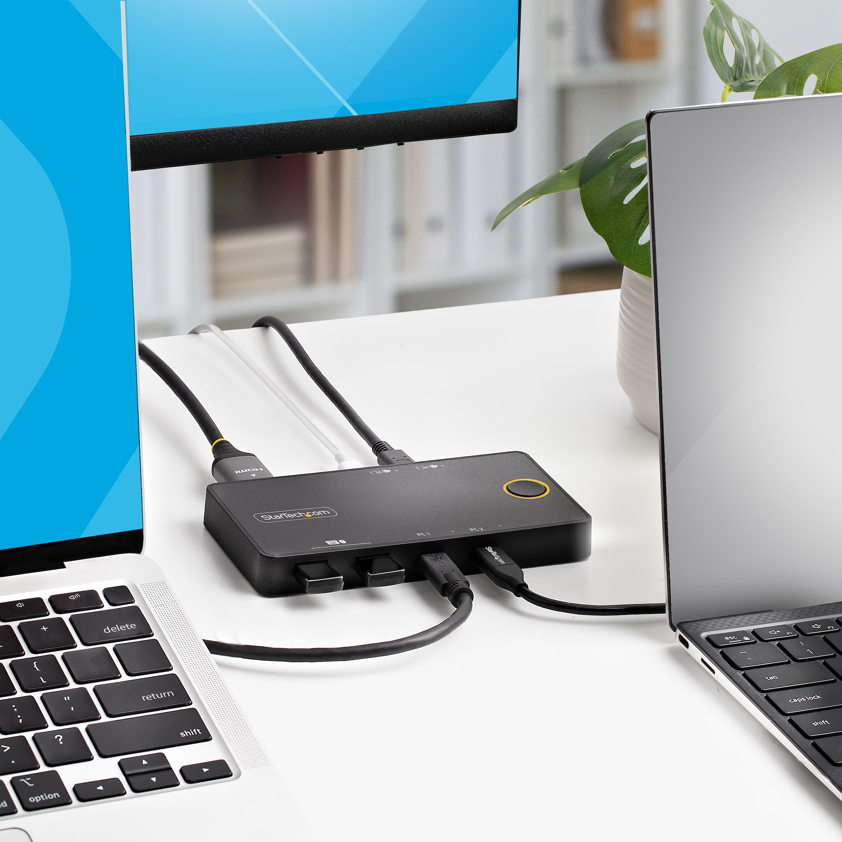

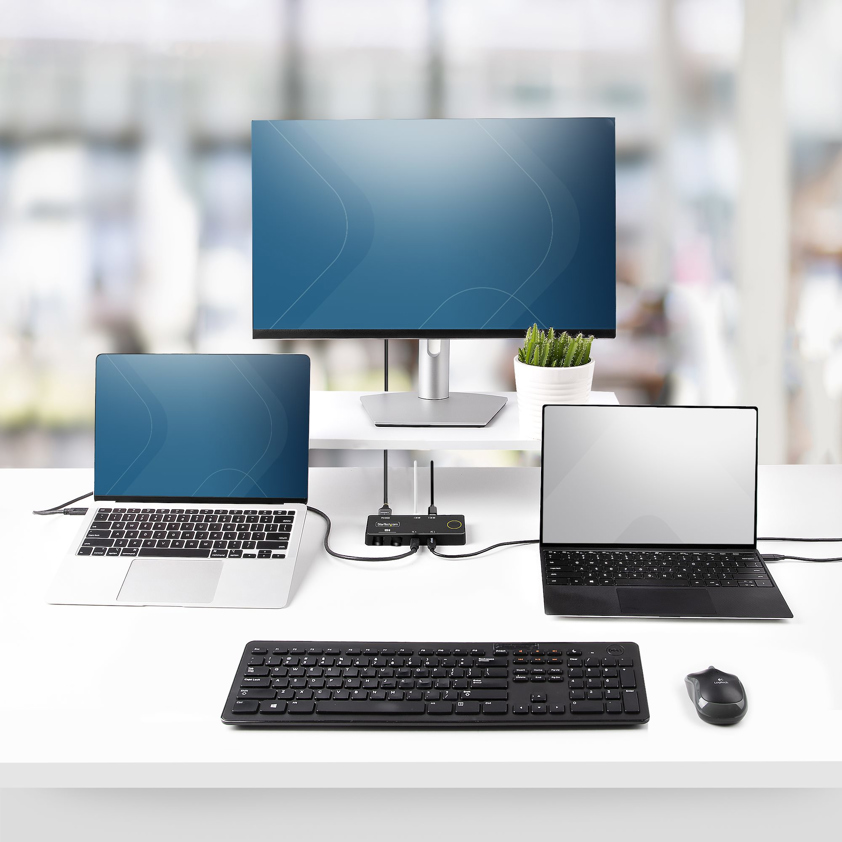

This USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.
100W Power Delivery Pass-through
Dual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.
Universal Compatibility
The 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Ready for Quick Deployment

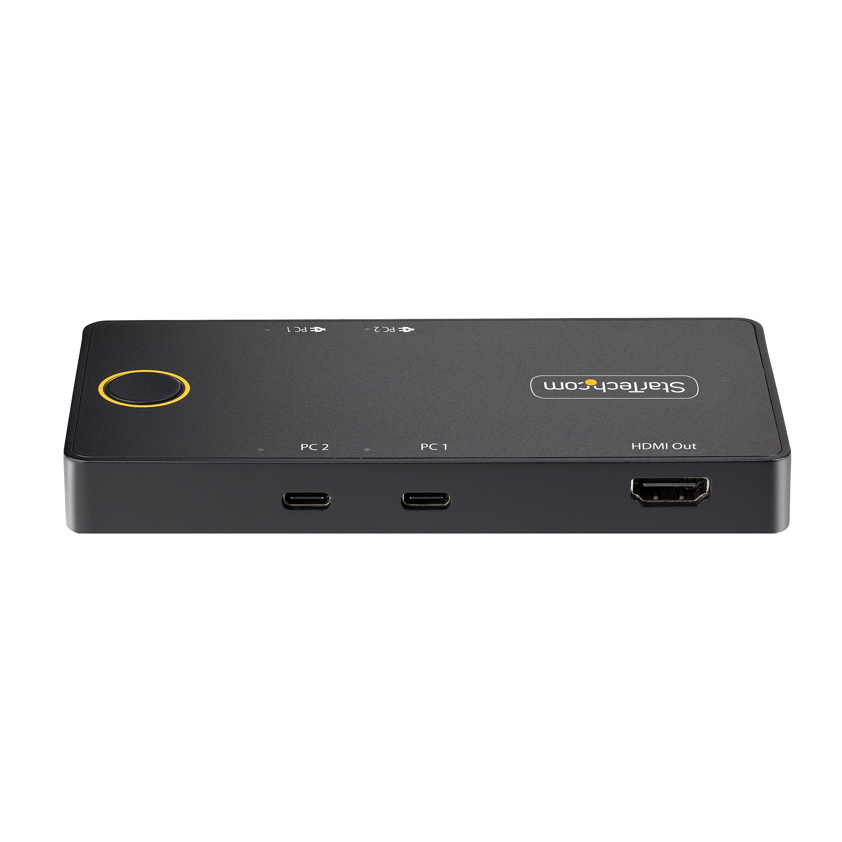

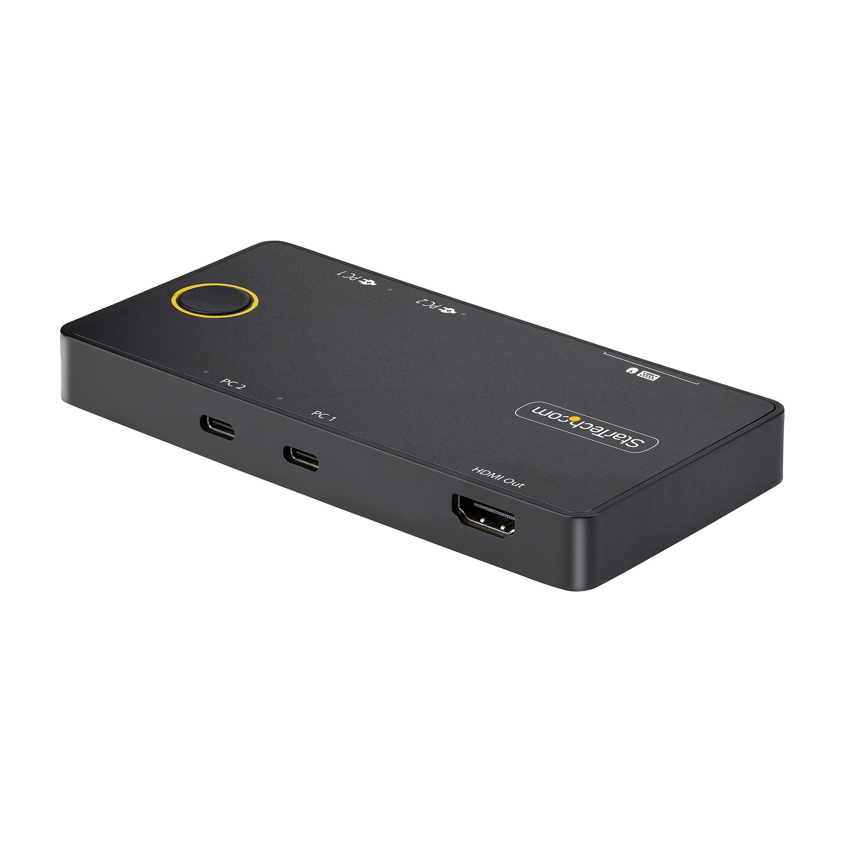

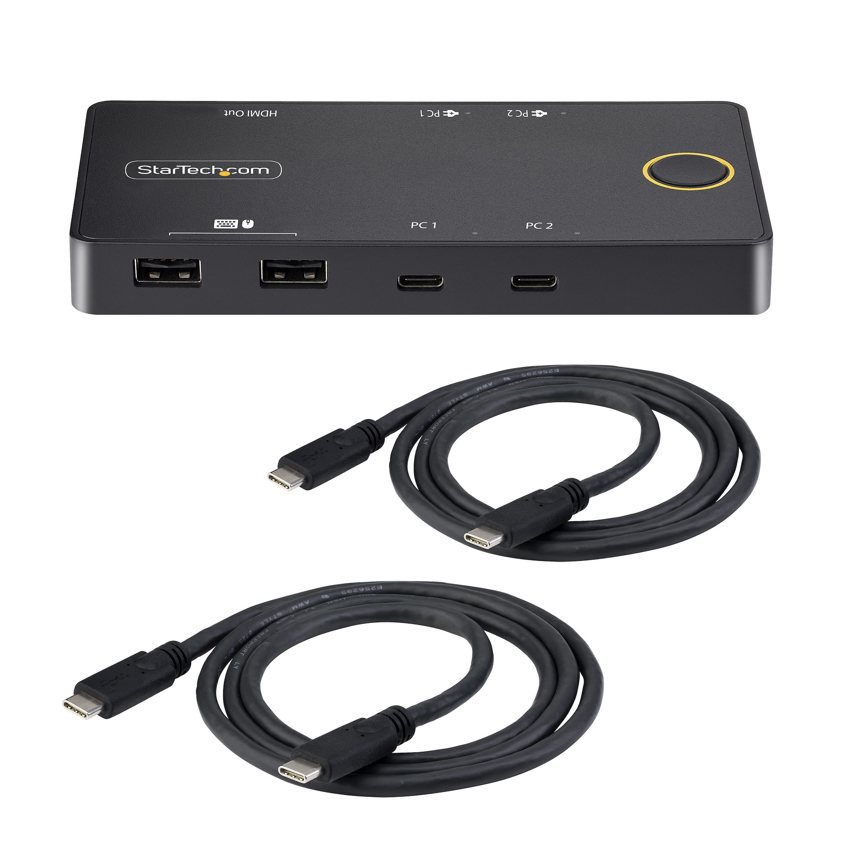

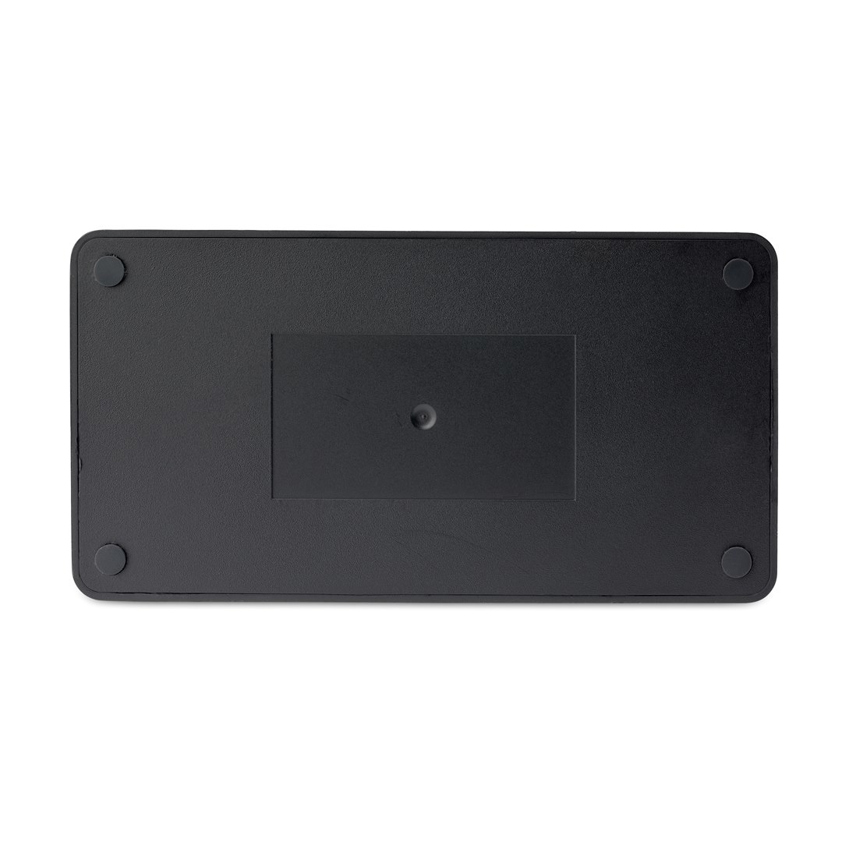

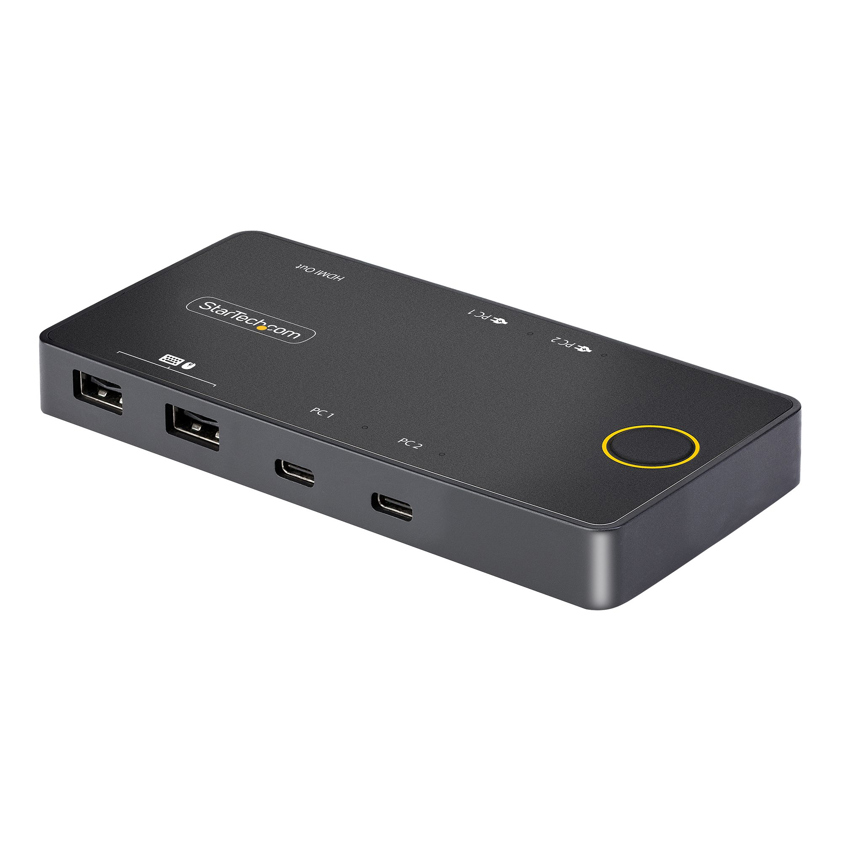

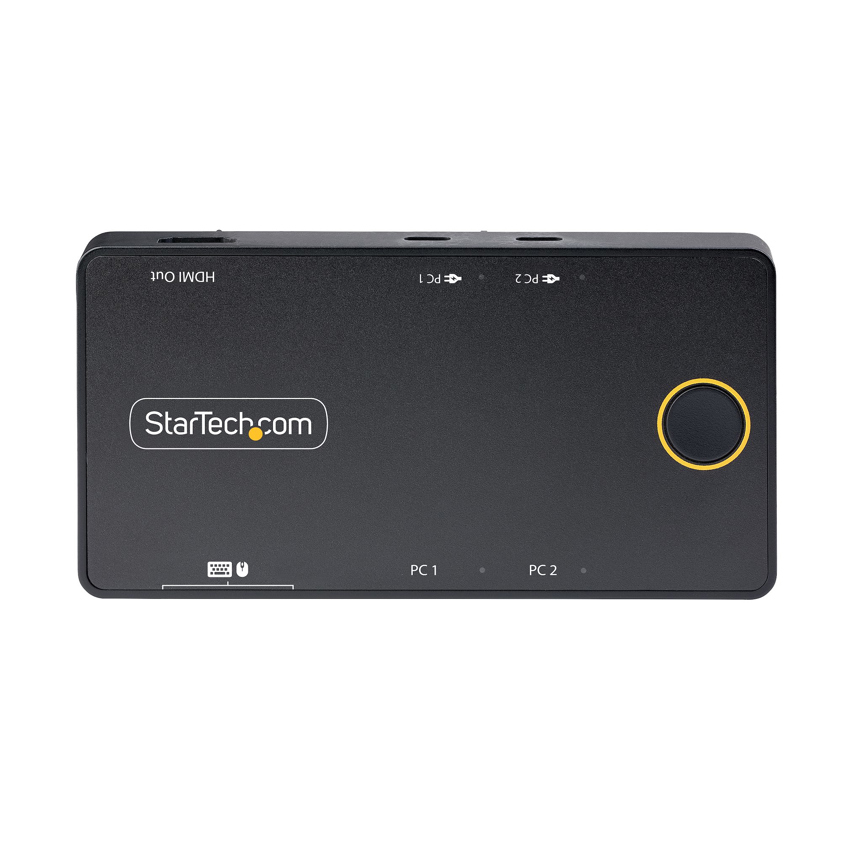

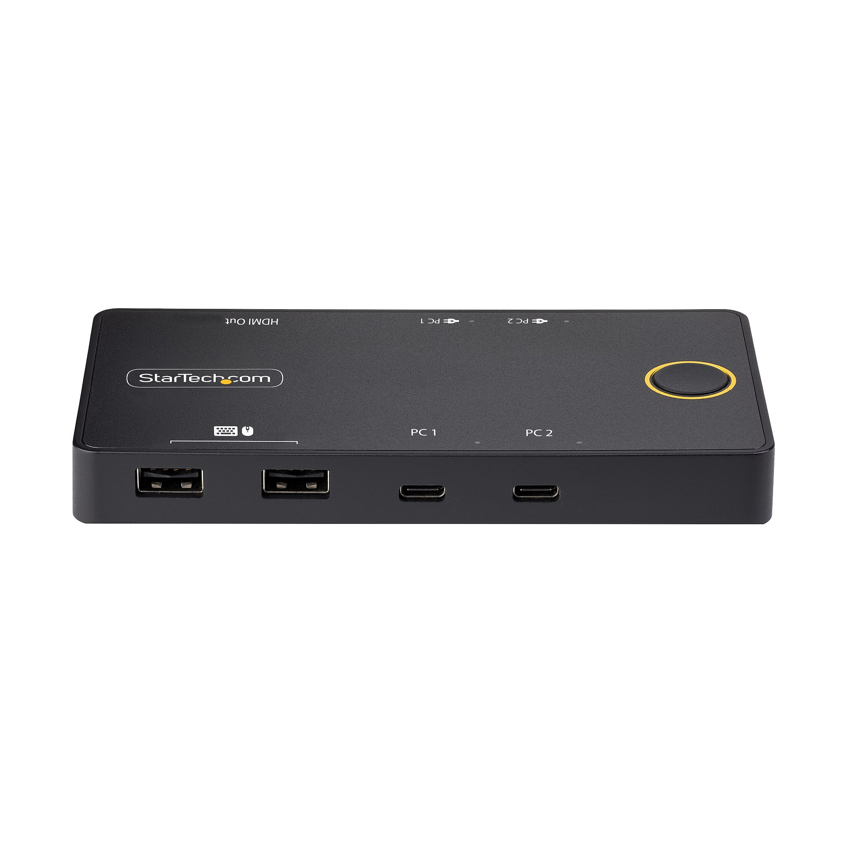

The KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.
The StarTech.com Advantage
StarTech.com 2-Port USB-C KVM Switch, Single-4K 60Hz HDMI Monitor, Dual-100W Power Delivery Pass-through Ports, Bus Powered, USB Type-C/USB4/Thunderbolt 3/4 Compatible - Small Form Factor
SKU: C2-H46-UC2-PD-KVM£146.21 ex VAT
£175.45 inc VAT
In stockPorts & interfaces Console USB ports quantity 4 Console ports HDMI, USB A, USB C Number of computers controlled 2 Keyboard port type USB Mouse port type USB Video port type HDMI Console HDMI ports quantity 1 Cable length 1 m Performance Chipset VLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817 Data transfer rate (max) 0.48 Gbit/s HD type 4K Ultra HD Video bandwidth 75 Hz Plug and Play Yes Maximum resolution 4096 x 2160 pixels Audio channels 7.1 Technical details Product colour Black Rack mounting No Plug and Play Yes Push button Yes LED indicators Power Hot keys No IP control No Sustainability compliance Yes Compliance certificates CE, RoHS Design Mean time between failures (MTBF) 50000 h Product colour Black Cable length 1 m Rack mounting No Push button Yes LED indicators Power Hot keys No Housing material Acrylonitrile butadiene styrene (ABS) Display Built-in display No Power Power consumption (typical) 10 W USB Power Delivery up to 100 W USB Power Delivery (USB PD) Yes Video HD type 4K Ultra HD Video bandwidth 75 Hz Maximum resolution 4096 x 2160 pixels Sustainability Sustainability compliance Yes Compliance certificates CE, RoHS Operational conditions Operating temperature (T-T) 5 - 55 °C Storage temperature (T-T) -20 - 50 °C Operating relative humidity (H-H) 20 - 80% Weight & dimensions Width 70 mm Depth 140 mm Height 15 mm Weight 200 g Package width 120 mm Package depth 172 mm Package height 85 mm Package weight 440 g Packaging data Package width 120 mm Package depth 172 mm Package height 85 mm Package weight 440 g Packaging content Cables included USB Type-C Quick installation guide Yes Other features IP control No Push button Yes Hot keys No Logistics data Master (outer) case width 410 mm Master (outer) case length 470 mm Master (outer) case height 310 mm Products per master (outer) case 20 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
