Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot

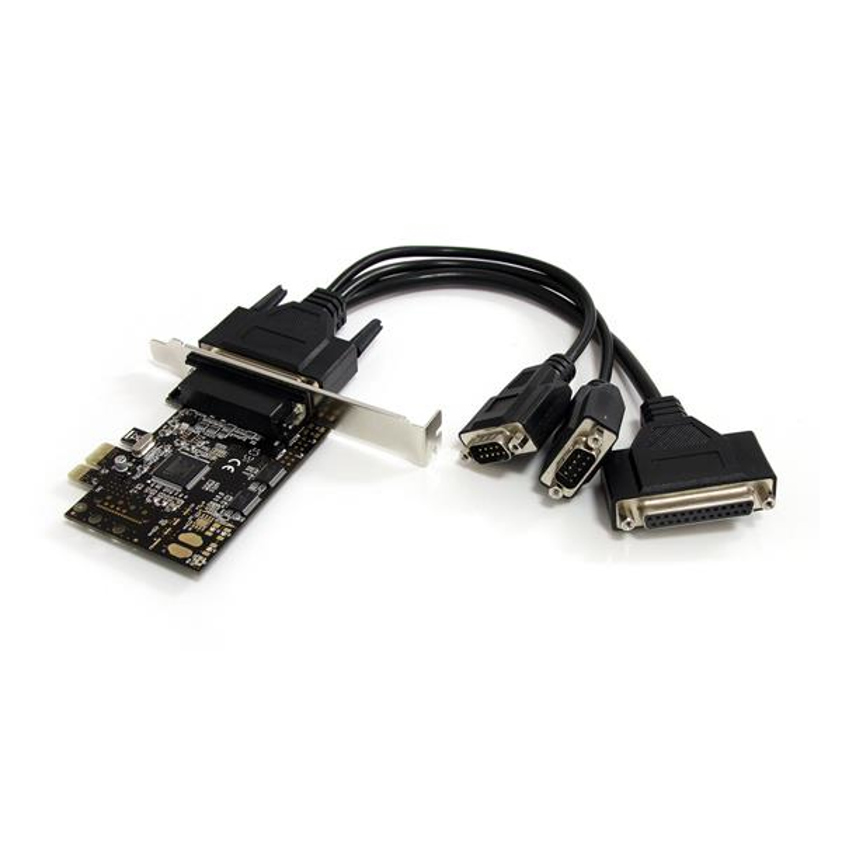

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

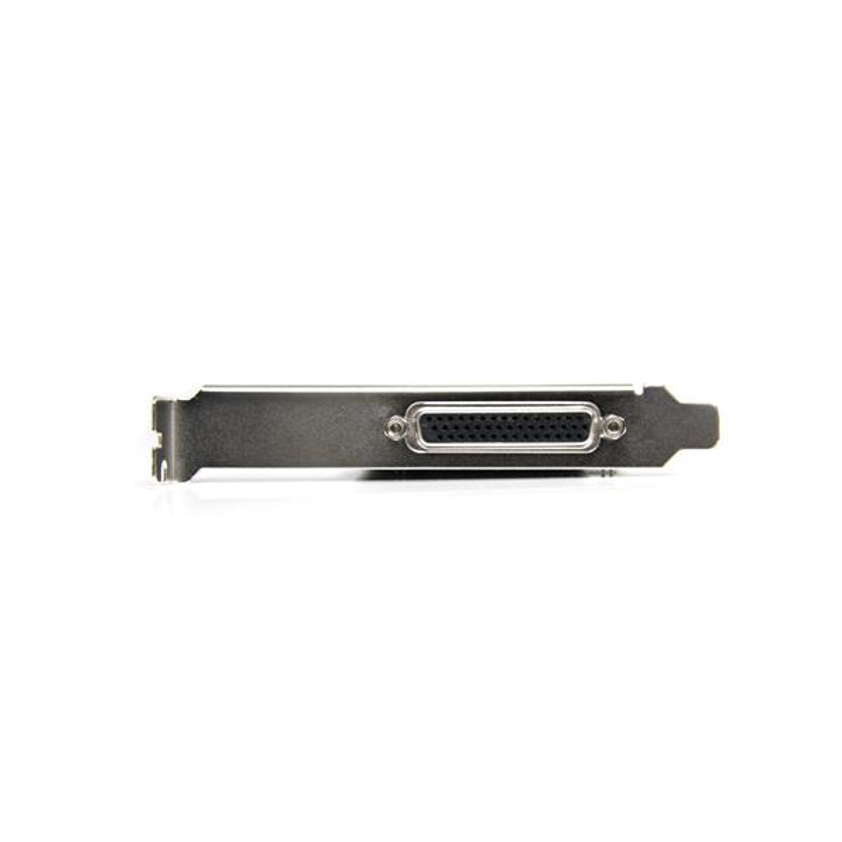

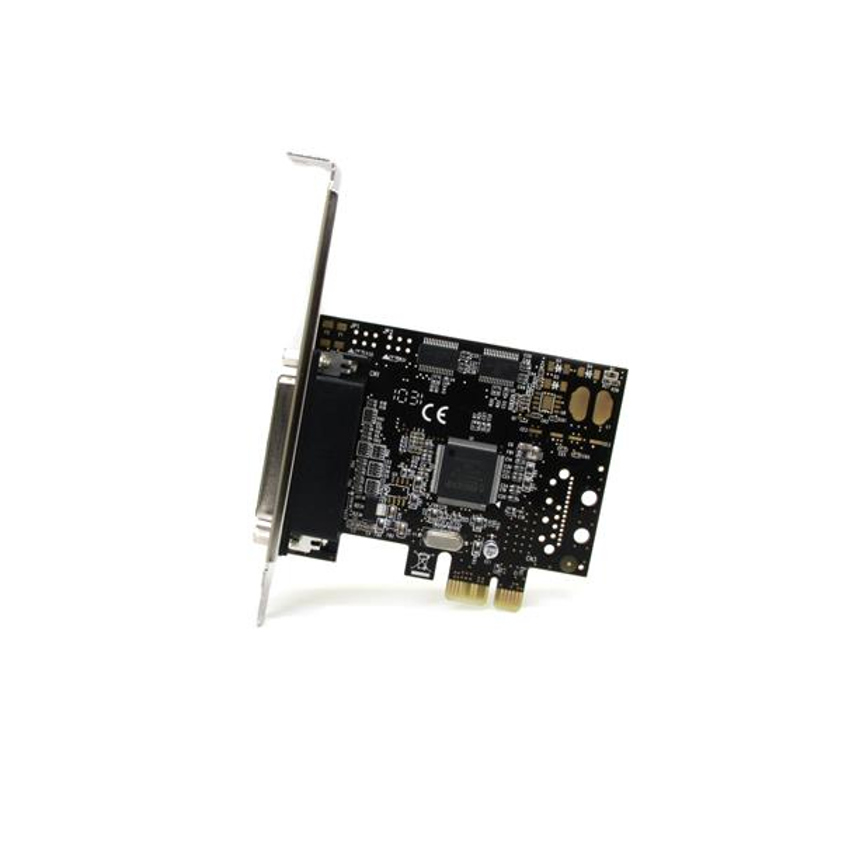

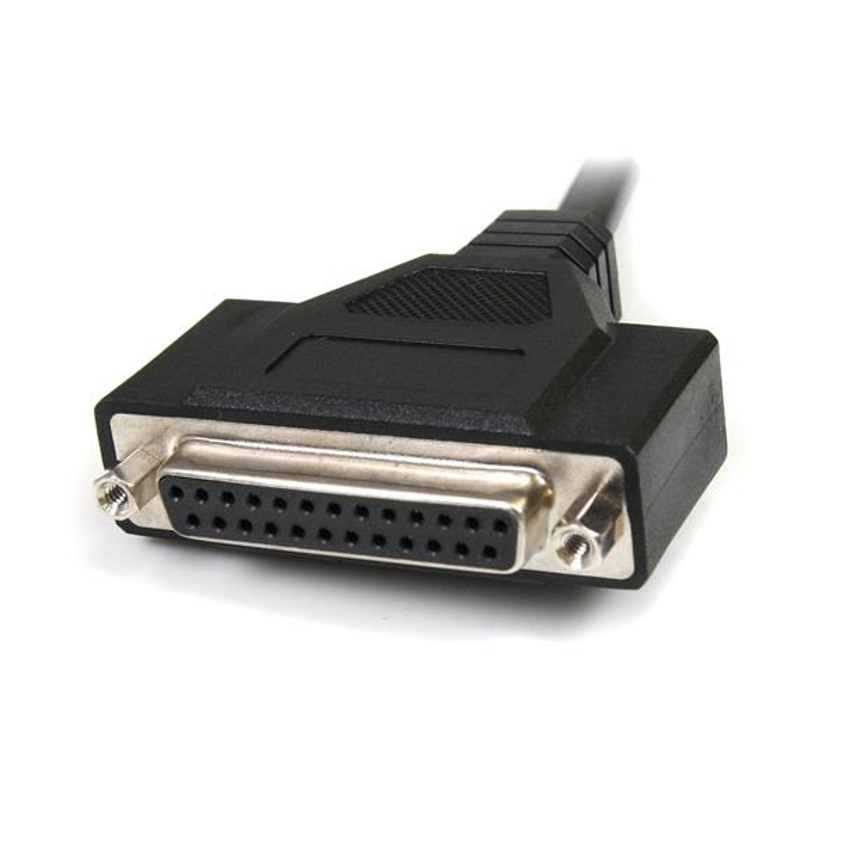

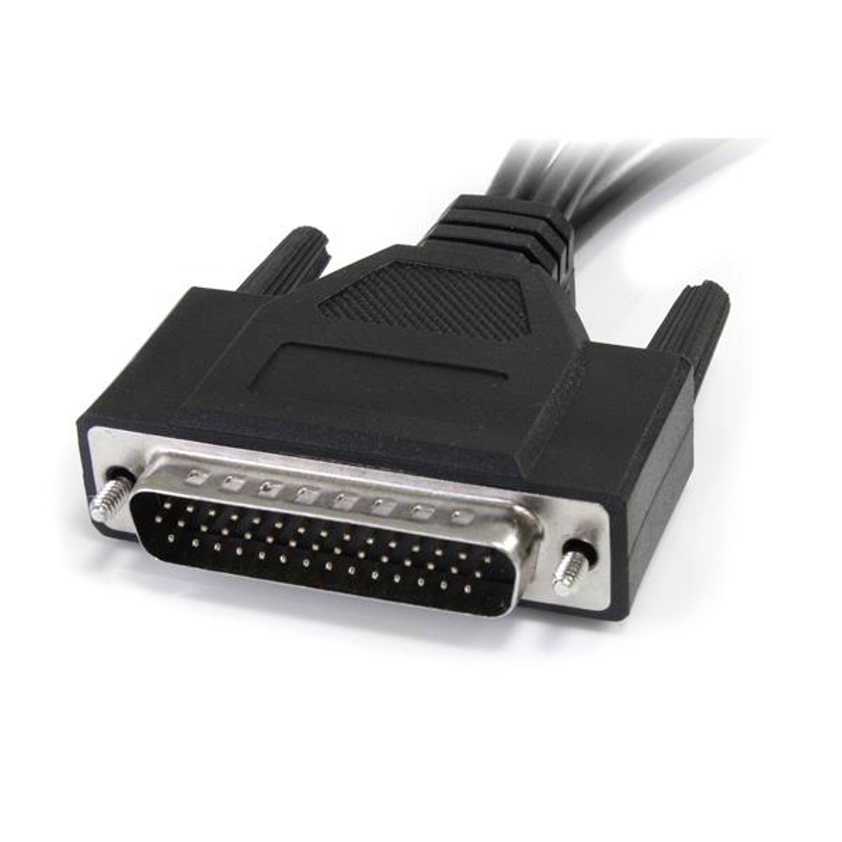

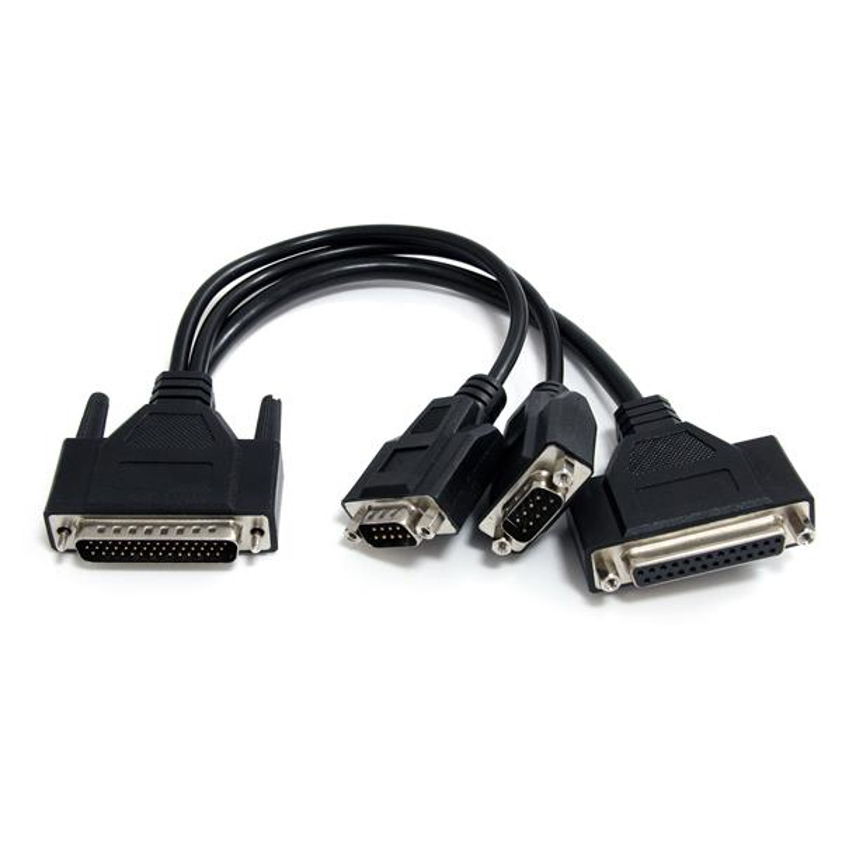

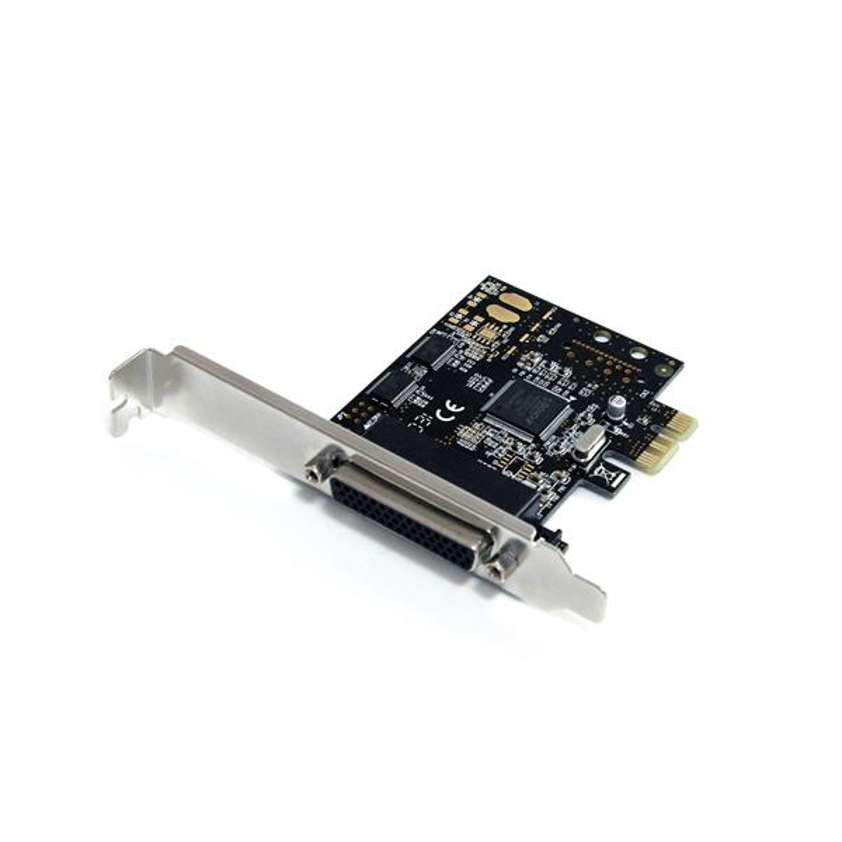

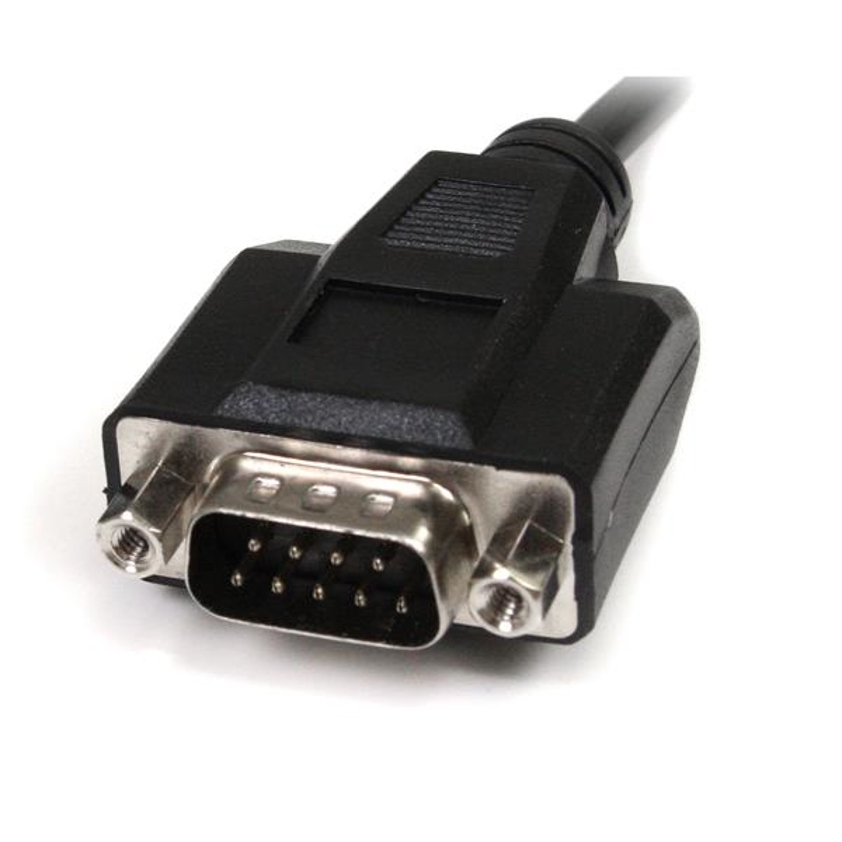

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

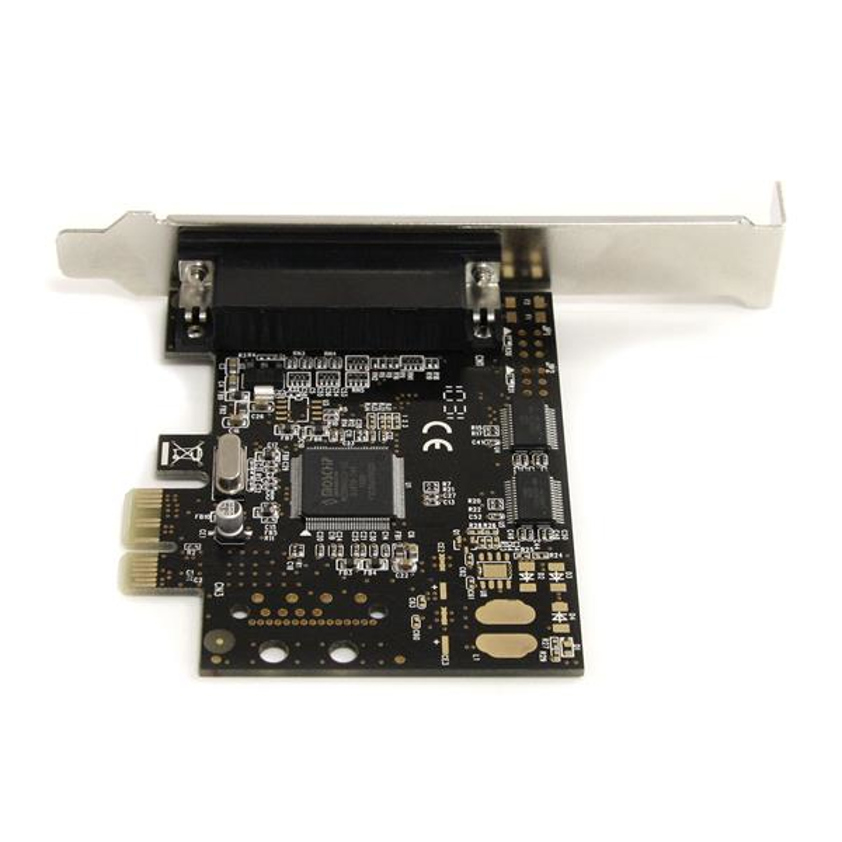

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.
This product is a replacement for our PEX2S1P552B card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage

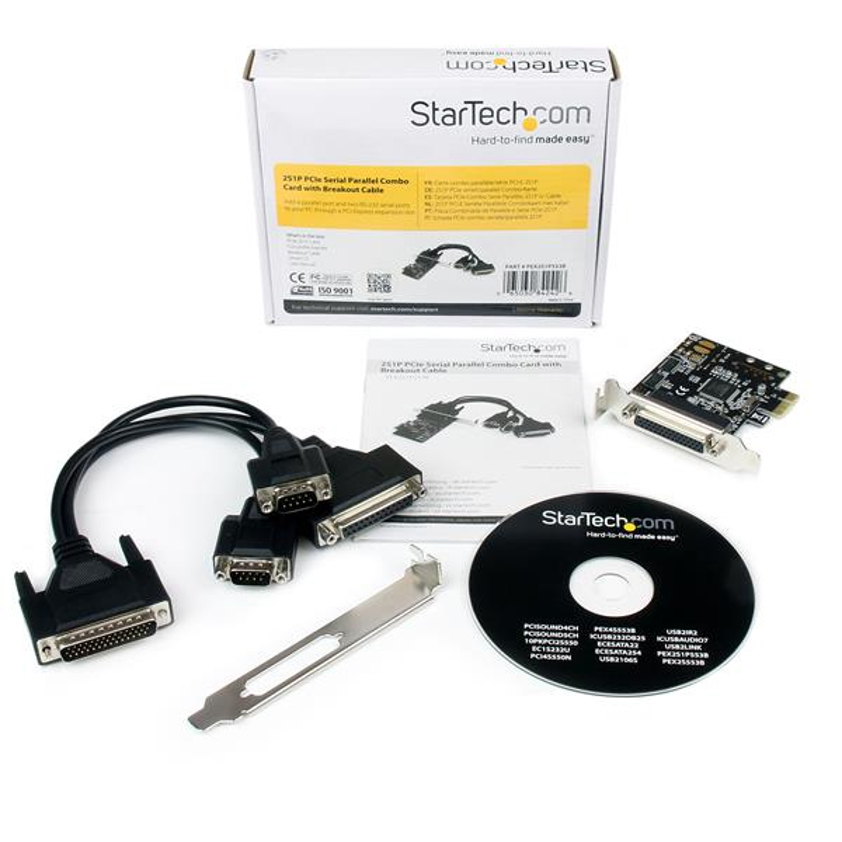

- Break-out cable design with low and standard profile brackets offers a versatile, single slot solution for adding 3 additional ports (2 serial, 1 parallel) to almost any system, including space-sensitive embedded applications
- Native single-chip design reduces CPU load for improved performance and reliability
- Broad Operating System support, including 64-bit Windows systems, for easy integration into mixed environments
StarTech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
SKU: PEX2S1P553B£27.29 ex VAT
£32.75 inc VAT
Low stockPorts & interfaces Internal Yes Output interface Parallel, Serial Serial interface type RS-232 Serial ports quantity 2 Parallel ports quantity 1 Host interface PCIe Expansion card form factor Low-profile Technical details Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 256 B Logical block addressing (LBA) support 8 bit Supports EPP and ECP Yes Compliance certificates RoHS Performance Data bits 5, 6, 7, 8 Baud rate 230.4 Kbit/s Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 256 B Logical block addressing (LBA) support 8 bit Supports EPP and ECP Yes Product colour Black, Silver Harmonized System (HS) code 84733020 Certificates Certification CE, FCC, REACH Colour Product colour Black, Silver Design Internal Yes Product colour Black, Silver Certification CE, FCC, REACH Features Data bits 5, 6, 7, 8 Baud rate 230.4 Kbit/s Chipset ASIX - MCS9901CV-CC FIFO (First In, First Out) 256 B Logical block addressing (LBA) support 8 bit Supports EPP and ECP Yes Parity bit Even, Mark, No, Odd, Space Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 85% System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Mac operating systems supported Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks Linux operating systems supported Yes Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 Other operating systems supported Windows Embedded POSReady 2009, Windows XP Embedded Weight & dimensions Width 23 mm Depth 95 mm Height 79 mm Weight 225 g Package width 173 mm Package depth 143 mm Package height 32 mm Package weight 317 g Packaging data Mounting brackets included Yes Manual Yes Drivers included Yes Package width 173 mm Package depth 143 mm Package height 32 mm Package weight 317 g Cables included Serial Logistics data Harmonized System (HS) code 84733020 Packaging content Mounting brackets included Yes Manual Yes Drivers included Yes Cables included Serial Other features Chipset ASIX - MCS9901CV-CC Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
