Enhance the performance capabilities of CWDM applications over an OS2 fiber network
OS2 LC to SC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Compatibility
Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
LSZH Cable Jacket
Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage

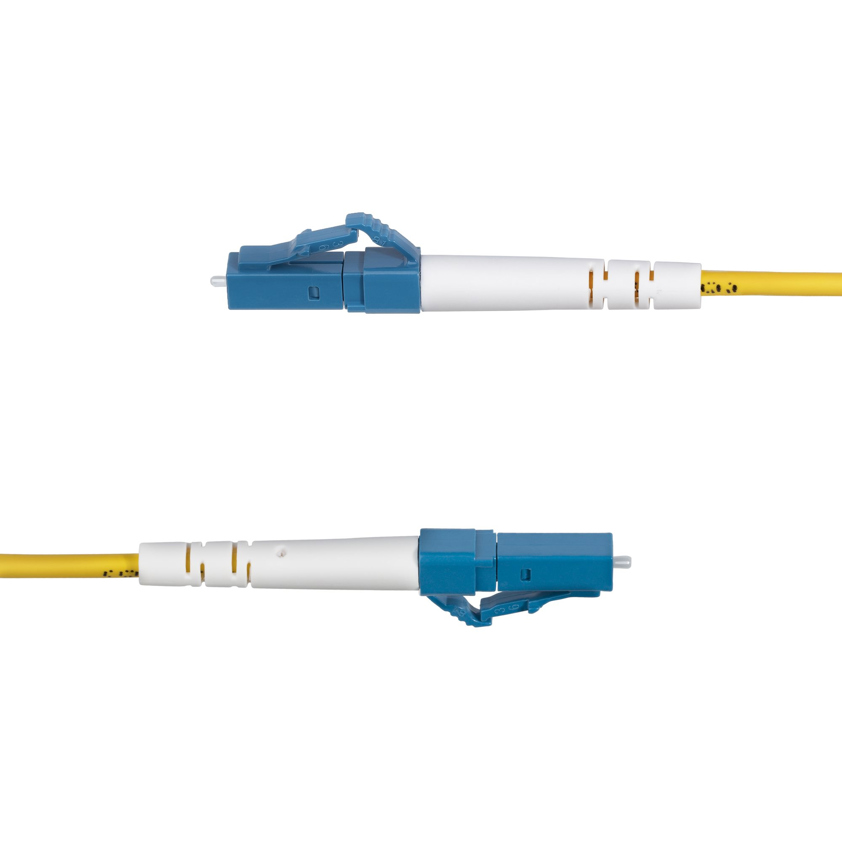

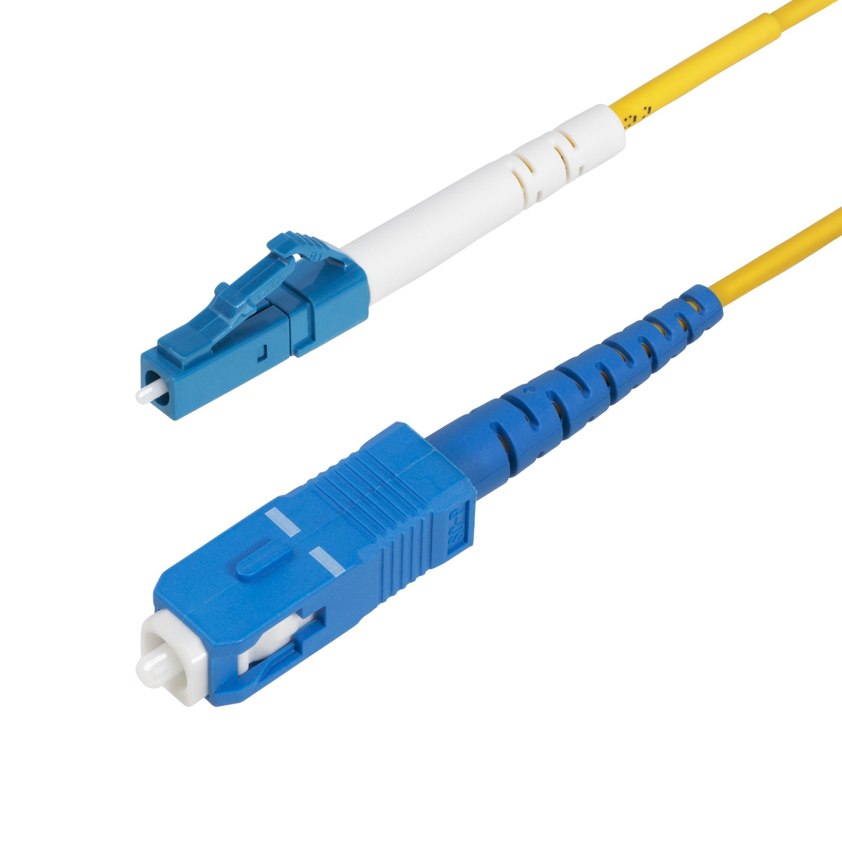

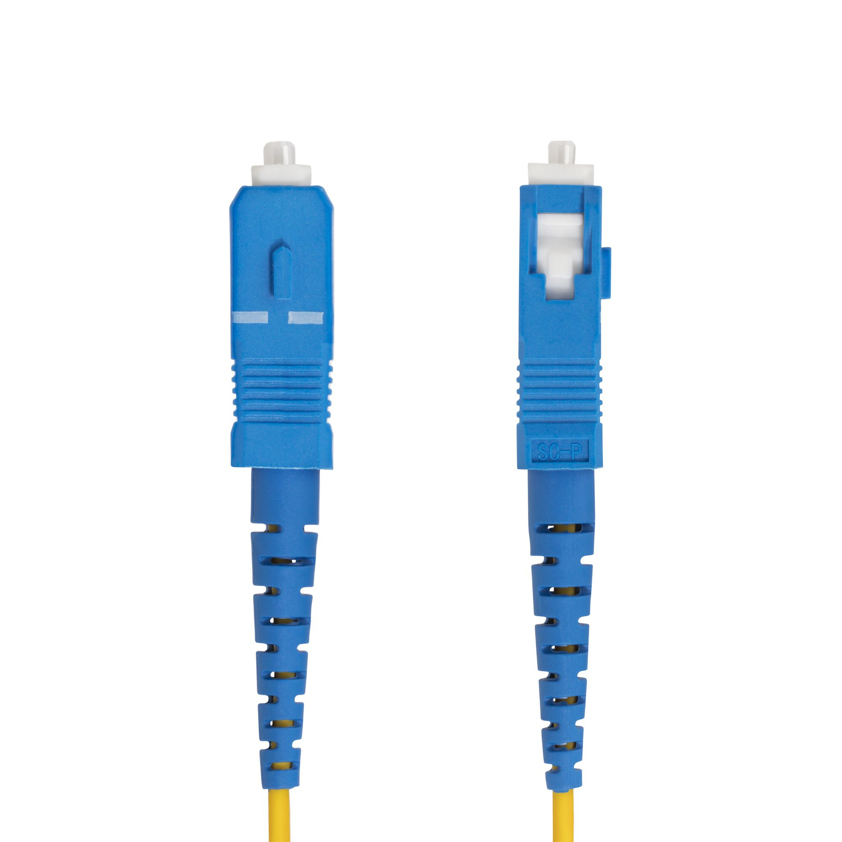

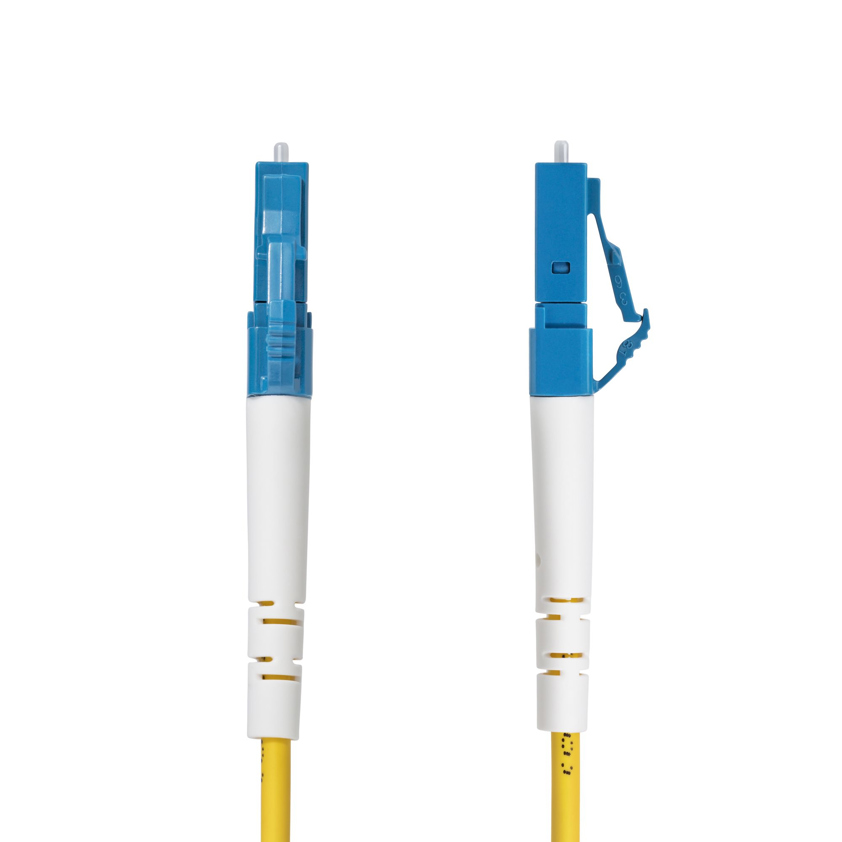

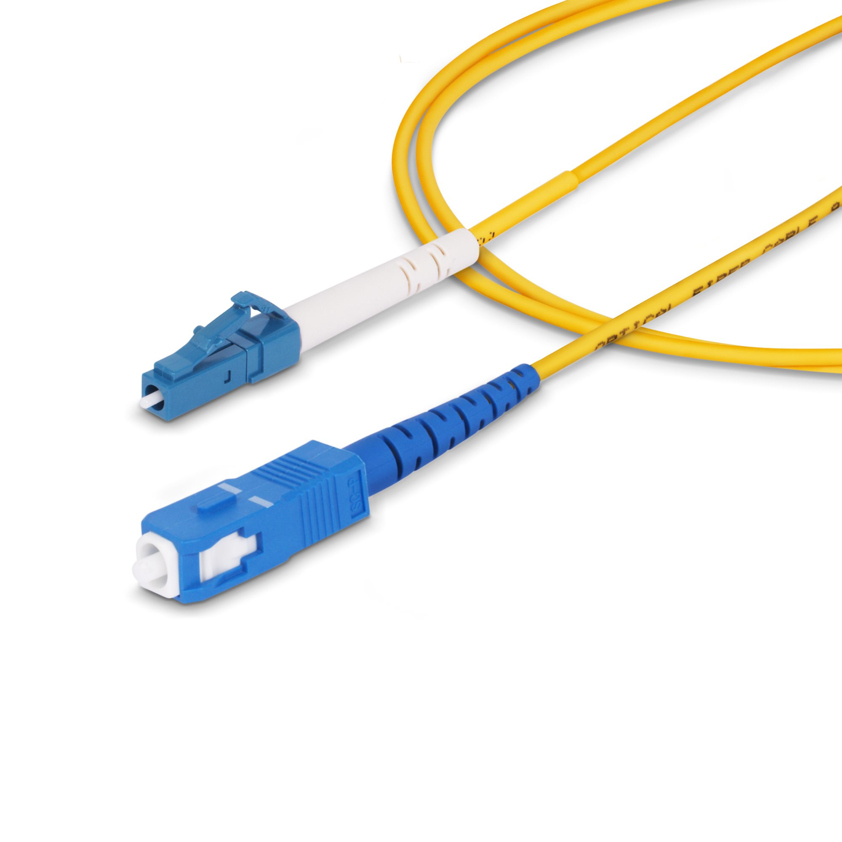

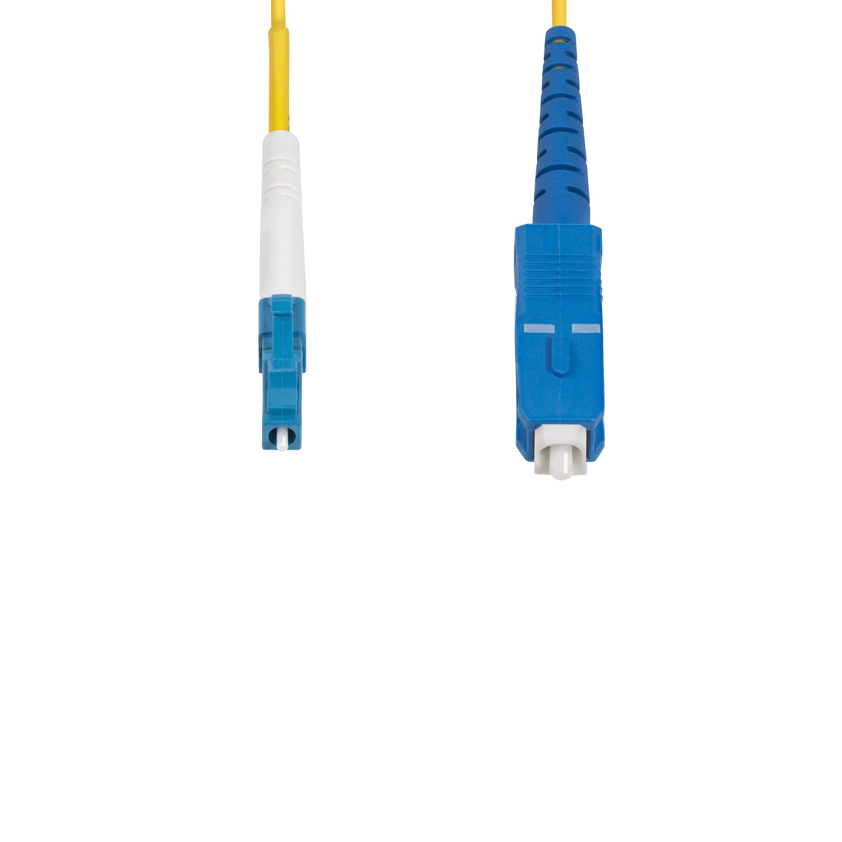

StarTech.com 3m (9.8ft) LC to SC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
SKU: SPSMLCSC-OS2-3M£8.45 ex VAT
£10.14 inc VAT
Low stockTechnical details Jacket material Low smoke zero halogen (LSZH), Polypropylene Connector 1 LC Connector 2 SC Cable length 3 m Core diameter 9 µm Cladding diameter 125 µm Insertion loss 0.3 dB Attenuation (max) 0.35 dB/km Features Bending radius 1 cm Fibre optic type OS2 Return loss 55 dB Jacket material Low smoke zero halogen (LSZH), Polypropylene Connector 1 LC Connector 2 SC Cable length 3 m Core diameter 9 µm Cladding diameter 125 µm Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Insertion loss 0.3 dB Data transfer rate 100 Gbit/s Wavelengths supported 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm Product colour Yellow Connector 2 gender Male Connector 1 gender Male Connector polish type UPC Data transmission Data transfer rate 100 Gbit/s Operational conditions Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensions Bending radius 1 cm Cable length 3 m Package width 220 mm Package depth 200 mm Package height 2 mm Cable diameter 2 mm Package weight 20.2 g Packaging data Package width 220 mm Package depth 200 mm Package height 2 mm Package weight 20.2 g Quantity per pack 1 pc(s) Logistics data Master (outer) case width 380 mm Master (outer) case length 380 mm Master (outer) case height 280 mm Products per master (outer) case 380 pc(s) Quantity per pack 1 pc(s) Other features Attenuation (max) 0.35 dB/km Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
