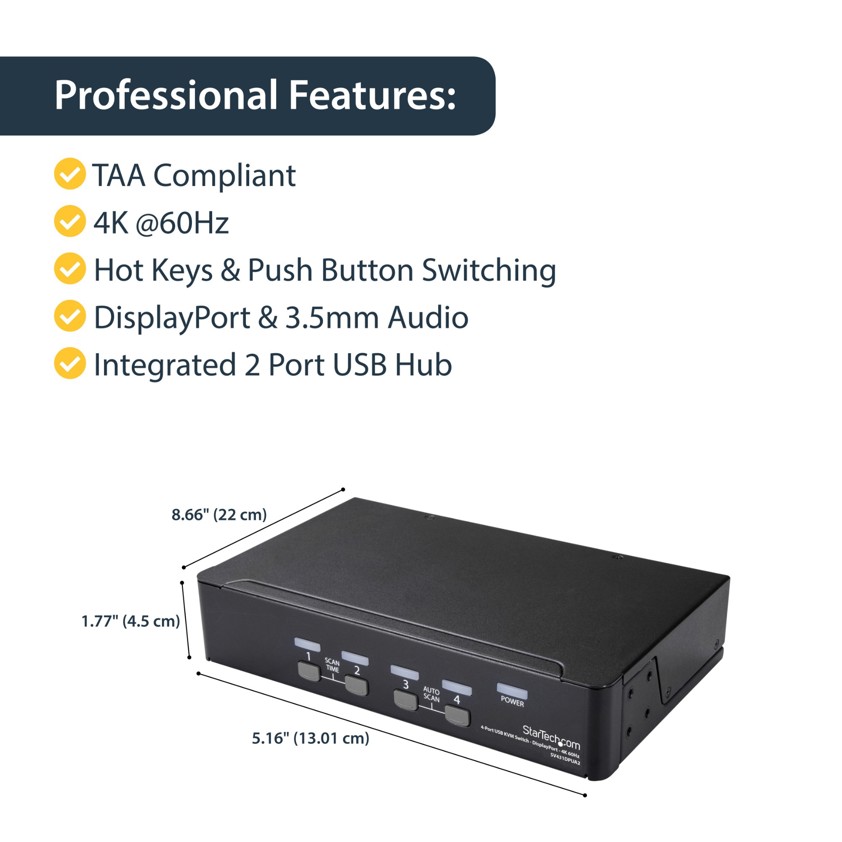

DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

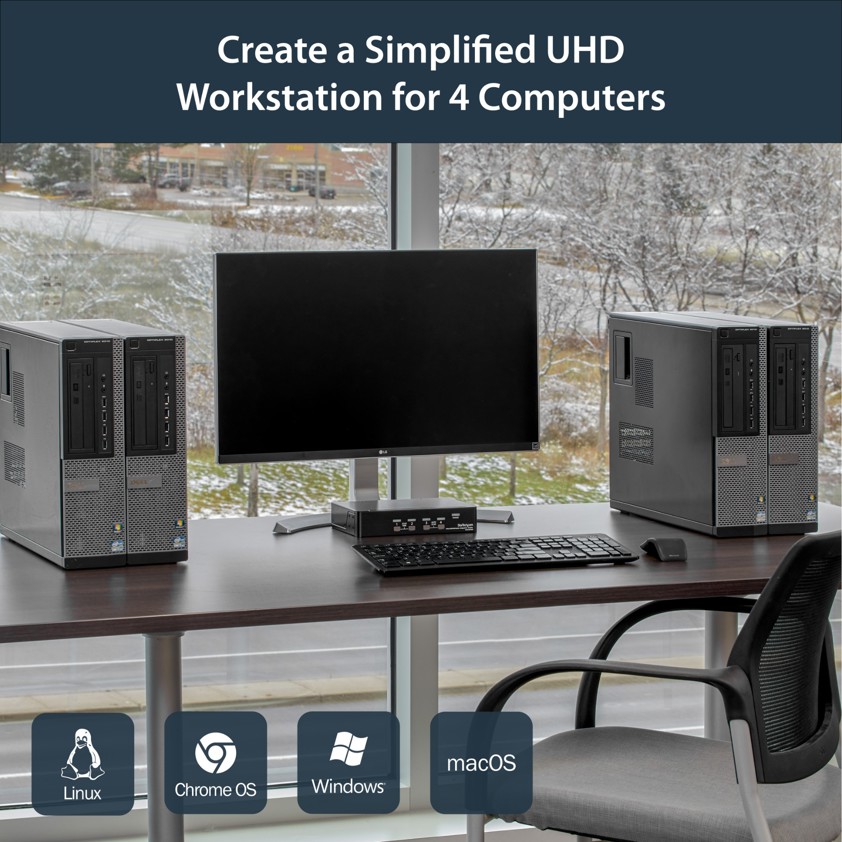

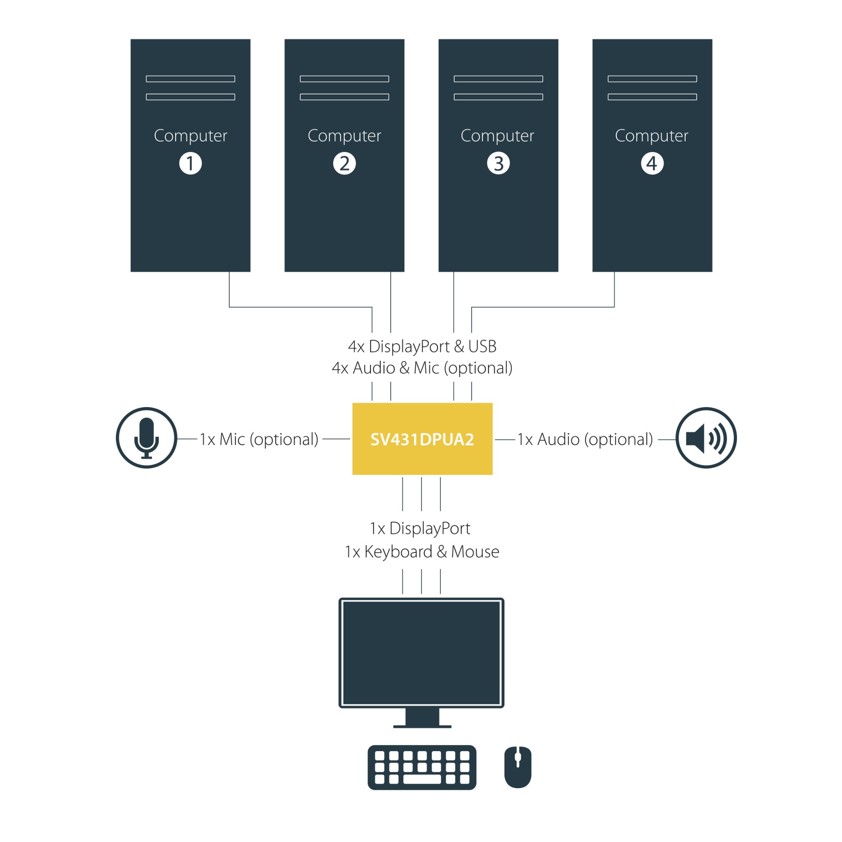

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate

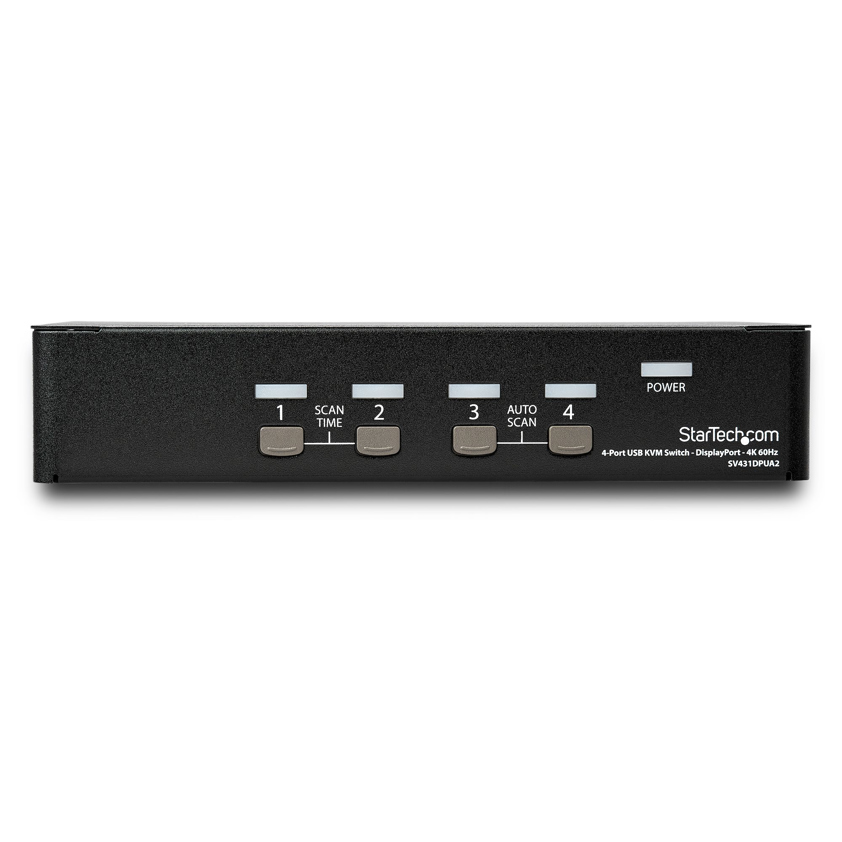

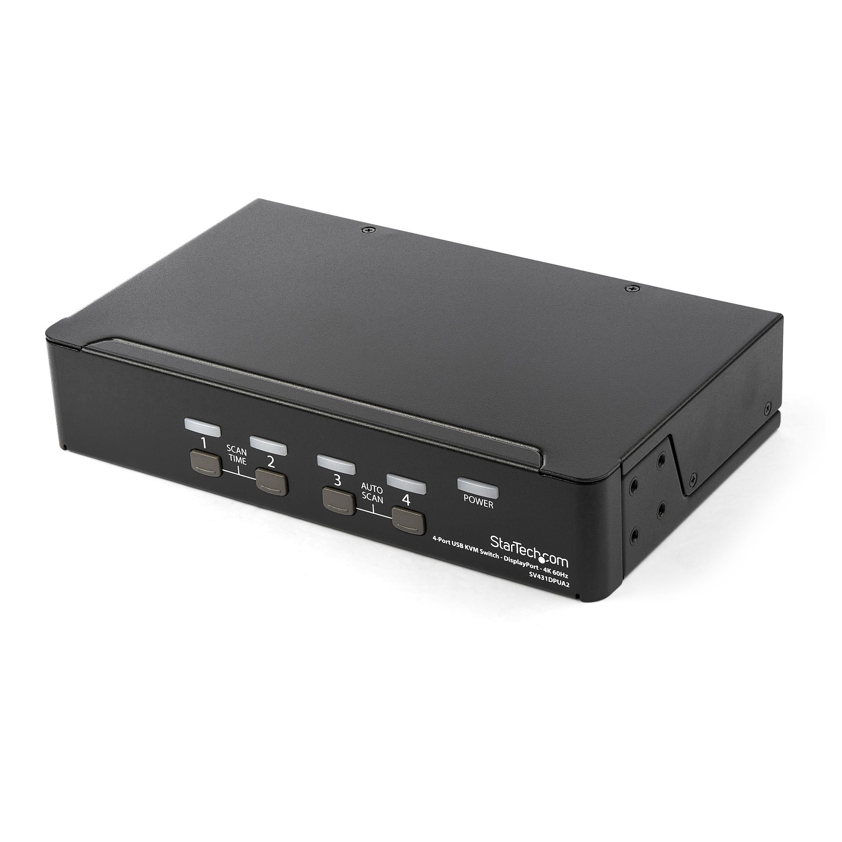

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage

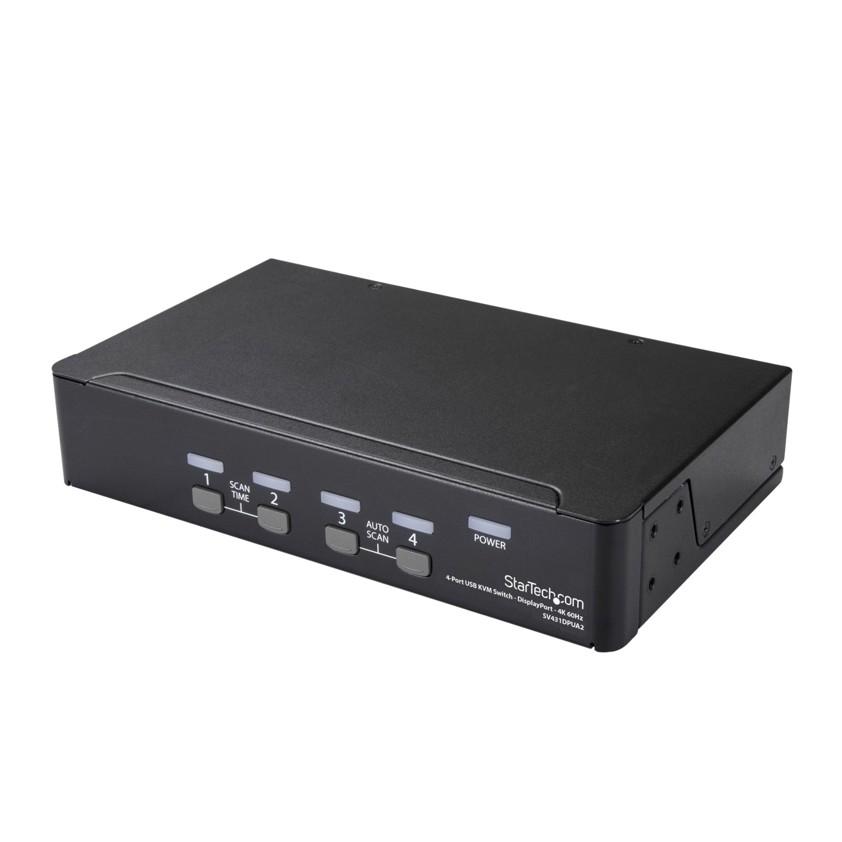

StarTech.com 4 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 2.0 Hub & Audio - Dell, HP, Apple, Lenovo - TAA Compliant
SKU: SV431DPUA2£327.36 ex VAT
£392.83 inc VAT

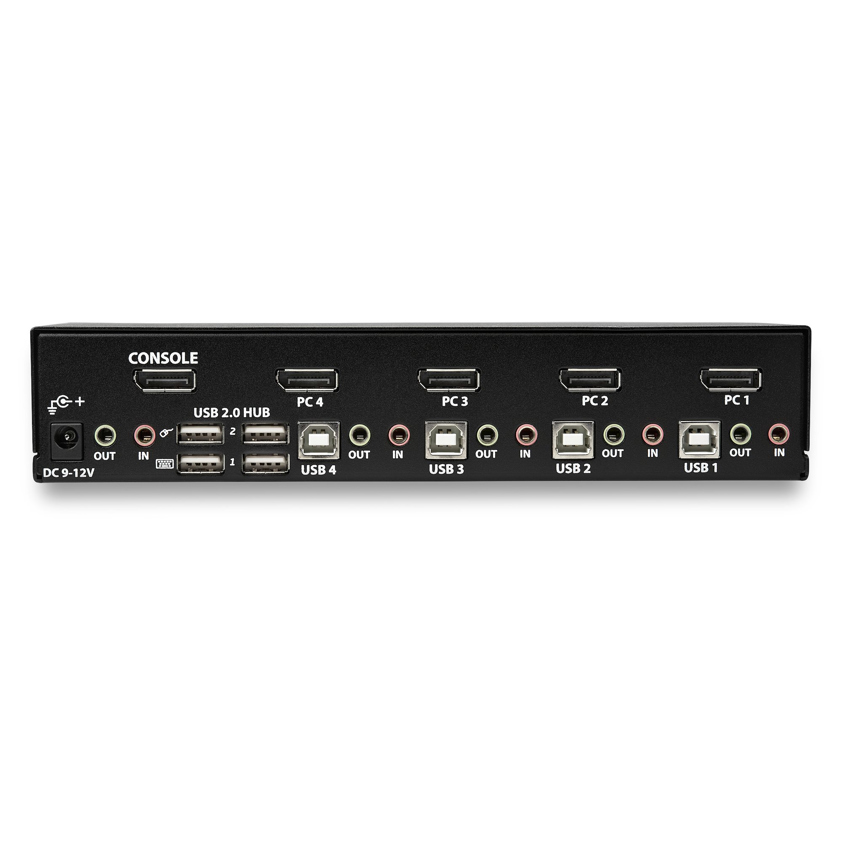

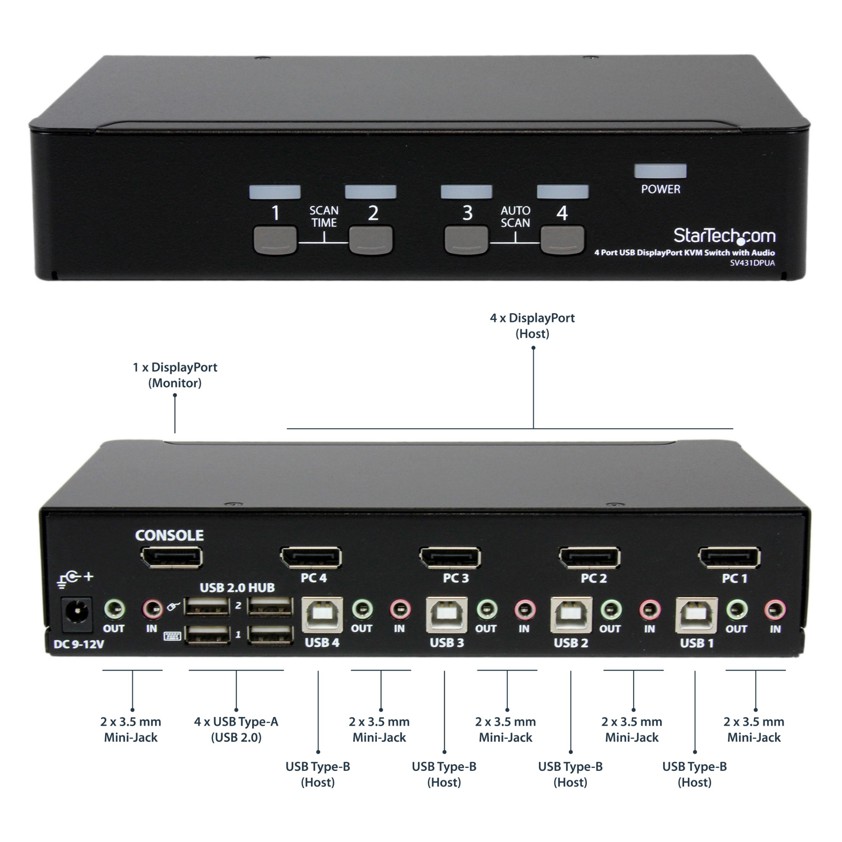

In stockPorts & interfaces Console USB ports quantity 4 Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A Number of microphone inputs 5 DisplayPorts quantity 5 Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type DisplayPort Audio connections Yes Headphone outputs 5 DC-in jack Yes USB 2.0 Type-B ports quantity 4 Network Ethernet LAN No Performance Daisy chain No Data transfer rate (max) 0.48 Gbit/s HD type 4K Ultra HD Plug and Play Yes Maximum resolution 3840 x 2160 pixels Scan interval 3,8,15,30 s Number of users 1 user(s) Technical details Product colour Black Rack mounting Yes Plug and Play Yes Scan interval 3,8,15,30 s On Screen Display (OSD) Yes Number of users 1 user(s) LED indicators Yes Hot keys Yes IP control No Audio support Yes Compliance certificates RoHS Design Mean time between failures (MTBF) 138327 h Product colour Black Rack mounting Yes LED indicators Yes Hot keys Yes Certification CE, FCC, TAA, REACH Rack capacity 1U Housing material Steel Display On Screen Display (OSD) Yes Power Input current 0.6 A Output current 1.5 A Power plug type Type M Compatible power plug types AU, EU, JP, UK, US Output voltage 12 V Power consumption (typical) 18 W External power adapter Yes Input voltage 100 - 240 V Video HD type 4K Ultra HD Maximum resolution 3840 x 2160 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 60 °C Operating relative humidity (H-H) 0 - 40% Weight & dimensions Width 131 mm Depth 220 mm Height 45 mm Weight 1 kg Package width 212 mm Package depth 409 mm Package height 87 mm Package weight 1.6 kg Packaging data Package width 212 mm Package depth 409 mm Package height 87 mm Package weight 1.6 kg Packaging content Rubber feet Yes Quick installation guide Yes AC adapter included Yes Certificates Certification CE, FCC, TAA, REACH Other features IP control No Audio support Yes Hot keys Yes Logistics data Master (outer) case width 433 mm Master (outer) case length 545 mm Master (outer) case height 258 mm Products per master (outer) case 6 pc(s) Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
