This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers

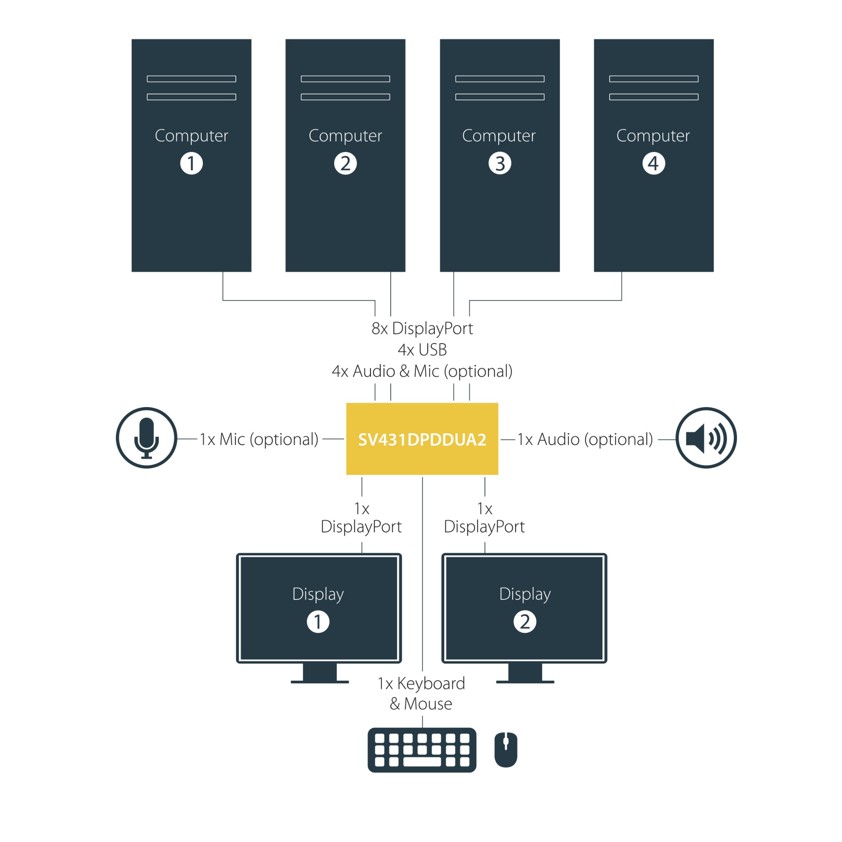

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.

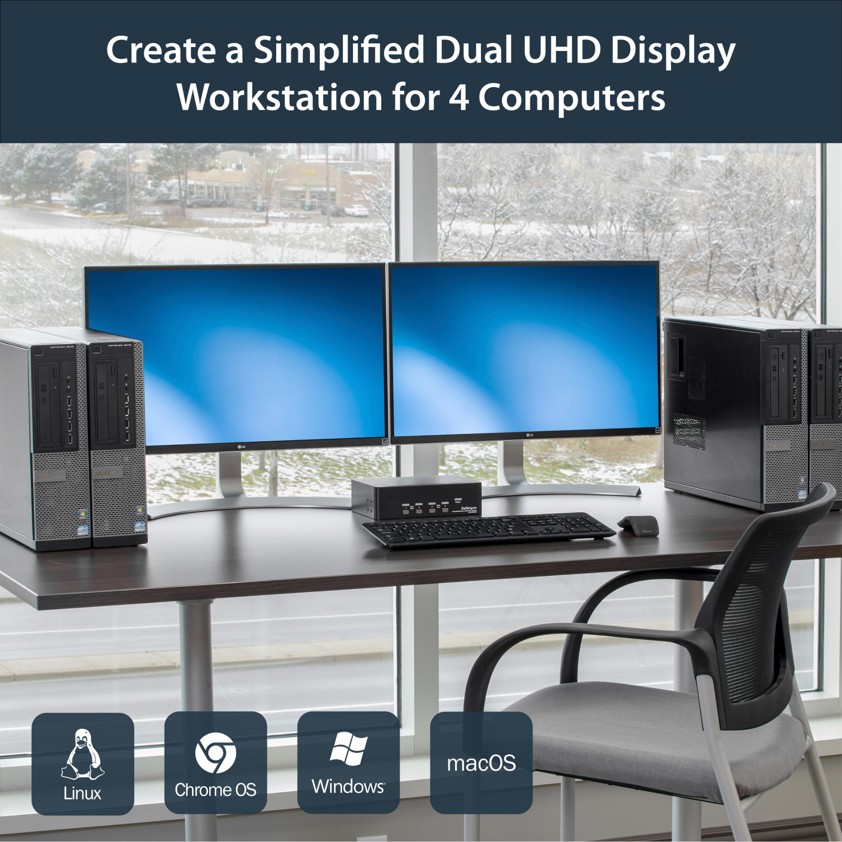

Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing

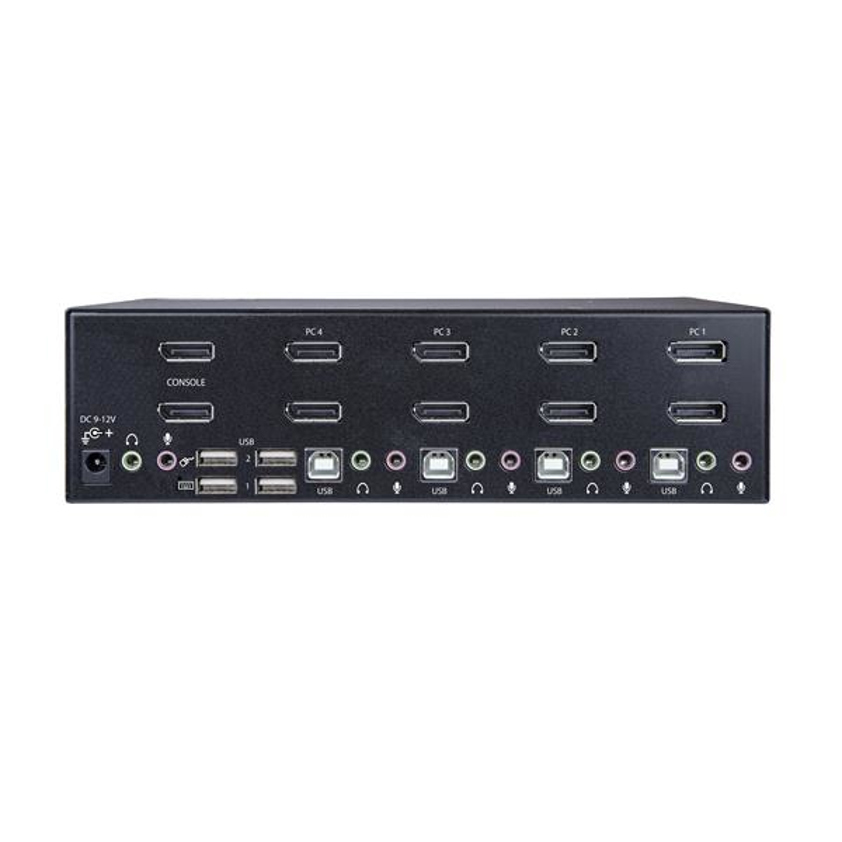

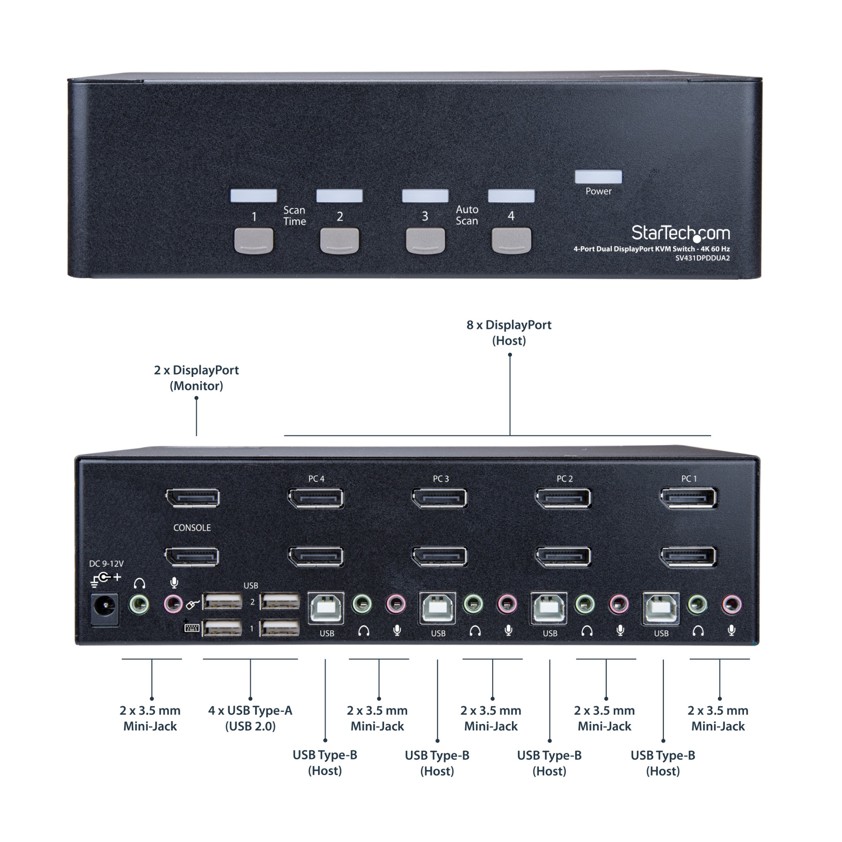

The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage

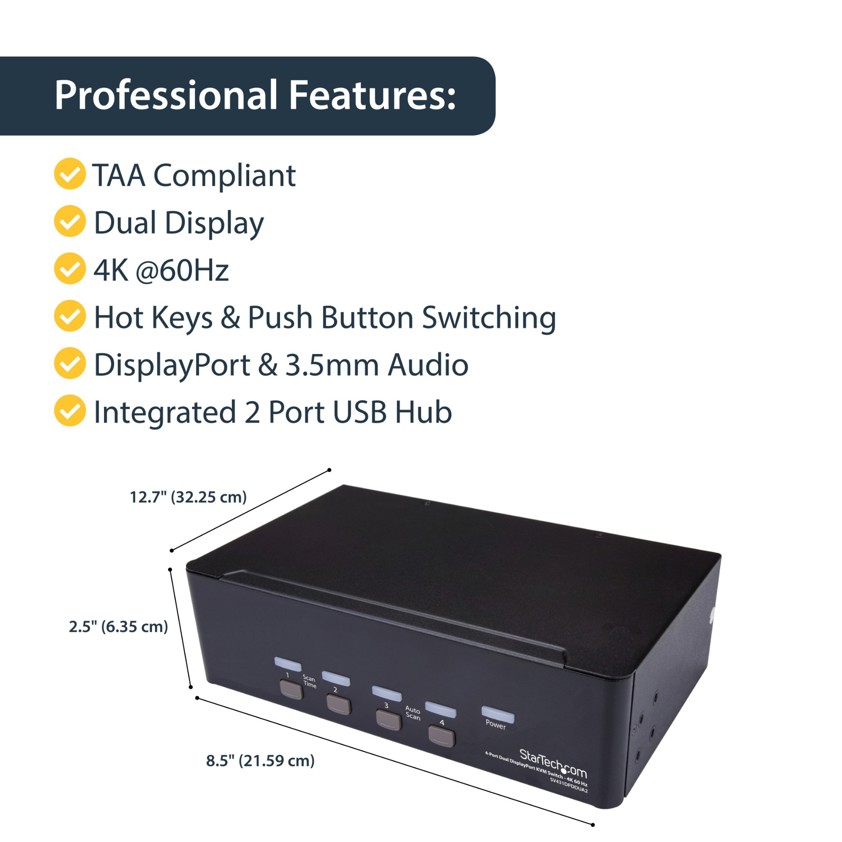

- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz

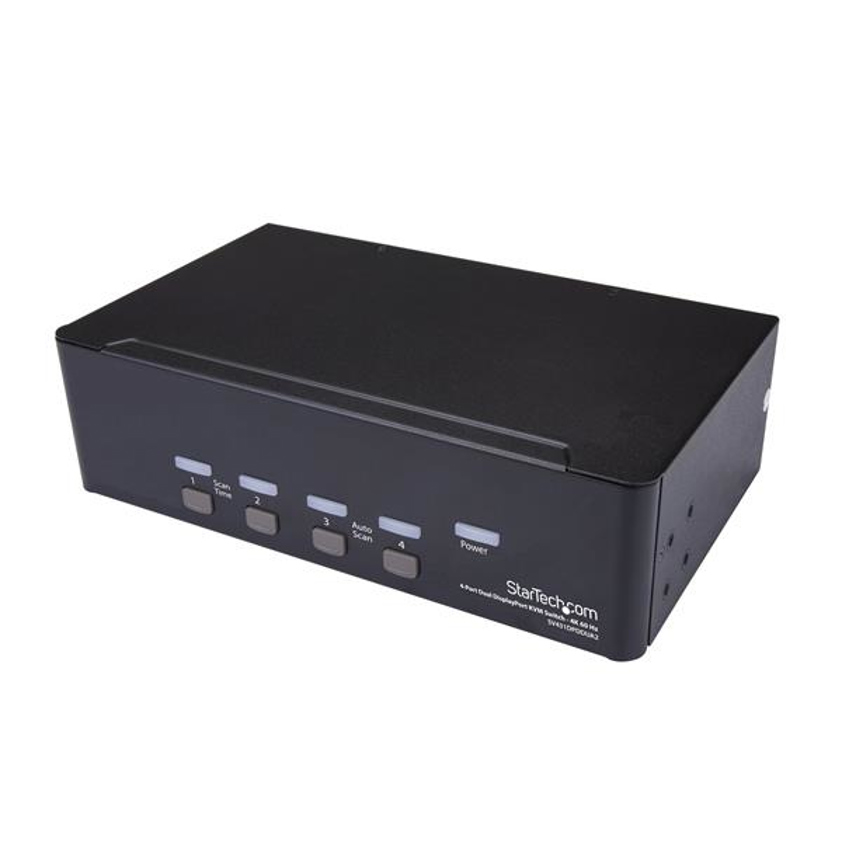

StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz
SKU: SV431DPDDUA2£567.41 ex VAT
£680.89 inc VAT
In stockPorts & interfaces Console USB ports quantity 4 Console ports 3.5mm headphone, 3.5mm mic, DisplayPort, USB A USB connector type USB Type-A DisplayPorts quantity 10 Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type DisplayPort Audio connections Yes DC-in jack Yes USB hub Yes Performance Daisy chain No Data transfer rate (max) 0.5 Gbit/s HD type 4K Ultra HD Maximum resolution 3840 x 2160 pixels Scan interval 3,8,15,30 s Technical details Product colour Black Rack mounting Yes Scan interval 3,8,15,30 s LED indicators Power Hot keys Yes IP control No Audio support Yes USB hub Yes Compliance certificates RoHS Design Mean time between failures (MTBF) 142000 h Product colour Black Rack mounting Yes LED indicators Power Hot keys Yes Certification CE, FCC, TAA, REACH Rack capacity 2U Housing material Steel Display Built-in display No Power Input current 0.6 A Output current 1.5 A Power plug type Type M Compatible power plug types AU, EU, JP, UK, US Output voltage 12 V Power source AC Power consumption (typical) 18 W External power adapter Yes Input voltage 100 - 240 V Video HD type 4K Ultra HD Maximum resolution 3840 x 2160 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 60 °C Operating relative humidity (H-H) 0 - 80% Weight & dimensions Width 216 mm Depth 127 mm Height 63 mm Weight 1.2 kg Package width 243 mm Package depth 297 mm Package height 87 mm Package weight 1.8 kg Packaging data Package width 243 mm Package depth 297 mm Package height 87 mm Package weight 1.8 kg Packaging content Rubber feet Yes Quick installation guide Yes Certificates Certification CE, FCC, TAA, REACH Other features IP control No Audio support Yes Hot keys Yes Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
