USB 3.0 KVM Switch | TAA Compliant | 1920 x 1200 Digital Resolution | Stereo Audio & Mic
The TAA compliant Dual-Monitor DVI KVM Switch controls four multimedia computer systems from one dual-DVI monitor workstation.
Increase Productivity
The KVM switch supports four separate multimedia computer systems and the use of a dual DVI-D single-link monitor workstation, increasing productivity by enabling you to access more information at once.
Integrated USB 3.0 Hub
The 2-port hub that’s built into the USB 3.0 KVM switch shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected while supporting high-performance peripherals such as flash drives and video capture devices.
Full Multimedia Support
With support for separate stereo audio and microphones, the KVM switch box connects everything you need directly to your systems, saving you money and desk space.
Easy to Operate

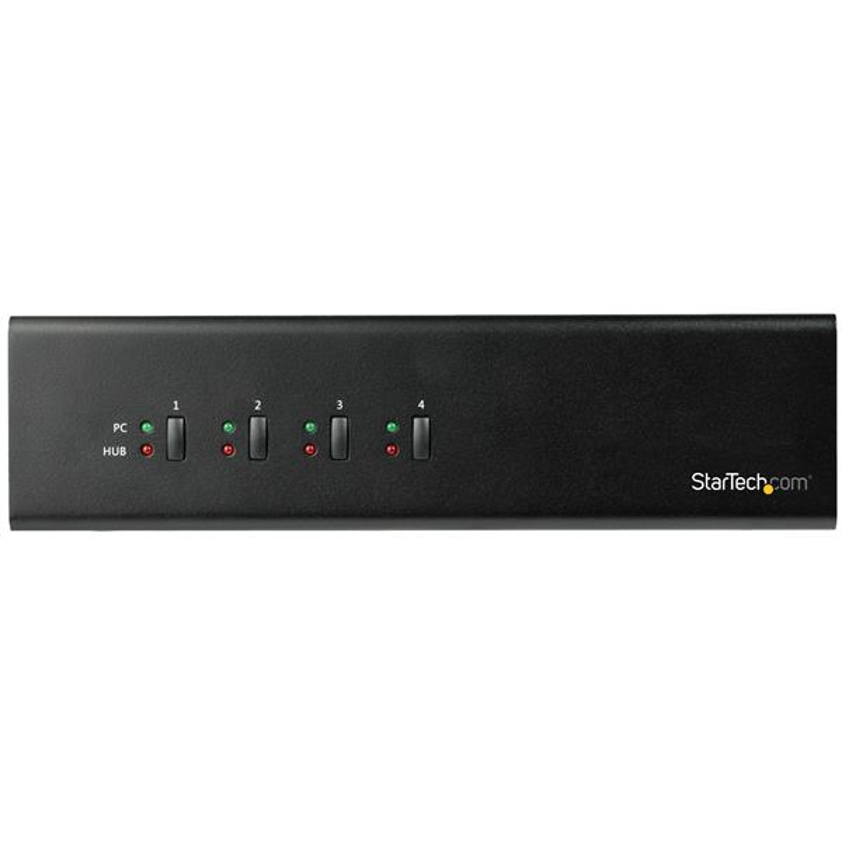

The front-panel push-buttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while an optional buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 4-port DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com 4 Port Dual Monitor DVI KVM Switch - Dual Screen Display Compact USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dual View KVM - Dell HP Apple Lenovo - TAA Compliant
SKU: SV431DD2DU3A£140.16 ex VAT
£168.19 inc VAT

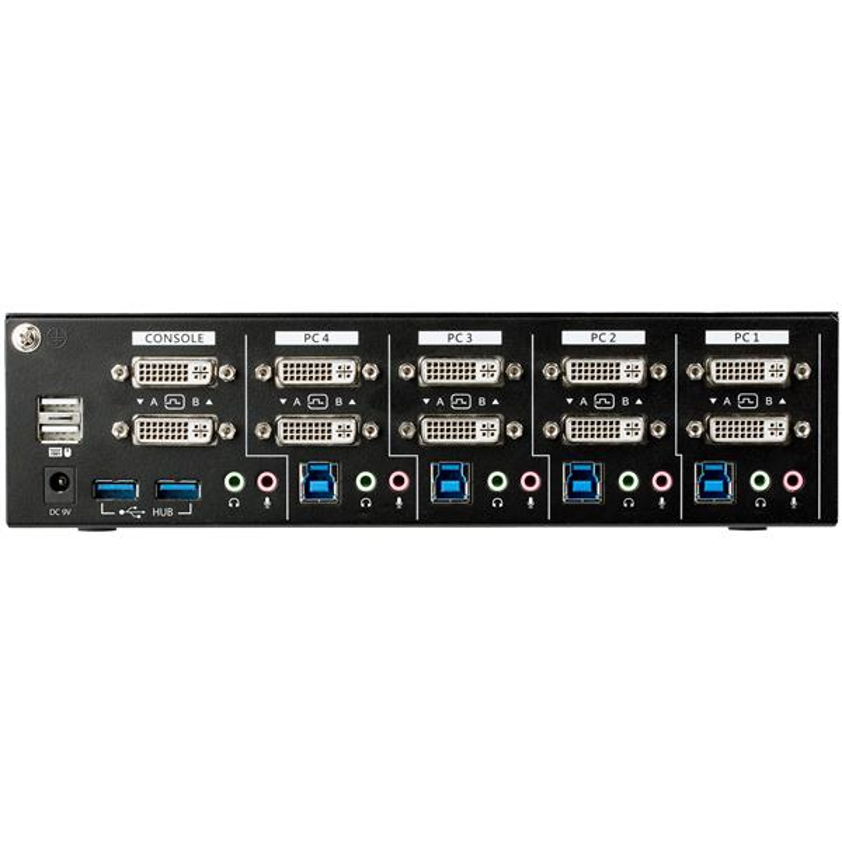

Out of stockPorts & interfaces Console USB ports quantity 4 Console ports 3.5mm headphone, 3.5mm mic, DVI-I, USB A USB connector type USB Type-B Number of microphone inputs 5 Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type DVI-I Audio connections Yes Headphone outputs 5 DVI-I ports quantity 10 DC-in jack Yes USB hub Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2 Performance Daisy chain Yes Data transfer rate (max) 5 Gbit/s Maximum resolution 2048 x 1536 pixels Scan interval 10,20,30,40,50,60 s Maximum digital resolution 1920 x 1200 pixels Maximum analog resolution 2048 x 1536 pixels Technical details Product colour Black Scan interval 10,20,30,40,50,60 s On Screen Display (OSD) No LED indicators Yes Hot keys Yes IP control No USB hub Yes Compliance certificates RoHS Design Product colour Black LED indicators Yes Hot keys Yes Certification CE, FCC Housing material Steel Display Built-in display No On Screen Display (OSD) No Power Input current 0.8 A Output current 2 A Compatible power plug types AU, EU, JP, UK, US Output voltage 9 V Power source AC Power consumption (typical) 18 W External power adapter Yes Input voltage 100 - 240 V Video Maximum resolution 2048 x 1536 pixels Maximum digital resolution 1920 x 1200 pixels Maximum analog resolution 2048 x 1536 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 90% Weight & dimensions Width 253 mm Depth 100 mm Height 66 mm Weight 1.3 kg Package width 160 mm Package depth 268 mm Package height 191.5 mm Package weight 300 g Packaging data Package width 160 mm Package depth 268 mm Package height 191.5 mm Package weight 300 g Packaging content Quick installation guide Yes AC adapter included Yes Certificates Certification CE, FCC Other features IP control No Hot keys Yes Logistics data Master (outer) case width 495 mm Master (outer) case length 554 mm Master (outer) case height 213 mm Products per master (outer) case 6 pc(s) Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
