Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

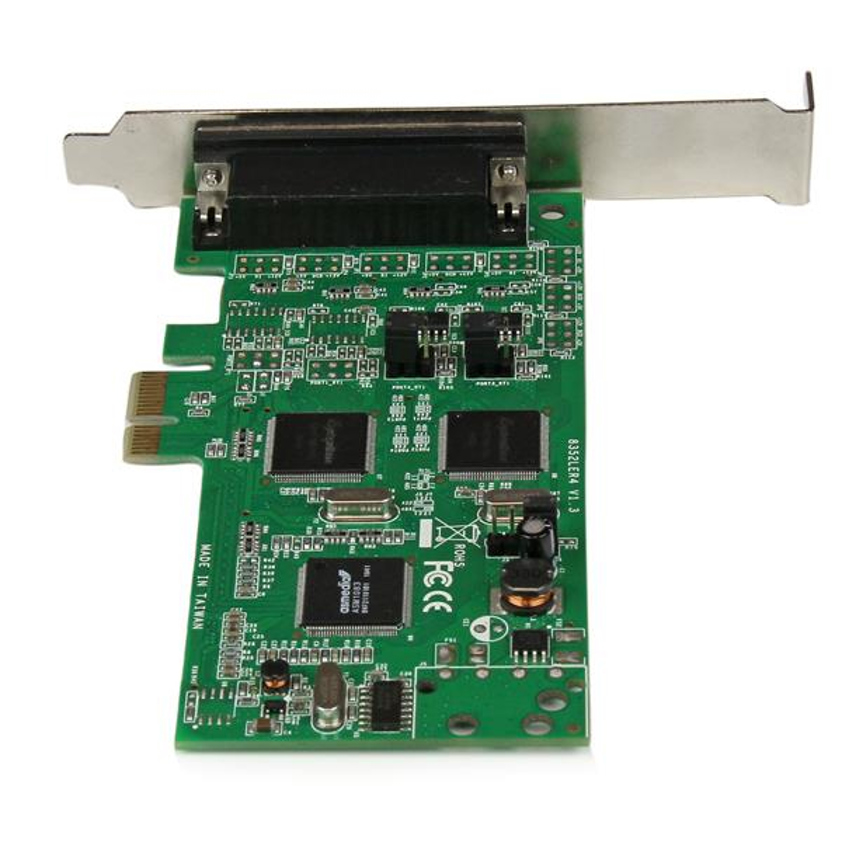

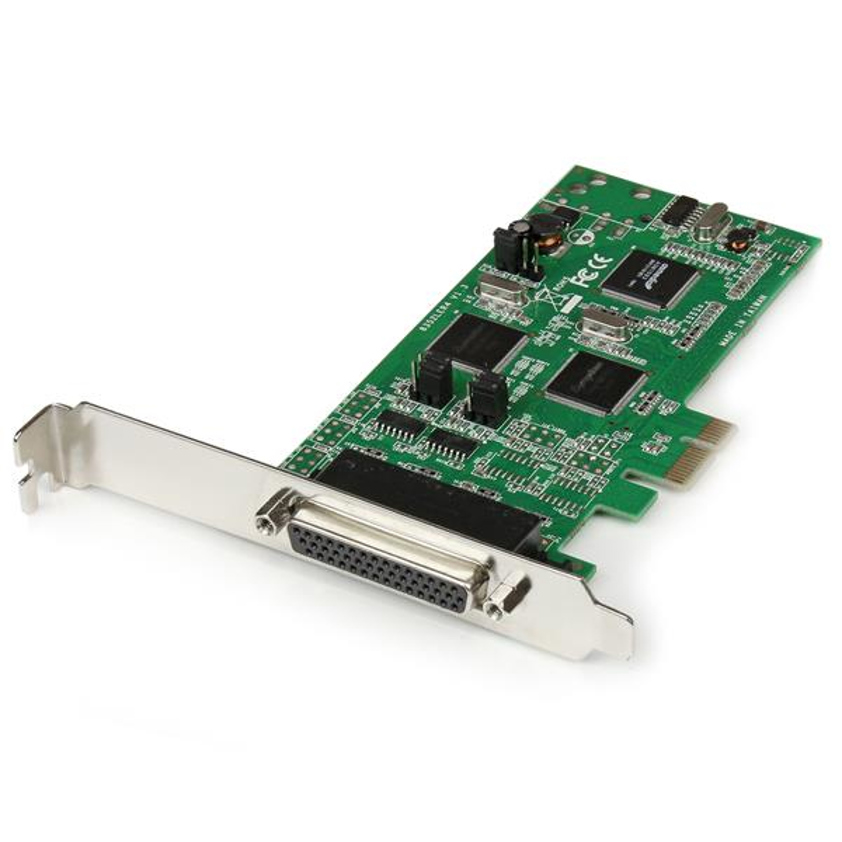

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

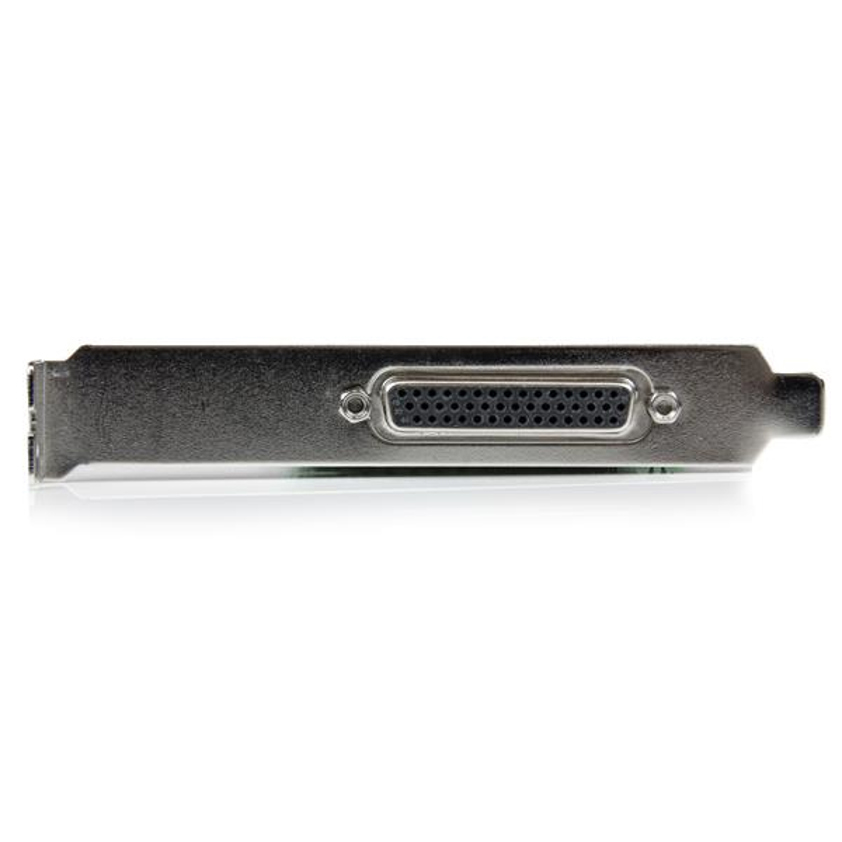

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors

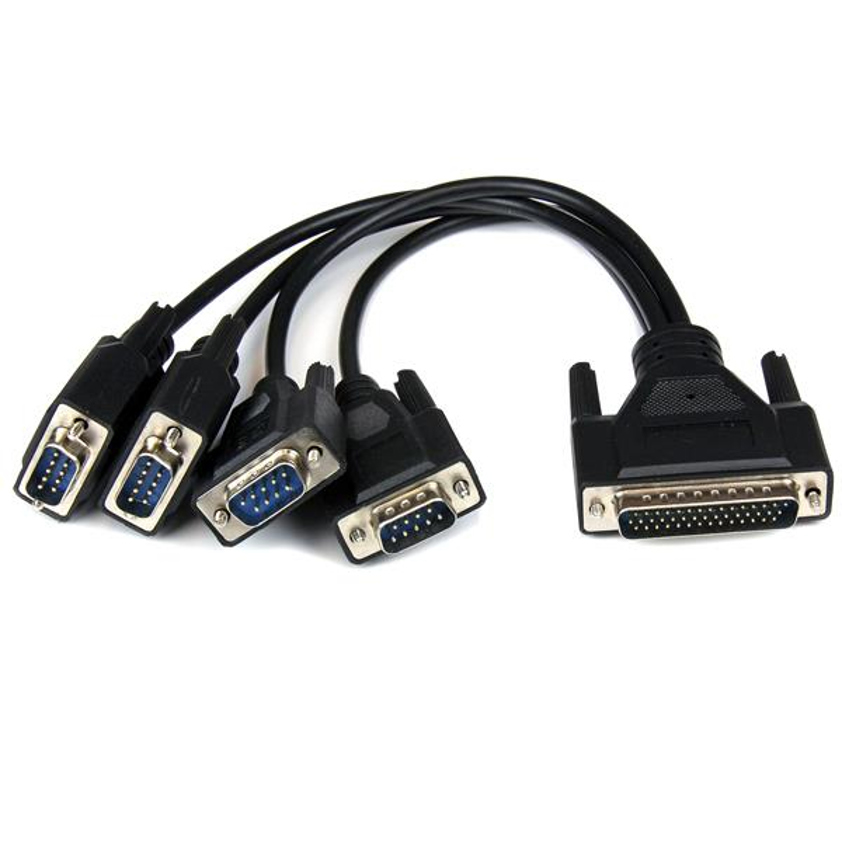

- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot
StarTech.com 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
SKU: PEX4S232485£107.56 ex VAT
£129.07 inc VAT
Out of stockPorts & interfaces Internal Yes Output interface Serial Serial interface type RS-232/422/485 Serial ports quantity 4 Host interface PCIe Technical details Chipset SystemBase SB16C1052PCI FIFO (First In, First Out) 256 B Compliance certificates RoHS Network Data transfer rate 0.4608 Mbit/s Performance Chipset SystemBase SB16C1052PCI FIFO (First In, First Out) 256 B Harmonized System (HS) code 84733020 Design Internal Yes Features Chipset SystemBase SB16C1052PCI FIFO (First In, First Out) 256 B Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 100 °C Storage temperature (T-T) 0 - 150 °C Operating relative humidity (H-H) 20 - 80% System requirements Windows operating systems supported Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Linux operating systems supported Yes Weight & dimensions Width 125 mm Depth 70 mm Height 20 mm Weight 67.4 g Package width 146 mm Package depth 210 mm Package height 41 mm Package weight 390 g Packaging data Package width 146 mm Package depth 210 mm Package height 41 mm Package weight 390 g User guide Yes Logistics data Harmonized System (HS) code 84733020 Other features Data transfer rate 0.4608 Mbit/s Connectivity technology Wired Chipset SystemBase SB16C1052PCI Packaging content User guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
