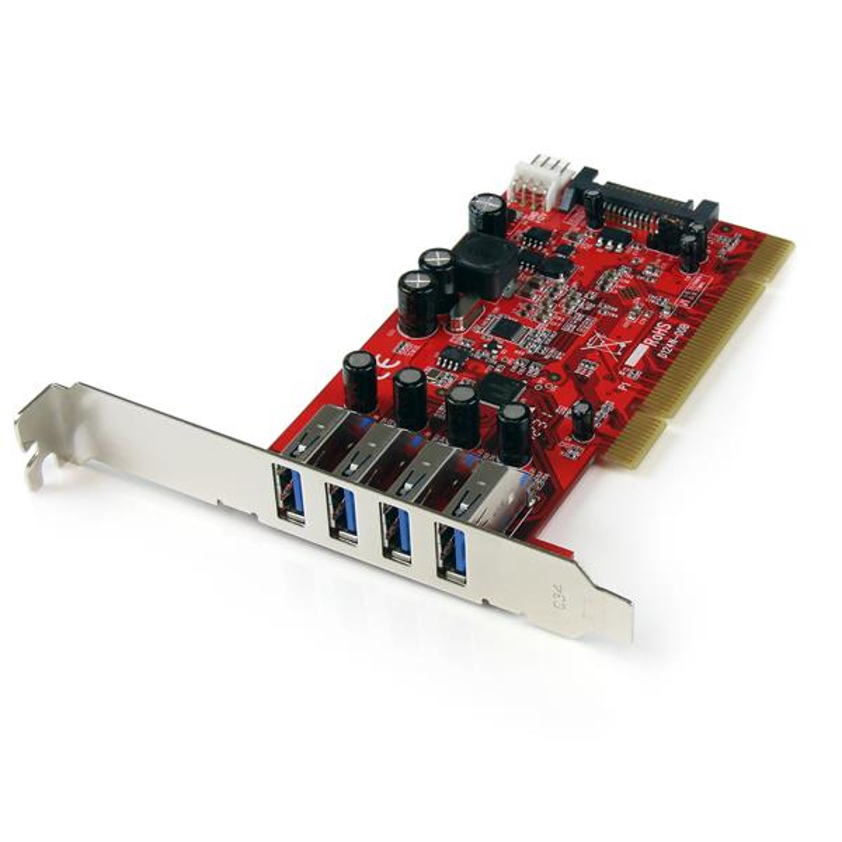

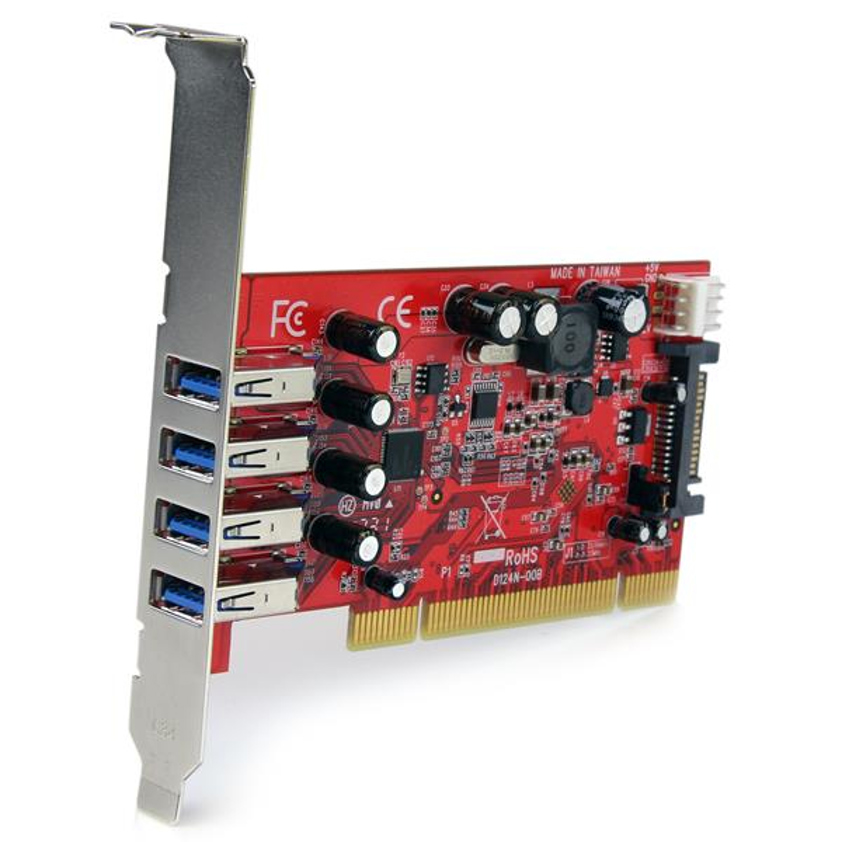

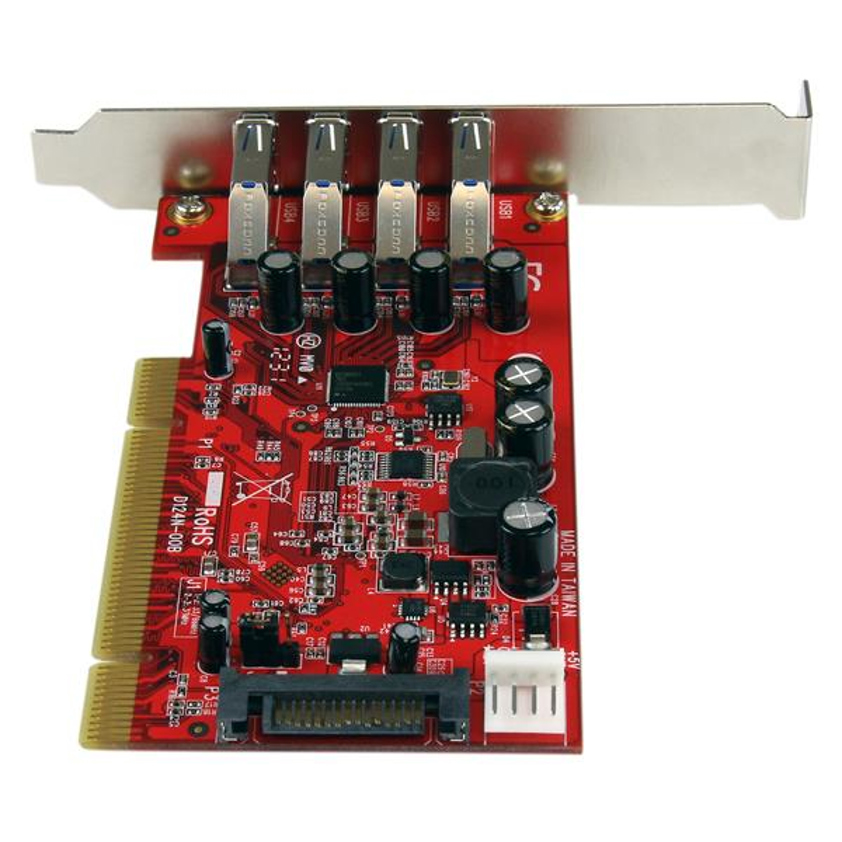

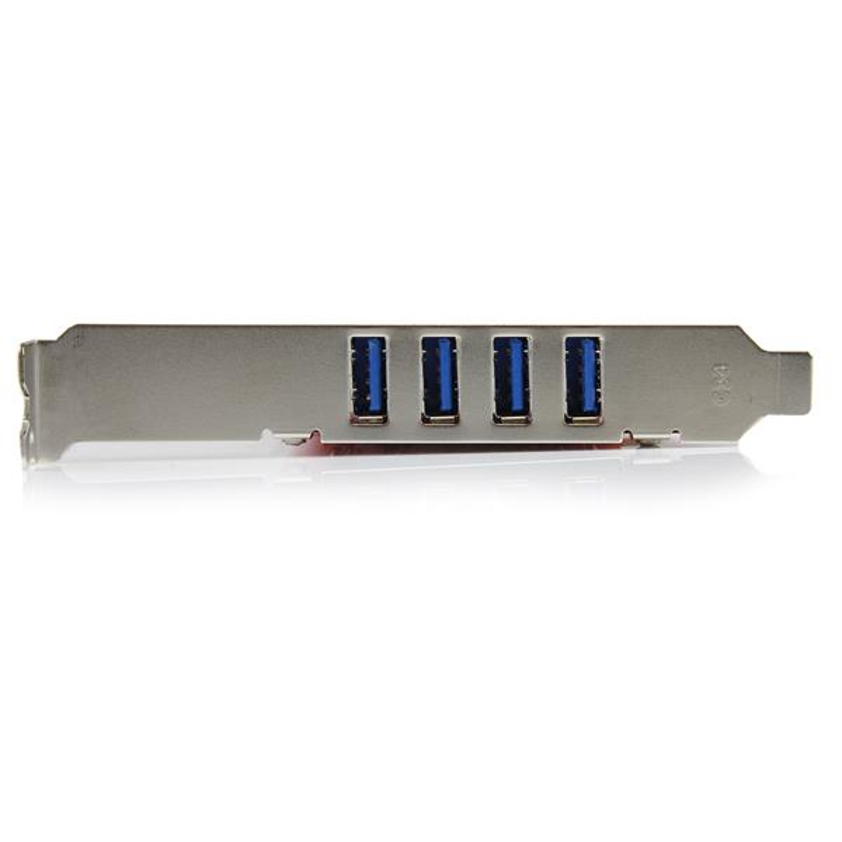

Add 4 SuperSpeed USB 3.0 ports to a computer through a PCI slot
The PCIUSB3S4 4-Port PCI to USB 3.0 Card enables legacy PCI slots to support the SuperSpeed USB 3.0 standard, which is capable of data transfer rates up to 5 Gbps. Using USB 3.0 devices with this card will increase data transfer rates with up to 1.3 Gbps of available bandwidth (PCI bus limit) - more than doubling performance compared to a USB 2.0 connection.
This versatile USB 3.0 adapter includes an optional SATA power connector which allows each USB port to deliver up to 900mA of power to connected USB 3.0 devices - suitable for even the most power hungry devices.
A perfect solution for older PCI-based systems or computers with only PCI expansion slots remaining, the card allows those systems to stay relevant and up-to-date with the latest USB technology. The card is also backward compatible with USB 2.0 and 1.x devices, so it will not only work with any future USB 3.0 devices, but will also support older devices.
The PCIUSB3S4 4-Port PCI USB 3.0 Card is backed by StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Increased data transfer rates (up to 1.3 Gbps PCI bus limit) with USB 3.0 compatible devices
- Suitable for installation in standard-sized and Small Form Factor computers
- Supports bus-powered USB 3.0 devices
StarTech.com 4 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA / SP4 Power
SKU: PCIUSB3S4£51.74 ex VAT
£62.09 inc VAT
In stockPorts & interfaces Internal Yes USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 Output interface USB 3.2 Gen 1 (3.1 Gen 1) Internal SATA ports quantity 1 Host interface PCI Technical details Chipset Renesas/NEC - µPD720202 Data transfer rate (max) 5 Gbit/s Compliance certificates RoHS Performance UASP support Yes Chipset Renesas/NEC - µPD720202 Data transfer rate (max) 5 Gbit/s Product colour Red Harmonized System (HS) code 84733020 Certificates Certification CE, FCC, TAA, REACH Colour Product colour Red Design Internal Yes Product colour Red Certification CE, FCC, TAA, REACH Features UASP support Yes Chipset Renesas/NEC - µPD720202 Data transfer rate (max) 5 Gbit/s Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 5 - 50 °C Storage temperature (T-T) -25 - 70 °C Operating relative humidity (H-H) 15 - 90% System requirements Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 Weight & dimensions Width 20 mm Depth 133 mm Height 65 mm Weight 72 g Package width 175 mm Package depth 145 mm Package height 33 mm Package weight 165 g Packaging data Mounting brackets included Yes Manual Yes Drivers included Yes Package width 175 mm Package depth 145 mm Package height 33 mm Package weight 165 g Logistics data Harmonized System (HS) code 84733020 Packaging content Mounting brackets included Yes Manual Yes Drivers included Yes Other features Chipset Renesas/NEC - µPD720202 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
