Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot

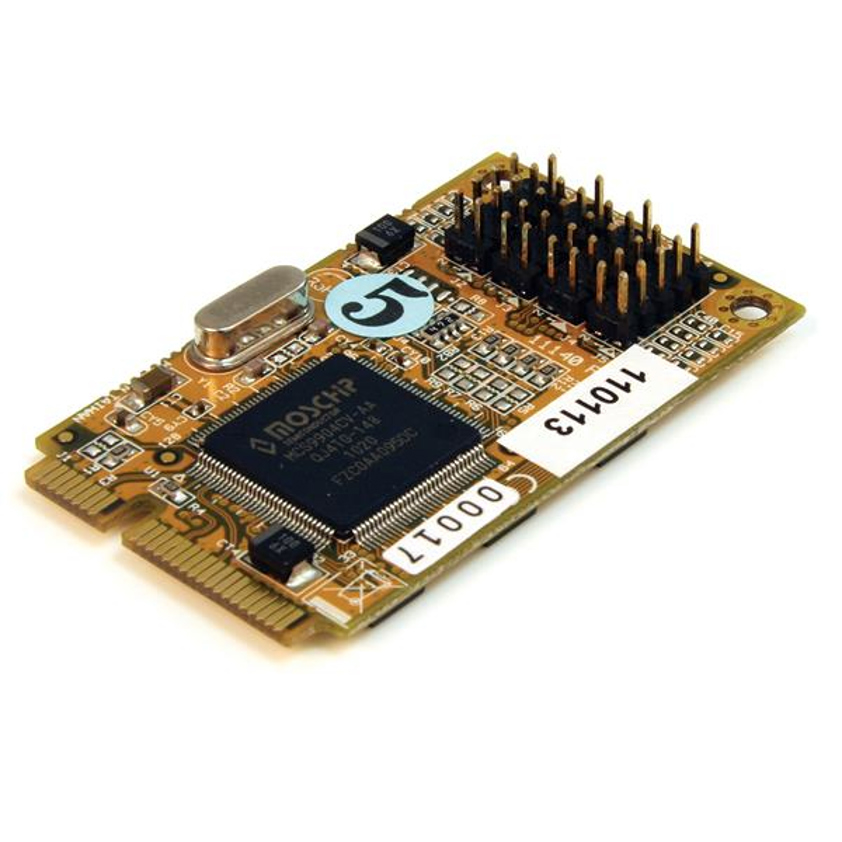

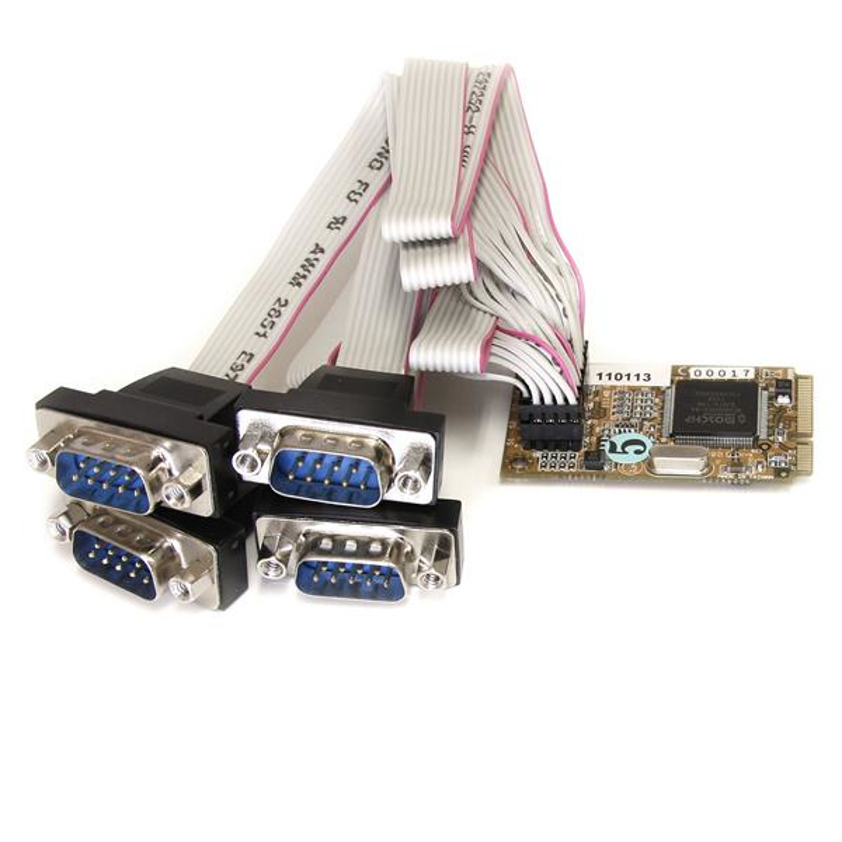

The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality.
A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards .
Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
The StarTech.com Advantage
- The smallest form factor available, for internally adding serial ports to any embedded system
- Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
SKU: MPEX4S552£31.23 ex VAT
£37.48 inc VAT
Out of stockPorts & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 4 Host interface Mini PCI Express Technical details Chipset MosChip MCS9904CV-AA FIFO (First In, First Out) 256 B Network Data transfer rate 0.921 Mbit/s Performance Chipset MosChip MCS9904CV-AA FIFO (First In, First Out) 256 B Product colour Green Harmonized System (HS) code 84733020 Colour Product colour Green Design Internal Yes Product colour Green Features Chipset MosChip MCS9904CV-AA FIFO (First In, First Out) 256 B Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -20 - 85 °C Operating relative humidity (H-H) 5 - 95% System requirements Windows operating systems supported Yes Linux operating systems supported Yes Weight & dimensions Width 10 mm Depth 51 mm Height 30 mm Weight 150 g Package width 145 mm Package depth 212 mm Package height 40 mm Package weight 200 g Packaging data Package width 145 mm Package depth 212 mm Package height 40 mm Package weight 200 g User guide Yes Logistics data Harmonized System (HS) code 84733020 Other features Data transfer rate 0.921 Mbit/s Quantity outer carton 50 pc(s) Compliance industry standards PCI Express 1.1 Compatible operating systems Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 6.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.6.x Chipset MosChip MCS9904CV-AA Packaging content User guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
