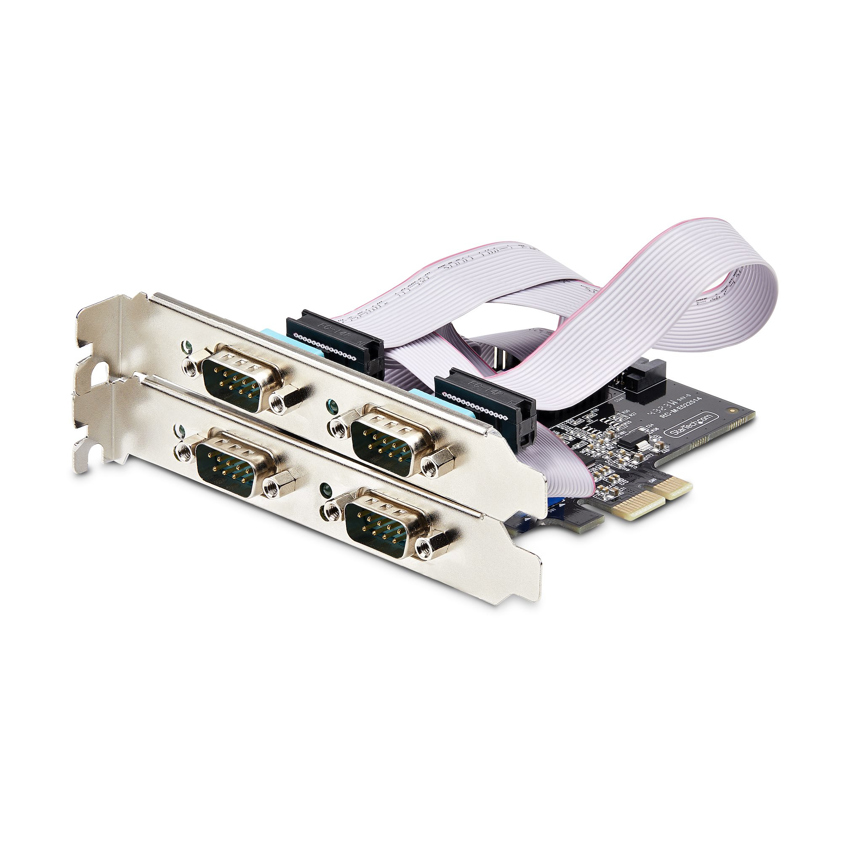

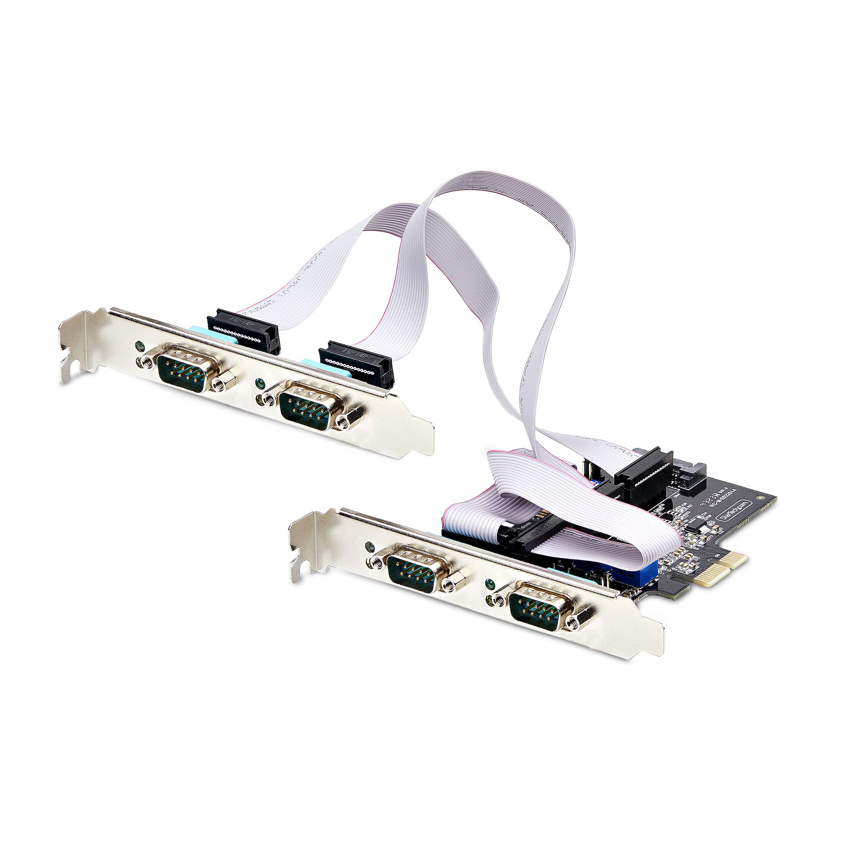

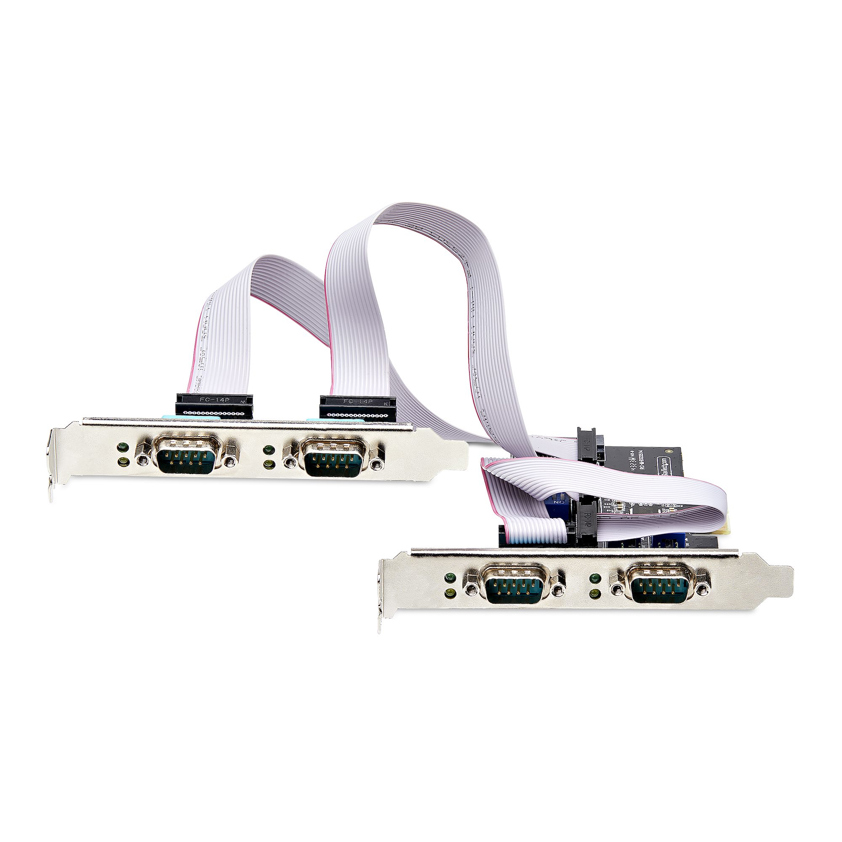

Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card

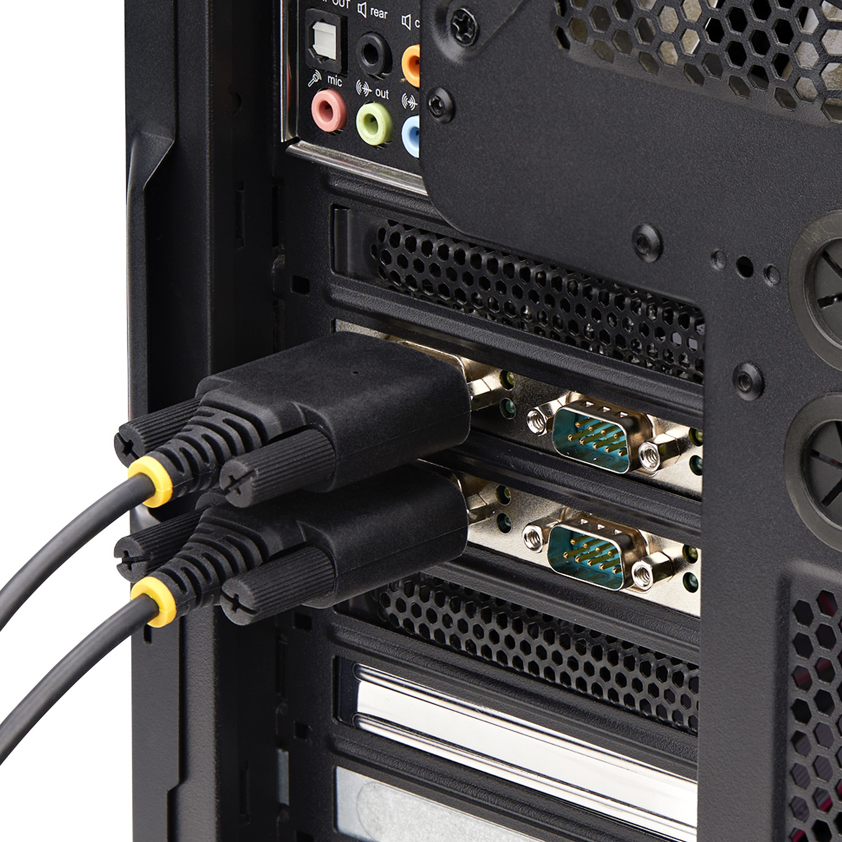

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.
Per-Port Serial Configuration

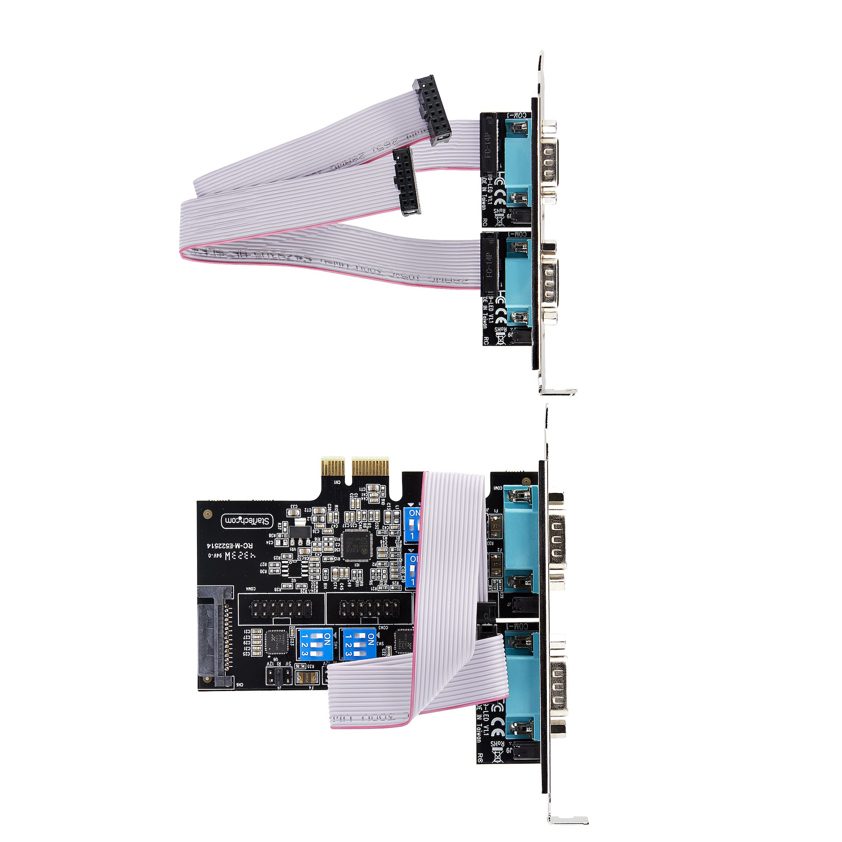

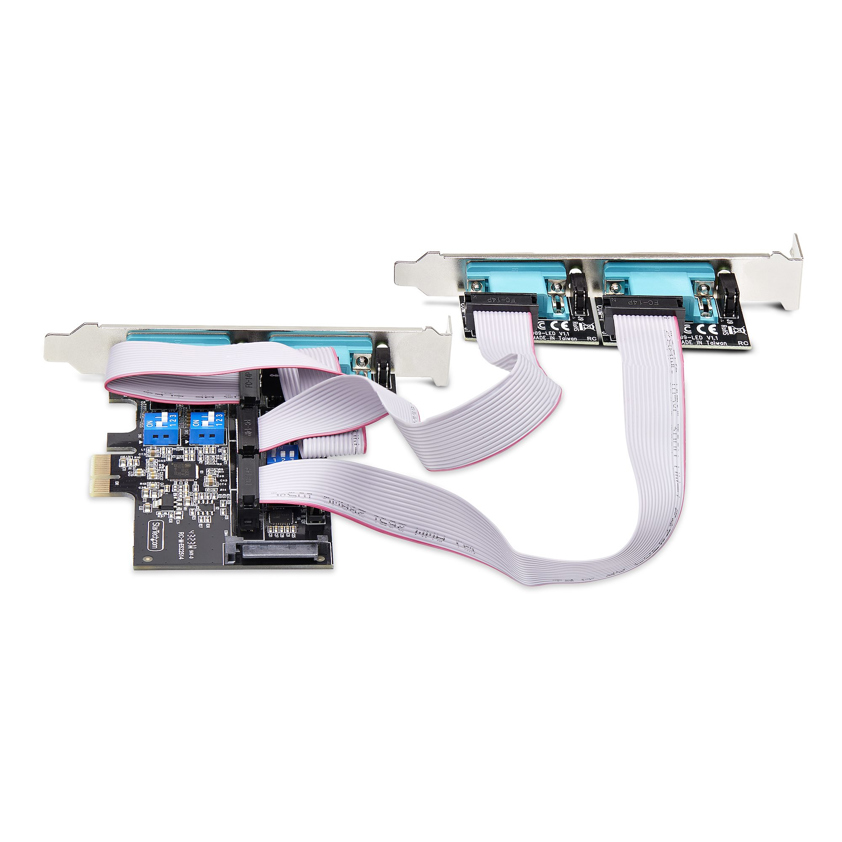

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.
Configurable External SATA Power
The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.
Legacy Connectivity
This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes)
The StarTech.com Advantage

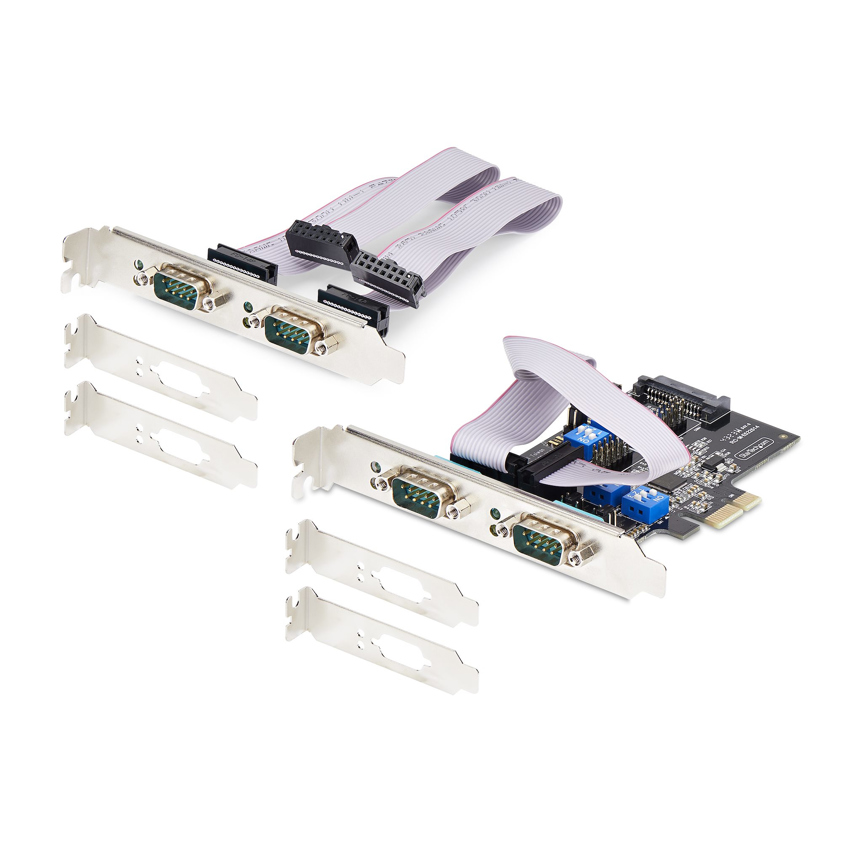

StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Bracket Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection
SKU: PS74ADF-SERIAL-CARD£134.94 ex VAT
£161.93 inc VAT
In stockPorts & interfaces Internal Yes Output interface Serial Serial interface type RS-232/422/485 Serial ports quantity 4 Host interface PCIe Technical details Chipset ASIX - AX99100 FIFO (First In, First Out) 256 B Cable length 0.3 m Sustainability compliance Yes Compliance certificates RoHS, Trade Agreements Act (TAA) Performance Stop bits 1, 1.5, 2 Data bits 5, 6, 8, 9 Baud rate 921.6 Kbit/s Chipset ASIX - AX99100 FIFO (First In, First Out) 256 B Flow control support Yes Product colour Black Colour Product colour Black Design Internal Yes Product colour Black LED indicators Activity Features Stop bits 1, 1.5, 2 Data bits 5, 6, 8, 9 Baud rate 921.6 Kbit/s Chipset ASIX - AX99100 FIFO (First In, First Out) 256 B Flow control support Yes Parity bit Even, Mark, No, Odd, Space Operational conditions Operating temperature (T-T) 0 - 70 °C Storage temperature (T-T) -20 - 80 °C Operating relative humidity (H-H) 20 - 80% System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 Linux operating systems supported Yes Server operating systems supported Windows Server 2016, Windows Server 2019, Windows Server 2022 Weight & dimensions Width 109 mm Depth 121 mm Height 16 mm Weight 60 g Package width 144 mm Package depth 207 mm Package height 38 mm Package weight 273.2 g Packaging data Mounting brackets included Yes Package width 144 mm Package depth 207 mm Package height 38 mm Package weight 273.2 g Cables included Ribbon cable User guide Yes Logistics data Products per master (outer) case 50 pc(s) Master (outer) case width 685 mm Master (outer) case length 345 mm Master (outer) case height 306 mm Other features Cable length 0.3 m Electrostatic Discharge (ESD) protection 15 kV Chipset ASIX - AX99100 Flow control support Yes Packaging content Mounting brackets included Yes Cables included Ribbon cable User guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
