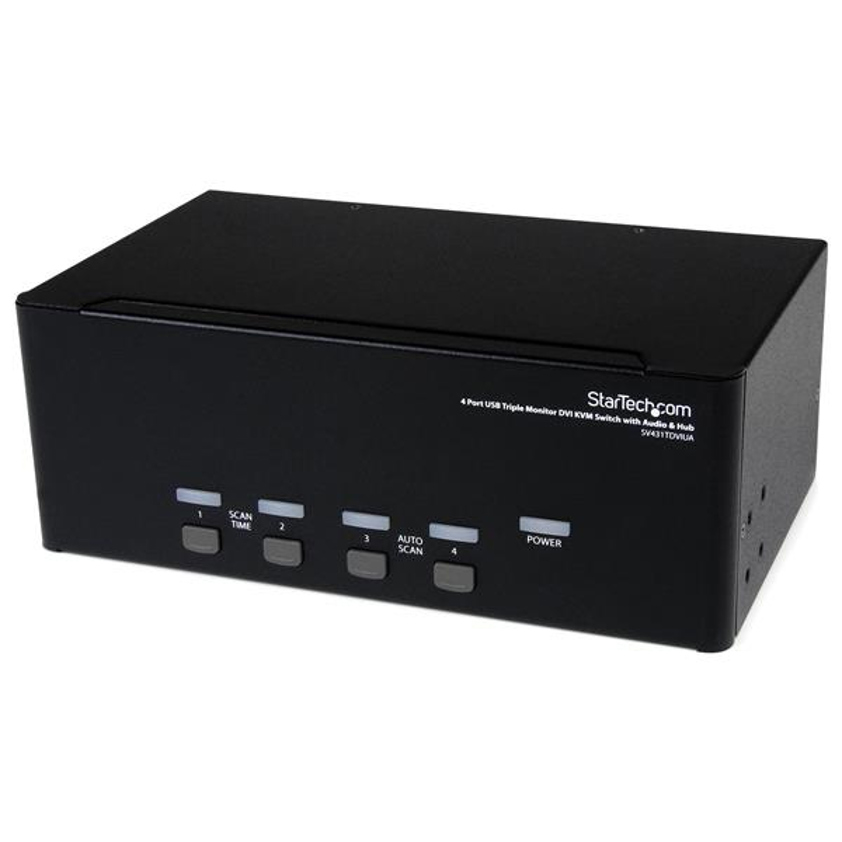

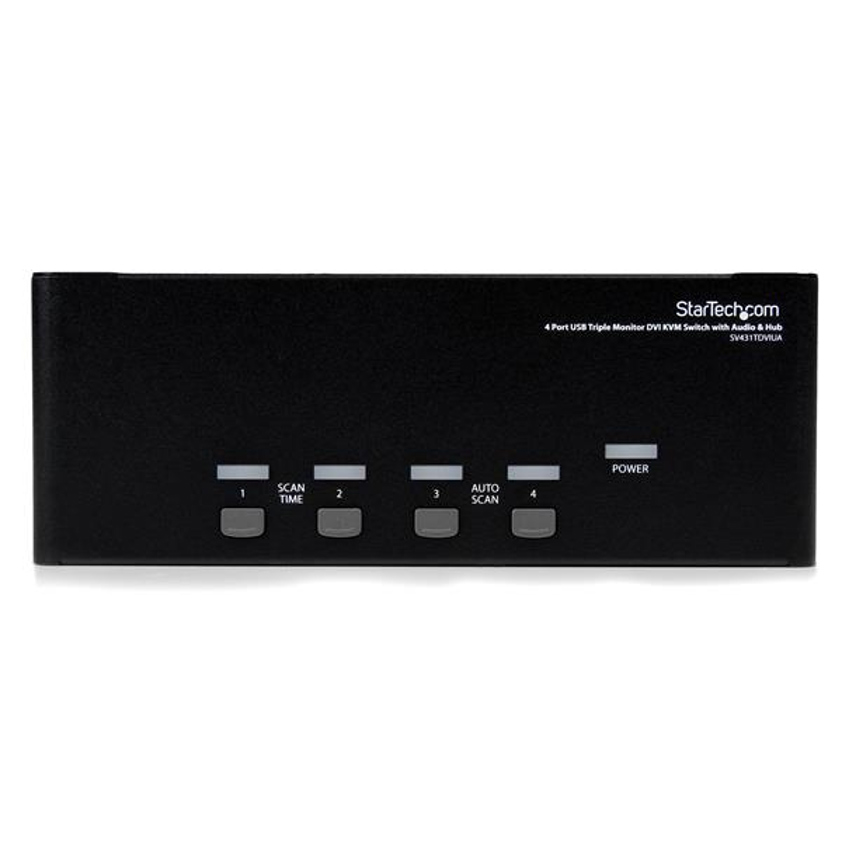

The SV431TDVIUA 4-Port Triple Monitor DVI USB KVM Switch allows 4 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple DVI KVM switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV431TDVIUA 4-Port Triple Monitor DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- By enabling control of four triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
StarTech.com 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
SKU: SV431TDVIUA£204.57 ex VAT
£245.49 inc VAT

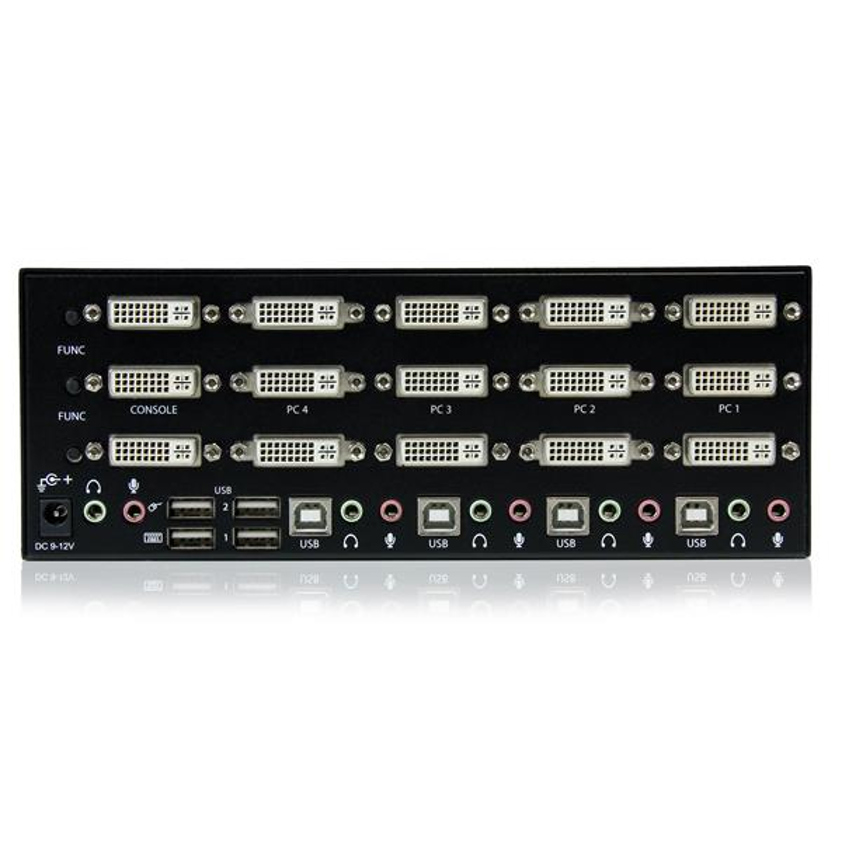

Out of stockPorts & interfaces Console USB ports quantity 4 Console ports 3.5mm headphone, 3.5mm mic, USB A Number of microphone inputs 4 Number of computers controlled 4 Keyboard port type USB Mouse port type USB Video port type DVI-I Audio connections Yes Headphone outputs 4 DC-in jack Yes HDCP Yes Performance Daisy chain No HDCP Yes Maximum resolution 1920 x 1200 pixels Scan interval 3,8,15,30 s Number of users 1 user(s) Maximum digital resolution 1920 x 1200 pixels Technical details Product colour Black Rack mounting Yes Scan interval 3,8,15,30 s Number of users 1 user(s) LED indicators Yes Hot keys Yes IP control No Audio support Yes Compliance certificates RoHS Design Product colour Black Rack mounting Yes LED indicators Yes Hot keys Yes Certification CE, FCC, UL Housing material Steel Display Built-in display No Power Input current 0.8 A Output current 1.5 A Power plug type Type M Compatible power plug types EU, UK, US Output voltage 12 V External power adapter Yes Input voltage 110-240 V Video Maximum resolution 1920 x 1200 pixels Maximum digital resolution 1920 x 1200 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -10 - 60 °C Operating relative humidity (H-H) 0 - 80% Weight & dimensions Width 219 mm Depth 137 mm Height 81 mm Weight 1.5 kg Package width 272 mm Package depth 297 mm Package height 108 mm Package weight 2.2 kg Packaging data Package width 272 mm Package depth 297 mm Package height 108 mm Package weight 2.2 kg Packaging content Rubber feet Yes Manual Yes AC adapter included Yes Certificates Certification CE, FCC, UL Other features IP control No Audio support Yes Hot keys Yes Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
