Optimize fiber patch cabling in high-density patching applications where cables are prone to bending
LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable enables 40/100G network connections. The push-pull tabs on each connector ensure quick connection and removal, facilitating accurate installation in high connection density environments. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration.
Engineered for Optimal Performance
Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources.
Compatibility
This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments.
LSZH Cable Jacket
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.
Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.
The StarTech.com Advantage

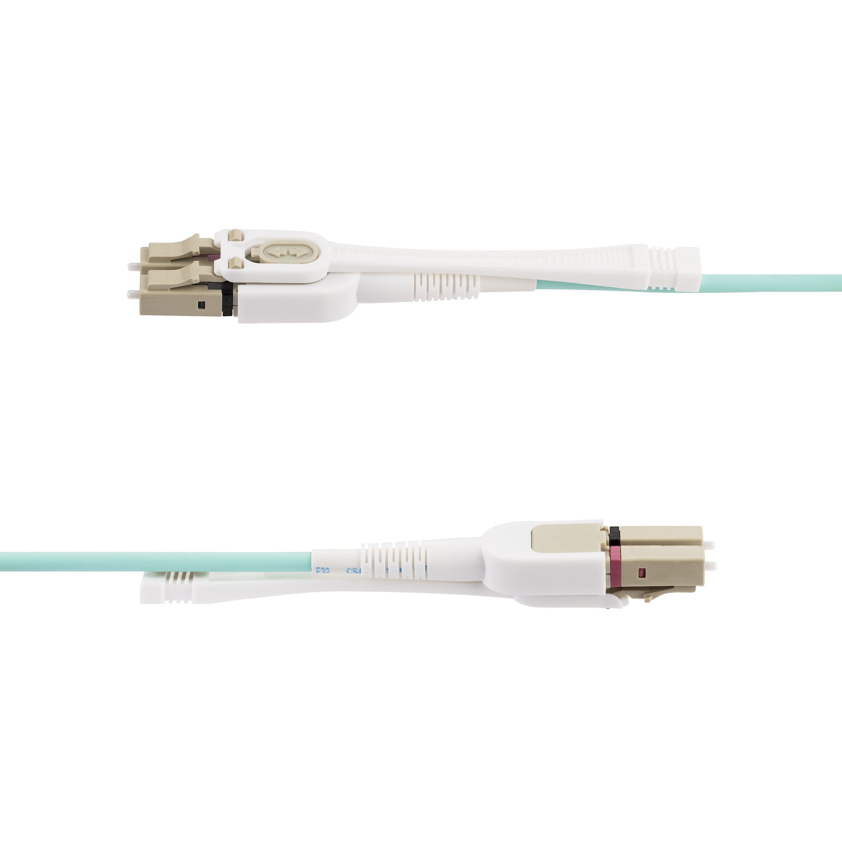

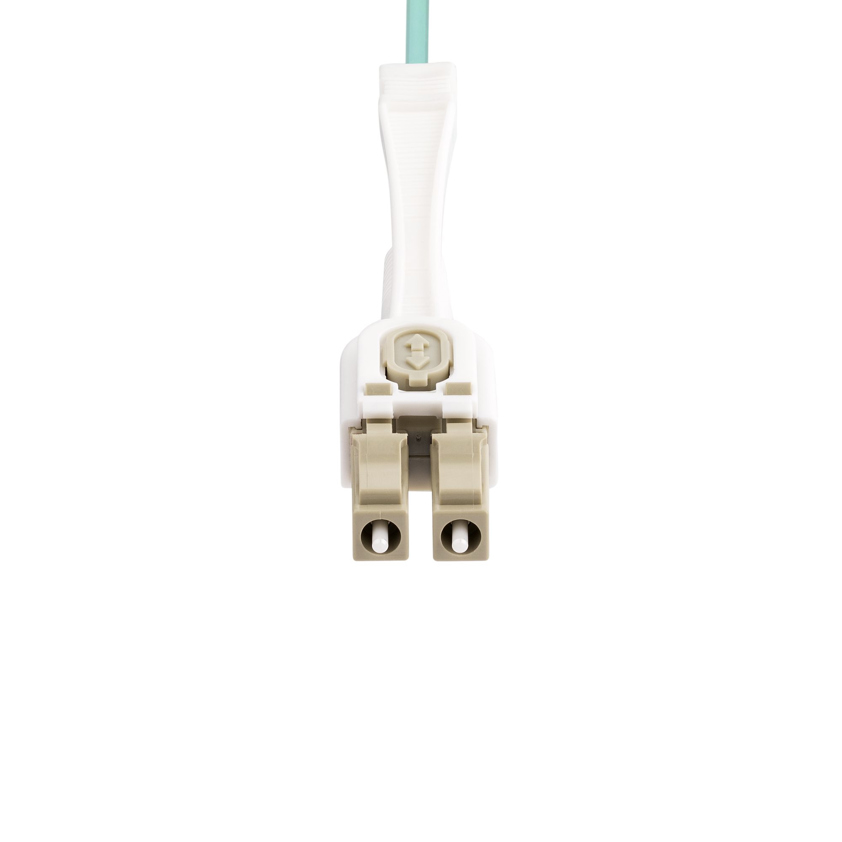

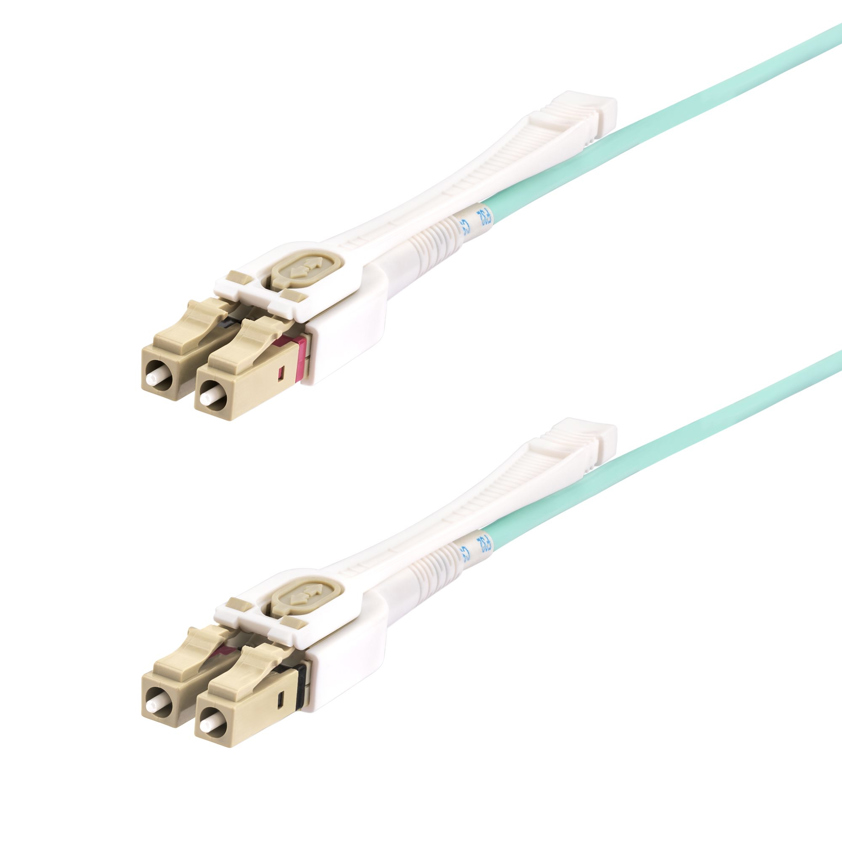

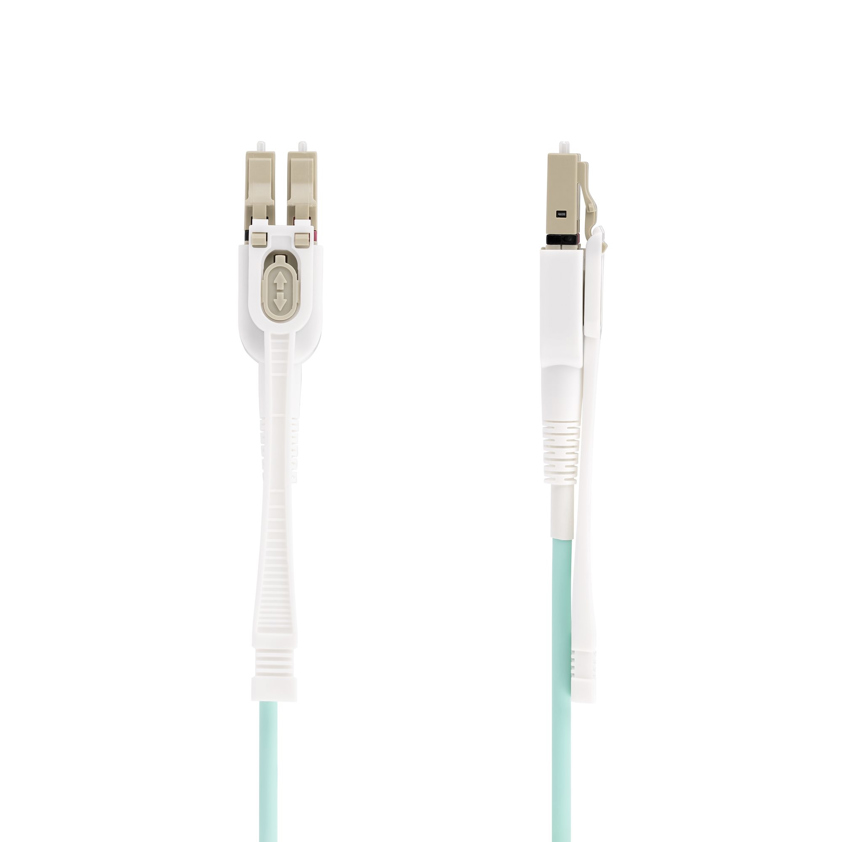

StarTech.com 4m (13ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
SKU: 450FBLCLC4PP£19.78 ex VAT
£23.74 inc VAT
In stockTechnical details Jacket material Low smoke zero halogen (LSZH) Fiber mode structure Multi-mode Connector 1 LC Connector 2 LC Cable type LOMM Cable length 4 m Full duplex Yes Core diameter 50 µm Cladding diameter 125 µm Sustainability compliance Yes Compliance certificates CE, RoHS Features Bending radius 6 cm Fibre optic type OM4 Jacket material Low smoke zero halogen (LSZH) Fiber mode structure Multi-mode Connector 1 LC Connector 2 LC Cable type LOMM Cable length 4 m Full duplex Yes Core diameter 50 µm Cladding diameter 125 µm Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Data transfer rate 100 Gbit/s Wavelengths supported 850,1300 nm Product colour Aqua colour Connector 2 gender Male Connector 1 gender Male Data transmission Data transfer rate 100 Gbit/s Operational conditions Operating temperature (T-T) -20 - 60 °C Storage temperature (T-T) -20 - 60 °C Weight & dimensions Bending radius 6 cm Cable length 4 m Package width 220 mm Package depth 200 mm Package height 15 mm Cable diameter 2.9 mm Packaging data Package width 220 mm Package depth 200 mm Package height 15 mm Quantity per pack 1 pc(s) Logistics data Master (outer) case width 410 mm Master (outer) case length 410 mm Master (outer) case height 430 mm Products per master (outer) case 240 pc(s) Quantity per pack 1 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
