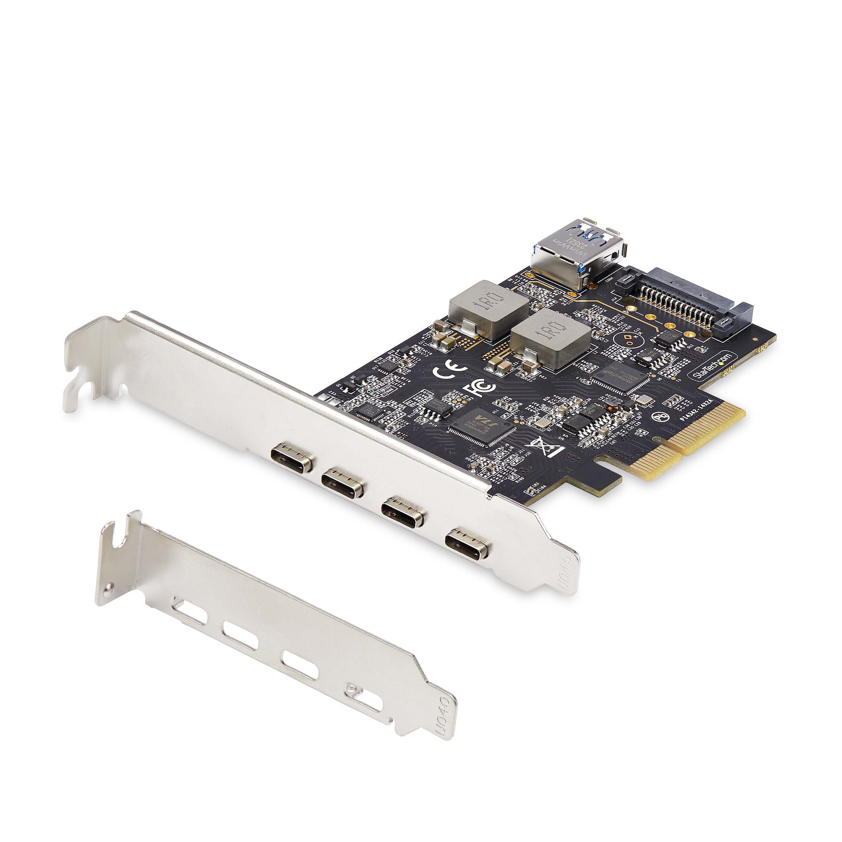

    StarTech.com 5-Port USB PCIe Card, USB 3.2 10Gbps, PCI Express Card with 4x USB-C Ports, 1x USB-A Internal Port, USB PCIe Controller Card, Windows/macOS/Linux

    SKU: PS4C3IA3-USB-C-CARD
    £55.13 ex VAT
    £66.16 inc VAT
    Product low stockLow stock

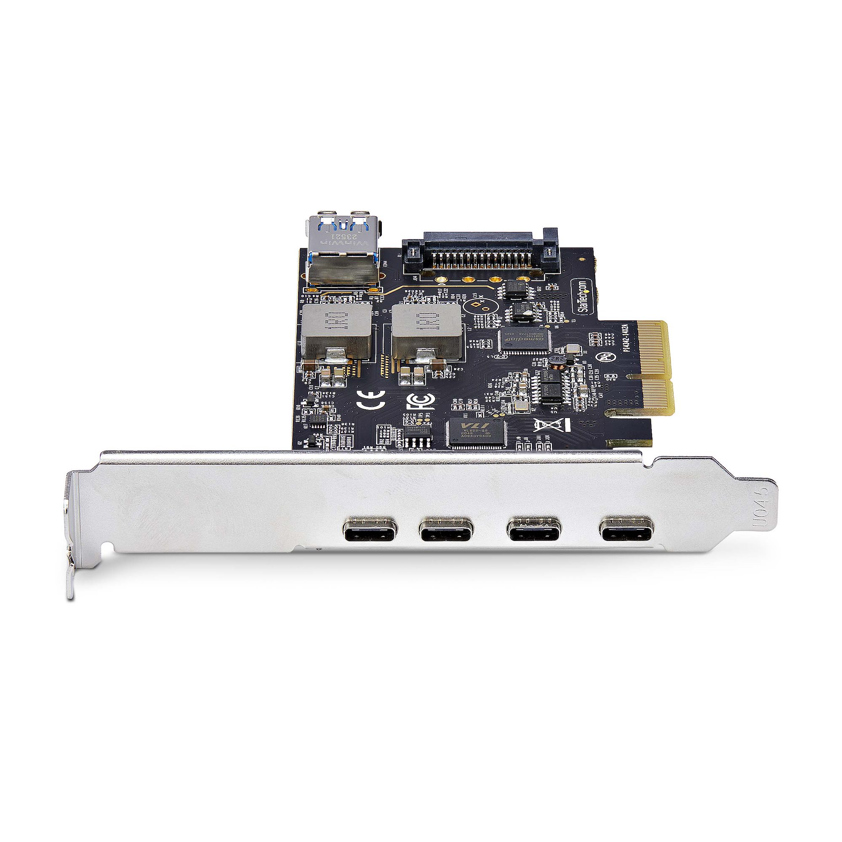

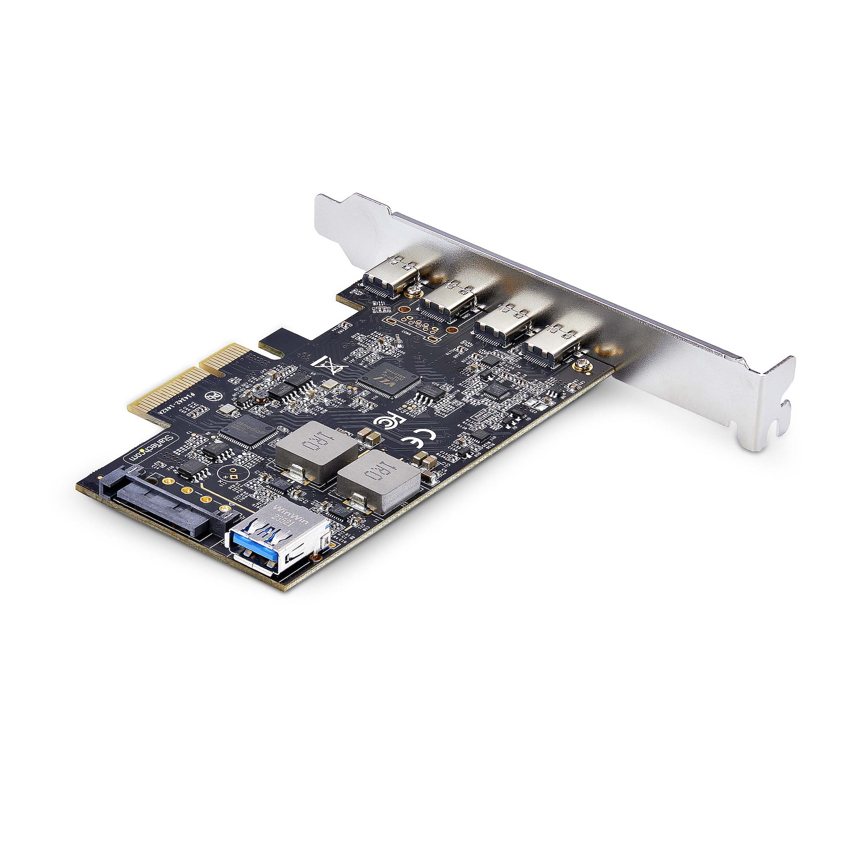

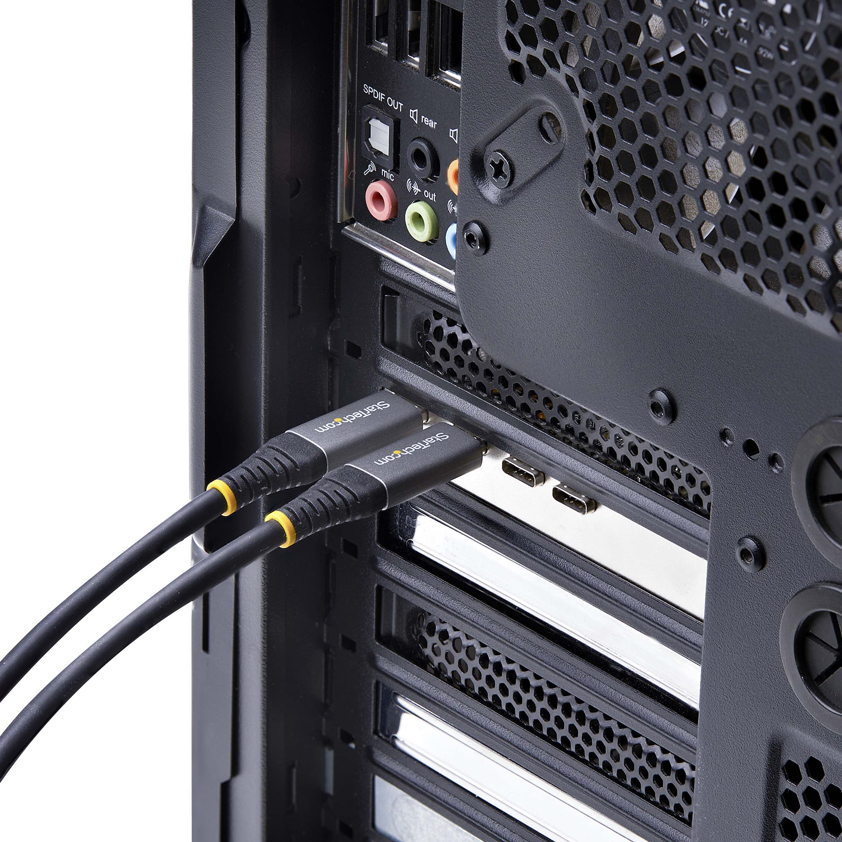

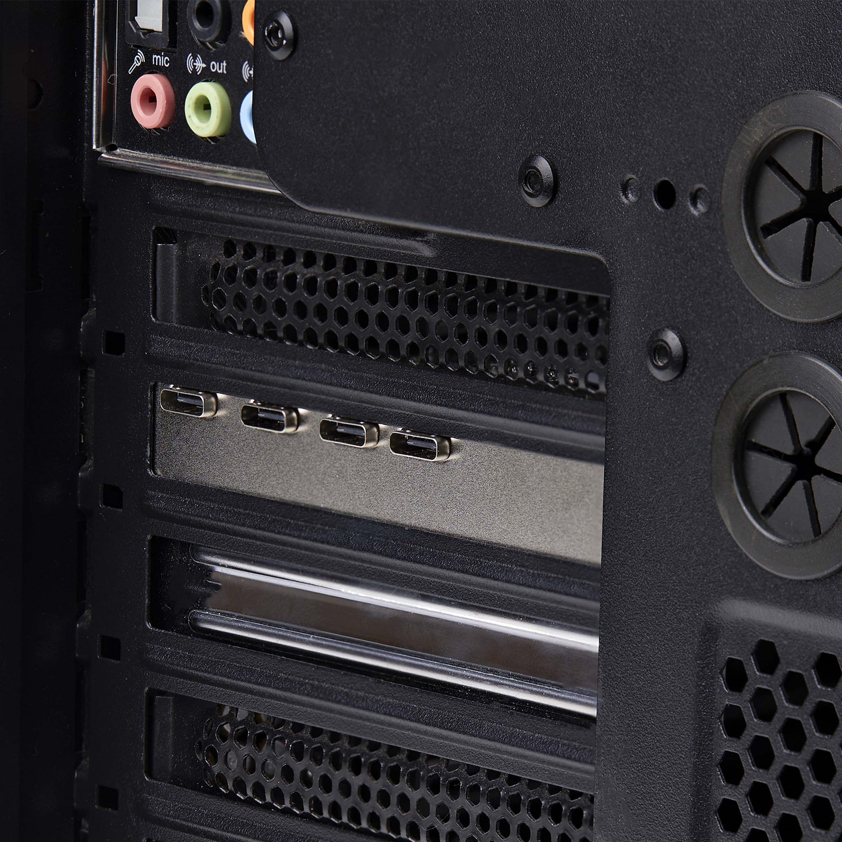

    • Add four USB Type-C (USB 3.2 Gen 2 10Gbps) ports to a PCIe host computer, plus an internal USB Type-A (10Gbps) port

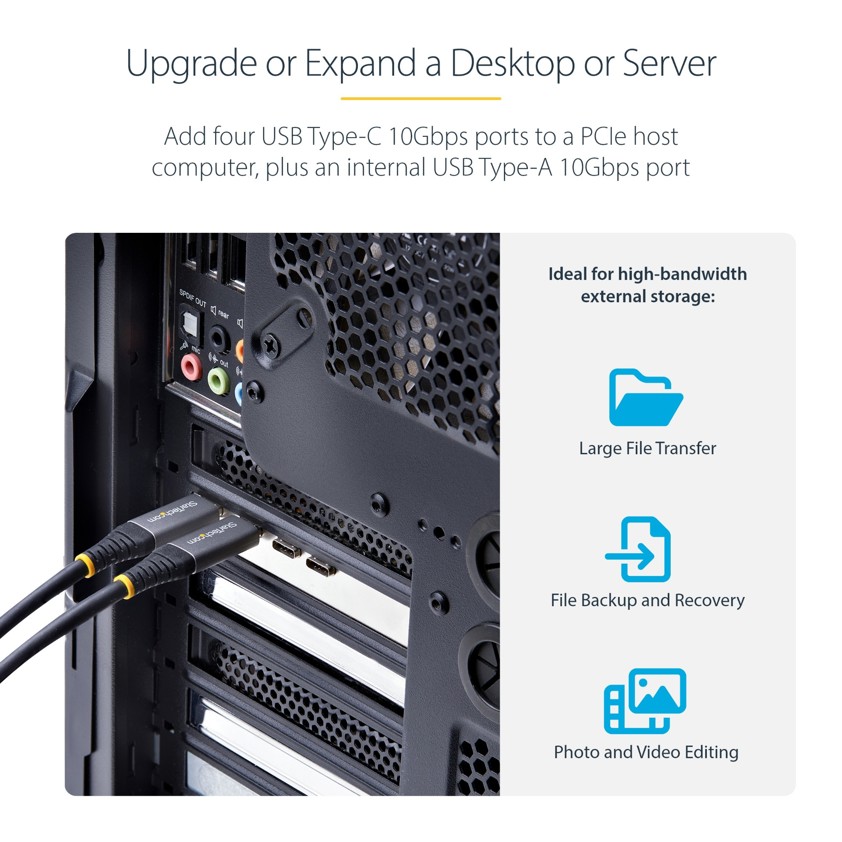

      Upgrade or expand a desktop or server's USB connectivity by adding four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 connection.

      USB 3.2 Gen 2 (10Gbps) Performance

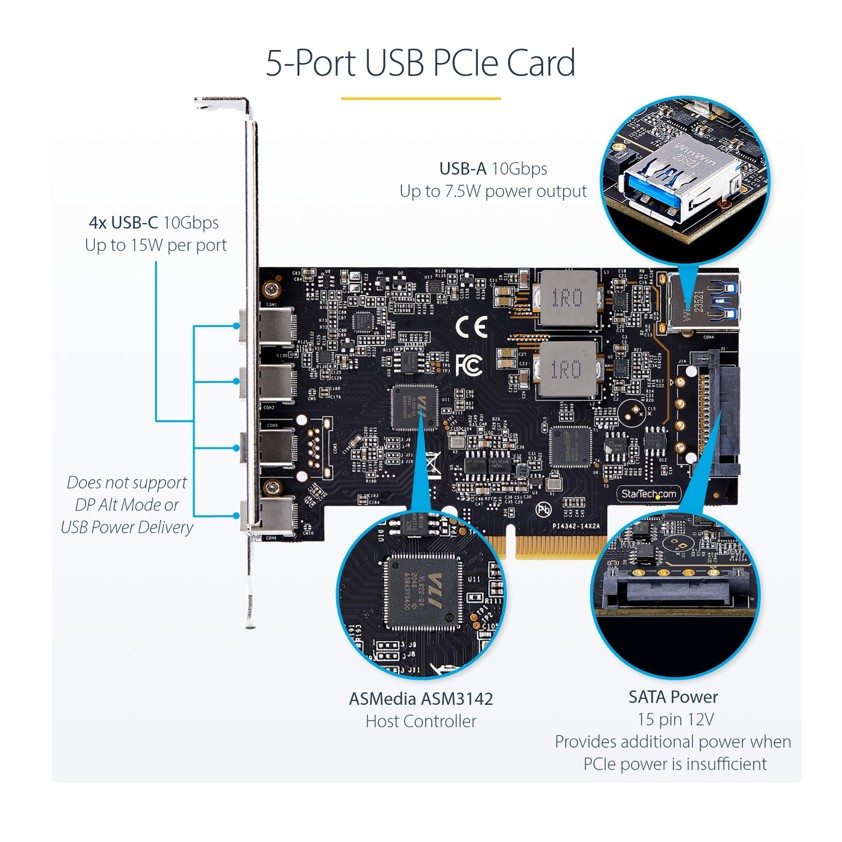

      The ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps, making it ideal for transferring large files or editing high-resolution photos and videos on external storage devices.

      Charge and Sync USB Devices

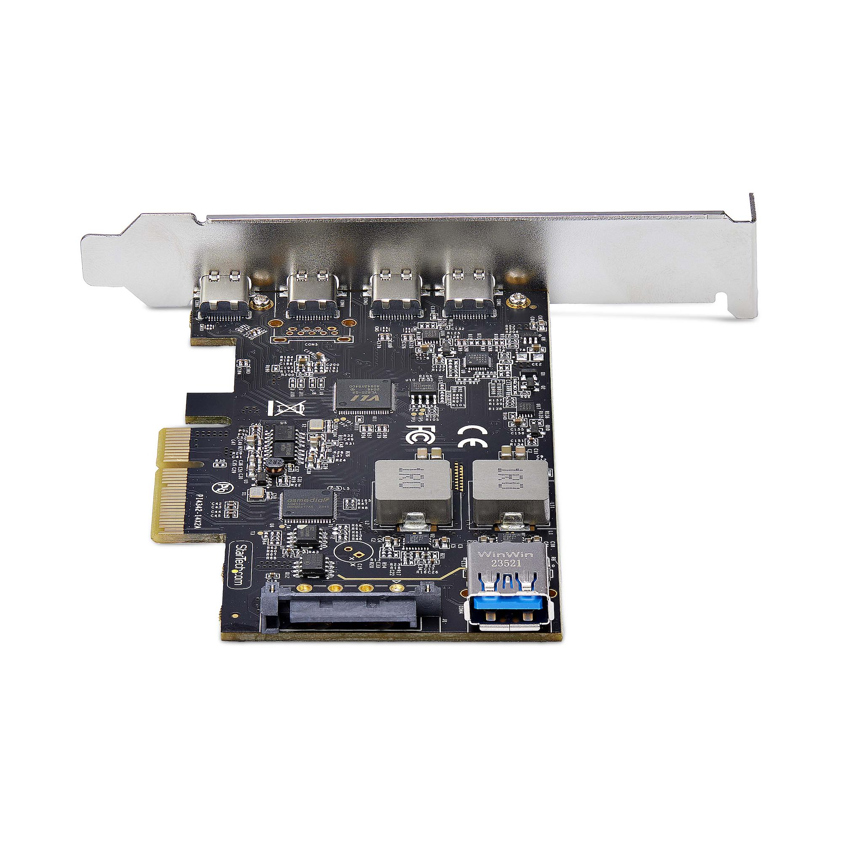

      This USB PCIe expansion card can receive supplemental power through SATA power, providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port when motherboard power is insufficient.

      Compatibility

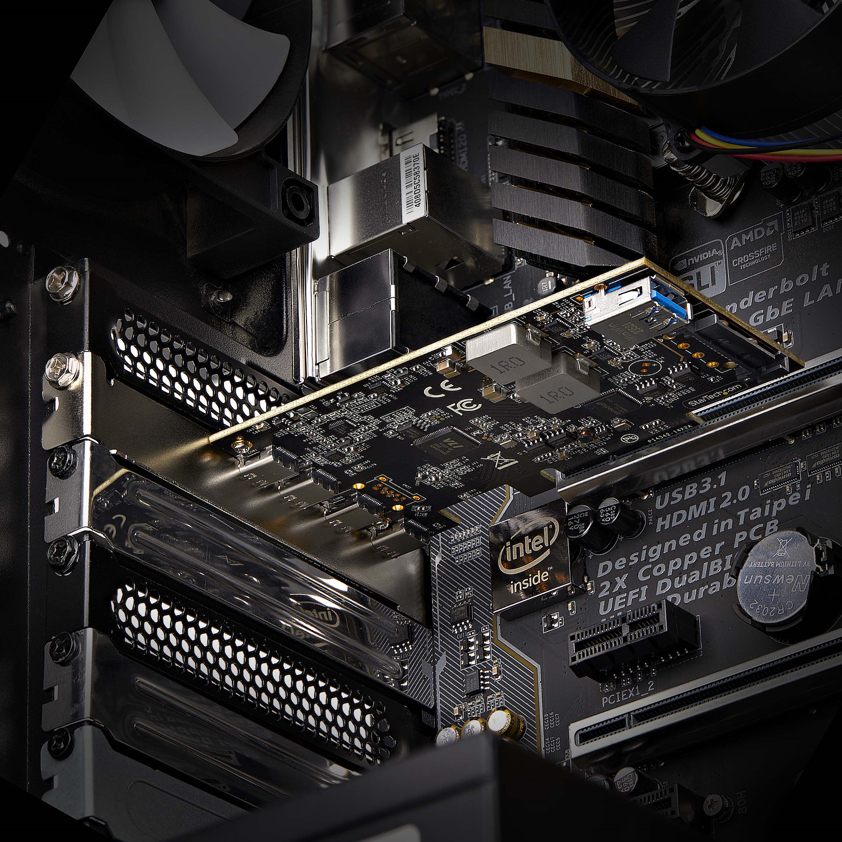

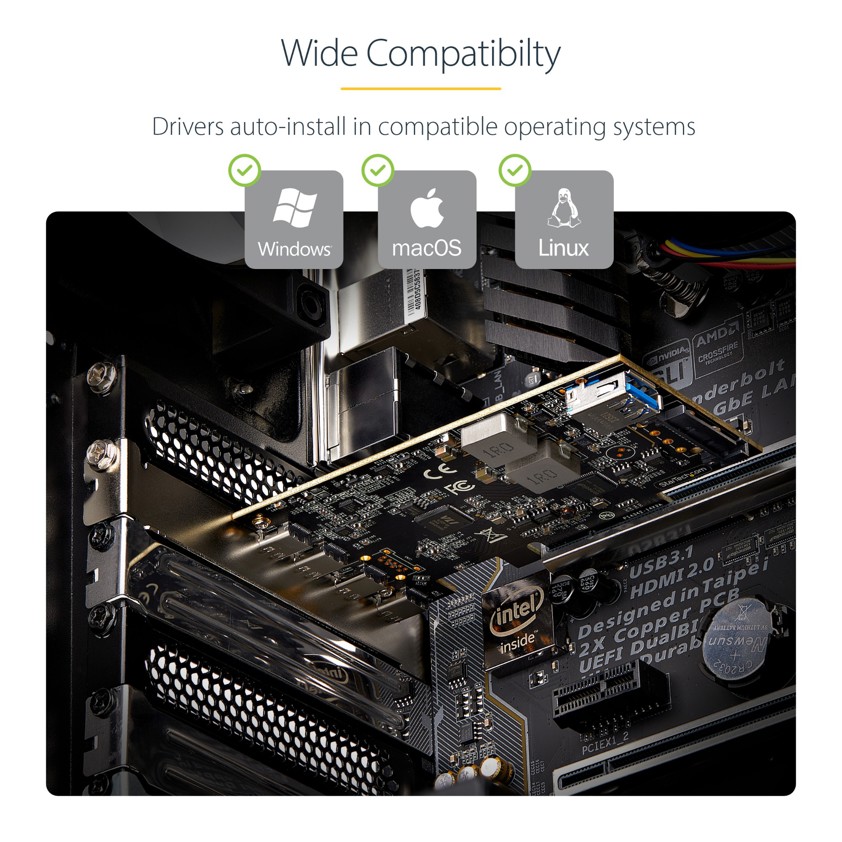

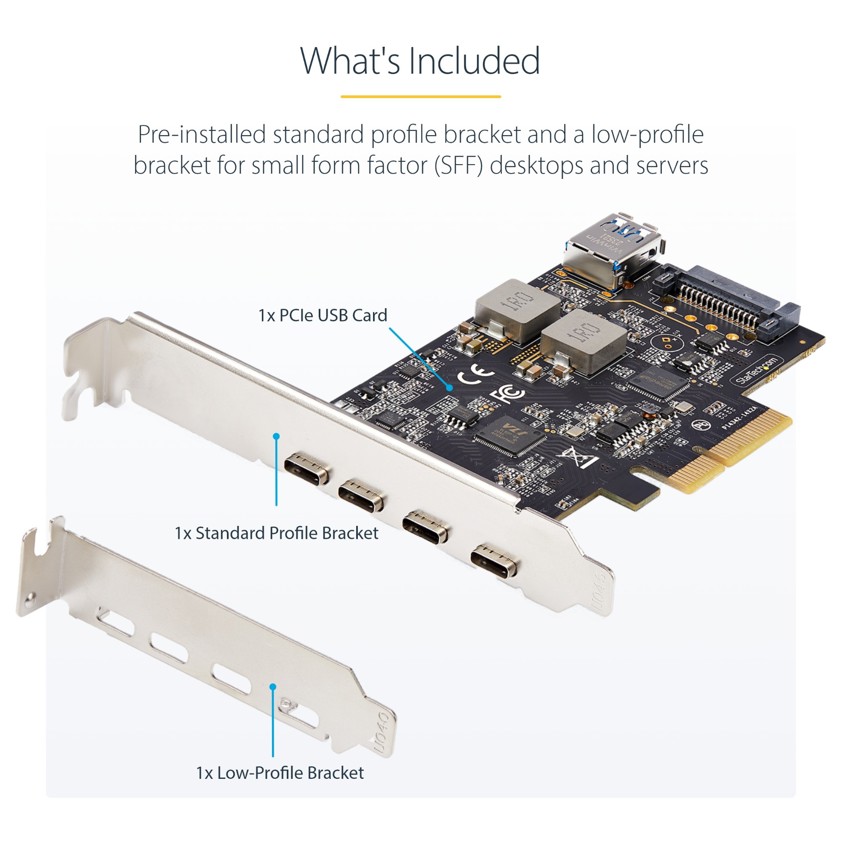

      The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and up, macOS, and Linux. It works with hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Additionally, the USB expansion card comes with a pre-installed standard profile bracket and includes a low-profile bracket for compatibility with small form factor (SFF) desktops and servers.

      The StarTech.com Advantage
      Show more
    • Ports & interfaces
      InternalYes
      USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity4
      Internal USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
      Output interfaceUSB Type-C
      Host interfacePCIe
      Expansion card form factorFull-height / Low-profile
      Expansion card standardPCI 3.0
      SATA power connector typeSATA 15-pin
      Technical details

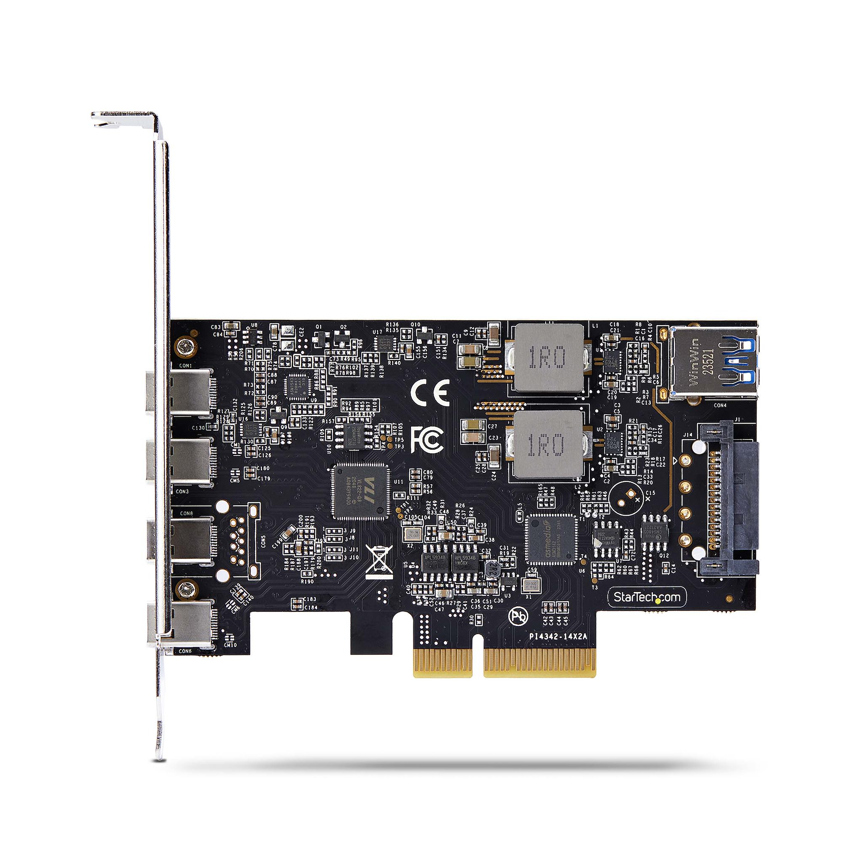

      ChipsetASMEDIA - ASM3142, VIA LABS - VL822
      Compliance certificatesRoHS
      Performance
      UASP supportYes
      ChipsetASMEDIA - ASM3142, VIA LABS - VL822
      Product colourBlack
      Colour
      Product colourBlack
      Design
      InternalYes
      Product colourBlack
      Features
      UASP supportYes
      ChipsetASMEDIA - ASM3142, VIA LABS - VL822
      Operational conditions
      Operating temperature (T-T)0 - 50 °C
      Storage temperature (T-T)-10 - 70 °C
      Operating relative humidity (H-H)5 - 90%
      System requirements
      Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
      Mac operating systems supportedMac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
      Linux operating systems supportedYes
      Server operating systems supportedWindows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

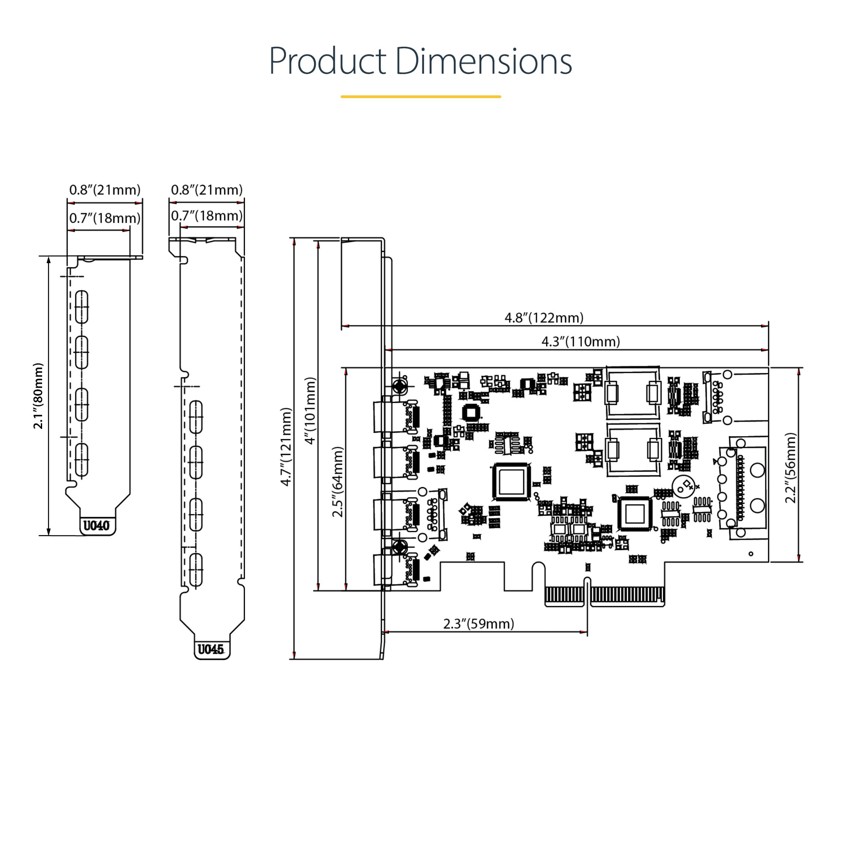

      Weight & dimensions
      Width121 mm
      Depth122 mm
      Height22 mm
      Weight60 g
      Package width142 mm
      Package depth210 mm
      Package height35 mm
      Package weight156 g
      Packaging data
      Mounting brackets includedYes
      Package width142 mm
      Package depth210 mm
      Package height35 mm
      Package weight156 g
      Quick installation guideYes
      Logistics data
      Products per master (outer) case40 pc(s)
      Master (outer) case width370 mm
      Master (outer) case length440 mm
      Master (outer) case height315 mm
      Packaging content
      Mounting brackets includedYes
      Quick installation guideYes
      Other features
      ChipsetASMEDIA - ASM3142, VIA LABS - VL822
