Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

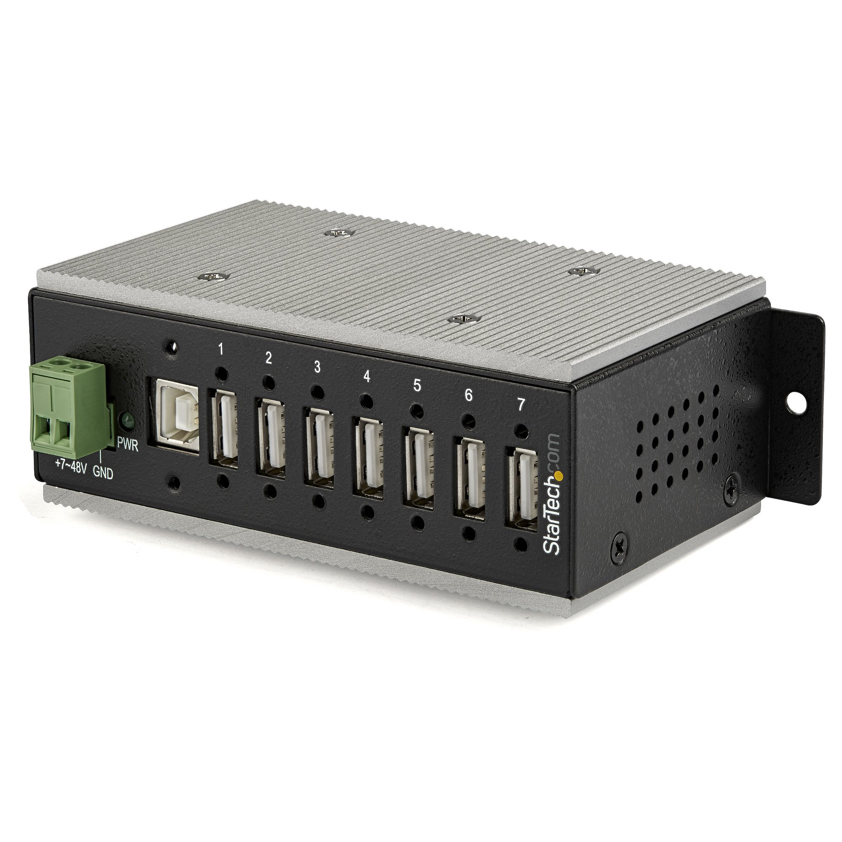

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

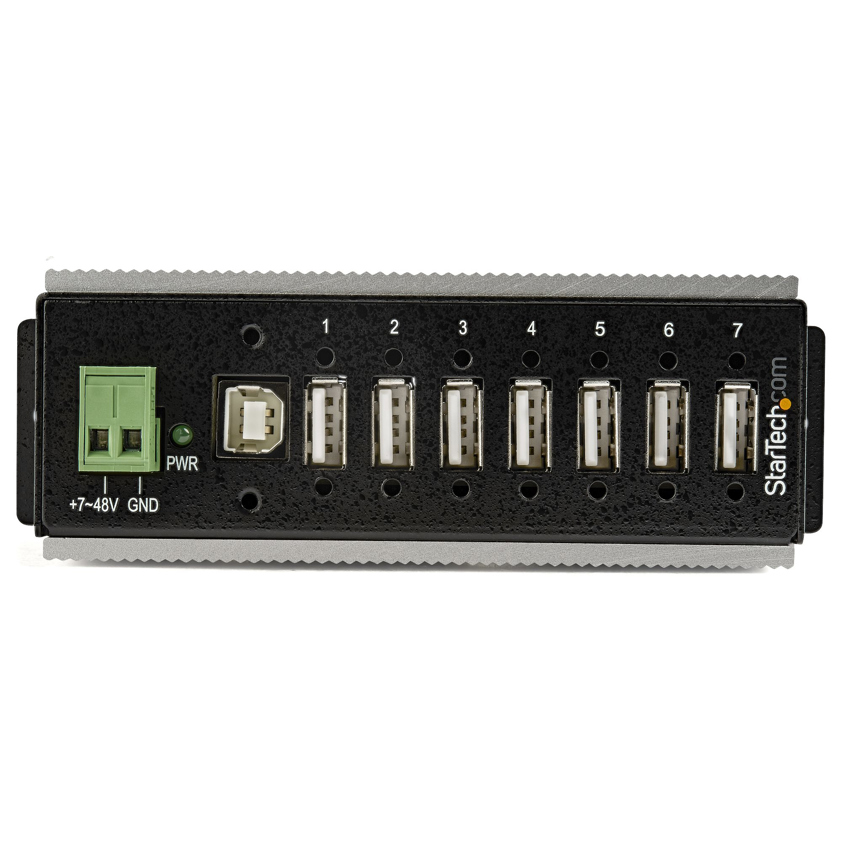

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers seven connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most

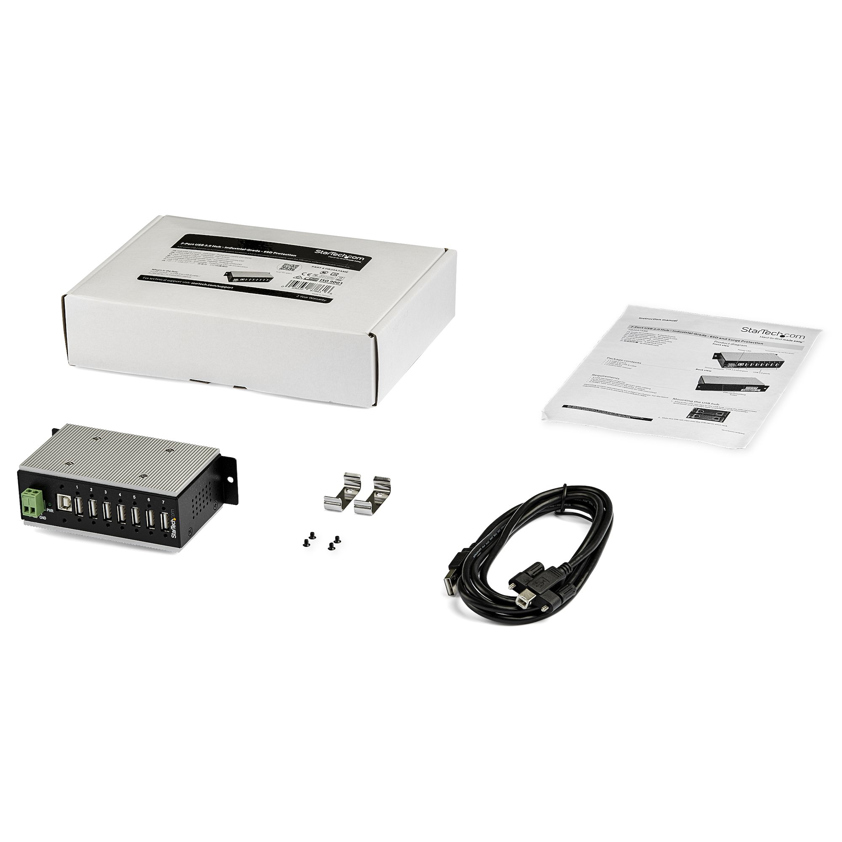

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mountable - USB Expander Hub
SKU: HB20A7AME£156.31 ex VAT
£187.57 inc VAT
Out of stockPorts & interfaces Host interface USB 2.0 Type-B Terminal block port Yes Hub interfaces USB 2.0 USB 2.0 ports quantity 7 Ports quantity 7 Features Surge protection Yes Plug and Play Yes LED indicators Power Product colour Black Certification CE, FCC, TAA, RoHS, REACH Data transfer rate 480 Mbit/s Housing material Metal Host interface USB 2.0 Type-B Data transmission Data transfer rate 480 Mbit/s Power Input current 4 A Power consumption (typical) 28 W Input voltage 7 - 48 V Technical details Plug and Play Yes Product colour Black Performance Certification CE, FCC, TAA, RoHS, REACH Surge protection Yes Plug and Play Yes Data transfer rate 480 Mbit/s Harmonized System (HS) code 84719000 Weight & dimensions Weight 404 g Width 63 mm Depth 130 mm Height 42 mm Package width 166 mm Package depth 242 mm Package height 55 mm Package weight 600 g Packaging data Package width 166 mm Package depth 242 mm Package height 55 mm Package weight 600 g Packaging content Manual Yes Cables included USB DIN rail kit included Yes Design LED indicators Power Product colour Black Certification CE, FCC, TAA, RoHS, REACH Operational conditions Operating temperature (T-T) -40 - 85 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 5 - 95% Certificates Certification CE, FCC, TAA, RoHS, REACH Indication LED indicators Power Logistics data Master (outer) case width 435 mm Master (outer) case length 565 mm Master (outer) case height 260 mm Products per master (outer) case 20 pc(s) Harmonized System (HS) code 84719000 Other features Chipset Genesys Logic - GL852GT Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
