The SV831DUSBUK 8-Port Rack Mount USB KVM Switch Kit offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 8 servers or PCs right out of the box, making setup convenient and simple.
The USB KVM delivers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage

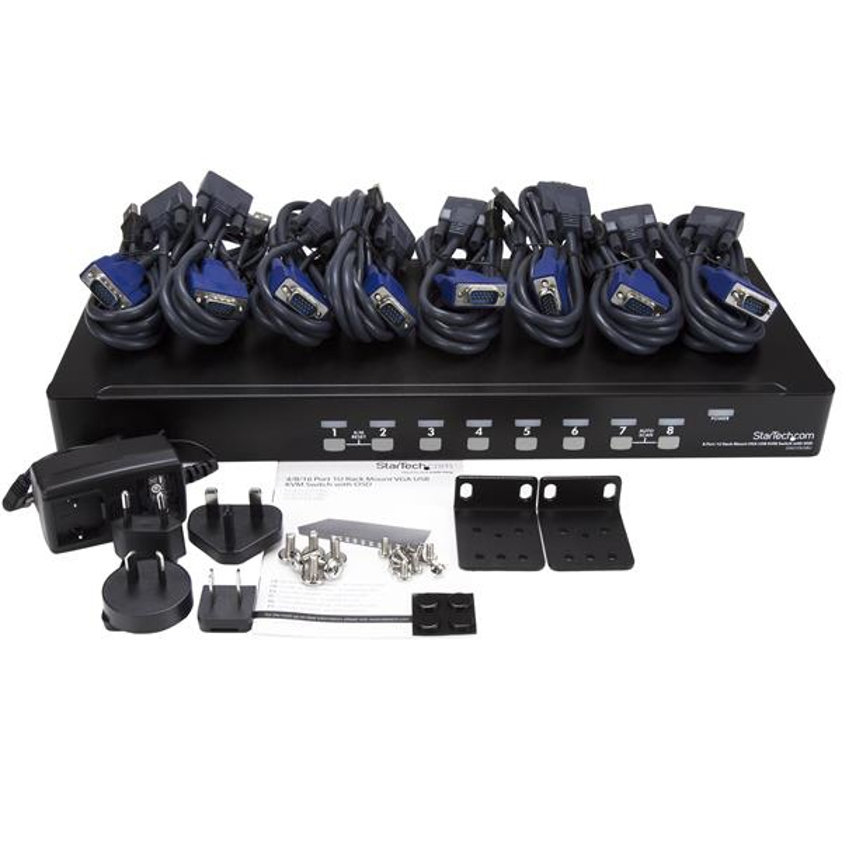

- For simple setup, the USB/VGA KVM cables to connect all 8 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; unlike most KVMs, this unique model extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
StarTech.com 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables
SKU: SV831DUSBUK£308.64 ex VAT
£370.36 inc VAT
In stockPorts & interfaces Console USB ports quantity 2 Console ports USB A, VGA (D-Sub) USB connector type USB Type-A Number of computers controlled 8 Keyboard port type USB Mouse port type USB Video port type VGA USB 2.0 ports quantity 2 VGA (D-Sub) ports quantity 9 DC-in jack Yes Performance Daisy chain Yes Plug and Play Yes Maximum resolution 1920 x 1440 pixels Maximum analog resolution 1920 x 1440 pixels Technical details Product colour Black Rack mounting Yes Plug and Play Yes On Screen Display (OSD) Yes LED indicators Power Hot keys Yes IP control No Audio support No Cascadable Yes Compliance certificates RoHS Design Product colour Black Rack mounting Yes LED indicators Power Hot keys Yes Certification CE, FCC, TAA, REACH Cascadable Yes Rack capacity 1U Housing material Steel Display On Screen Display (OSD) Yes Power Output current 1 A Compatible power plug types AU, EU, UK, US Output voltage 12 V Power consumption (typical) 12 W External power adapter Yes Input voltage 100 - 240 V Video Maximum resolution 1920 x 1440 pixels Maximum analog resolution 1920 x 1440 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Weight & dimensions Width 435 mm Depth 180 mm Height 45 mm Weight 2.2 kg Package width 262 mm Package depth 606 mm Package height 121 mm Package weight 4.7 kg Packaging data Package width 262 mm Package depth 606 mm Package height 121 mm Package weight 4.7 kg Packaging content Rack mount kit Yes Cables included KVM Manual Yes AC adapter included Yes Certificates Certification CE, FCC, TAA, REACH Other features IP control No Audio support No Hot keys Yes Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
