Control up to 8 VGA and USB computers from a single keyboard, mouse and monitor
The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- Cascade configuration supported for one spot control of up to 64 computers
- Rugged, rack mountable 1U metal chassis is ideal for any environment

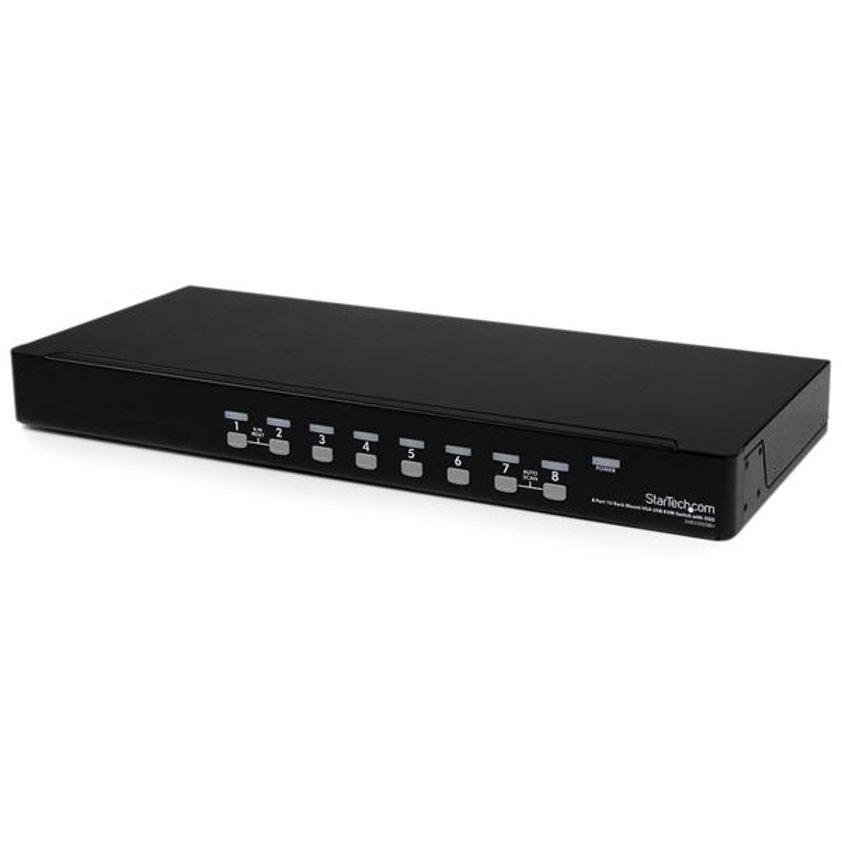

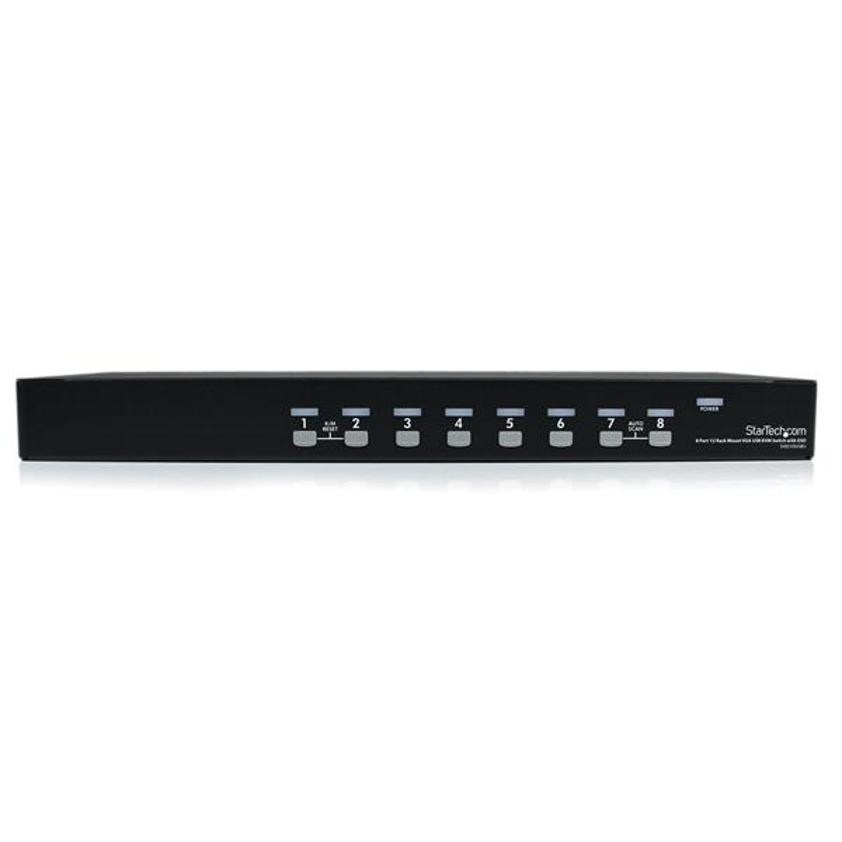

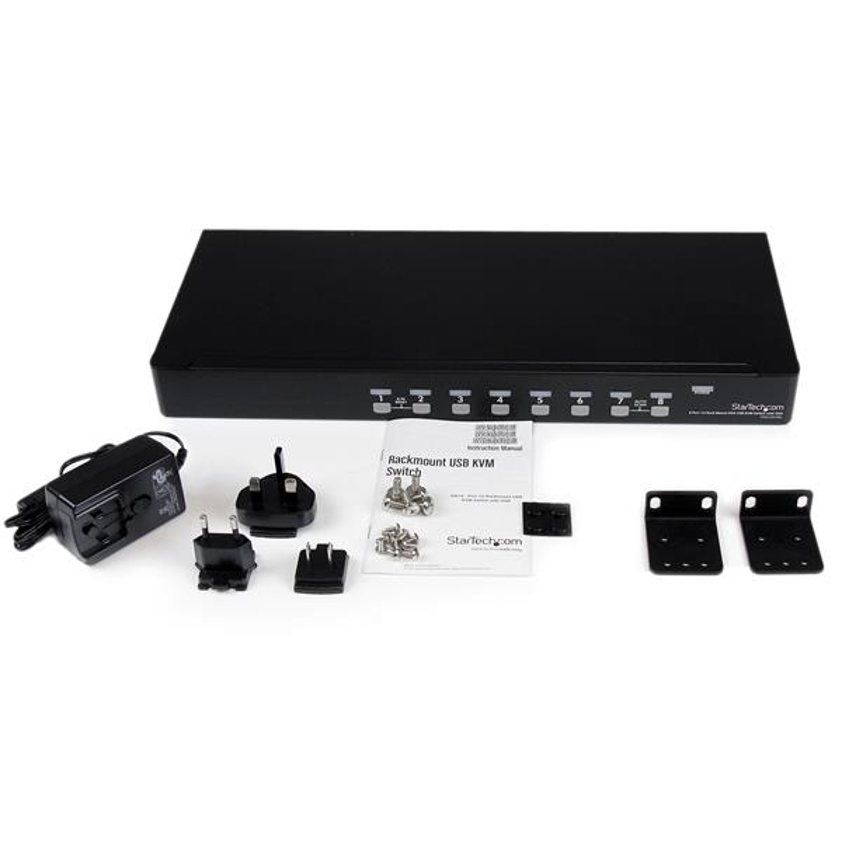

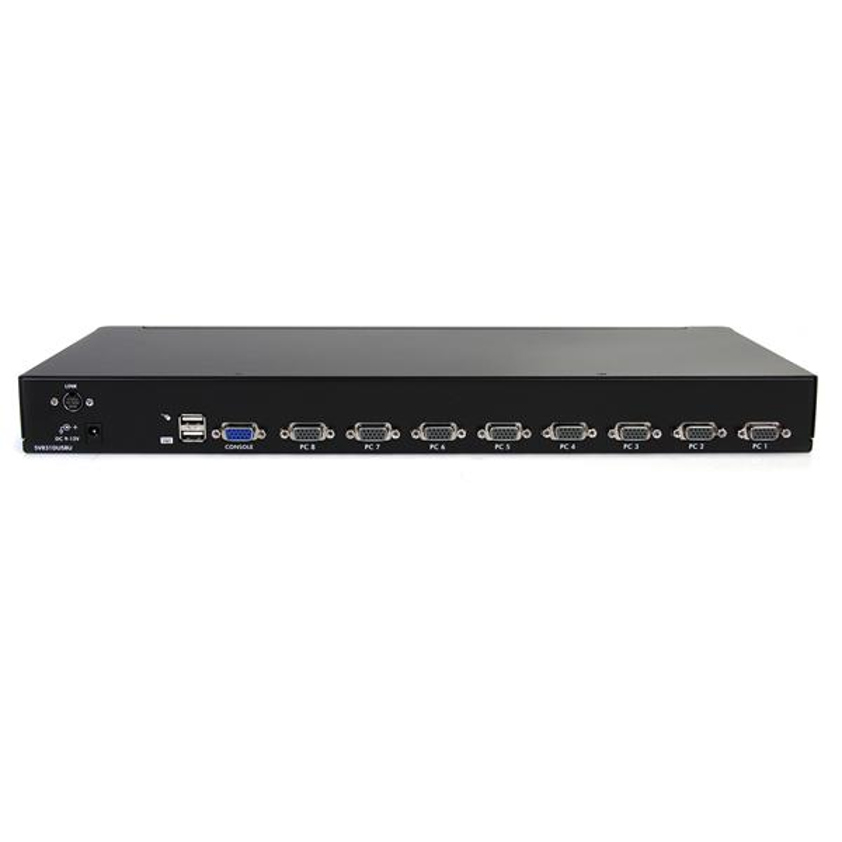

StarTech.com 8 Port 1U Rackmount USB KVM Switch with OSD
SKU: SV831DUSBU£273.02 ex VAT
£327.63 inc VAT
In stockPorts & interfaces Console USB ports quantity 2 Console ports USB A, VGA (D-Sub) Number of computers controlled 8 Keyboard port type USB Mouse port type USB Video port type VGA Audio connections No VGA (D-Sub) ports quantity 9 DC-in jack Yes Performance Daisy chain Yes Plug and Play Yes Maximum resolution 1920 x 1440 pixels Technical details Product colour Black Rack mounting Yes Plug and Play Yes On Screen Display (OSD) Yes LED indicators Yes IP control No Audio support No Compliance certificates RoHS Design Mean time between failures (MTBF) 150000 h Product colour Black Rack mounting Yes LED indicators Yes Certification CE, FCC, TAA, REACH Rack capacity 1U Housing material Steel Display Built-in display No On Screen Display (OSD) Yes Power Input current 0.8 A Output current 1.5 A Power plug type Type M Compatible power plug types EU, UK, US Output voltage 12 V Input voltage 100 - 240 V Video Maximum resolution 1920 x 1440 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Weight & dimensions Width 540 mm Depth 180 mm Height 45 mm Weight 2.9 kg Package width 89 mm Package depth 573 mm Package height 268 mm Package weight 3.3 kg Packaging data Package width 89 mm Package depth 573 mm Package height 268 mm Package weight 3.3 kg Packaging content Rubber feet Yes Manual Yes AC adapter included Yes Certificates Certification CE, FCC, TAA, REACH Other features Connectivity technology Wired Power requirements 110 - 240 AC Ports quantity 8 Dimensions (WxDxH) 540 x 180 x 45 mm IP control No Audio support No Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
