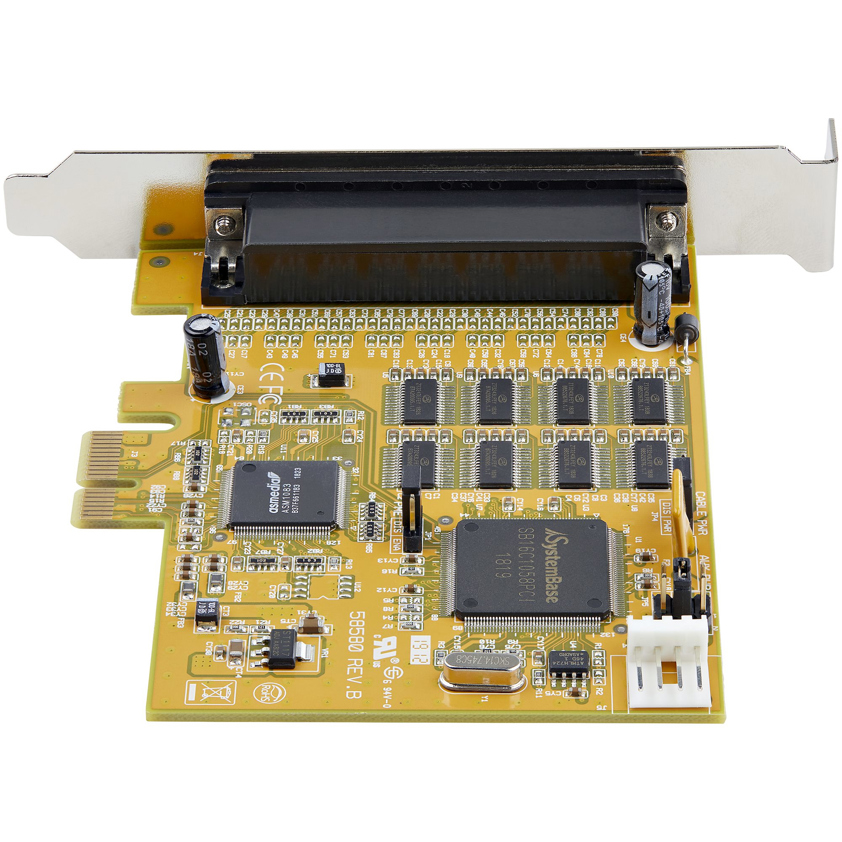

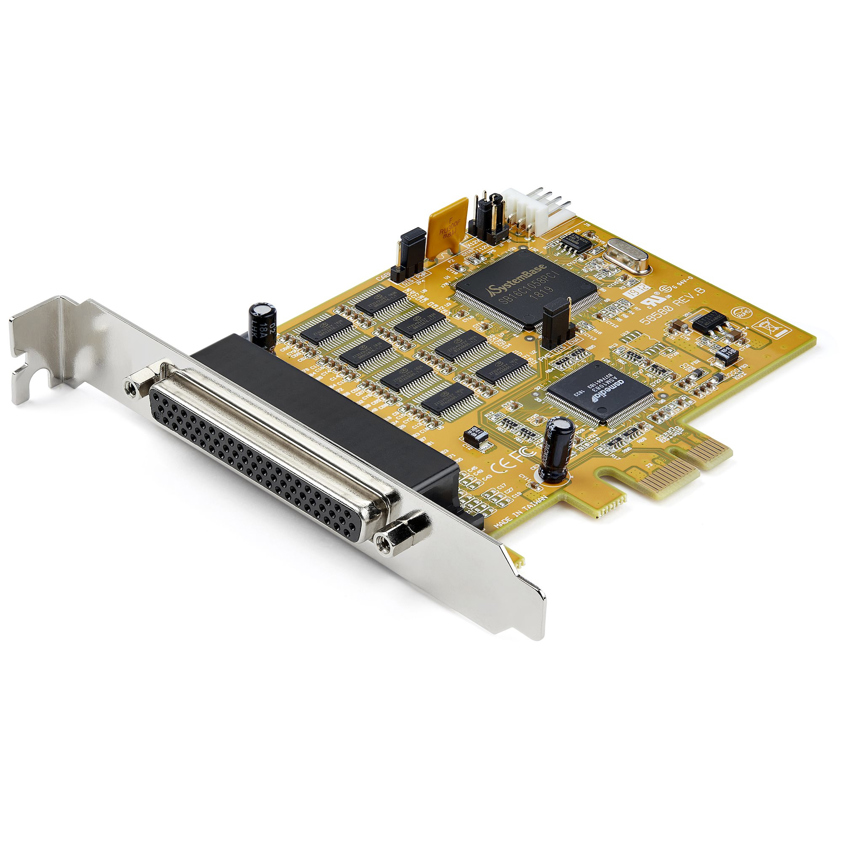

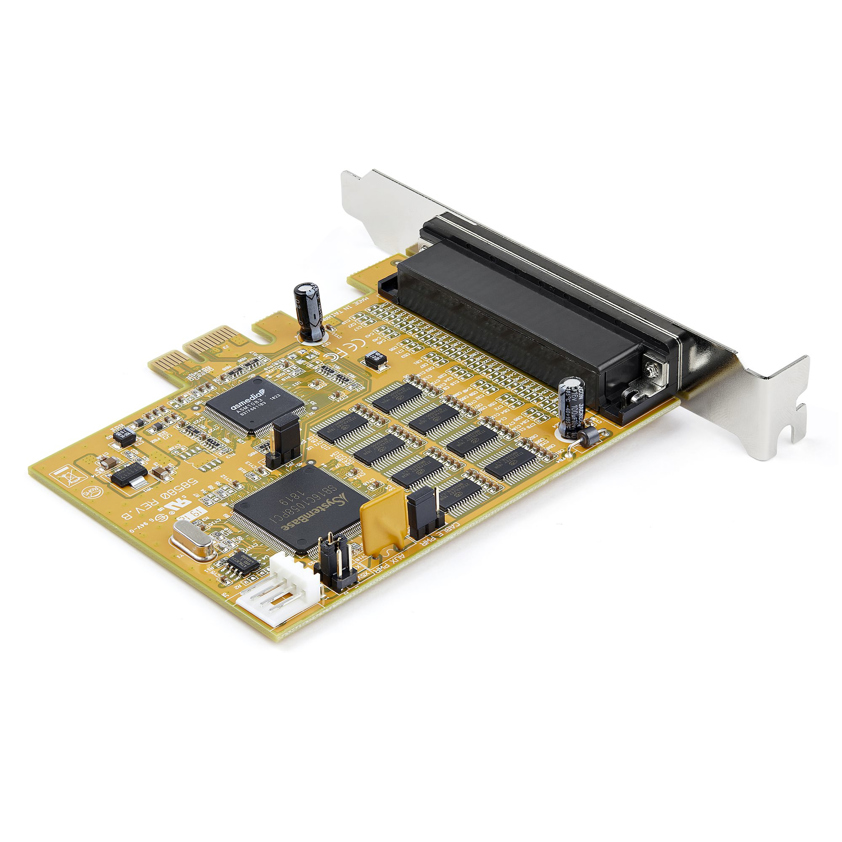

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports

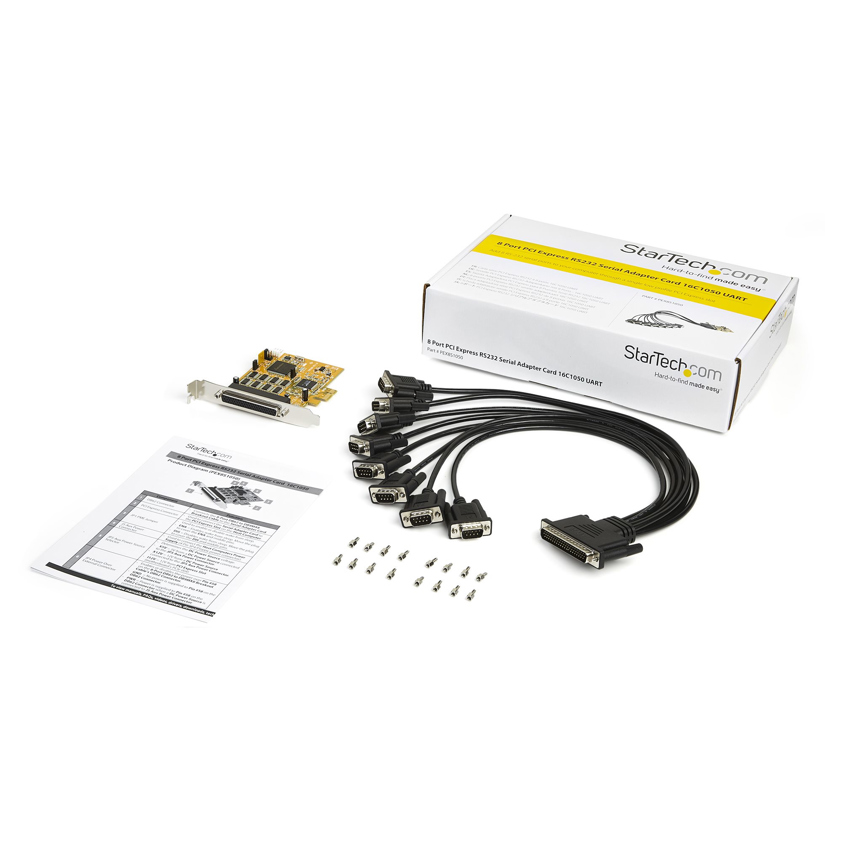

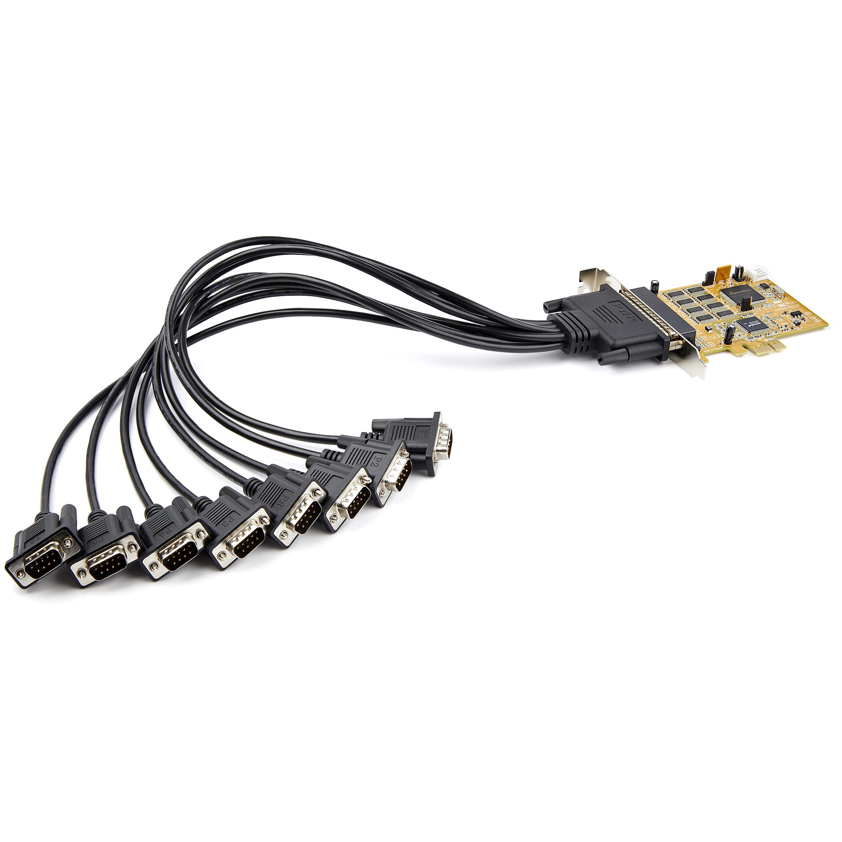

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
The StarTech.com Advantage
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA
SKU: PEX8S1050£151.02 ex VAT
£181.22 inc VAT
In stockPorts & interfaces Internal Yes Output interface Serial Serial interface type RS-232 Serial ports quantity 8 Host interface PCIe Technical details Chipset ASMedia - ASM1083, System Base - SB16C1058PCI FIFO (First In, First Out) 256 B Compliance certificates RoHS Performance Maximum cable length 0.5 m Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8 Baud rate 921.6 Kbit/s Chipset ASMedia - ASM1083, System Base - SB16C1058PCI FIFO (First In, First Out) 256 B Product colour Yellow Harmonized System (HS) code 84733020 Colour Product colour Yellow Design Mean time between failures (MTBF) 160013 h Maximum cable length 0.5 m Internal Yes Product colour Yellow Features Stop bits 1, 1.5, 2 Data bits 5, 6, 7, 8 Baud rate 921.6 Kbit/s Chipset ASMedia - ASM1083, System Base - SB16C1058PCI FIFO (First In, First Out) 256 B Parity bit Even, No, Odd Flow Control type RTS/CTS, XON/XOFF Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 55 °C Storage temperature (T-T) -40 - 75 °C Operating relative humidity (H-H) 5 - 95% System requirements Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Linux operating systems supported Yes Server operating systems supported Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 Weight & dimensions Width 16 mm Depth 105 mm Height 120 mm Weight 74 g Package width 190 mm Package depth 290 mm Package height 65 mm Package weight 672 g Packaging data Package width 190 mm Package depth 290 mm Package height 65 mm Package weight 672 g Cables included Serial Quick installation guide Yes Logistics data Products per master (outer) case 14 pc(s) Master (outer) case width 400 mm Master (outer) case length 510 mm Master (outer) case height 315 mm Harmonized System (HS) code 84733020 Other features Compliance industry standards 16C1050 UART Chipset ASMedia - ASM1083, System Base - SB16C1058PCI Packaging content Cables included Serial Quick installation guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
