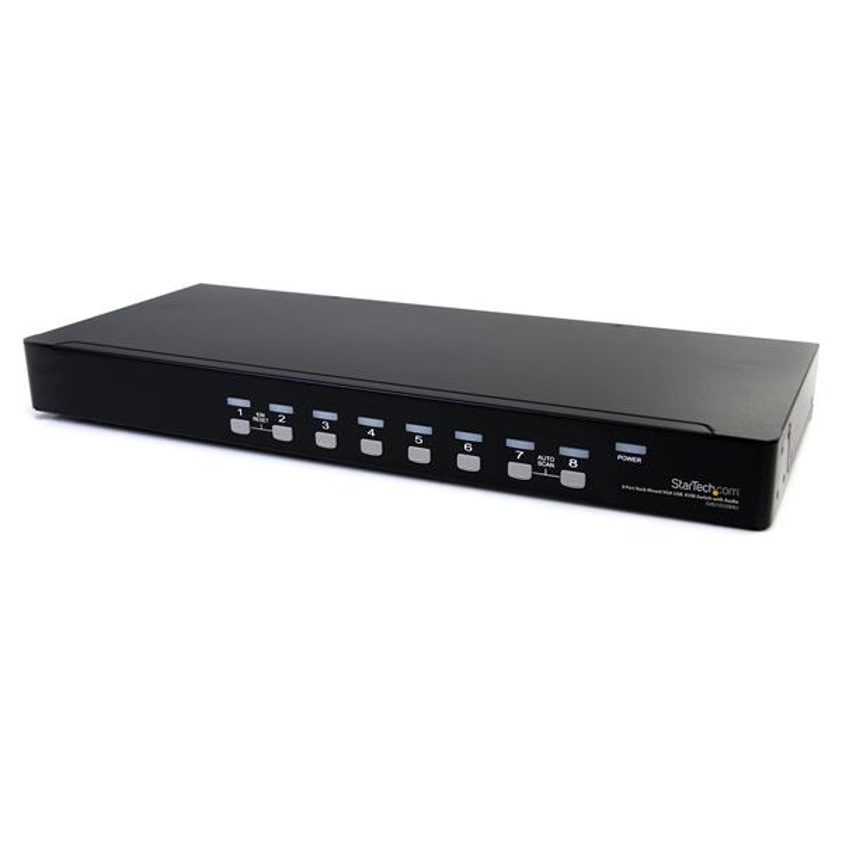

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

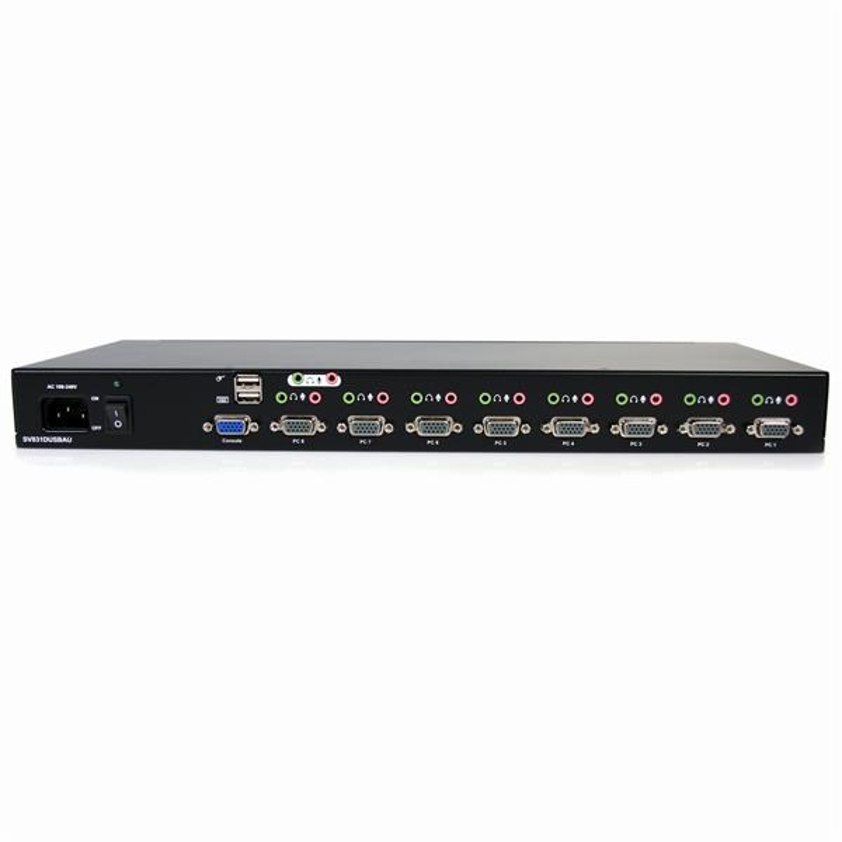

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

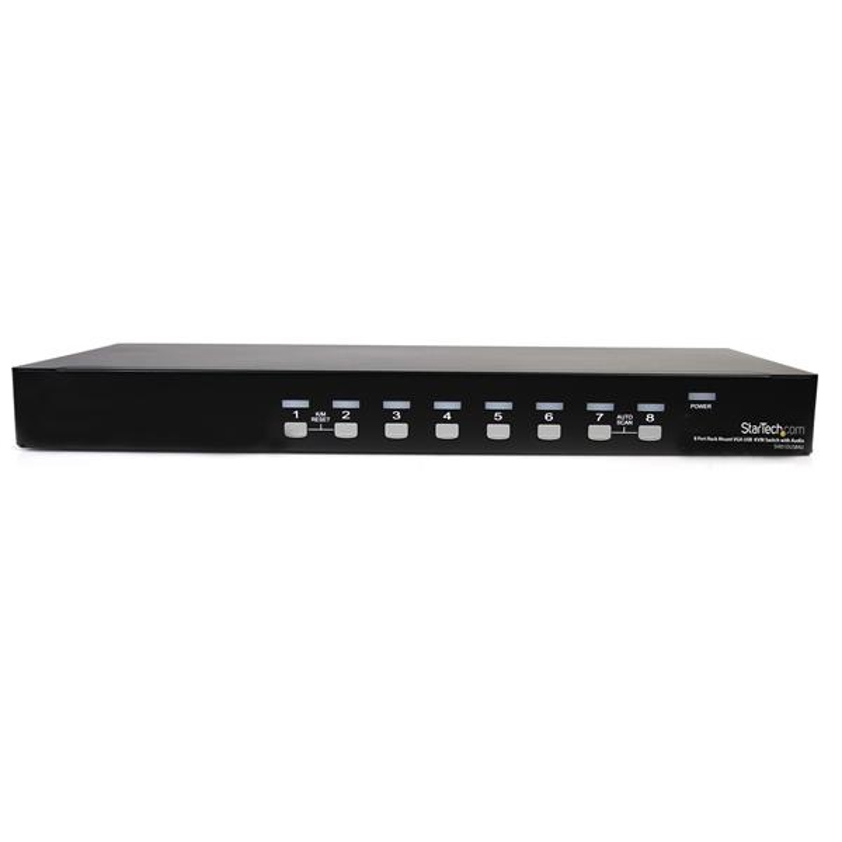

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver

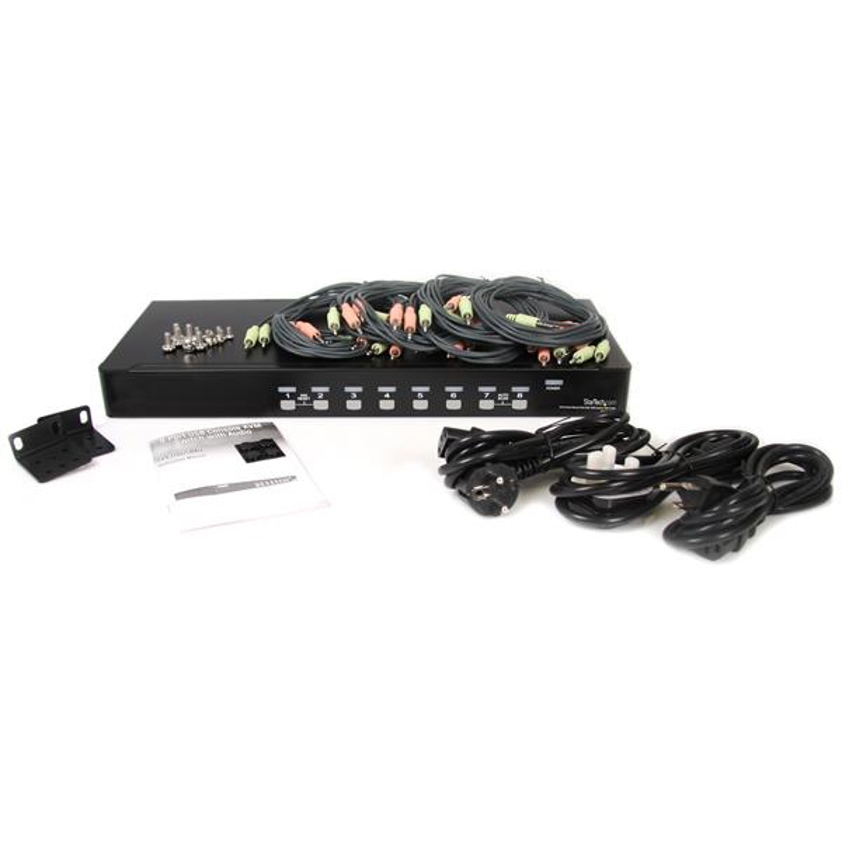

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)
SKU: SV831DUSBAU£335.03 ex VAT
£402.04 inc VAT
Out of stockPorts & interfaces Console USB ports quantity 2 Console ports 3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub) USB connector type USB Type-A Number of microphone inputs 8 Number of computers controlled 8 Keyboard port type USB Mouse port type USB Video port type VGA USB 2.0 ports quantity 2 Headphone outputs 8 DC-in jack Yes Performance Daisy chain Yes Plug and Play Yes Maximum resolution 1920 x 1440 pixels Number of users 1 user(s) Maximum analog resolution 1920 x 1440 pixels Technical details Product colour Black Rack mounting Yes Plug and Play Yes On Screen Display (OSD) Yes Number of users 1 user(s) LED indicators Yes IP control No Audio support Yes Cascadable Yes Compliance certificates RoHS Design Product colour Black Rack mounting Yes LED indicators Yes Certification CE, FCC, UL Cascadable Yes Rack capacity 1U Housing material Steel Display On Screen Display (OSD) Yes Power Input current 1.8 A Output current 4 A Power plug type Type M Output voltage 12 V Power consumption (typical) 48 W Input voltage 110-240 V Video Maximum resolution 1920 x 1440 pixels Maximum analog resolution 1920 x 1440 pixels Sustainability Compliance certificates RoHS Operational conditions Operating temperature (T-T) 5 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 0 - 80% Weight & dimensions Width 540 mm Depth 180 mm Height 45 mm Weight 2.6 kg Package width 123 mm Package depth 591 mm Package height 264 mm Package weight 4.7 kg Packaging data Package width 123 mm Package depth 591 mm Package height 264 mm Package weight 4.7 kg Packaging content Rubber feet Yes Cables included AC Manual Yes AC adapter included Yes Certificates Certification CE, FCC, UL Other features IP control No Audio support Yes Logistics data Harmonized System (HS) code 85176200 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
