Control a DisplayPort-equipped computer or KVM switch up to 300m (985ft) away over fiber-optic cable
The Fiber Optic KVM Extender allows for control of a KVM switch, console, or PC from a distance of up to 984ft (300m).
4K 60Hz DisplayPort Video
The transmitter/receiver kit extends 4K 60Hz DisplayPort video, supporting UHD resolutions up to 3840x2160 at 60Hz (4:4:4). It is DP 1.2 compliant and includes EDID pass-through for real-time display information, ensuring optimal signal quality and compatibility.
Universal Compatibility
The KVM Console Extender does not require any drivers or software for installation. The point-to-point fiber connection eliminates the need for configuring or managing network settings. The extender is compatible with all operating systems, including Windows, macOS, and Linux. The SFP+ slots support both single and multi-mode MSA-compliant modules.
Built-In USB Hub

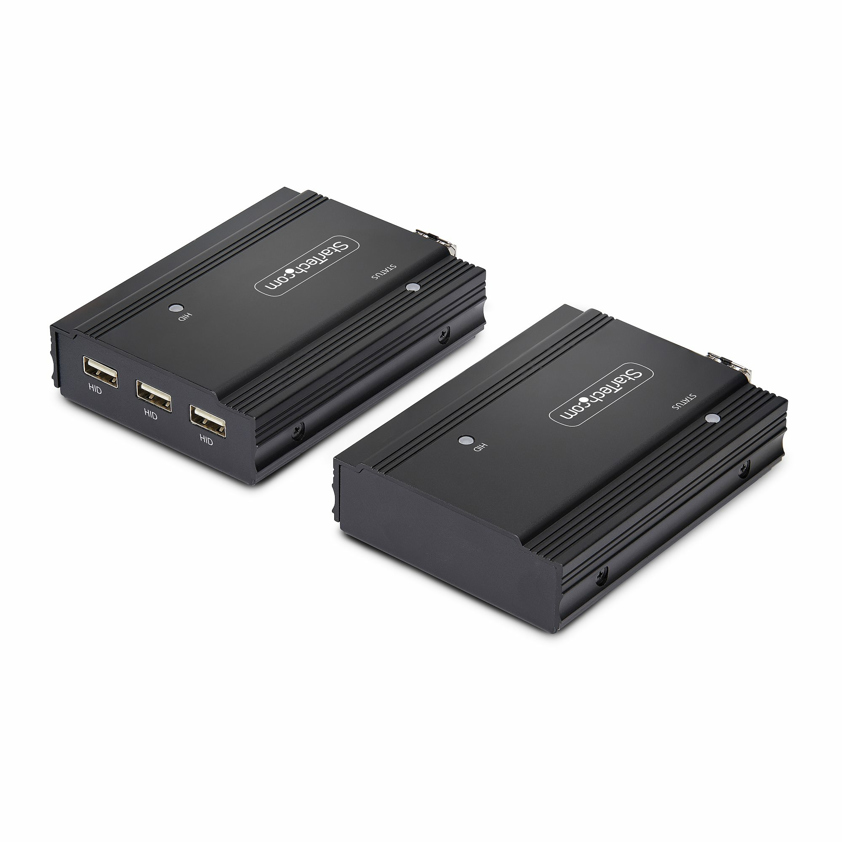

Three USB ports allow users to connect peripherals such as a mouse and keyboard, ideal for remote control of source devices, flexible workstation setups, and collaborative multimedia environments.
Durable Design
The extender has a sturdy steel chassis and uses fiber-optic extension to reduce electromagnetic interference (EMI), improving stability and ensuring long-term reliability. Its rugged design makes it suitable for installation in various environments.
The StarTech.com Advantage

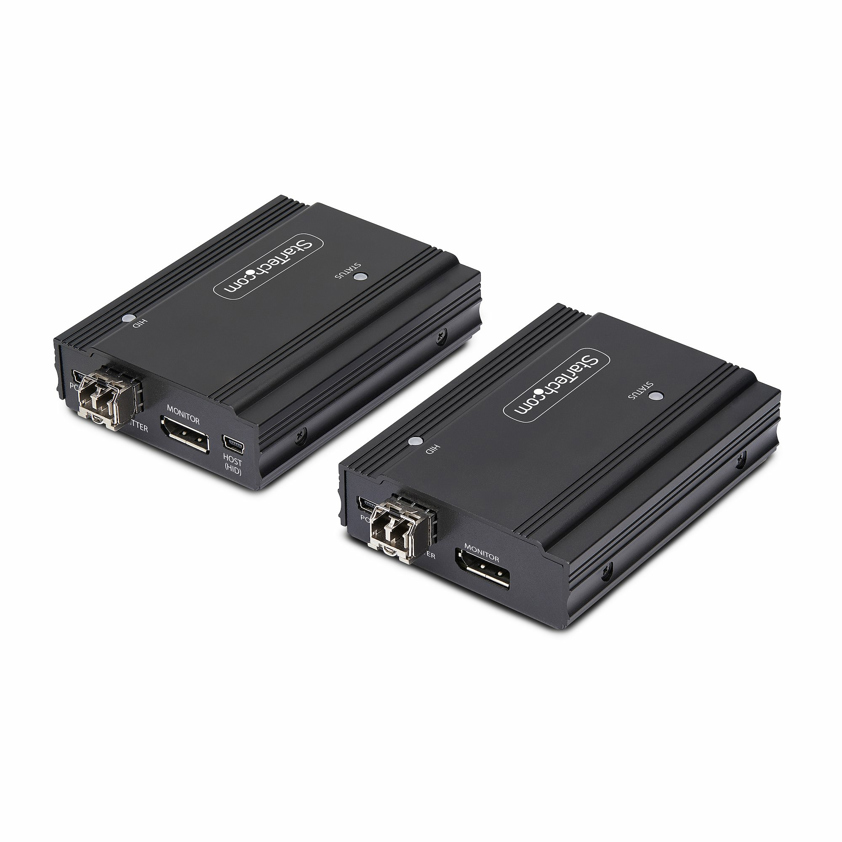

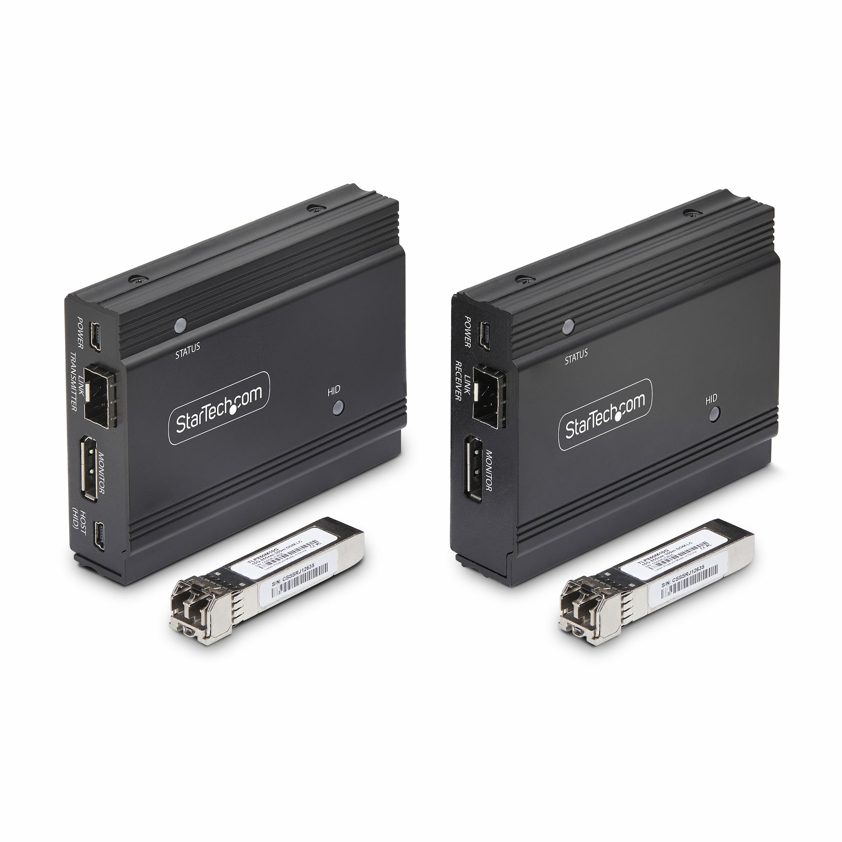

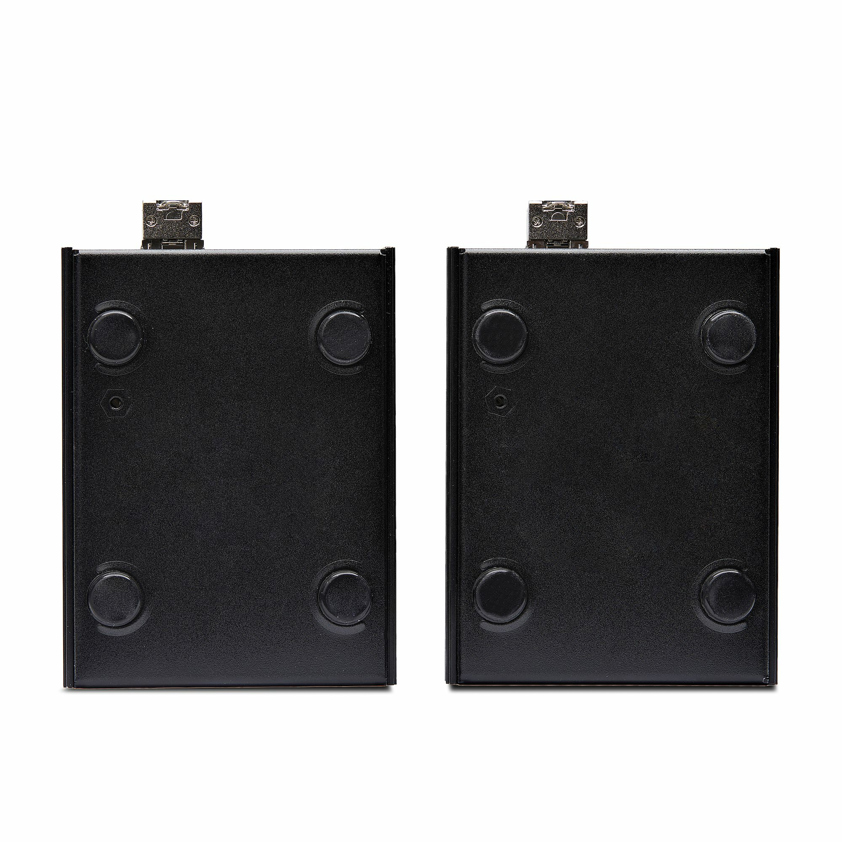

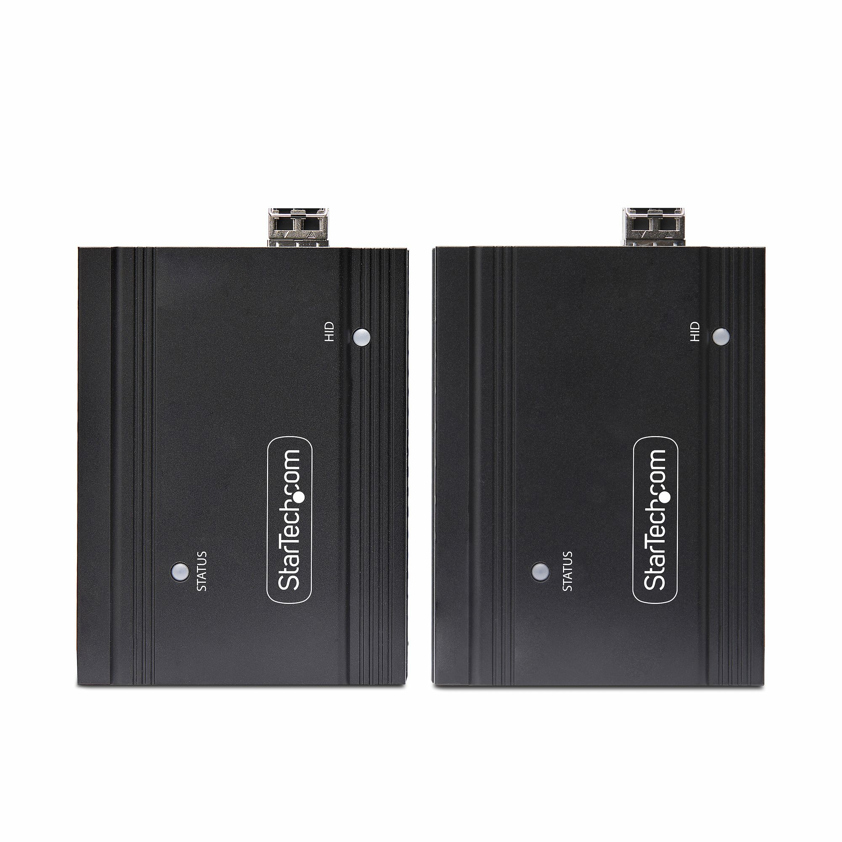

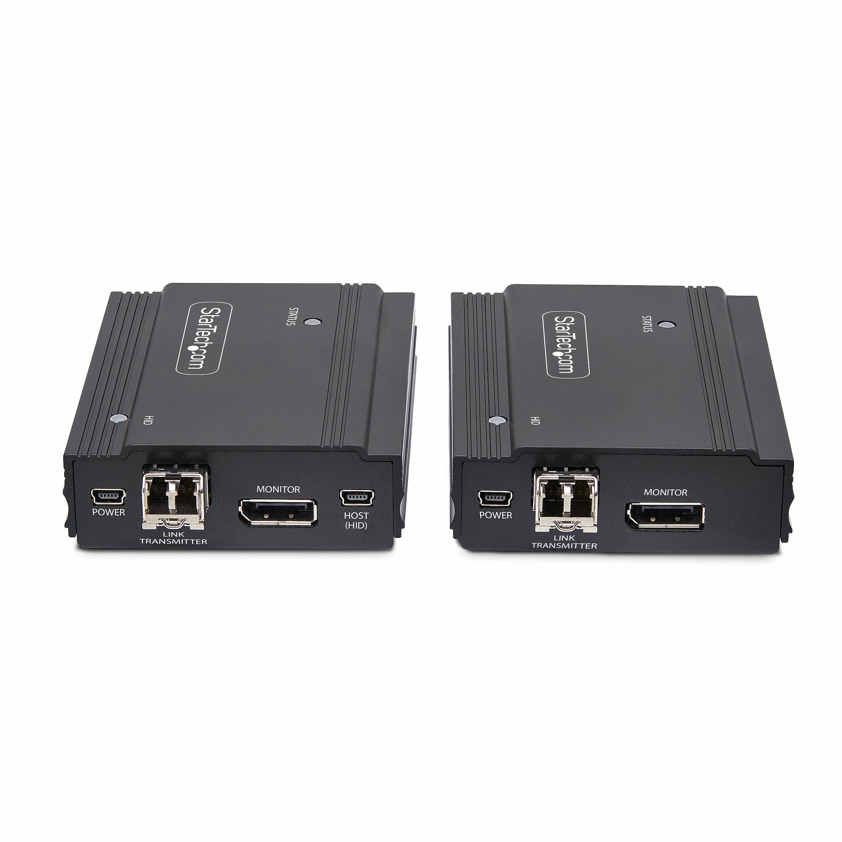

StarTech.com DisplayPort KVM Extender over Fiber Optic, 4K 60Hz, Console Extender Kit, Up to 984ft/300m (Multi-mode) with Pre-installed SFP+ Modules, 3x USB HID
SKU: FD121-KVM-EXTENDER£584.83 ex VAT
£701.80 inc VAT
Low stockFeatures Type Transmitter & receiver Connectivity technology Wired Maximum transfer distance 300 m Maximum digital resolution 4096 x 2160 pixels On Screen Display (OSD) No Product colour Black LED indicators Yes Supported resolutions 4096 x 2160 @ 60hz 3840 x 2160 @ 60hz 3440 x 1440 @ 60hz 3200 x 1800 @ 60hz 3072 x 1728 @ 60hz 2560 x 1440 @ 60hz 2048 x 1536 @ 60hz 1920 x 1200 @ 60hz 3840 x 1080 @ 60hz 1920 x 1080 @ 60hz 1760 x 990 @ 60hz 1680 x 1050 @ 60hz 1600 x 1200 @ 60hz 1600 x 900 @ 60hz 1440 x 900 @ 60hz 1366 x 768 @ 60hz 1280 x 1024 @ 60hz 1280 x 720 @ 60hz 1128 x 634 @ 60hz 1024 x 768 @ 60hz 800 x 600 @ 60hz USB 1.1 ports quantity 3 Maximum refresh rate 60 Hz Mean time between failures (MTBF) 156000 h Extended display identification data (EDID) Yes Transmitter Transmitter local video port Yes Transmitter local video port type DisplayPort Number of displays supported 1 Transmitter Micro-USB ports quantity 1 Receiver Receiver local video port type DisplayPort Receiver Micro-USB ports quantity 2 Ports & interfaces USB 1.1 ports quantity 3 Installed SFP+ modules quantity 2 Power AC input voltage 100 - 240 V AC adapter output voltage 5 V AC adapter output current 2 A Power consumption (transmitter) (max) 10 W Power consumption (receiver) (max) 10 W Input current 0.3 A Weight & dimensions Transmitter width 7.4 cm Transmitter depth 10 cm Transmitter height 2.8 cm Transmitter weight 235 g Receiver width 7.4 cm Receiver depth 10 cm Receiver height 2.8 cm Receiver weight 235 g Package width 306 mm Package depth 175 mm Package height 70 mm Packaging data Package width 306 mm Package depth 175 mm Package height 70 mm Cables included Mini-USB Quick installation guide Yes Packaging content Cables included Mini-USB Quick installation guide Yes Included power plug types ANZ, EU, NA, UK Technical details Sustainability compliance Yes Compliance certificates RoHS, Trade Agreements Act (TAA) Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 60 °C Operating relative humidity (H-H) 0 - 80% Sustainability Sustainability compliance Yes Other features Mean time between failures (MTBF) 156000 h Extended display identification data (EDID) Yes Compliance certificates RoHS, Trade Agreements Act (TAA) Logistics data Master (outer) case width 410 mm Master (outer) case length 323 mm Master (outer) case height 275 mm Products per master (outer) case 6 pc(s) Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
