External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE

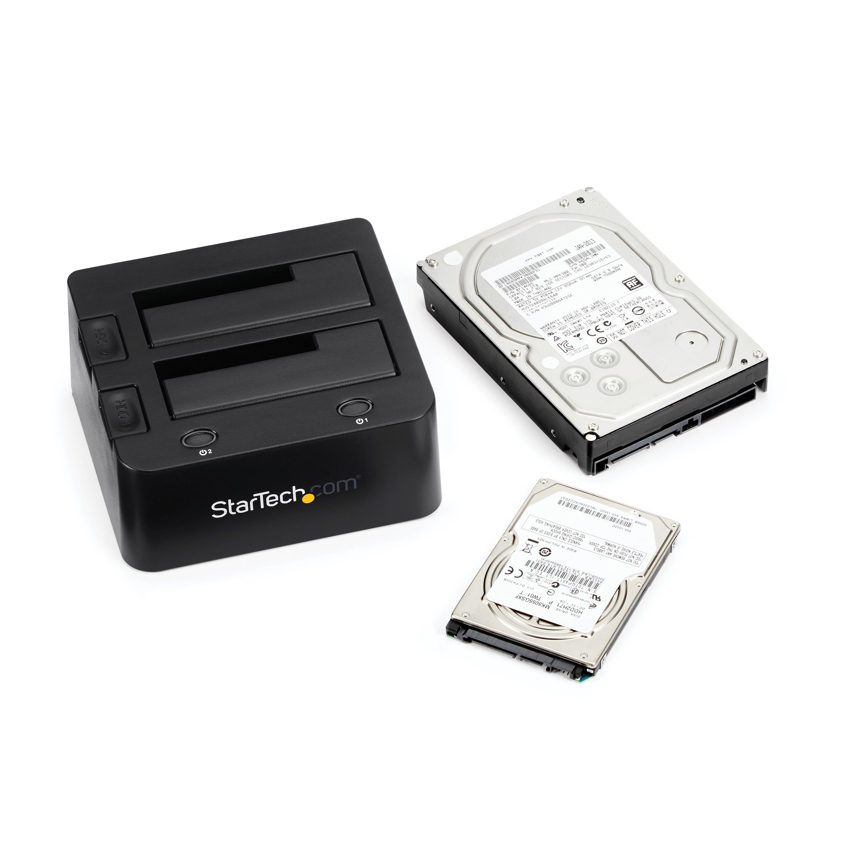

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.
Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

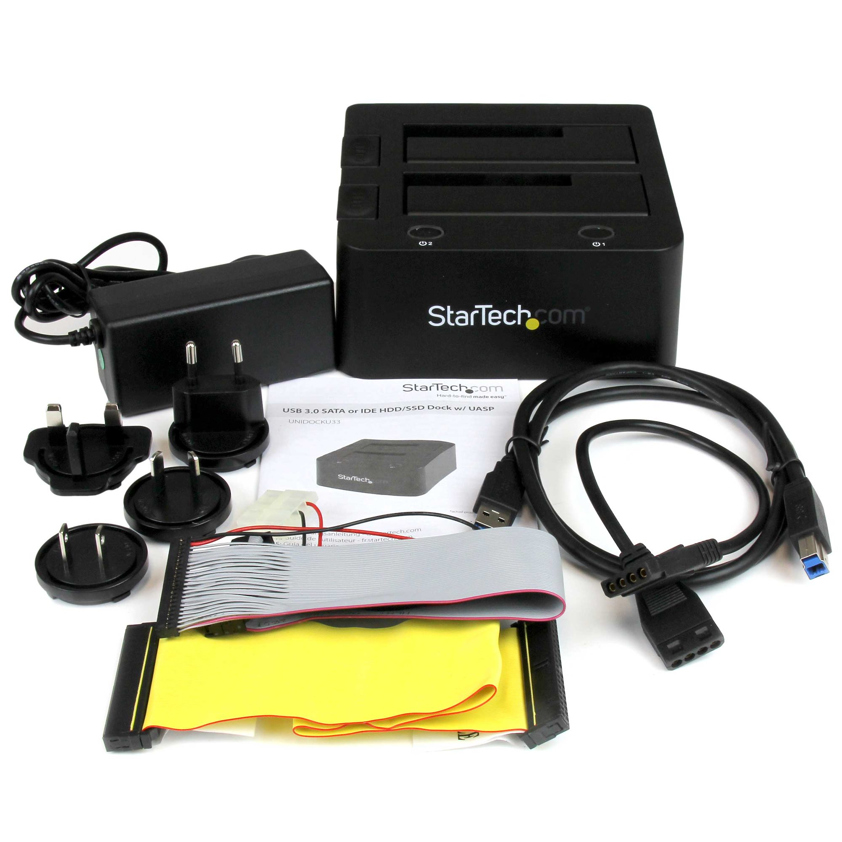

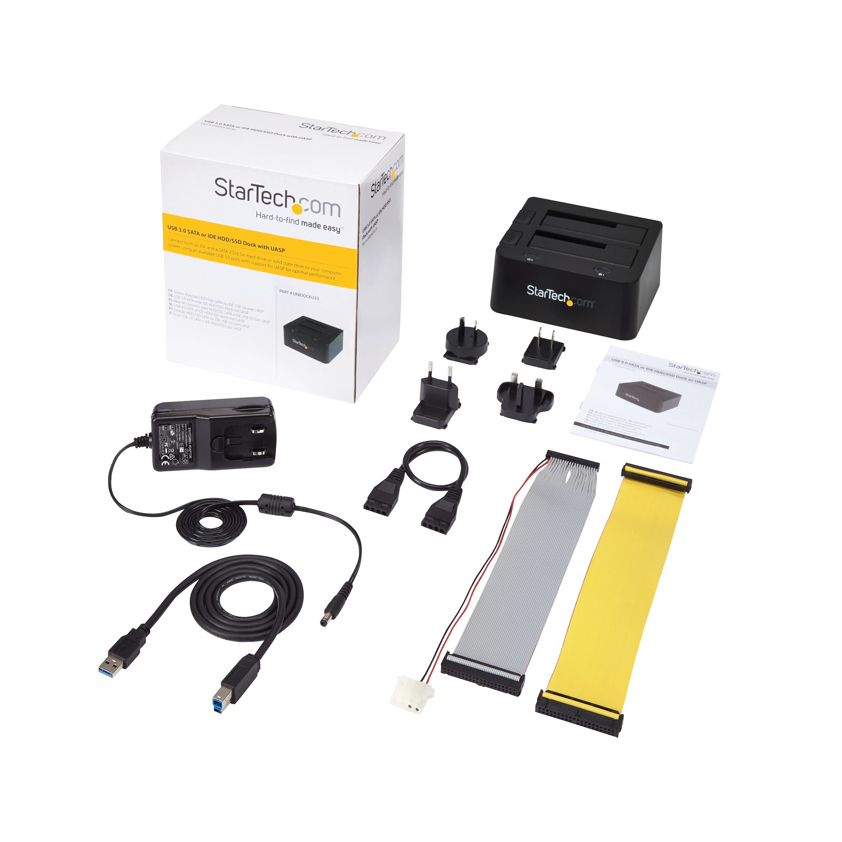

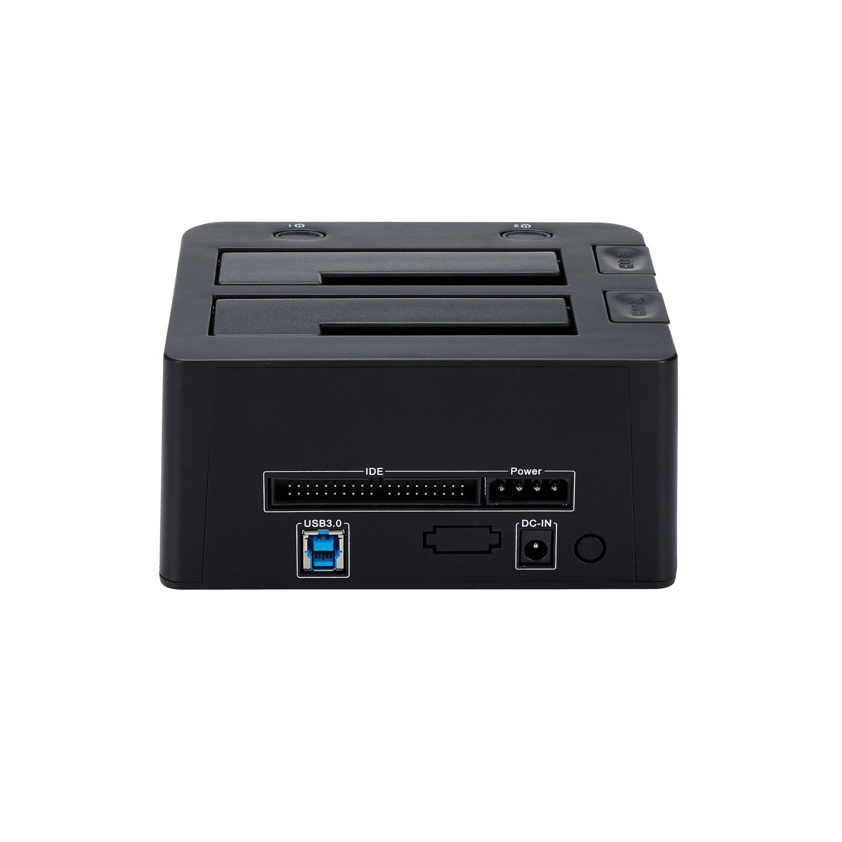

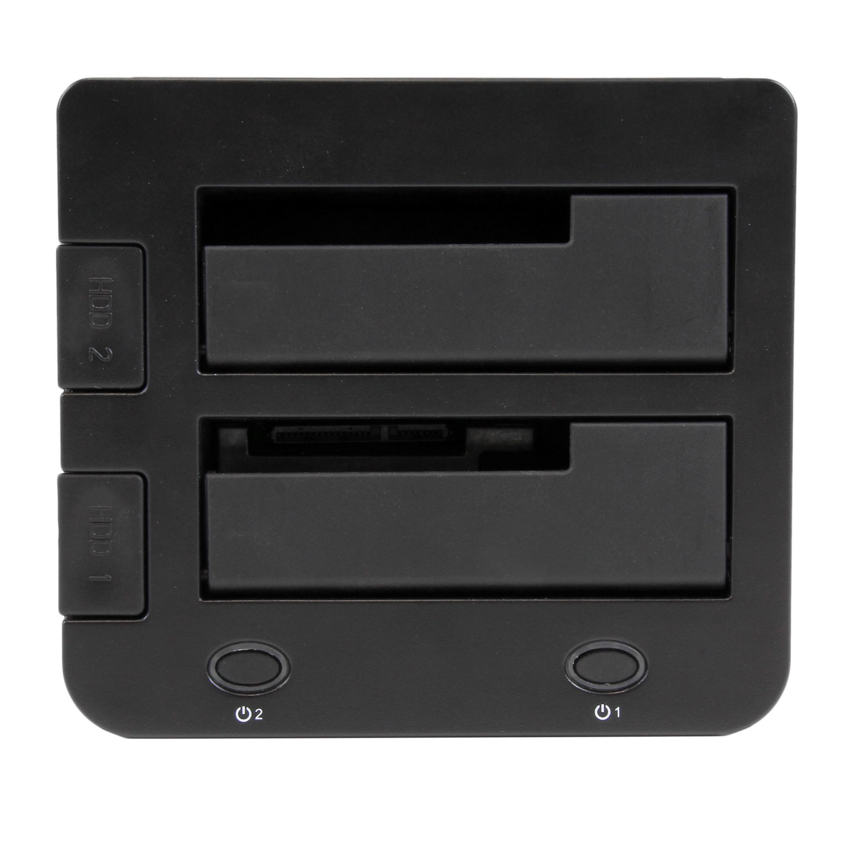

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

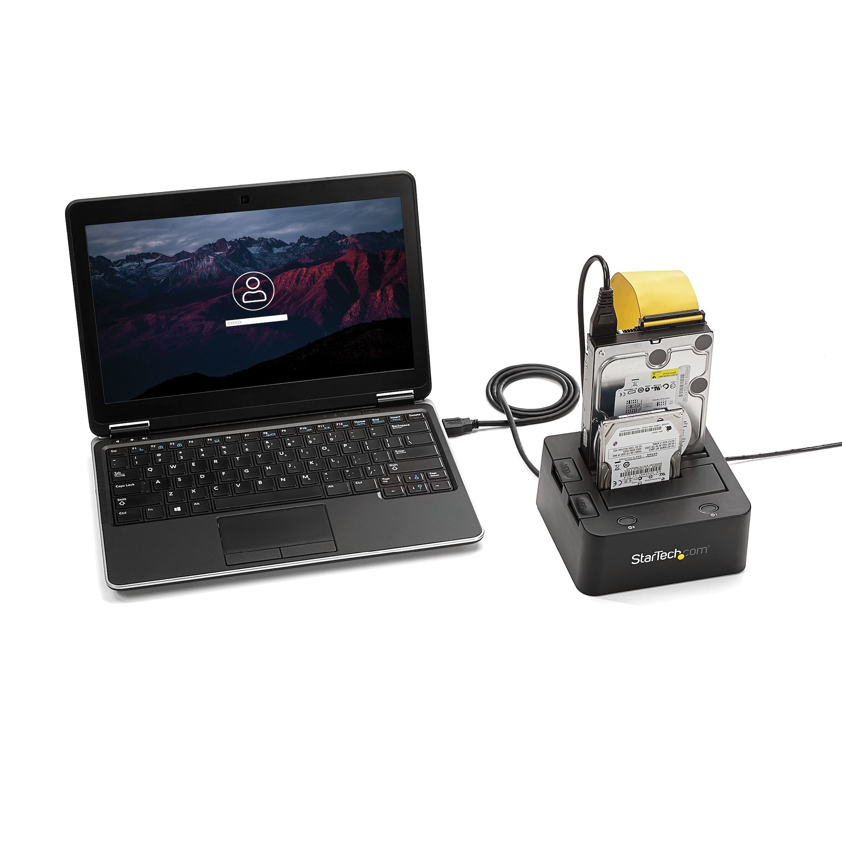

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).
The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading
SKU: UNIDOCKU33£57.48 ex VAT
£68.97 inc VAT
In stockHard drive Storage media type HDD, SSD Storage drive interface Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III Storage drive sizes supported 2.5,3.5" Number of storage drives supported 2 Maximum storage capacity 6 TB Ports & interfaces Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-B USB 3.2 Gen 1 (3.1 Gen 1) ports quantity 1 DC-in jack Yes Technical details UASP support Yes Mean time between failures (MTBF) 30000 h Package width 123 mm Package height 214 mm Maximum data transfer rate 5 Gbit/s Product colour Black Material Plastic Plug and Play Yes Hot-swap Yes RAID support No Chipset JMicron - JMS561U, JMD330 Harmonized System (HS) code 84733080 Compliance certificates RoHS Features UASP support Yes Mean time between failures (MTBF) 30000 h Maximum data transfer rate 5 Gbit/s LED indicators Activity, Power Product colour Black Material Plastic Plug and Play Yes Hot-swap Yes RAID support No Certification CE, FCC Chipset JMicron - JMS561U, JMD330 Cooling Built-in fan No Power Power plug type Type M AC input voltage 110-240 V Input current 1.3 A Output voltage 12 V Output current 3 A Weight & dimensions Width 130 mm Depth 147 mm Height 70 mm Weight 500 g Packaging data Package depth 187 mm Package width 123 mm Package height 214 mm Package weight 1 kg Packaging content AC adapter included Yes Cables included USB Manual Yes Operational conditions Operating temperature (T-T) 5 - 80 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Certificates Certification CE, FCC Indication LED indicators Activity, Power Ethernet LAN features LED indicators Activity, Power Other features Mean time between failures (MTBF) 30000 h Chipset JMicron - JMS561U, JMD330 Compliance certificates RoHS Logistics data Master (outer) case width 210 mm Master (outer) case length 625 mm Master (outer) case height 450 mm Products per master (outer) case 10 pc(s) Harmonized System (HS) code 84733080 Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
