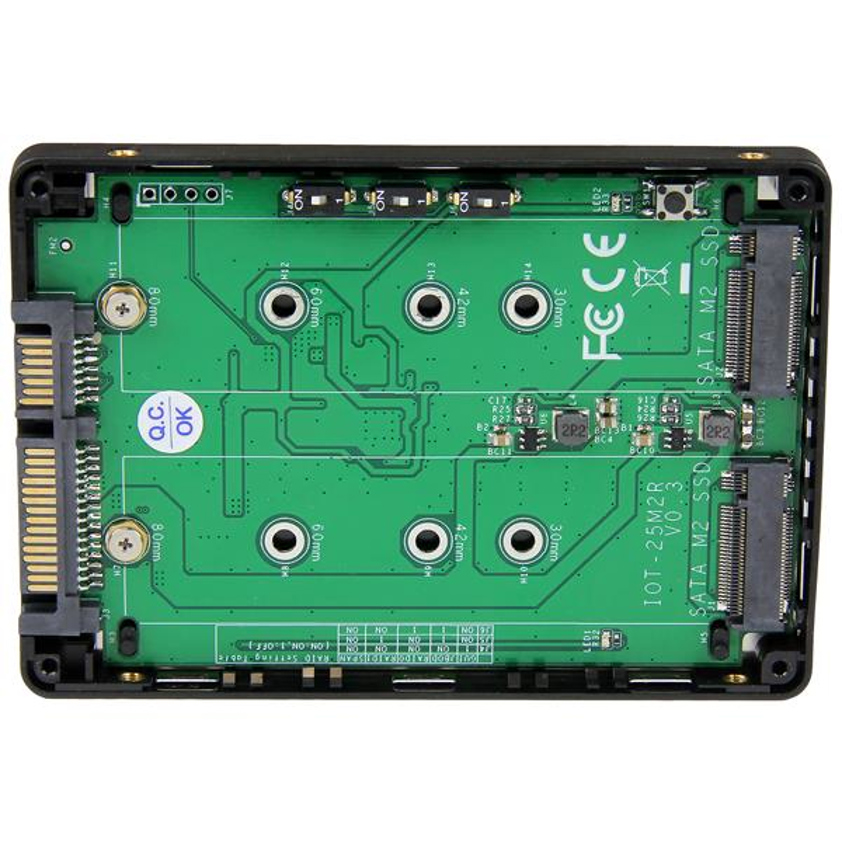

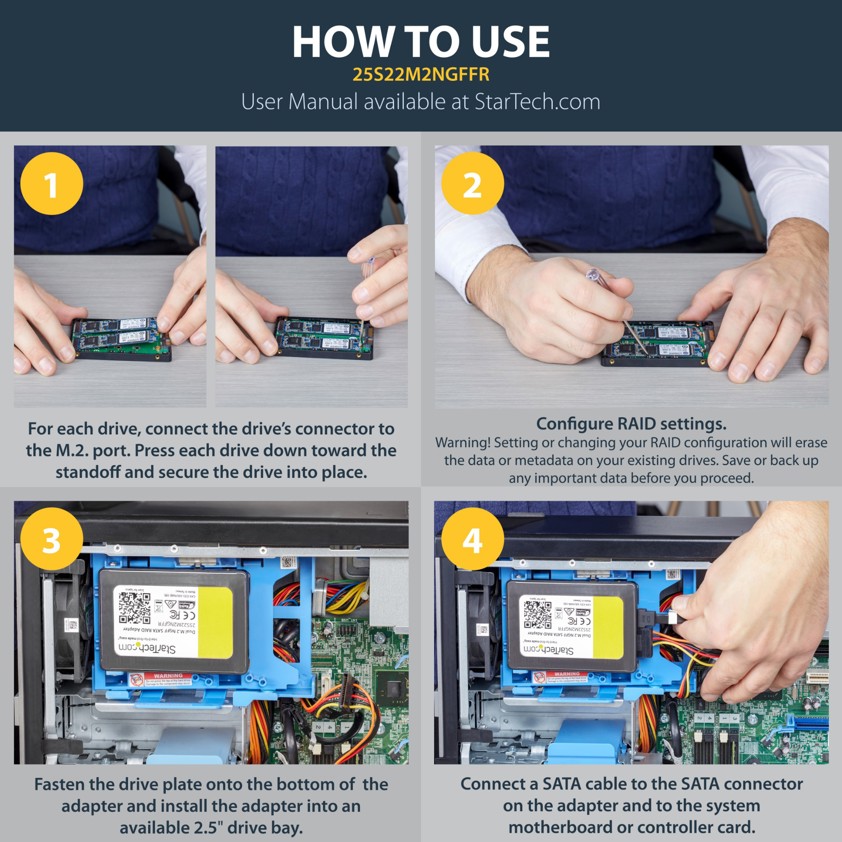

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Get dependable drive protection

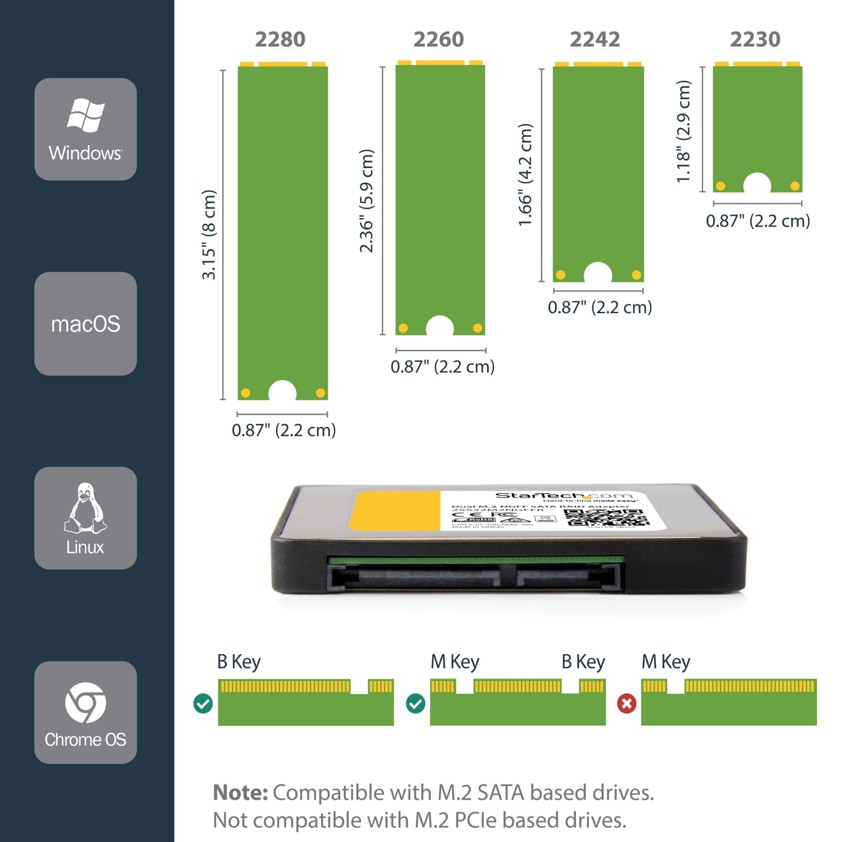

The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.

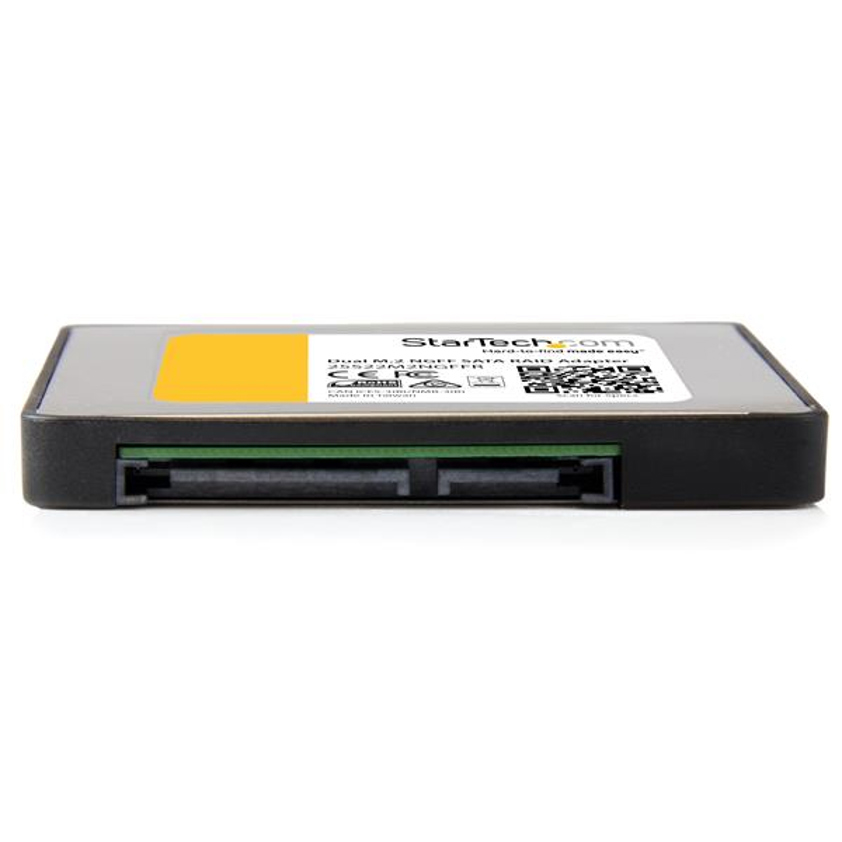

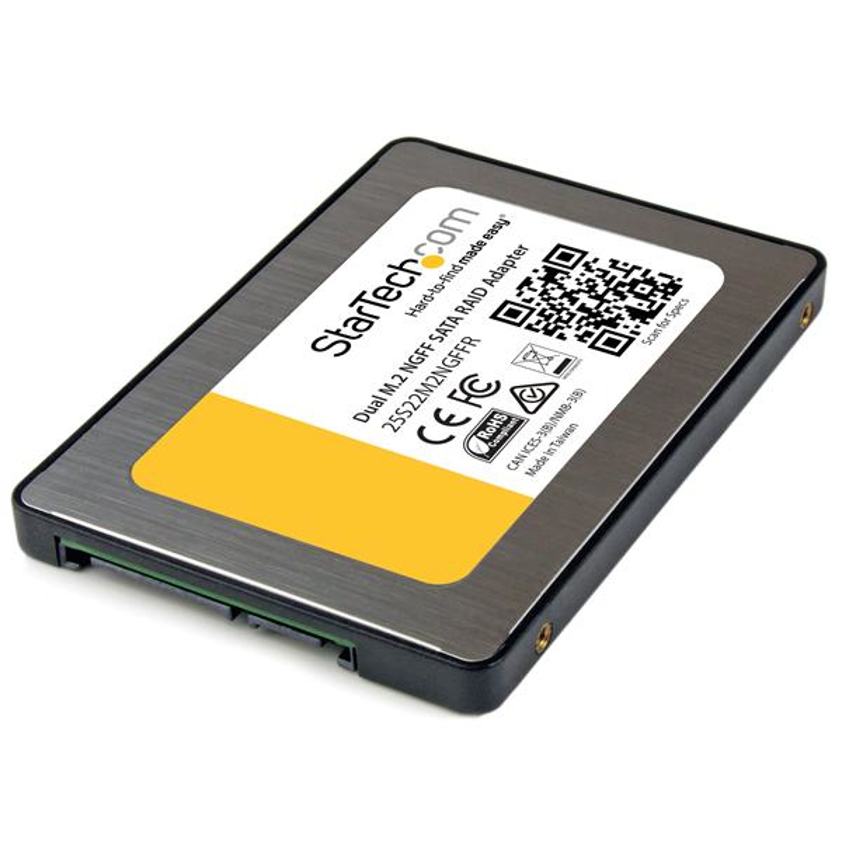

StarTech.com Dual M.2 NGFF SATA Adapter with RAID
SKU: 25S22M2NGFFR£26.50 ex VAT
£31.80 inc VAT

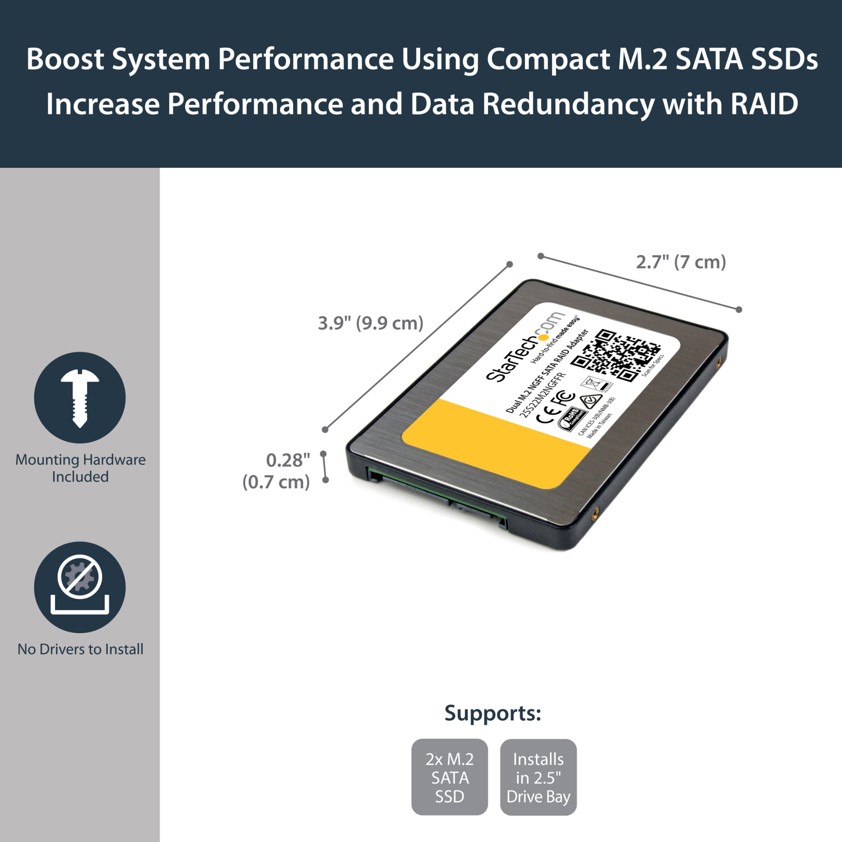

In stockPorts & interfaces Internal No Port multiplier Yes Output interface M.2 SATA revision 3.0 Host interface SATA Technical details Chipset ASMedia - ASM1092R RAID levels 0, 1, BIG, JBOD Data transfer rate (max) 6 Gbit/s Material Plastic, Steel Compliance certificates RoHS Performance Port multiplier Yes Chipset ASMedia - ASM1092R RAID levels 0, 1, BIG, JBOD Data transfer rate (max) 6 Gbit/s Product colour Black, Metallic, White, Yellow Harmonized System (HS) code 84733020 Colour Product colour Black, Metallic, White, Yellow Design Mean time between failures (MTBF) 500000 h Internal No Product colour Black, Metallic, White, Yellow Features Chipset ASMedia - ASM1092R RAID levels 0, 1, BIG, JBOD Data transfer rate (max) 6 Gbit/s Harmonized System (HS) code 84733020 Operational conditions Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -10 - 85 °C Operating relative humidity (H-H) 5 - 95% Weight & dimensions Width 68 mm Depth 98 mm Height 8 mm Weight 55 g Package width 131 mm Package depth 165 mm Package height 31 mm Package weight 118 g Packaging data Package width 131 mm Package depth 165 mm Package height 31 mm Package weight 118 g Quick installation guide Yes Logistics data Harmonized System (HS) code 84733020 Other features Material Plastic, Steel Chipset ASMedia - ASM1092R Packaging content Quick installation guide Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
Items must be returned in an unused and saleable condition within 16 days of the receipt of goods. Please read our delivery and returns policy for further information.
