Dual M.2 NVMe / AHCI | PCIe 4.0 x8 or x16 Slot | Bifurcation

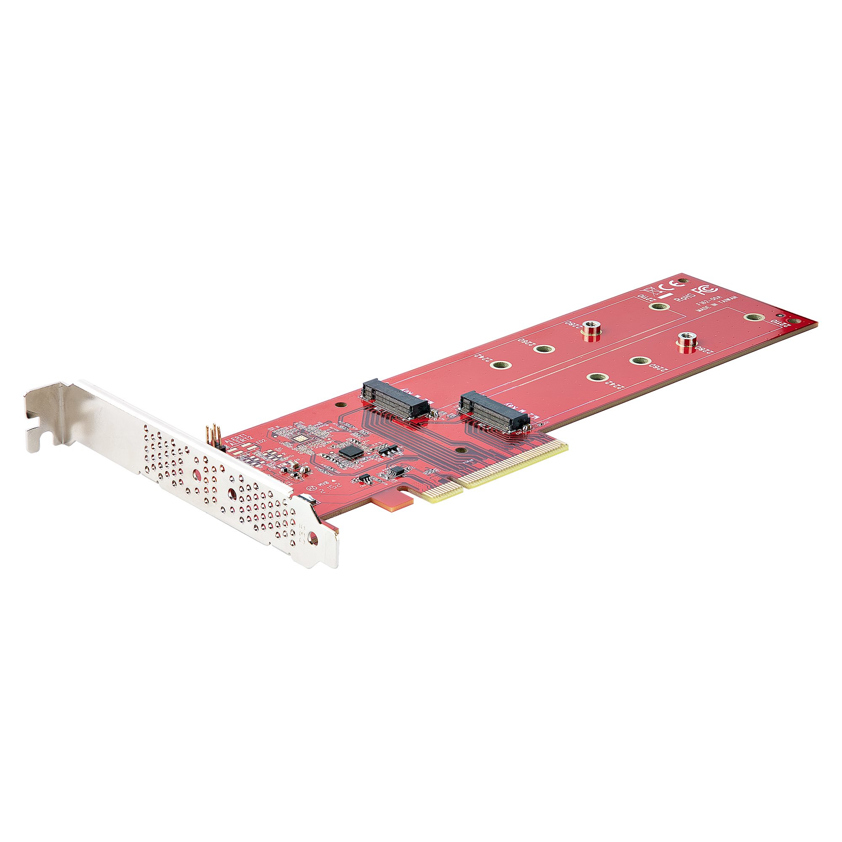

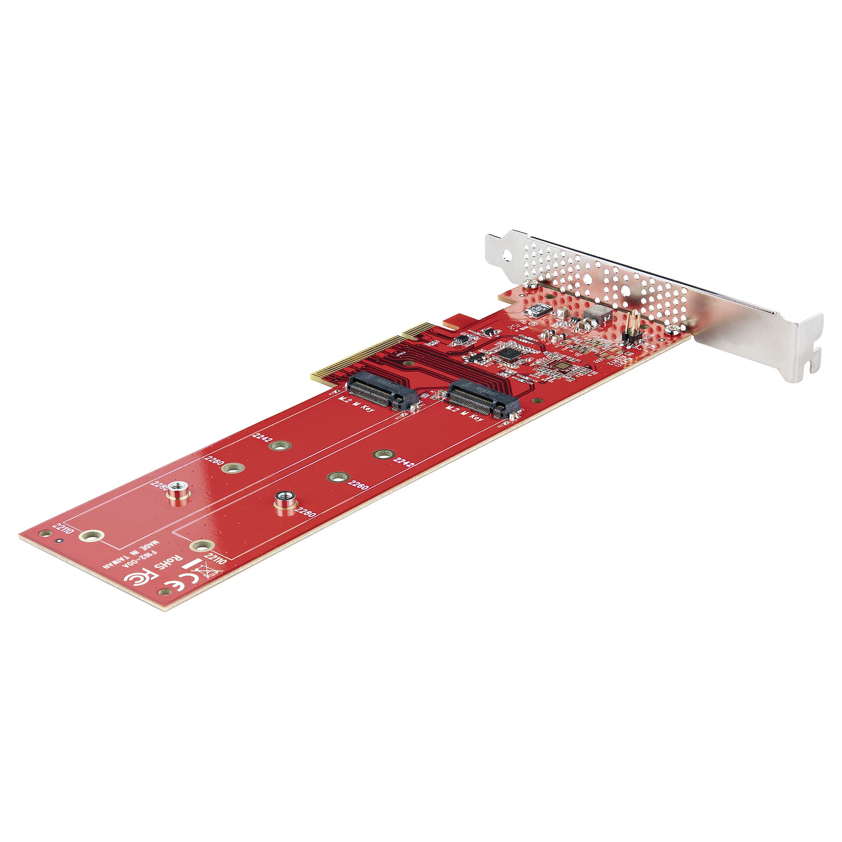

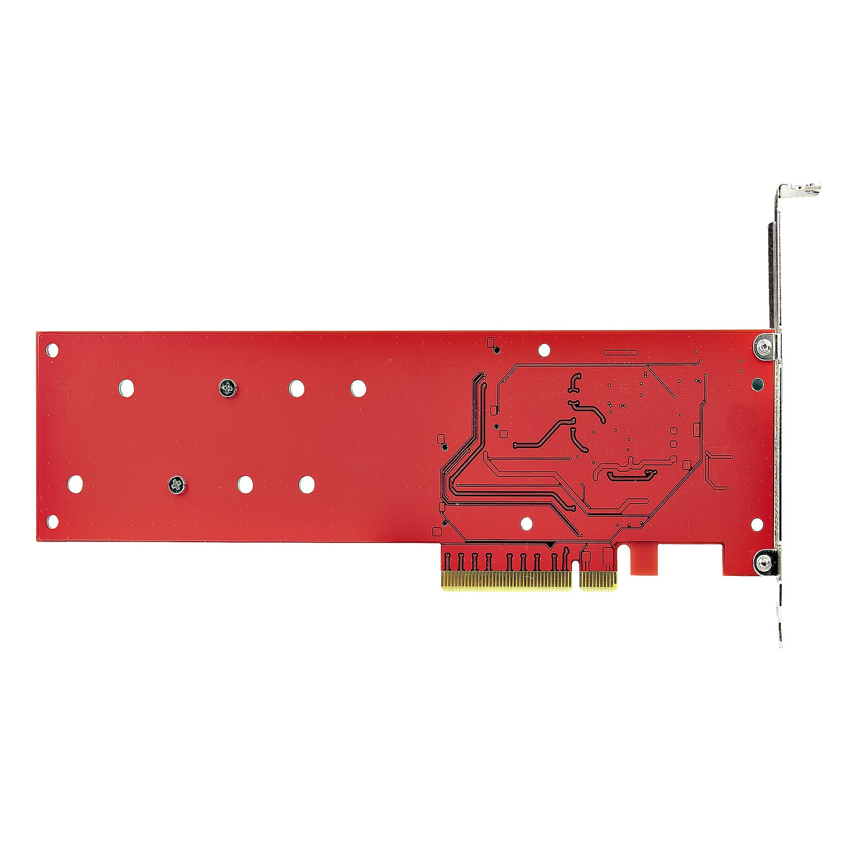

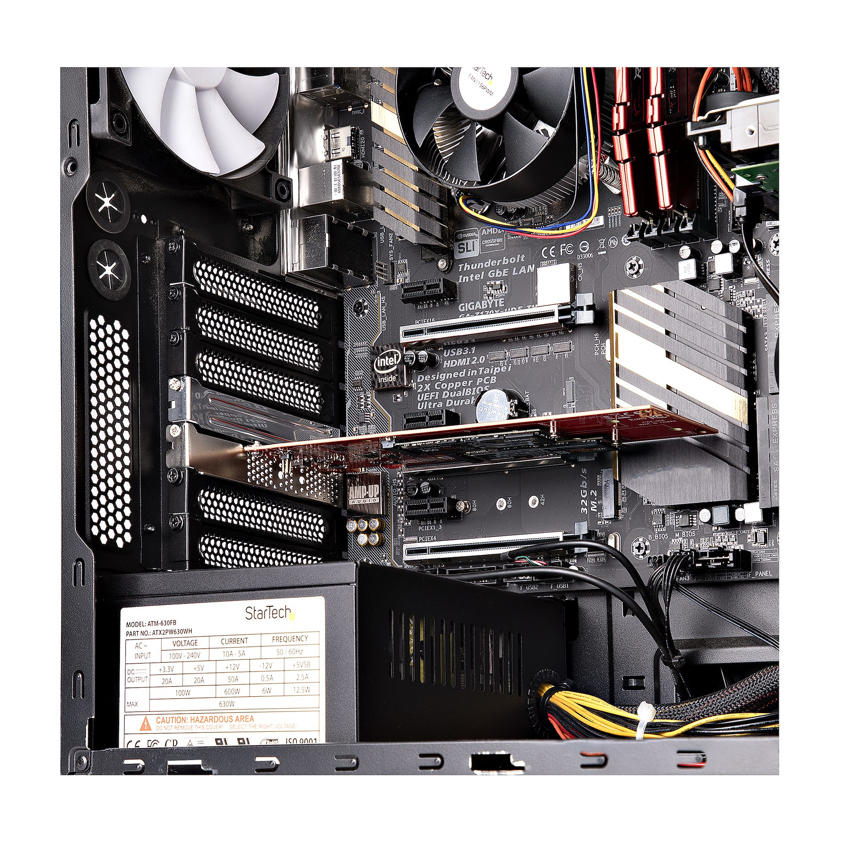

This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.
Boost System Performance
Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

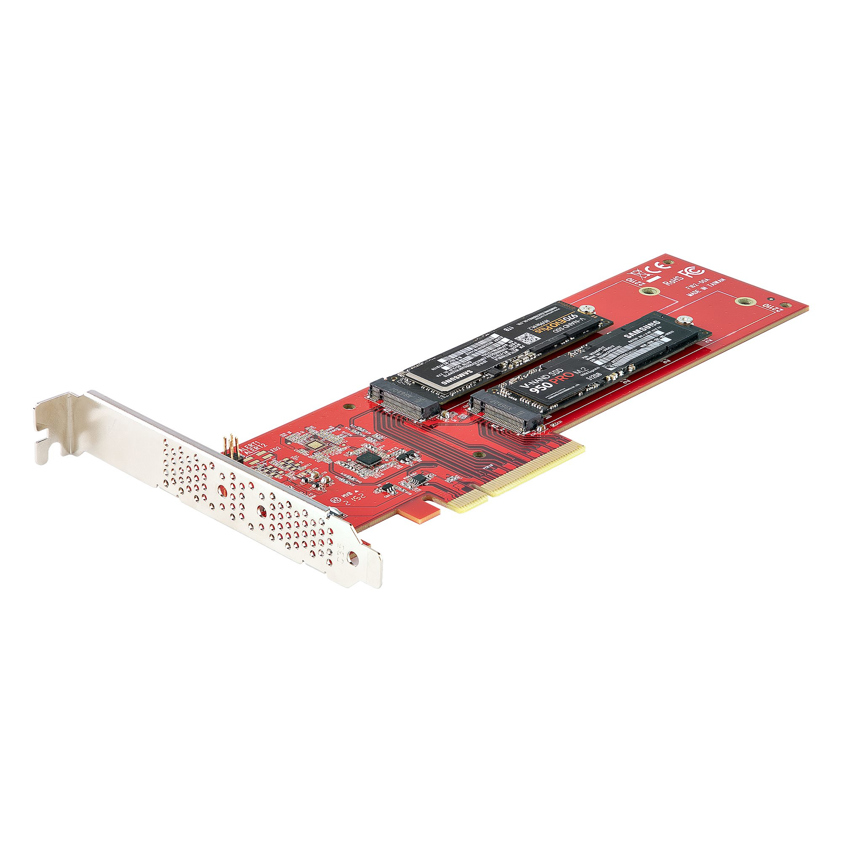

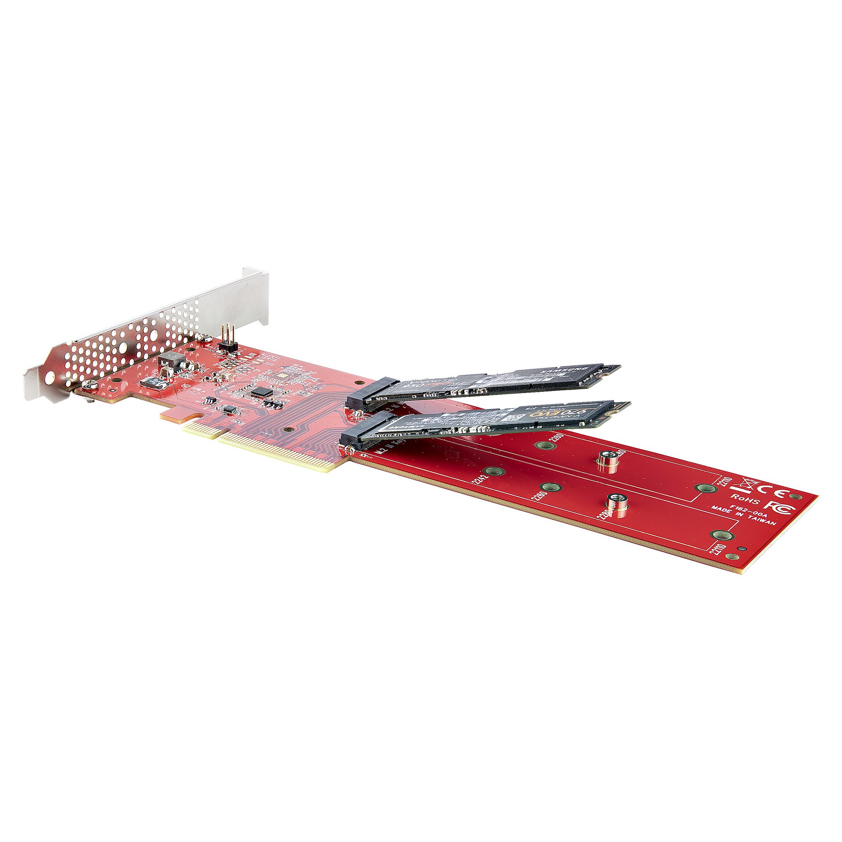

Access two M.2 PCIe SSDs simultaneously
No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.
Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.
Wide Compatibility

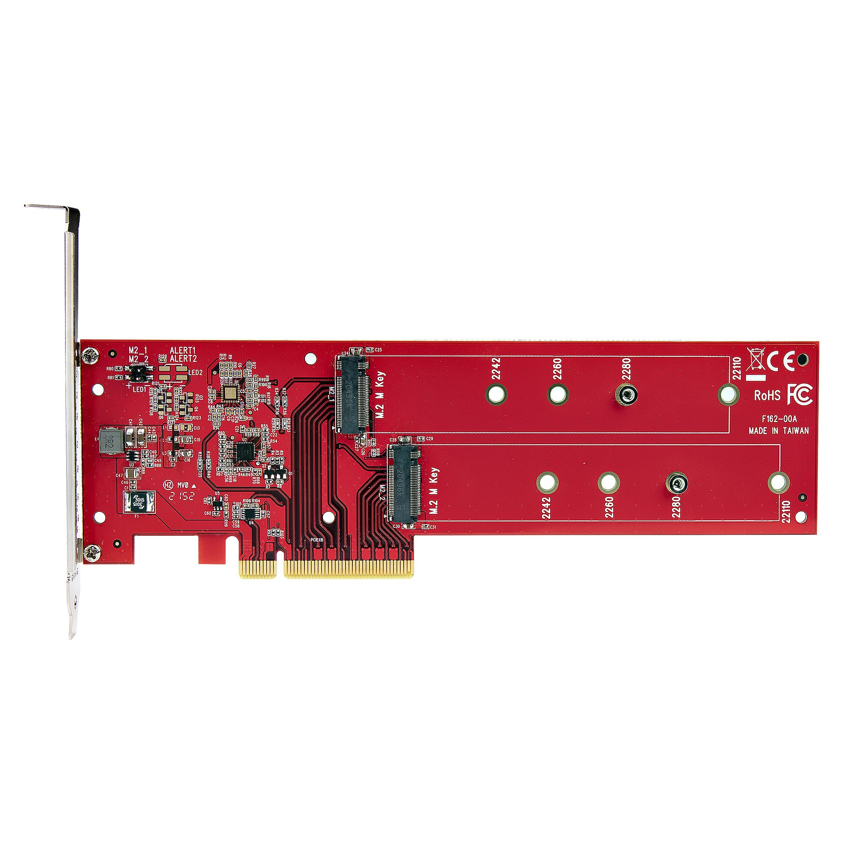

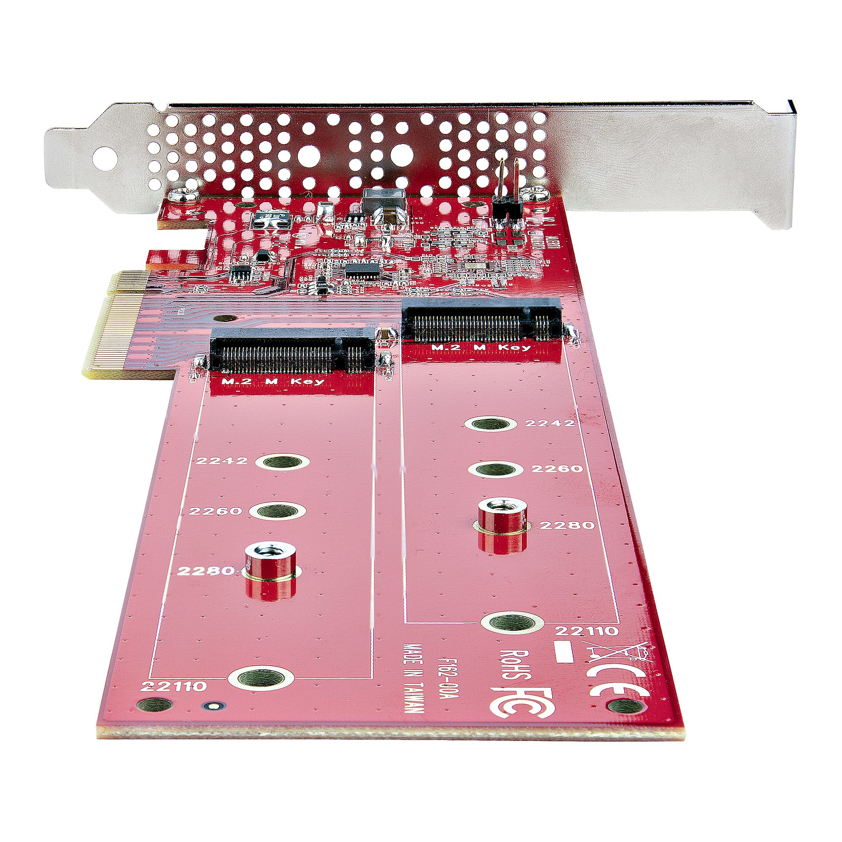

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.

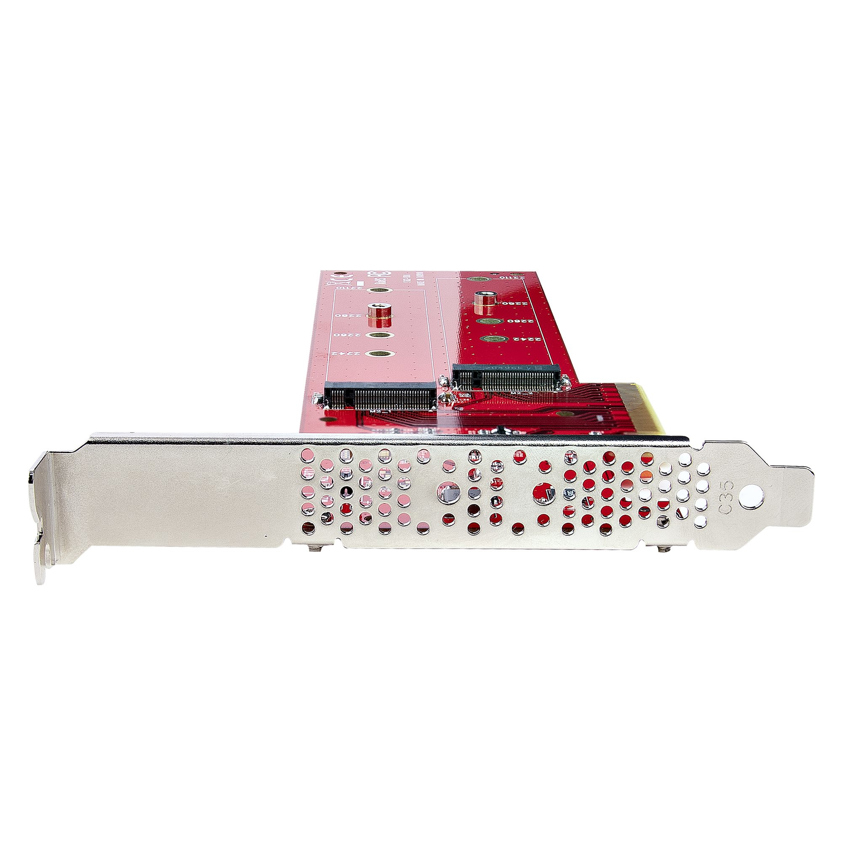

Vented Brackets

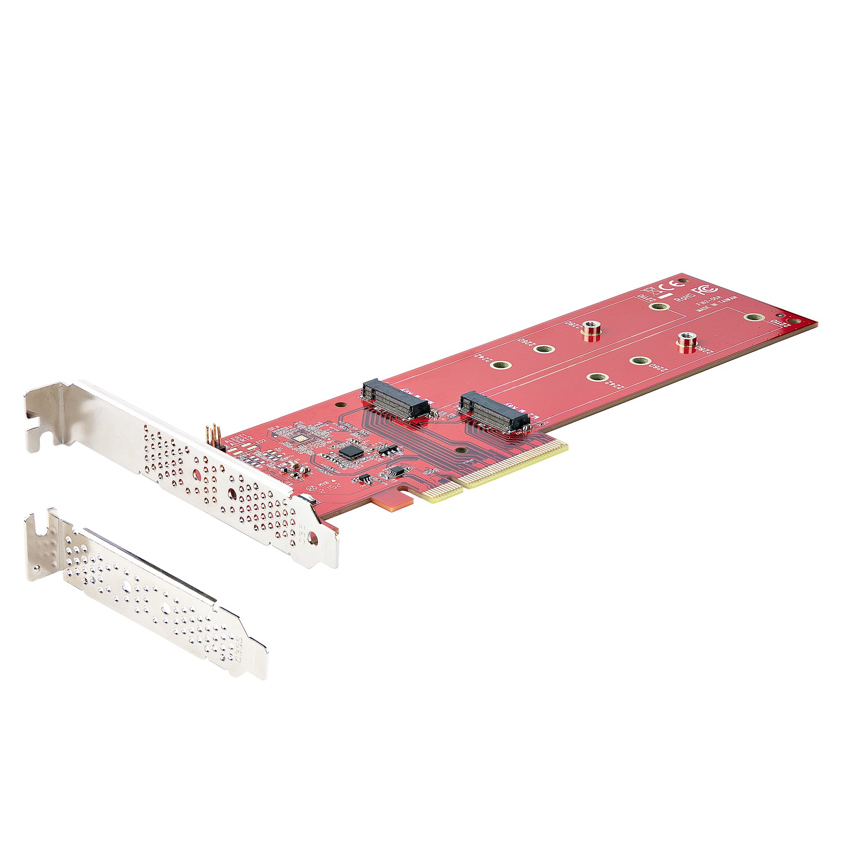

The included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.
The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance
The StarTech.com Advantage
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible
SKU: DUAL-M2-PCIE-CARD-B£53.97 ex VAT
£64.76 inc VAT
In stockPorts & interfaces Internal Yes Output interface M.2 Host interface PCIe Expansion card standard PCIe 4.0 Technical details Data transfer rate (max) 7.8 Gbit/s Performance Hot-swap No Data transfer rate (max) 7.8 Gbit/s Product colour Red Supported storage drive heights 22 mm Design Supported storage drive heights 22 mm Mean time between failures (MTBF) 6493014 h Hot-swap No Internal Yes Product colour Red LED indicators Yes Colour Product colour Red Features Data transfer rate (max) 7.8 Gbit/s Operational conditions Operating temperature (T-T) -40 - 80 °C Storage temperature (T-T) -40 - 85 °C Operating relative humidity (H-H) 15 - 90% System requirements Windows operating systems supported Yes Linux operating systems supported Yes Supported storage drive heights 22 mm Weight & dimensions Width 102 mm Depth 228 mm Height 22 mm Weight 74 g Package width 170 mm Package depth 290 mm Package height 30 mm Package weight 192 g Packaging data Mounting brackets included Yes Package width 170 mm Package depth 290 mm Package height 30 mm Package weight 192 g Quick installation guide Yes Screws included Yes Logistics data Products per master (outer) case 30 pc(s) Master (outer) case width 380 mm Master (outer) case length 500 mm Master (outer) case height 310 mm Packaging content Mounting brackets included Yes Quick installation guide Yes Screws included Yes Your parcel will arrive within 5 business days (excluding weekends and public holidays) after you place your order. Items are shipped in working days only, your order may arrive anytime between 7am and 9pm. Deliveries are not made on public holidays, so you can expect your order to arrive the next working day.
